2 Positioning the energizer

2.1 General

Before you start the installation of the controller it is important that the instructions are
studied carefully. A correct installation is essential if you want an optimal functionality of your
Energizer.
The energizer sends electrical pulses along the fence line, about one second apart. These
pulses give the animal a short, sharp, but safe shock. The shock doesn't harm the animal.
It is sufficiently memorable that the animal never forgets the shock, and will avoid the fence.
Fit the energizer to a wall, protected from the weather.
Keep the energizer away from children. Install the energizer in such a way that there cannot
be any chance of fire or mechanical damage.
Where possible, keep the energizer away from heavy-duty electrical equipment, such as
pumps, heavy-duty electric motors, high-voltage pylons and other objects that could cause
electrical interference.

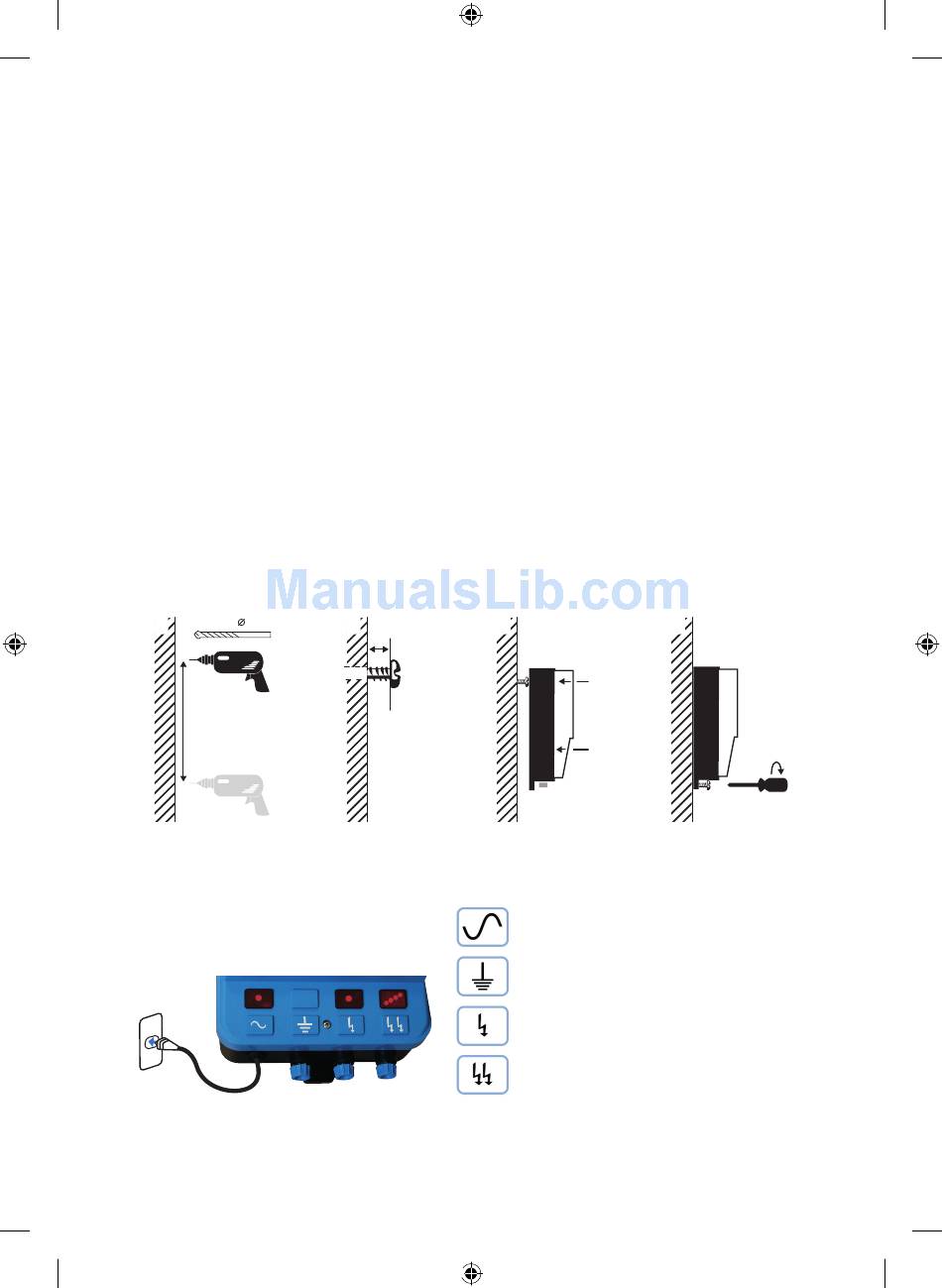

2.2 Wall fitting

a) Determine the position of the energizer and drill 2 holes of 6mm with 260mm (vertical) in
between the two holes.
b) Put the supplied plugs in the wall and screw one of the two supplied screws in the top
plug, making sure the screw sticks out approximately 10mm from the wall.
c) Place the top fitting hole of the energizer over the screw.
d) Now put the 2nd screw in the bottom hole and turn it finger tight.
6mm
A
260mm

3 Explanation of symbols and display

3.1 Output symbols all models

4
700034011_230V_M40-M40D-M65-M65D-Smart M SerieA+D_A5.indd 4
B C
10mm
Cable with plug for 230V main.
Earth Clips to be connected to the
earth rod.
Fence Clips (medium output) for smaller
fencing application.
Fence Clips (high output) for larger
fencing application.
D
