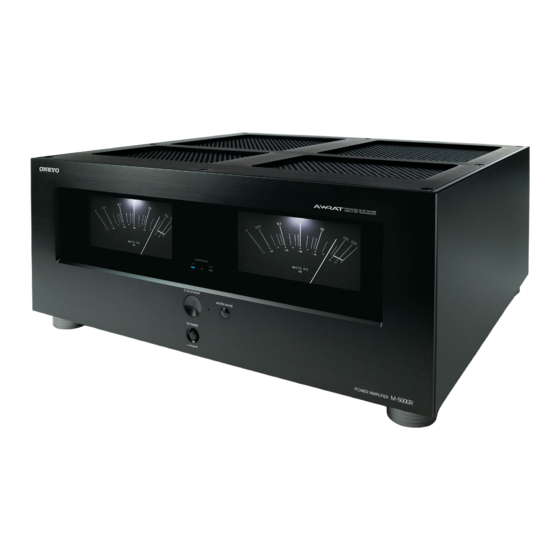

SERVICE MANUAL

POWER AMPLIFIER

M-5000R(B/S)
MODEL
Black and Silver models
BMDC
AC 120 V, 60 Hz
BMPP
AC 230 V, 50 Hz
SMPP
SMJJ
AC 100 V, 50/60Hz
SAFETY-RELATED COMPONENT
WARNING!!
COMPONENTS IDENTIFIED BY MARK
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.
MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.
Ref. No. 4255
ON THE
M-5000R
1,2011

Advertisement

loading
Need help?

Need help?

Do you have a question about the M-5000R and is the answer not in the manual?

Questions and answers

Related Manuals for Onkyo M-5000R

Summary of Contents for Onkyo M-5000R

  • Page 1: Service Manual

    COMPONENTS IDENTIFIED BY MARK ON THE SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK. REPLACE THESE COMPONENTS WITH ONKYO PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL. MAKE LEAKAGE-CURRENT OR RESISTANCE...

  • Page 2: Service Procedure

    M-5000R SERVICE PROCEDURE - 1 1. Replacing the fuses This symbol located near the fuse indicates that the fuse used is show operating type, For continued protection against fire hazard, replace with same type fuse, For fuse rating, refer to the marking adjacent to the symbol.
  • Page 3 M-5000R SERVICE PROCEDURE - 2 3. Adjustment of Meter Please check the meter in the level state with the location of the look. If checking the meter in the state which isn't level with the location of the look, it become with wrong judgement of acceptance.
  • Page 4 M-5000R SERVICE PROCEDURE - 3 4. Safety Standard Please confirm that a 2mm or more crevice is vacant between R9708(443523314T) and a bus bar.

  • Page 5: Front Side

    M-5000R SERVICE PROCEDURE - 4 6. Screw of Cover Please install the screw in the below-mentioned order. ( In order to hold down the being shaky of the cover ) SCREW COVER BLACK MODEL:SN801649 BLACK MODEL:SN28210077B SILVER MODEL:SN801645 SILVER MODEL:SN28210074B...
  • Page 6 M-5000R SERVICE PROCEDURE - 5 7. Position of SP Terminals Deburring and remember deburring place. Keep deburring place in this area. Keep deburring place in this area.
  • Page 7 M-5000R EXPLODED VIEWS - 1 A135 A125 A111 A057 P6503B A014 x 8PCS x 12PCS A032 x 2PCS A026 A120 x 8PCS A130 P9506B A031 x 2PCS A067 P6504B A128 A131 x 2pcs A027 Q7704 x 4PCS U0031 U0013 A127...

  • Page 8: Exploded Views

    M-5000R A021 A064 x 5pcs EXPLODED VIEWS - 2 x 4PCS Q6517 A054 Q6503 x 2PCS Q6513 Q6521 A050 A023 Q6521A x 4PCS Q6525 U0032 Q6511 Q6523 Q6515 Q6523A Q6527 Q6525A Q6527A U0010 A061 A061 A059 A060 P6504B Q6528A Q6528...
  • Page 9 M-5000R M-5000R SCHEMATIC DIAGRAMS - 1/6 BLOCK DIAGRAM SECTION 25065708 PRE 1st PRE 2nd + POWER AMP Lch input Lch SPoutput +10dB +21.5dB T9501 AC_COLD AC_HOT RL6601 RL6601 RL6601 TAP_LorM POWER SPEAKER TERMINALS AMPLIFIER DVCC SP_RERAY 25065708 25065708 PRE 1st...
  • Page 10 Meter buffer SIG_METER_L SIG_METER_R C7739 +BM15V DC OFFSET ADJUSTMENT -BM15V R7764 1. Set up the M-5000R horizontally. 2. Trim resistance of R5521,5522,5621,5622 are adjusted horizontally before 220K POWER ON. C7744 R7766 C2539 47/25 3. Set the voltages at SP OUT Lch±/SP OUT Rch± to ±50mV by adjusting 47/25 R5521/R5522, under the condition of no input(5.1k ohrm terminate) and no...
  • Page 11 P9535 BUS1000 DC OFFSET ADJUSTMENT PROTECT 1. Set up the M-5000R horizontally. 2. Trim resistance of R5521,5522,5621,5622 are adjusted horizontally before POWER ON. 3. Set the voltages at SP OUT Lch±/SP OUT Rch± to ±50mV by adjusting R5521/R5522, under the condition of no input(5.1k ohrm terminate) and no load, immediately after POWER ON.
  • Page 12 M-5000R SCHEMATIC DIAGRAMS - 4/6 METER AMP. SECTION NOTE U0023 BAETC-0562 ARE CRITICAL FOR SAFETY THE COMPONENTS IDENTIFIED BY MARK REPLACE ONLY WITH PART NUMBER SPECIFIED. VOLTAGE (MEASURED WITH VOLTMETER) IS DC VOLTAGE. (NO INPUT SIGNAL) Q7717 Q7719 NJM4580 ALL PNP TRANSISTORS ARE EQUIVALENT TO 2SA1015-GR UNLESS OTHERWISE NOTED.
  • Page 13 M-5000R SCHEMATIC DIAGRAMS - 5/6 TO BATRM-0552 TO BAETC-0560 TO BAETC-0562 MICROPROCESSOR SECTION SD-2 : E1 SD-6 : A5 SD-4 : A4 P7502B NSAS-9P1918 P7503B NPLG-11P358 P7505B NPLG-7P354 U0034 BADG-0566 METER_GND C7528 104Z Q7518 Q7521 Q7520 Q7519 KRC104S KRC104S KRC104S...
  • Page 14 M-5000R M-5000R SCHEMATIC DIAGRAMS - 6/6 POWER SUPPLY, RELAY, DISPLAY, METER RANGE SECTION CAUTION U0022 BAETC-0560 FOR CONTINUED PROTECTION 2 3 4 2 3 4 2 3 4 AGAINST FIRE HAZARD, REPLACE NEJITANSI_ST3 NEJITANSI_ST3 NEJITANSI_ST3 E9501 E9502 E9503 ONLY WITH FUSE OF SAME TYPE...
  • Page 15 M-5000R PRINTED CIRCUIT BOARD VIEW-1-1 U001 BAAMP-0549 BCETC0835 U0014 LIGHT (Lch) CIRCUIT PC BOARD BAETC-0612 U0010 BAAMP-0549 U0012 POWER AMPLIFIER (Lch) CIRCUIT METER-S (Lch) CIRCUIT PC BOARD PC BOARD BAETC-0555 U0016 BRIDGE DIODE (D9501) CIRCUIT PC BOARD BAETC-0941 BCETC-0837 U0017...
  • Page 16 M-5000R PRINTED CIRCUIT BOARD VIEW-1-2 U001 BAAMP-0549 Q6503 Q6517 Q6515 R6649 Q6513 Q6511 R6571 P6505A C6505 C6513 R6553 Q6525 Q6527 J6605 R6565 J6637 J6619 Q6521 J6635 J6641 P9539 Q6523 J6633 J6629 J6639 J6631 J6617 J6621 J6595 J6589 J6585 J6569 GRAY...
  • Page 17 M-5000R PRINTED CIRCUIT BOARD VIEW-1-3 U001 BAAMP-0549 R6529 R6531 R2553 R2537 R2539 R6605 R2551 C6501 R6527 R6639 R2541 Q6549 R2555 R6625 D6511 R6637 R6633 C6517 R6651 Q6545 R6629 Lch + Lch - R6530 R6532 R6606 C6502 R2554 R2538 R6528 R6640...
  • Page 18 M-5000R PRINTED CIRCUIT BOARD VIEW-2-1 U002 BAPS-0559 U0022 RELAY CIRCUIT PC BOARD PAETC-0560 U0020 POWER SUPPLY CIRCUIT PC BOARD U0023 BAPS-0559 METER CIRCUIT PC BOARD BAETC-0562 U0024 U0025 DISPLAY SWITCH CIRCUIT PC BOARD METER RANGE BADIS-0563 LED CIRCUIT PC BOARD...
  • Page 19 M-5000R PRINTED CIRCUIT BOARD VIEW-2-2 U002 BAPS-0559 Q9508 P9502B from TRANS D7717 D7719 0.5A 125V R7775 R7767 D9721 R7741 C7705 Q7713 Q7721 T9701 D7705 J7720 Q7715 Q7723 C9704 R7761 Q7701 R7751 C9707 J7722 R7705 AC-G R7780 D9713 D9718 P9502A D7707...
  • Page 20 M-5000R PRINTED CIRCUIT BOARD VIEW-3-1 U003 BACLA-0564 U0032 U0030 PREAMPLIFIER 2nd (Lch) PREAMPLIFIER 1st (Lch) CIRCUIT PC BOARD CIRCUIT PC BOARD BACLA-0604 BACLA-0564 U0033 U0031 PREAMPLIFIER 2nd (Rch) PREAMPLIFIER 1st (Rch) CIRCUIT PC BOARD CIRCUIT PC BOARD BACLA-0605 BACLA-0565 U0034...
  • Page 21 M5000R PRINTED CIRCUIT BOARD VIEW-3-2 U003 BACLA-0564 25140566 P7510B BCDG-0566 1 R7548 from THERMAL R MICON R7529 Q7515 C7527 GRAY R7502 X7500 R7514 Q7516 R7501 C7516 R7517 R7509 R7577 Q7517 Q7505 R7573 R7572 R7519 R7565 R7571 R7567 R7523 R7582 C7517 R7524 R7539 C7518...
  • Page 22 M5000R PRINTED CIRCUIT BOARD VIEW-3-3 U003 BACLA-0564 25140566 P7510B R7548 BCDG-0566 1 from THERMAL R MICON R7529 Q7515 C7527 GRAY R7502 X7500 R7514 Q7516 R7501 C7516 R7517 R7509 R7577 Q7517 R7573 Q7505 R7565 R7519 R7572 R7567 R7571 R7523 R7582 R7524 C7517 R7539 C7518...

  • Page 23: Exploded View Parts List

    1/37 PAGE M-5000R <Note> Parts marked by "NSP" are generally unavailable because <Notes> they are not in our Master Spare Parts List. (B) : Black model (S) : Silver model NOTE : THE COMPONENTS IDENTIFIED BY THE MARK ! ARE CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
  • Page 24 2/37 PAGE Q6522 TTC0002(Q)TO3PL 2204150 Q6522A ISO SHEET TO-3PL BFG20 223059 Q6523 TTC0002(Q)TO3PL 2204150 Q6523A ISO SHEET TO-3PL BFG20 223059 Q6524 TTC0002(Q)TO3PL 2204150 Q6524A ISO SHEET TO-3PL BFG20 223059 Q6525 TTC0002(Q)TO3PL 2204150 Q6525A ISO SHEET TO-3PL BFG20 223059 Q6526 TTC0002(Q)TO3PL 2204150 Q6526A ISO SHEET...
  • Page 25 3/37 PAGE A003 SIDE PANEL (R)(S) 28185485C N <S> A003 SIDE PANEL (R)(B) 28185491C N <B> A004 REAR PANEL 27124201D N <B MPP / S MPP> A004 REAR PANEL 27124202D N <S MJJ> A004 REAR PANEL 27124217D N <B MDC> A005 BRACKET 27131090C...
  • Page 26 4/37 PAGE A052 HOLDER (CLAMP) WS-1NS 27190541 A053 HOLDER WS-4NS 27191207 A054 PLATE (TR) 27262865 A057 LABEL (FLASH)(B) 29391423 <B MDC> A059 RETAINER (HL) 27142228 A060 RETAINER (HR) 27142229 A067 SPACER 27270438 t0.5xφ8xφ3.2 Teflon‐lined. A137 ISO PLATE (ST) 28175344 A320 TUBE (SPIRAL) 262093...
  • Page 27 5/37 PAGE A106 KNOB (STBY)B 28326864A <B> A107 KNOB (A)S 28326865A <S> A107 KNOB (A)B 28326866A <B> A108 KNOB (POW)AS(S) 28326899B <S> A108 KNOB (POW)AS(B) 28326900B <B> A109 KNOB (STANDBY-POW) 28326862B A110 CUSHION 28141854 A115 CLEAR PLT 28192323B A116 CLEAR PLT 28192327B A117 BADGE...
  • Page 28 6/37 PAGE T9501 P TRANS NPT-1599P 2302004 <B MPP / S MPP> T9502 P TRANS NPT-1599J 2302002 N, ! <S MJJ> T9502 P TRANS NPT-1599D 2302003 <B MDC> T9502 P TRANS NPT-1599P 2302004 <B MPP / S MPP> T9503 P TRANS NPT-1600JQ 2302005 [CAPACITOR]...
  • Page 29 7/37 PAGE Q7703 METER NIND-1200S175 243175A Q7704 METER NIND-1200S175 243175A R7771A FUSE LABEL 0.5A/125V 29391617 R7772A FUSE LABEL 0.5A/125V 29391617 NO NEED BAPS-0559 VER.B. R9709A FUSE LABEL 0.5A/125V 29391617 NO NEED BAPS-0559 VER.B. [TUNER UNIT] U001 U0010 ~ U00110 BAAMP-0549-1A * 1B255549-1A U0010 Power Amplifier (Lch) Circuit pc board a'sBAAMP-0549-1A...
  • Page 30 Preamplifier 2nd (Lch) circuit pc board a's BACLA-0604-1A 1B2555604-1A U0033 Preamplifier 2nd (Rch) circuit pc board a'sBACLA-0605-1A 1B2555605-1A U0034 Main Microprocessor circuit pc board a'ssyBADG-0566-1A 1B2555566-1A M-5000R PACKING PROCEDURES PARTS LIST REF. NO. PART NAME DESCRIPTION Q'TY PART NO. (SN) REMARKS...

  • Page 31: Pc Board Parts List

    29370045D <S MJJ> A842 INST SHEET WEEE 29355793 <B MPP / S MPP> A851 INS MANUAL En(M-5000R) 29400545 N <B MDC, MPP / S MPP> A852 INS MANUAL U2FrEs(M-5000R) 29400546 N <B MDC, MPP / S MPP> A853 INS MANUAL...
  • Page 32 10/37 PAGE D6504 C-DIODE 1SS352 223234R2 D6505 C-DIODE 1SS352 223234R2 D6506 C-DIODE 1SS352 223234R2 D6507 C-DIODE 1SS352 223234R2 D6508 C-DIODE 1SS352 223234R2 D6509 ZENER D UDZS4.3B 224550430R2 D6510 ZENER D UDZS4.3B 224550430R2 D6511 ZENER D UDZS5.1B 224550510R2 D6512 ZENER D UDZS5.1B 224550510R2 D6513...
  • Page 33 11/37 PAGE D2524B HOLDER (LED-LH5-2) 27191336 [TRANS COIL] L6505 S-COIL SC-1.1X6.5X26.5T 231433S L6506 S-COIL SC-1.1X6.5X26.5T 231433S [CAPACITOR] C6503 MKT C B32529C0102J289 376491024T C6503 or UMXR C 1HUMXRTF102JE ( 1) 376521024T C6504 MKT C B32529C0102J289 376491024T C6504 or UMXR C 1HUMXRTF102JE ( 1) 376521024T C6505...
  • Page 34 12/37 PAGE C6531 UTSP C CE04W10V-100M(UTSP) 397531017T C6532 UTSP C CE04W10V-100M(UTSP) 397531017T C9534 TF C ECQ-V100V-334J 374733344T C9535 TF C ECQ-V100V-334J 374733344T C9536 TF C ECQ-V100V-334J 374733344T C9537 TF C ECQ-V100V-334J 374733344T [RESISTOR] L6523 FR CORE 5597-45502 L6524 FR CORE 5597-45502 L6525 FR CORE...
  • Page 35 13/37 PAGE R6565 NF CARBON R R25J-2.2 415470224T R6566 NF CARBON R R25J-2.2 415470224T R6567 NF CARBON R R25J-82 415478204T R6568 NF CARBON R R25J-82 415478204T R6569 NF CARBON R R25J-15 415471504T R6570 NF CARBON R R25J-15 415471504T R6571 NF CARBON R R25J-33 415473304T R6572...
  • Page 36 14/37 PAGE R6628 C-CARBON R RN72K1J-333JE 435033334R1 R6629 C-CARBON R RN72K1J-333JE 435033334R1 R6630 C-CARBON R RN72K1J-333JE 435033334R1 R6631 C-CARBON R RN72K1J-223JE 435032234R1 R6632 C-CARBON R RN72K1J-223JE 435032234R1 R6633 C-CARBON R RN72K1J-103JE 435031034R1 R6634 C-CARBON R RN72K1J-103JE 435031034R1 R6635 C-CARBON R RN72K1J-562JE 435035624R1 R6636...
  • Page 37 (BUS-AMP1) 27142213 P9539 RETAINER (BUS-AMP1) 27142213 P9540 RETAINER (BUS-AMP1) 27142213 RL6587 RELAY NRL-2P5A-DC12-192 25065702 RL6588 RELAY NRL-2P5A-DC12-192 25065702 M-5000R PC BOARD PARTS LIST U002 PS-AS BAPS-0559-1 * 1B255559-1 CIRCUIT NO. PART NAME DESCRIPTION Q'TY PART NO. (SN) REMARKS [SEMI CONDUCTOR]...
  • Page 38 16/37 PAGE D2502 SCB3318E-D2 225487 D2503 SCB3318E-D2 225487 D2505 SLR343WBD2P_3-XR/XS_Rank 225499A D2507 SLI-343URC-T32 225436T D2508 C-DIODE 1SS352 223234R2 D2509 C-DIODE 1SS352 223234R2 D2512 ZENER D UDZS5.1B 224550510R2 D2514 C-DIODE 1SS352 223234R2 D2515 C-DIODE 1SS352 223234R2 D2516 ZENER D UDZS5.1B 224550510R2 D2519 ZENER D MTZJ15B...
  • Page 39 17/37 PAGE D9505 C-DIODE 1SS352 223234R2 D9506 C-DIODE 1SS352 223234R2 D9520 ZENER D UDZS18B 224551800R2 <S MJJ> D9520 ZENER D UDZS22B 224552200R2 <B MPP / S MPP, B MDC> D9523 C-DIODE 1SS352 223234R2 D9524 C-DIODE 1SS352 223234R2 D9525 C-DIODE 1SS352 223234R2 D9526 C-DIODE...
  • Page 40 18/37 PAGE Q7705 2SC2240-GR 2211405T Q7706 2SC2240-GR 2211405T Q7707 2SC2240-GR 2211405T Q7708 2SC2240-GR 2211405T Q7709 NJM4580M-D 22241448R2 Q7710 NJM4580M-D 22241448R2 Q7711 NJM4580M-D 22241448R2 Q7712 NJM4580M-D 22241448R2 Q7713 RN1441 2215410R2 Q7714 RN1441 2215410R2 Q7715 RN1441 2215410R2 Q7716 RN1441 2215410R2 Q7717 DTA114YKA 2216480R2 Q7718 DTA114YKA...
  • Page 41 19/37 PAGE Q9508 KRA107S 2216350R2 Q9521 2SC5171(ONK_Q) 2203010 Q9701 KRC104S 2216210R2 Q9702A 2SC5171(ONK_Q) 2203010 Q9702B HEAT-SINK HEAT-SINK 27160179 Q9702C SCREW 3TTB+8B(3BC) 838430088GR [CHASSIS SCREW] D2502B HOLDER (LED-LH5-2) 27191336 D2503B HOLDER (LED-LH5-2) 27191336 D2505B HOLDER (LED-LH5-2) 27191336 [TRANS COIL] T9701 P TRANS NPT-1520JQ 2301812A <S MJJ, B MDC>...
  • Page 42 20/37 PAGE C2531 ROB C CE04W25V-100M(ROB) 395851017T C2532 ROB C CE04W25V-100M(ROB) 395851017T C2533 ROB C CE04W25V-100M(ROB) 395851017T C2534 ROB C CE04W25V-100M(ROB) 395851017T C2536 C-CERA C CC725CH1H-102J1 342101024R1 C2537 C-CERA C CC725CH1H-102J1 342101024R1 C2538 C-CERA C CC725CH1H-102J1 342101024R1 C2539 UTSP C CE04W25V-47M(UTSP) 397554707T C2540...
  • Page 43 21/37 PAGE C7739 CERA C CC45SL50V-330J 345023304T C7741 UTSP C CE04W25V-100M(UTSP) 397551017T C7742 UTSP C CE04W25V-100M(UTSP) 397551017T C7743 UTSP C CE04W25V-47M(UTSP) 397554707T C7744 UTSP C CE04W25V-47M(UTSP) 397554707T C9505 UTSP C CE04W50V-10M(UTSP) 397581007T C9507 TF C ECQ-V50V-103J 374721034T C9508 TF C ECQ-V50V-103J 374721034T C9511...
  • Page 44 22/37 PAGE R2502 C-CARBON R RN72K1J-222JE 435032224R1 R2503 C-CARBON R RN72K1J-470JE 435034704R1 R2504 C-CARBON R RN72K1J-103JE 435031034R1 R2506 C-CARBON R RN72K1J-470JE 435034704R1 R2507 C-CARBON R RN72K1J-472JE 435034724R1 R2508 C-CARBON R RN72K1J-472JE 435034724R1 R2509 C-CARBON R RN72K1J-104JE 435031044R1 R2510 C-CARBON R RN72K1J-104JE 435031044R1 R2511...
  • Page 45 23/37 PAGE R5550 NF CARBON R R25J-150 415471514T R5551 NF CARBON R R25J-150 415471514T R5552 NF CARBON R R25J-150 415471514T R7701 C-CARBON R RN72K1J-103JE 435031034R1 R7702 C-CARBON R RN72K1J-103JE 435031034R1 R7703 C-CARBON R RN72K1J-102JE 435031024R1 R7704 C-CARBON R RN72K1J-102JE 435031024R1 R7705 C-CARBON R RN72K1J-100JE...
  • Page 46 24/37 PAGE R7731 C-CARBON R RN72K1J-153JE 435031534R1 R7732 C-CARBON R RN72K1J-153JE 435031534R1 R7733 C-CARBON R RN72K1J-104JE 435031044R1 R7734 C-CARBON R RN72K1J-104JE 435031044R1 R7735 C-CARBON R RN72K1J-103JE 435031034R1 R7736 C-CARBON R RN72K1J-103JE 435031034R1 R7737 C-CARBON R RN72K1J-104JE 435031044R1 R7738 C-CARBON R RN72K1J-104JE 435031044R1 R7739...
  • Page 47 25/37 PAGE R7764 C-CARBON R RN72K1J-224JE 435032244R1 R7765 C-CARBON R RN72K1J-563JE 435035634R1 R7766 C-CARBON R RN72K1J-563JE 435035634R1 R7767 C-CARBON R RN72K1J-103JE 435031034R1 R7768 C-CARBON R RN72K1J-103JE 435031034R1 R7769 METAL R RNU1/2WCJ-2.2 453530224T R7770 METAL R RNU1/2WCJ-2.2 453530224T R7771 FUSE 0.5A-T/UL/SE-125V 252379T R7772 FUSE...
  • Page 48 26/37 PAGE R9527 THERMISTOR M3R014C 4000148 R9527A C COVER SB1925A 27301216 R9528 THERMISTOR M3R014C 4000148 R9528A C COVER SB1925A 27301216 R9700 METAL O R RS1/2WBJ-330 443523314T R9701 C-CARBON R RN72K1J-562JE 435035624R1 R9703 NF CARBON R R25J-1.0K 415471024T R9704 C-CARBON R RN72K1J-104JE 435031044R1 R9706...
  • Page 49 27/37 PAGE F9504A FUSE HOL NSCT-1P2031 25052133T F9504B FUSE HOL NSCT-1P2031 25052133T P2501A SOCKET AS NSAS-10P0158 2006391010UL P2501B PLUG NPLG-5P352 25055369 P2502 PIN JACK NPJ-1PDR710 25045944 P2503 PIN JACK NPJ-1PDW709 25045943 P2504 SOCKET AC3FAH2-AU-B 25053400 P2505 ST JACK MSJ-035-22 25045887 P2506 ST JACK MSJ-035-22...
  • Page 50 25035724 [TUNER UNIT] Q2500 PHT CP PS2501AL-1 24120141R2 Q2504 PHT CP PS2501AL-1 24120141R2 Q2505 PHT CP PS2501AL-1 24120141R2 M-5000R PC BOARD PARTS LIST U003 CLA-AS BACLA-0564-1 * 1B255564-1 CIRCUIT NO. PART NAME DESCRIPTION Q'TY PART NO. (SN) REMARKS [SEMI CONDUCTOR]...
  • Page 51 29/37 PAGE D7501 ZENER D UDZS3.3B 224550330R2 D7502 C-DIODE 1SS352 223234R2 D7503 C-DIODE 1SS352 223234R2 D7504 C-DIODE 1SS352 223234R2 D7505 C-DIODE 1SS352 223234R2 Q5501 2SA970-BL(TPE2_F) 2211396T Q5502 2SA970-BL(TPE2_F) 2211396T Q5503 2SC2240-BL(TPE2_F) 2211406T Q5504 2SC2240-BL(TPE2_F) 2211406T Q5505 2SC2240-BL(TPE2_F) 2211406T Q5506 2SC2240-BL(TPE2_F) 2211406T Q5507 2SA970-BL(TPE2_F)
  • Page 52 30/37 PAGE Q5609 2SC2240-BL(TPE2_F) 2211406T Q5610 2SC2240-BL(TPE2_F) 2211406T Q5611 2SC2240-BL(TPE2_F) 2211406T Q5612 2SC2240-BL(TPE2_F) 2211406T Q5613 2SA970-BL(TPE2_F) 2211396T Q5614 2SA970-BL(TPE2_F) 2211396T Q5615 2SA970-BL(TPE2_F) 2211396T Q5616 2SA970-BL(TPE2_F) 2211396T Q5621 2SA1360-Y 2202094 Q5621A HEAT SINK (PD) 27160661A Q5621B SCREW 3TTB+8B(3BC) 838430088GR Q5622 2SA1360-Y 2202094 Q5622A HEAT SINK...
  • Page 53 31/37 PAGE Q7516 KRC104S 2216210R2 Q7517 KRC104S 2216210R2 Q7518 KRC104S 2216210R2 Q7519 KRC104S 2216210R2 Q7520 KRC104S 2216210R2 Q7521 KRC104S 2216210R2 [CAPACITOR] C5501 TF C ECQ-V50V-104J 374721044T C5502 TF C ECQ-V50V-104J 374721044T C5503 TF C ECQ-V50V-104J 374721044T C5504 TF C ECQ-V50V-104J 374721044T C5505 CERA C...
  • Page 54 32/37 PAGE C7508 C-CERA C CK725F1E-104Z1 332161040R1 C7509 C-CERA C CK725B1H-102K1 332101025R1 C7510 C-CERA C CK725B1H-102K1 332101025R1 C7513 UTSP C CE04W50V-10M(UTSP) 397581007T C7514 C-CERA C CK725F1E-104Z1 332161040R1 C7515 UTSP C CE04W16V-470M(UTSP) 397544717T C7516 UTSP C CE04W25V-100M(UTSP) 397551017T C7517 C-CERA C CK725F1E-104Z1 332161040R1 C7518...
  • Page 55 33/37 PAGE R5520 CARBON R R16J-15K 417341534T R5521 TRIM R N06HR1KBC 5210389T R5522 TRIM R N06HR1KBC 5210389T R5523 CARBON R R16J-6.8K 417346824T R5524 CARBON R R16J-6.8K 417346824T R5525 CARBON R R16J-1 417340104T R5526 CARBON R R16J-1 417340104T R5527 CARBON R R16J-5.6K 417345624T R5528...
  • Page 56 34/37 PAGE R5605 CARBON R R16J-680 417346814T R5606 CARBON R R16J-680 417346814T R5607 METAL O R RS1WBJ-10K 443621034T R5608 METAL O R RS1WBJ-10K 443621034T R5609 METAL O R RS1WBJ-10K 443621034T R5610 METAL O R RS1WBJ-10K 443621034T R5611 CARBON R R16J-220 417342214T R5612 CARBON R...
  • Page 57 35/37 PAGE R5638 CARBON R R16J-68 417346804T R5639 CARBON R R16J-1.5K 417341524T R5640 CARBON R R16J-1.5K 417341524T R5641 CARBON R R16J-330K 417343344T R5642 CARBON R R16J-330K 417343344T R5661 C-CARBON R RN72K1J-104JE 435031044R1 R5662 C-CARBON R RN72K1J-104JE 435031044R1 R5663 C-CARBON R RN72K1J-103JE 435031034R1 R5664...
  • Page 58 36/37 PAGE R7519 C-CARBON R RN72K1J-221JE 435032214R1 R7523 C-CARBON R RN72K1J-470JE 435034704R1 R7524 C-CARBON R RN72K1J-000JE 435030004R1 R7525 C-CARBON R RN72K1J-000JE 435030004R1 R7526 C-CARBON R RN72K1J-000JE 435030004R1 R7528 C-CARBON R RN72K1J-472JE 435034724R1 R7529 C-CARBON R RN72K1J-470JE 435034704R1 R7530 C-CARBON R RN72K1J-224JE 435032244R1 R7531...
  • Page 59 37/37 PAGE R7582 C-CARBON R RN72K1J-221JE 435032214R1 R7583 C-CARBON R RN72K1J-103JE 435031034R1 R7584 C-CARBON R RN72K1J-103JE 435031034R1 R7585 C-CARBON R RN72K1J-224JE 435032244R1 R7586 C-CARBON R RN72K1J-224JE 435032244R1 R7587 C-CARBON R RN72K1J-104JE 435031044R1 R7592 C-CARBON R RN72K1J-102JE 435031024R1 R7593 C-CARBON R RN72K1J-473JE 435034734R1 [SW TRM]...
  • Page 60 Service Dept. Technical Support : 2-1, Nisshin-cho, Neyagawa-shi, OSAKA 572-8540, JAPAN Tel: 072-831-8023 Fax: 072-831-8163 ONKYO U.S.A. CORPORATION 18 Park Way, Upper Saddle River, N.J. 07458, U.S.A. Tel: 800-229-1687, 201-785-2600 Fax: 201-785-2650 http://www.us.onkyo.com/ ONKYO EUROPE ELECTRONICS GmbH Liegnitzerstrasse 6, 82194 Groebenzell, GERMANY Tel: +49-8142-4401-0 Fax: +49-8142-4401-555 http://www.eu.onkyo.com/...
