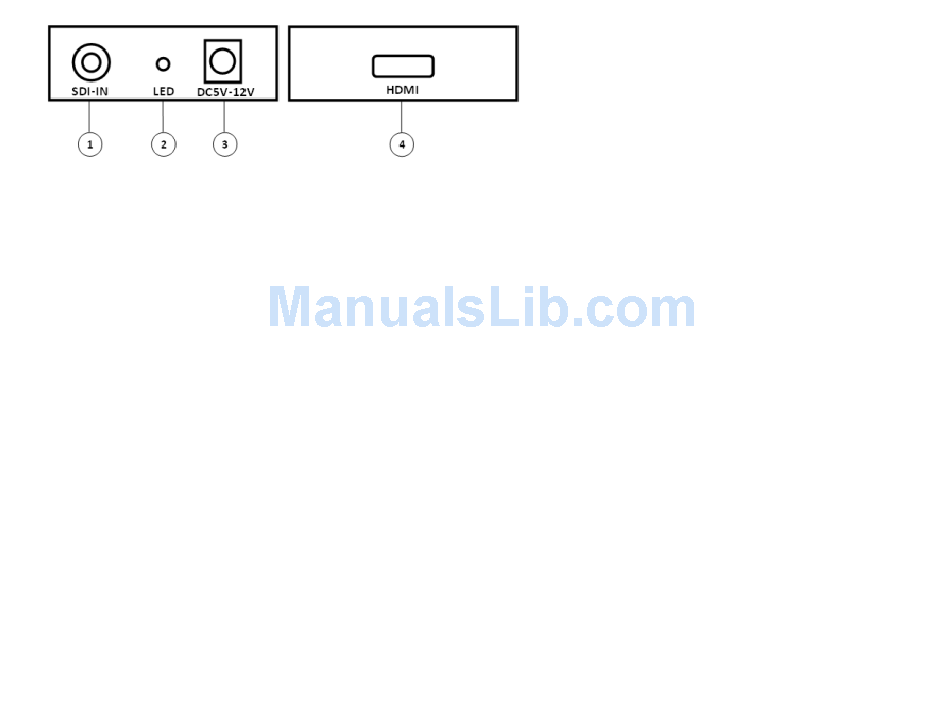

1.
SDI IN: This socket connects to an SDI source.
2.
POWER LED: This red LED illuminate when the device is connected with power supply.
3.
HDMI OUT: This socket connects to an HDMI display.
4.
DC IN: Plug the 5V-12V DC power supply into the unit.
 Application Example
