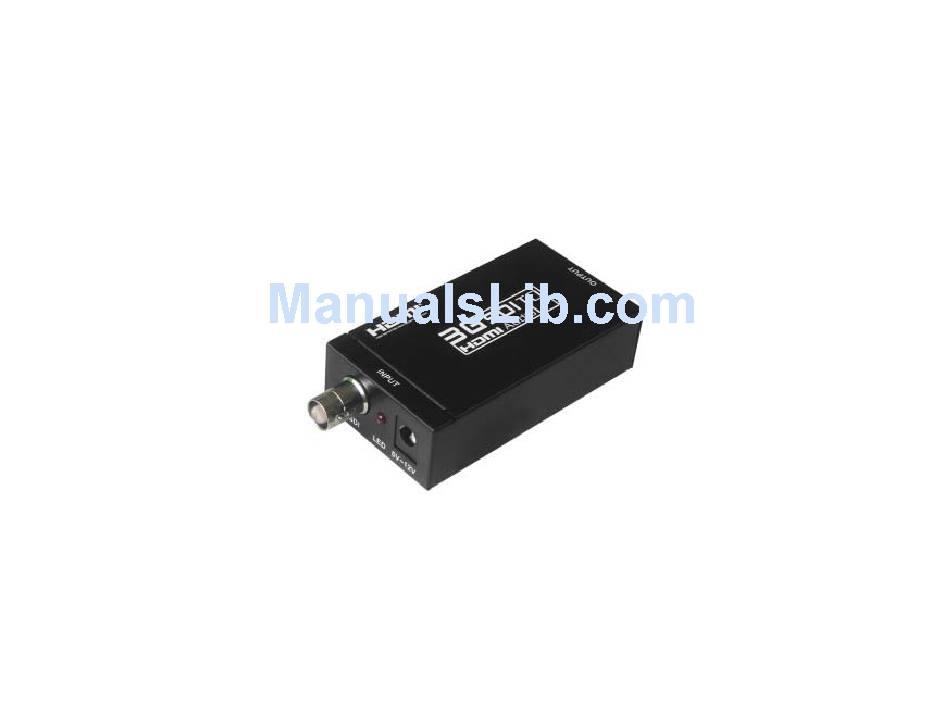

SDI to HDMI Converter
AC-1727
User manual
 Introduction

Advertisement

loading

  Related Manuals for DIGITECH Audio AC-1727

  Summary of Contents for DIGITECH Audio AC-1727

  • Page 1 SDI to HDMI Converter AC-1727 User manual  Introduction...
  • Page 2 The SDI to HDMI converter allows SD-SDI, HD-SDI and 3G-SDI signals to be shown on HDMI displays while ensuring high bit rates of 2.970 Gbit/s to give you fast signal transmission without any loss. This means that it is now easier to distribute and extend your 3G SDI signal while giving you the ability to display your work on HDMI displays.
  • Page 3 1. 3G SDI to HDMI Converter 2. 5V DC Power Supply Adaptor 3. Operation Manual  Specifications Input Port 1 x BNC (SDI/HD-SDI/3G-SDI) Output Port 1 x HDMI SDI Transmission Rates 2.970 Gbit/s and 2.970/1.001 Gbit/s In/Output Resolution 480i, 576i, 720p@50/59.94,60 ,1080i@50/59.94/60 1080p@23.97/24/25/29.97/30/50/59.94/60 Power Supply DC 5V -12V...
  • Page 4 SDI IN: This socket connects to an SDI source. POWER LED: This red LED illuminate when the device is connected with power supply. HDMI OUT: This socket connects to an HDMI display. DC IN: Plug the 5V-12V DC power supply into the unit. ...
  • Page 5 IMPORTANT: - Never attempt to open, repair or modify any part of this unit or its accessories. - Never get any part of the device or its accessories wet. - Failure to adhere to these points will result in a void of warranty.
