Summary of Contents for CMC Rescue MPD

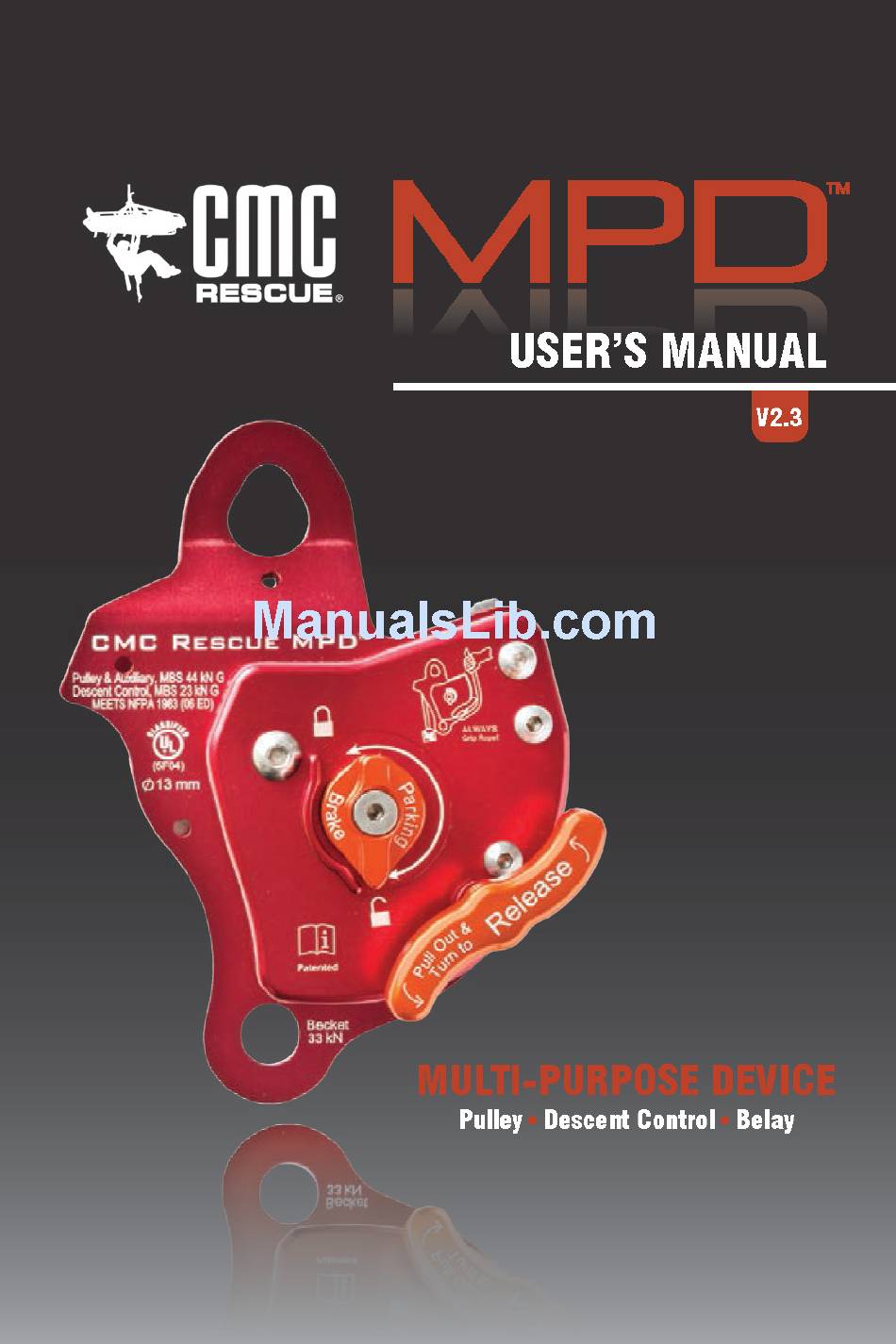

- Page 2 Thank you for selecting the CMC Rescue MPD™ for your technical rope rescue systems. Truly a multi-purpose device, the flexibility and versatility of the MPD reduces the number of components in a rescue system and simplifies system rigging. The result is a safer and more efficient rescue.
-
Page 3: Table Of Contents
Securing the MPD Using the MPD as a Descent Control Device To Lower To Stop Lowering Using the MPD as a Belay Device Belaying a Lowering System Belaying a Raising System Mirrored Systems Using the MPD in a Mechanical Advantage System... -
Page 4: Release Handle
THE MPD The MPD is designed for use with static or low-stretch kernmantle life safety rope. Use only rope that has been inspected, is of proper size and is in good condition. The user should be aware that environmental conditions may have an effect on the rope’s interaction with the MPD. - Page 5 As with all new rescue equipment, the MPD should be thoroughly inspected before being placed in service. The MPD is a robust unit but should still be inspected after each use to ensure that damage did not occur. When inspecting, look for any damaged, dirty or sticking components, excessive wear or any other factor that may prevent proper function.
-
Page 6: About The Mpd
MPD is rigged as a ratchet or progress capture in a pulley system. For example, once the rigged MPD is connected to the anchor, for safety, lock the Parking Brake until you are ready to use the device. - Page 7 ROTATE BACK PLATE REVIEW DIAGRAM FULLY OPEN FOR PROPER LOADING Anchor Running End Running End Load End Load End INSERT CLOSE AND SECURE ROPE BACK PLATE Parking Brake must be unlocked to load.
-
Page 8: Rigging The Mpd
A QUICK TUG ON THE LOAD END OF THE ROPE TO ENSURE PROPER RIGGING PRIOR TO COMMITTING A LIVE LOAD OVER AN EDGE. WHEN RIGGED PROPERLY, THE MPD WILL LOCK UP. THE MPD MUST BE PROPERLY RIGGED PRIOR TO USE Tug on Load End... -
Page 9: Securing The Mpd
If the MPD is to be left unattended, or if you need to release your grip on the running end of the rope for more than a short... -
Page 10: As A Descent Control Device
As the rescuer or rescuer and patient approach the edge, it is very easy to take in rope through the MPD to prepare for the edge transition. Pretensioning of the Main Line is also simplified because of this. - Page 11 Begin lowering by rotating the handle slowly counterclockwise all the way to completely unseat the Moving Brake from the rope, controlling the rate primarily with friction on the Fixed Brake V-Groove. Maintaining the “S-shaped” bend in the rope will improve the function of the braking mechanism in the event it is needed and will increase the service life of the Moving Brake, reducing the potential for rope creep through the device.
- Page 12 Unlock the Parking Brake. Grasp the Release Handle and pull up to engage the release mechanism (1) and then rotate counterclockwise to lower (2). Rotating the Moving Brake off the rope may significantly increase the service life of the MPD. Pull up to engage the...
-
Page 13: To Stop Lowering
FOR HEAVY LOADS Add additional friction by threading the rope over the Secondary Friction Post. Load TO STOP LOWERING To stop lowering and lock the rope, disengage the Release Handle. NOTE Although there is a return spring to assist in disengaging the Release Handle, it is the user’s responsibility to ensure that the handle is fully pushed in when not actively lowering. -
Page 14: Using The Mpd As A Belay Device
AS A BELAY DEVICE The MPD is designed to be used as a belay device to arrest a falling load should the Main Line system fail. It is recommended that during edge transitions, while either lowering or raising loads, that the Belay Line tension be kept hand tight and without slack in the line. - Page 15 Therefore, in a Shared Tension lower it is imperative that the running end rope of the Belay Line be held back toward the anchor, maintaining the “S-shaped” bend as the rope runs through the MPD. If there is a sudden change in speed or tension on the rope running through the MPD,...
- Page 16 The other hand feeds the running end into the MPD so that the rope is unseated from the sheave tread . This will reduce rope drag on the sheave and keep the MPD from inadvertently locking up.
-
Page 17: Belaying A Raising System
MPD. This way either rope system can perform either function, without the need for complex changeovers or function specific equipment. Additionally, if an MPD is used for both the Main Line and Belay Line in a Shared Tension System, then should either of these systems fail, the other rope system can serve as a belay and the potential arresting distance is minimized since both ropes will be prestretched. -
Page 18: Mechanical Advantage System
IN A MECHANICAL ADVANTAGE SYSTEM The MPD is designed to function both as a pulley and as a ratchet or progress capture device in a M/A system. After lowering, there is no need for a complex changeover between a lowering system and a raising system. -
Page 19: Additional Information
• Operating the hoist or reeving lines • For additional information on use of the MPD, instructional videos can be viewed at cmcrescue.com/videos. Additionally, CMC Rescue School provides comprehensive, hands-on training for all advanced techniques. For questions or information on training with the MPD, or any other CMC Rescue product, please call (800) 235-5741 or email support@cmcrescue.com. -
Page 20: Inspection And Repair
Each user should be trained in equipment inspection and should do a cursory inspection before each use. The MPD should be inspected after each use to ensure that damage did not occur. When inspecting, look for any damaged, dirty or sticking components, excessive wear or any other factor that may prevent proper function. -
Page 21: Specifications
Weight 1.1 kg (2 lb 8 oz) Rated Strength • Pulley 44 kN (9,891 lbf) • Descent Control 20 kN (4,496 lbf) • Becket 33 kN (7,418 lbf) 11 mm Rope Model Photos used throughout this manual are Item Number 333000 MPD 13 mm Rope Model. -
Page 22: Quick Reference Guide
2. Tug on load end of rope to verify correct rigging before use. 3. Lock Parking Brake when MPD not under load. 4. Lock Parking Brake and tie off MPD when left unattended. Descent/Lowering 1. Hold rope firmly back against Fixed Brake V-Groove, maintaining “S-shaped”...
