The 3114 can be installed on a DIN rail or on a power rail. For marine applications the devices must be supported by a module
stop (PR part number 9404). Power supply units can be mounted on the power rail according to customer requirements.
If you want to install a 3114 device with power rail connectors on a standard DIN rail, the head of the screws holding the 7.5
mm DIN rail shall be no more than 3.5 mm high in order to avoid short circuit between the power rail connectors on the 3114
and the screws.
It is possible to supply the power rail via the supply terminals.
The terminals can pass a current of max. 400 mA.
The front cover of the 3114 has been designed with an area
for affixation of a click-on marker. The area assigned to the
marker measures 5 x 7.5 mm. Markers from Weidmüller's
MultiCard System, type MF 5/7.5, are suitable.

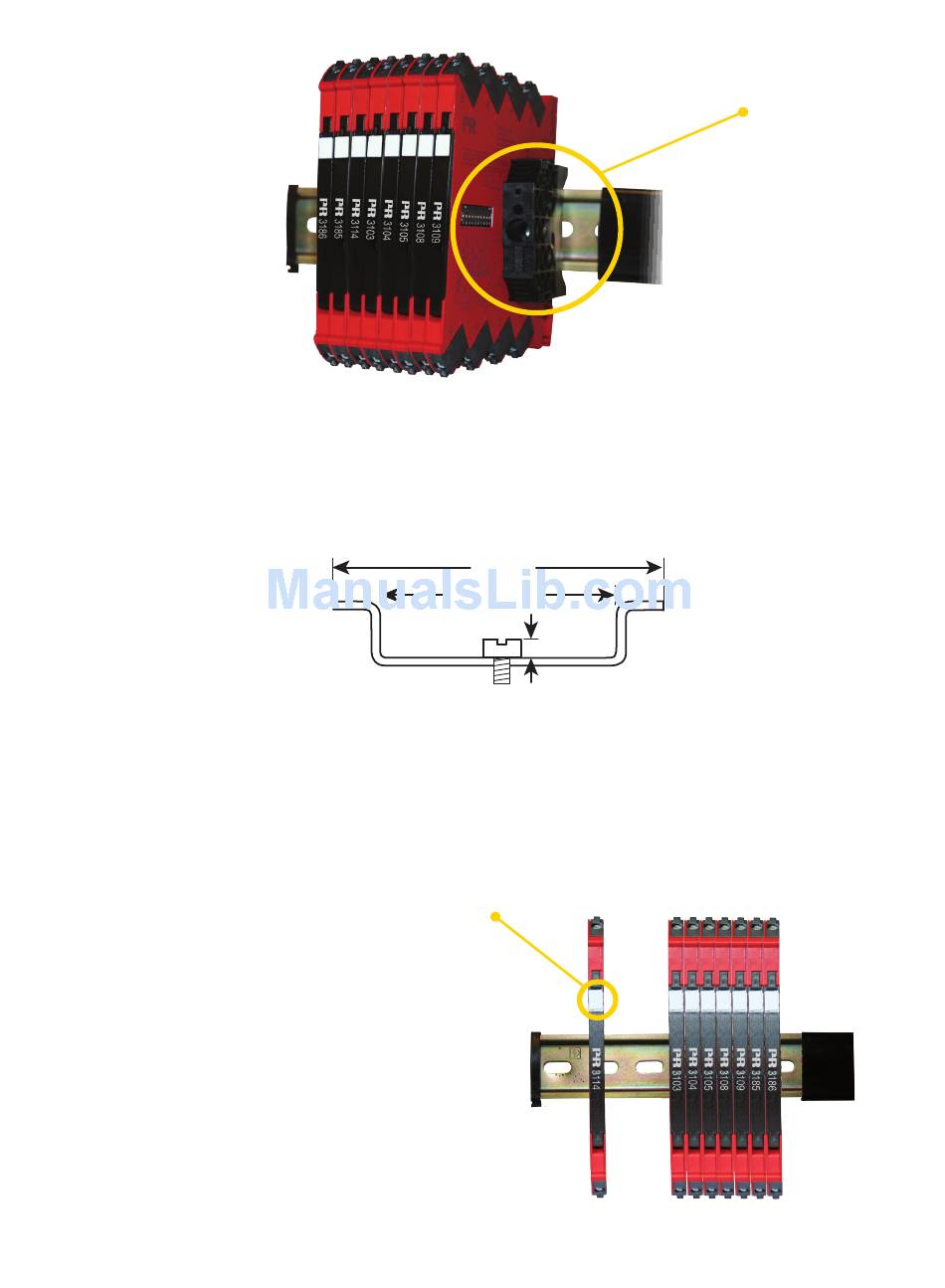

Installation on DIN rail / power rail
35 mm
> 24 mm
Supply of power rail
Marking
3114V102-UK
< 3.5 mm
Module stop
