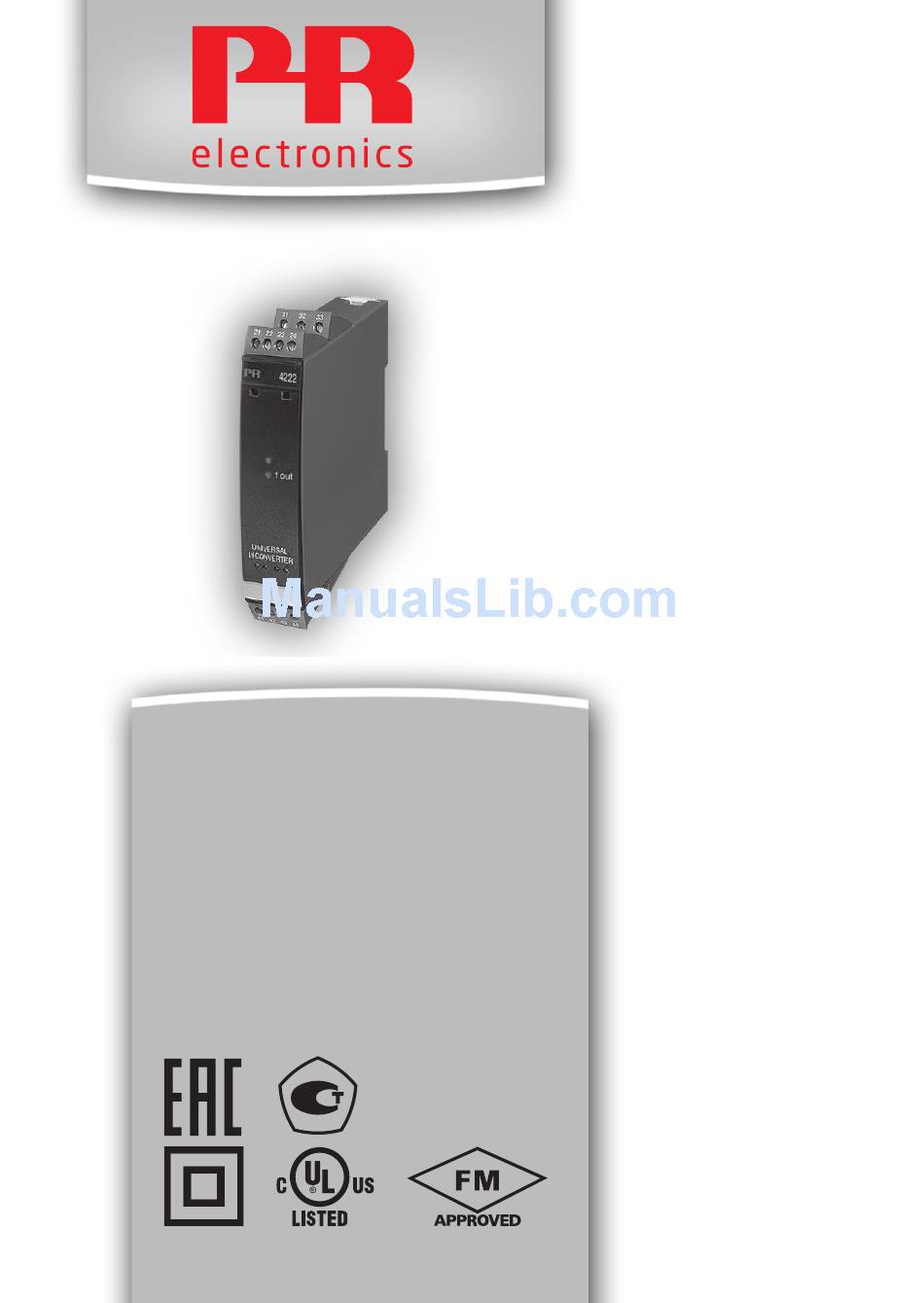

- Page 1 4 2 2 2 U n i v e r s a l I / f c o n v e r t e r N o . 4 2 2 2 V 1 0 1 - U K F r o m s e r . n o . 0 6 0 8 6 7 0 0 1...
- Page 2 PR electronics A/S tilbyder et bredt program af analoge og digitale signalbehandlingsmoduler til industriel automation. Programmet består af Isolatorer, Displays, Ex-barrierer, Temperaturtransmittere, Universaltransmittere mfl. Vi har modulerne, du kan stole på i selv barske miljøer med elektrisk støj, vibrationer og temperaturudsving, og alle produkter opfylder de strengeste internationale standarder.
-
Page 3: Table Of Contents
UNIVERSAL I/f CONVERTER 4222 CONTENTS Warning ....................... Symbol identification ................Safety instructions ................. How to dismantle system 4000 ............Advanced features ................. Application ....................Technical characteristics ..............PR 4501 Display / programming front ........... Mounting / demounting the PR 4501/4511 ....... 10 Applications.................... -
Page 4: Warning
WARNING This device is designed for connection to hazardous electric vol- tages. Ignoring this warning can result in severe personal injury or mechanical damage. To avoid the risk of electric shock and fire, the safety instruc tions of this manual must be observed and the guidelines fol lowed. -
Page 5: Symbol Identification
SYMBOL IDENTIFICATION Triangle with an exclamation mark: Warning / demand. Potentially lethal situations. The CE mark proves the compliance of the device with the essential requirements of the directives. The double insulation symbol shows that the device is protected by double or reinforced insulation. SAFETY INSTRUCTIONS DEFINITIONS Hazardous voltages have been defined as the ranges: 75 to 1500 Volt DC, and... - Page 6 Mounting and connection of the device should comply with national legislation for mounting of electric materials, i.a. wire cross section, protective fuse, and location. Descriptions of input / output and supply connections are shown in the block diagram and side label. The following apply to fixed hazardous voltages-connected devices: The max.
-
Page 7: How To Dismantle System 4000
HOW TO DISMANTLE SYSTEM 4000 First, remember to demount the connectors with hazardous voltages. Picture 1: Detach the device from the DIN rail by lifting the bottom lock. 4222V101-UK... -
Page 8: Advanced Features
• Galvanic separation and conversion of analogue signals to frequency signals. Technical characteristics • When 4222 is used in combination with the 4501 display / programming front, all operational parameters can be modified to suit any application. As the 4222 is designed with electronic hardware switches, it is not necessary to open the device for setting of DIP-switches. -
Page 9: Pr 4501 Display / Programming Front
Application • Communications interface for modification of operational parameters in 4222. • Can be moved from one 4222 device to another and download the configuration of the first converter to subsequent converters. • Fixed display for readout of process data and status. -
Page 10: Mounting / Demounting The Pr 4501/4511
MOUNTING / DEMOUNTING THE PR 4501/4511 1: Insert the taps of 4501/4511 into the holes at the top of the device. 2: Swing 4501/4511 into place. Demounting of 4501/4511 3: Push the release button on the bottom of 4501/4511 and swing 4501/4511 4222V101-UK... -
Page 11: Applications
APPLICATIONS Input signals: Volt- Poten- tiometer Current RTD and lin. R Connection, wires Output signals: Frequency output PNP, +24 V NPN, 24 V Out. Gnd. TTL, 5 V Supply: 21.6...253 VAC 19.2...300 VDC 4222V101-UK... -
Page 12: Order Codes
Order codes 4222 = Universal I/f converter 4501 = Display / programming front Electrical specifications Specifications range ..........-20°C to +60°C Calibration temperature ........20...28°C Relative humidity............. < 95% RH (non-cond.) Protection degree ............ IP20 Mechanical specifications Dimensions (HxBxD) ..........109 x 23.5 x 104 mm Dimensions, with 4501 / 4511 (HxBxD) .. - Page 13 Basic values Input Basic Temperature type accuracy coefficient ≤ ±4 µA ≤ ±0.4 µA / °C Volt ≤ ±20 µV ≤ ±2 µV / °C ≤ ±0.2°C ≤ ±0.01°C / °C Pt100 Linear resistance ≤ ±0.1 Ω ≤ ±0.01 Ω / °C ≤...
- Page 14 TC input Min. Max. Type value value Standard +400°C +1820°C IEC 60584-1 -100°C +1000°C IEC 60584-1 -100°C +1200°C IEC 60584-1 -180°C +1372°C IEC 60584-1 -200°C +900°C DIN 43710 -180°C +1300°C IEC 60584-1 -50°C +1760°C IEC 60584-1 -50°C +1760°C IEC 60584-1 -200°C +400°C IEC 60584-1...
- Page 15 PNP output max................ 30 mA ................24 VDC ± 10% ................10 nF typ................ 20 Ω Electromechanical counter ........24 V / 135 mA / 20 ms / ≤ 10 Hz NPN output max............... 150 mA sink max.
-
Page 16: Configuration Of Sensor Error Detection
Configuration of sensor error detection Module: Configuration Sensor error detection: OUT.ERR=NO 4222 Else: Display readout on the 4501 Display outside range Display readout below min. / above max. (-1999, 9999): Flashing Input Range readout Limit -1999 Display readout <-1999 9999 Display readout >9999... -
Page 17: Sensor Error Detection Limits
Test of internal CJC sensor CJ.ER tem perature outside range Checksum test of the configuration in FLASH FL.ER Error in FLASH Communications test 4501 / 4222 NO.CO Connection error Check that input signal matches input configuration IN.ER 1) Error levels on input Check that saved configuration in 4501 matches module TY.ER... -
Page 18: Connections
CONNECTIONS Supply: Inputs RTD, 2-wire RTD, 3- / 4-wire Resistance, 2-wire 41 42 43 44 41 42 43 44 41 42 43 44 41 42 43 44 Resistance, Potentiometer 2-wire transmitter Current 3- / 4-wire 41 42 43 44 41 42 43 44 41 42 43 44 41 42 43 44 Voltage... -
Page 19: Block Diagram
BLOCK DIAGRAM 2-wire transmitter Current Voltage Potentiometer 4222V101-UK... -
Page 20: Configuration / Operating The Function Keys
Documentation for routing diagram. In general When configuring the 4222, you will be guided through all parameters and you can choose the settings which fit the application. For each menu there is a scrolling help text which is automatically shown in line 3 on the display. -
Page 21: Advanced Functions
Signal and sensor error info via display front 4501 Sensor error (see limits in the table) is displayed as SE.BR (sensor break) or SE.SH (sensor short). Signals outside the selected range (not sensor error, see table for limits) are displayed as IN.LO indicating low input signal or IN.HI indicating high input signal. - Page 22 Language: In the menu ”lang.setup” you can choose between 7 different language versions of help texts that will appear in the menu. You can choose between UK, DE, FR, IT, ES, SE and DK. Auto diagnosis The unit performs an advanced auto diagnosis of the internal circuits. The following possible errors can be displayed in the front unit 4501.
-
Page 23: Routing Diagram
ROUTING DIAGRAM Power up If no key is activated for 1 minute, the display will return to the default state 1.0 without saving configuration changes. 1 Increase value / choose next parameter 2 Decrease value / choose previous parameter 3 Save the chosen value and proceed to the next menu Hold 3 Back to previous menu / return to menu 1.0 without saving 50.0 12.0... - Page 24 p / m 999.9 p / h 50%DC -199.9 p / d 25000 25000 25000 prg p 1000 100.0 25.00 DISP.HI OU.UN f.min f.max CUT.OFF O.TYPE t.PULSE Txt 14 Txt 20 Txt 21 Txt 22 Txt 23 Txt 19 Txt 24 f>500 Hz 50%DC 0.06...
- Page 25 4172 4172 26250 -328 -328 OUT.ERR f.ERR RESP OUT.LO OUT.HI Txt 25 Txt 26 Txt 40 Txt 41 Txt 42 31500 To default state 1.0 OUT.ERR f.ERR Txt 25 Txt 26 1.2 = Not valid for these input signals: 0...20 mA and voltage.
-
Page 26: Routing Diagram Advanced Settings (Adv.set)
ROUTING DIAGRAM ADVANCED SETTINGS (ADV.SET) 2.0 In the submenu simulation (SIM) you must DISP press 3 to return to the default state 1.0. SAVE PASS LOAD LANG SAVE SETUP MEMORY Txt 43 Txt 44 f.OUT DISP f.OUT SETUP CONTRA LIGHT TAGNO. -
Page 27: Scrolling Help Text In Display Line 3
SCROLLING HELP TEXT IN DISPLAY LINE 3 [01] Set correct password [19] Select 50% duty cycle output [02] Enter advanced setup menu? Select programmable pulse time [03] Select temperature input [20] Select Hz as output unit Select potentiometer input Select pulses/minute as output unit Select linear resistance input Select pulses/hour as output unit Select current input... - Page 28 Displays Programmable displays with a wide selection of inputs and outputs for display of temperature, volume and weight, etc. Feature linearization, scaling, and difference measurement functions for programming via PReset software. Ex interfaces Interfaces for analog and digital signals as well as HART signals between sensors / I/P converters / frequency signals and control systems in Ex zone 0, 1 &...
- Page 29 www.prelectronics.fr sales-fr@prelectronics.com www.prelectronics.de sales-de@prelectronics.com www.prelectronics.es sales-es@prelectronics.com www.prelectronics.it sales-it@prelectronics.com www.prelectronics.se sales-se@prelectronics.com www.prelectronics.com sales-uk@prelectronics.com www.prelectronics.com sales-us@prelectronics.com www.prelectronics.cn sales-cn@prelectronics.com www.prelectronics.be sales-be@prelectronics.com Head office Denmark www.prelectronics.com PR electronics A/S sales-dk@prelectronics.com Lerbakken 10...
