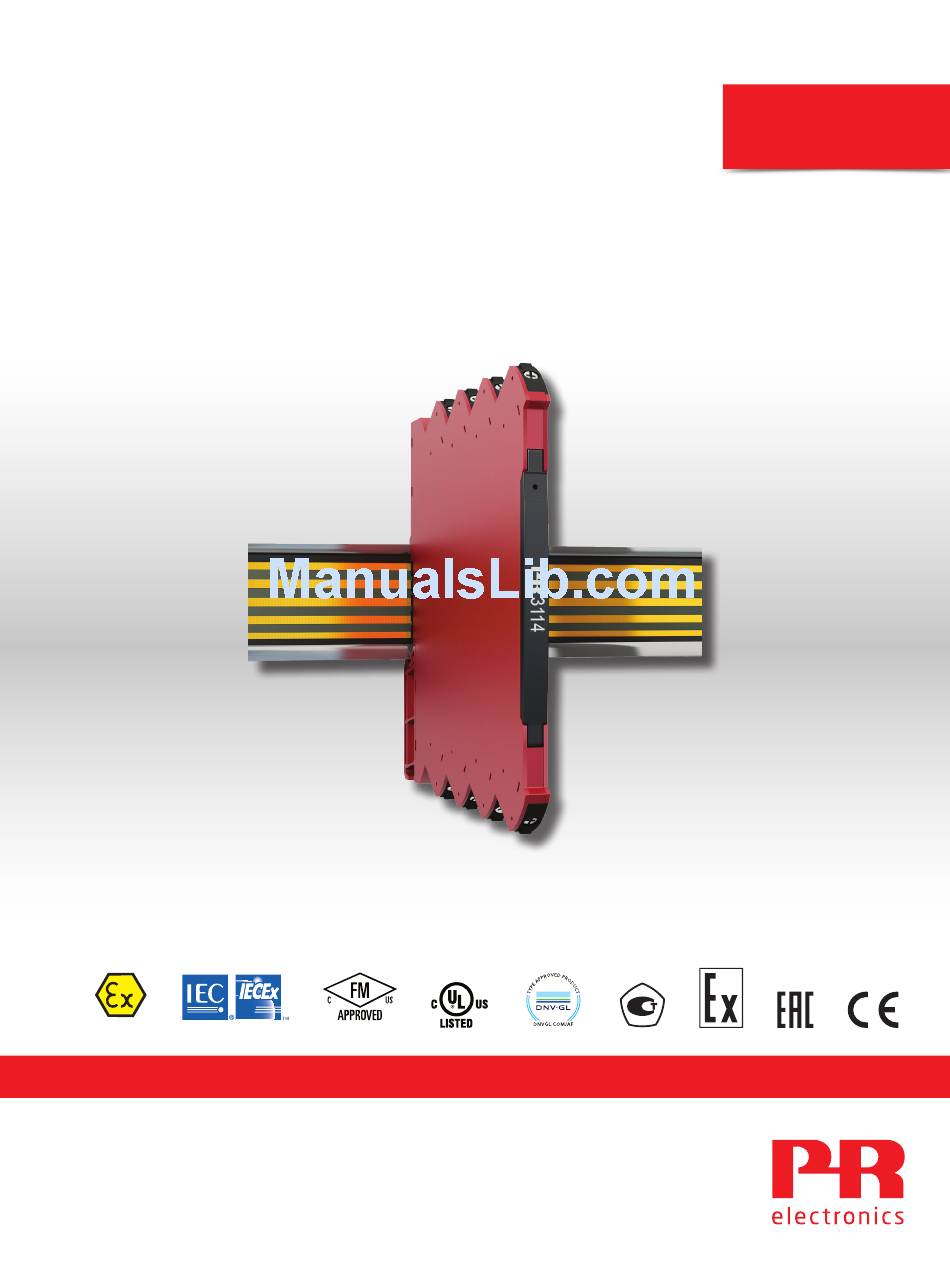

- Page 1 PERFORMANCE MADE SMARTER Product manual 3114 Isolated universal converter ZONE 2 Zone 2 ZONE 2 / DIV 2 T E M P E R AT U R E I . S . I N T E R FA C E S...
- Page 2 6 Product Pillars to meet your every need Individually outstanding, unrivalled in combination With our innovative, patented technologies, we make signal conditioning smarter and simpler. Our portfolio is composed of six product areas, where we offer a wide range of analog and digital devices covering over a thousand applications in industrial and factory automation.
-
Page 3: Table Of Contents
Isolated universal converter 3114 Table of contents Warning .................... -
Page 4: Warning
- to surroundings (incl. neighboring devices), must be ensured to maintain protection against electric shock. HAZARDOUS The connector behind the front cover of 3114 is connected to the input terminals on which dangerous voltages can occur. VOLTAGE Potential electrostatic charging hazard. - Page 5 Mounting Only technicians who are familiar with the technical terms, warnings, and instructions in the manual and who are able to follow these should connect the device. Should there be any doubt as to the correct handling of the device, please contact your local distributor or, alternatively, PR electronics A/S www.prelectronics.com Mounting and connection of the device should comply with national legislation for mounting of electric materials, i.e.
- Page 6 When the temperature under rated conditions exceeds 70°C at the cable or conduit entry point, or 80°C at the branching point of the conductors, the temperature specification of the selected cable shall be in compliance with the actual measured temperature. Provisions shall be made to prevent the rated voltage from being exceeded by transient disturbances of more than 40%.
-
Page 7: Flexible Supply
Note: 3114-N can only be supplied via the DIN rail solution. (*) External fuse characteristics: The 2.5 A fuse must break after not more than 120 seconds at 6.4 A. 3114V102-UK... -
Page 8: Mounting And Demounting Of System 3000
Mounting and demounting of system 3000 Picture 1: Mounting on DIN rail / power rail. Click the device onto the rail. Picture 2: Demounting from DIN rail / power rail. First, remember to demount the connectors with hazardous voltages. Detach the device from the DIN rail by lifting the bottom lock. Picture 3: Wire size AWG 26-12 / 0.13 x 2.5 mm stranded wire. -
Page 9: Installation On Din Rail / Power Rail
Module stop The 3114 can be installed on a DIN rail or on a power rail. For marine applications the devices must be supported by a module stop (PR part number 9404). Power supply units can be mounted on the power rail according to customer requirements. -
Page 10: Side Label
Side label Terminal numbers Type no. connections Approvals 3114102-UK... -
Page 11: Advanced Features
When 3114 is used in combination with the 4501 display / programming front and ConfigMate 4590, all operational parameters can be modified to suit any application. As the 3114 is designed with electronic hardware switches, it is not necessary to open the device for setting of DIP-switches. -
Page 12: Pr 4501 Display / Programming Front
Application • Communications interface for modification of operational parameters in 3114. • Can be moved from one 3114 device to another and download the configuration of the first unit to subsequent units. Technical characteristics • LCD display with 4 lines: Line 1 (H=5.57 mm) shows input signal. -
Page 13: Order
Order Type Version 3114 With power rail connector Supplied via terminals : -N Example : 3114 Accessories 4501 Display / programming front 4590 ConfigMate adapter 9404 Module stop for rail Technical data Environmental conditions: Operating temperature ....... . -25°C to +70°C Storage temperature . - Page 14 Accuracy, the greater of the general and basic values: General values Input type Absolute accuracy Temperature coefficient ≤ ±0.1% of span ≤ ±0.01% of span / °C Basic values Input type Basic accuracy Temperature coefficient ≤ ±16 µA ≤ ±1.6 µA / °C 0...1 V &...
- Page 15 Sensor error detection, RTD ......Yes Short circuit detection, RTD ......< 15 Ω TC input: Type Min.
- Page 16 Observed authority requirements: EMC..........2014/30/EU LVD .
-
Page 17: Display Readout On The 4501 Of Sensor Error Detection And Input Signal Outside Range
Display readout on the 4501 of sensor error detection and input signal outside range Sensor error check: Device: Configuration Sensor error detection: OUT.ERR=NONE. 3114 Else: Outside range readout (IN.LO, IN.HI): If the valid range of the A/D converter or the polynomal is exceeded Input Range Readout Limit IN.LO... -
Page 18: Error Indications
No communication Input error - check input connection and reset IN.ER Error levels on measurement inputs* power Offline configuration mode (3114 powered by Programming mode only - no output signal PROG. communications interface)*** Configuration read from EEprom has invalid type Invalid configuration type or version TY.ER... -
Page 19: Connections
Connections Input Output Supply 81 82 83 84 85 Input signals Supply Current 1 Supply + Supply - Power rail connections Potentiometer (Only type 3114 with power rail Voltage option) Current 2 Output signals Current Voltage 3114V102-UK... -
Page 20: Led Indication
LED indication The device is equipped with a green power LED in the front to indicate the operation status, see the table below. Output and Condition Action required loop supply No supply / device error or De-energized Closed code-flash CRC error 1 Flash Power-up or restart De-energized... -
Page 21: Default Configuration
Default configuration Input Input type ........Temperature Voltage input . -
Page 22: Configuration / Operating The Function Keys
In general When configuring the 3114, you will be guided through all parameters and you can choose the settings which fit the application. For each menu there is a scrolling help text which is automatically shown in line 3 on the display. - Page 23 Language: In the menu ”lang.setup” you can choose between 7 different language versions of help texts that will appear in the menu. You can choose between UK, DE, FR, IT, ES, SE and DK. Selection of units After choosing the input signal type you can choose the process units which will be displayed in text line 2 (see table). By selection of temperature input the process value is always displayed in Celsius or Fahrenheit.
- Page 24 Power up 40.00 2-10 VOLT 0-10 CURR 1111 10.4 LIN.R 111.1 0000 POTM 0.2-1 11.11 *1.0 9999 TEMP (69 units) 1.111 0000 VOLT 0-10 UNIT 111.1 PASSW. ADV.SET IN TYPE V.RANGE DEC.P Txt 1 Txt 2 Txt 3 Txt 4 Txt 11 Txt 12 *1.2...
-
Page 25: Routing Diagram
Routing diagram If no key is activated for 1 minute, the display will return to the default state 1.0 without saving configuration changes. 1 Increase value / choose next parameter 2 Decrease value / choose previous parameter 3 Save the chosen value and proceed to the next menu Hold 3 Back to previous menu / return to menu 1.0 without saving. -
Page 26: Routing Diagram, Advanced Settings (Adv.set)
Routing diagram, advanced settings (ADV.SET) MEM, DISP, SAVE CAL, SIM, LOAD PASS, LANG SAVE SETUP MEMORY Txt 26 Txt 27 A.OUT DISP A.OUT SETUP CONTRA LINE 3 LIGHT TAGNO_ Txt 26 Txt 28 Txt 31 Txt 29 Txt 30 850.0 850.0 -200.0 -200.0... -
Page 27: Help Text Overview
Help text overview [01] Set correct password [19] Select 0-20 mA output range [02] Enter advanced setup menu? Select 4-20 mA output range [03] Select temperature input Select 20-0 mA output range Select 20-4 mA output range Select potentiometer input [22] Select no error action - output undefined at error Select linear resistance input... -
Page 28: Document History
Document history The following list provides notes concerning revisions of this document. Rev. ID Date Notes 1741 Model 3114-N added Specifications for max. required power and power dissipation added 3114102-UK... - Page 29 We are near you, all over the world Our trusted red boxes are supported wherever you are All our devices are backed by expert service and a 5-year business with a global reach. This means that we are warranty. With each product you purchase, you receive always nearby and know your local markets well.
