860-00222-00 Rev A
April 2015

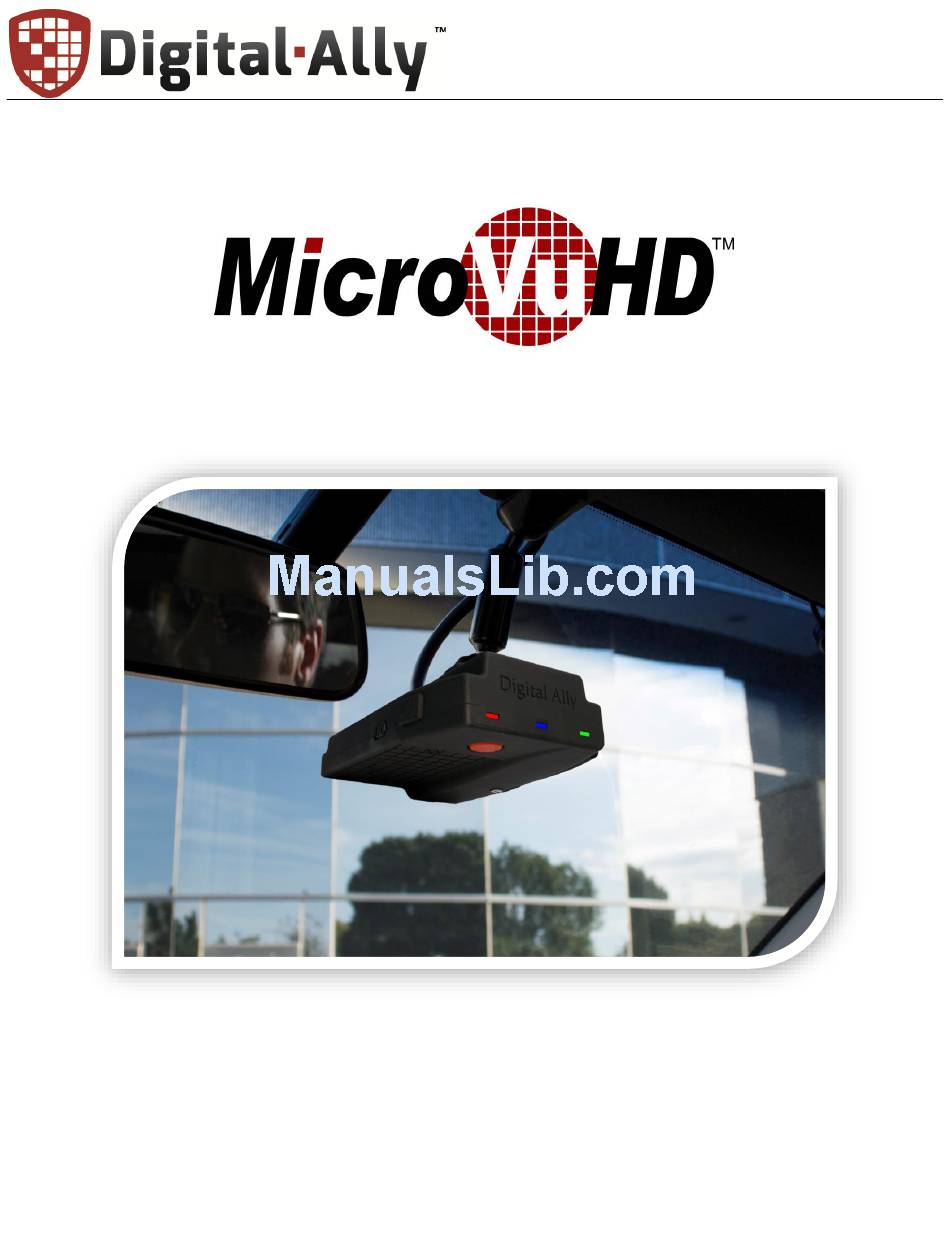

Operation Guide
Compact HD Law Enforcement In-Car Video System
Copyright © 2015 Digital Ally, Inc. All Rights Reserved. This publication may not be reproduced, stored in a retrieval system,
or transmitted in whole or part in any form or by any means electronic, mechanical, recording, photocopying, or in any other
manner without the prior written approval of Digital Ally, Inc.
Advertisement
Table of Contents
Related Manuals for Digital-Ally MicroVu HD
Summary of Contents for Digital-Ally MicroVu HD
- Page 1 Compact HD Law Enforcement In-Car Video System Copyright © 2015 Digital Ally, Inc. All Rights Reserved. This publication may not be reproduced, stored in a retrieval system, or transmitted in whole or part in any form or by any means electronic, mechanical, recording, photocopying, or in any other...
-
Page 2: Table Of Contents
MicroVu HD™ Operation Guide 860-00222-00 Rev A T a b l e o f C o n t e n t s SECTION - 1 INTRODUCTION ..........................1-1 HD™ F ICRO EATURES ..........................1-1 OFTWARE PDATES ............................1-1 TANDARD ARTS ............................1-2 PTIONAL CCESSORIES ..........................1-2... - Page 3 MicroVu HD™ Operation Guide 860-00222-00 Rev A Playback Controls ............................5-8 Playback Slider bar ............................5-9 View Selection and Options ..........................5-9 SECTION - 6 SUPPORT & TROUBLESHOOTING ...................6-1 IRMWARE PDATES ............................6-1 Firmware Update Instructions ........................6-1 ERFORMING A ESET ............................6-2 RODUCT EPAIR ..............................6-2 SECTION - 7 WARRANTY INFORMATION ......................7-1...
-
Page 4: Section - 1 Introduction
The MicroVu HD is designed for incredibly easy and unobtrusive use, from its initial installation to unprecedented automatic login & recording capabilities. -
Page 5: Standard Parts List
860-00222-00 Rev A Standard Parts List Part Number 001-00720-00 Part Number Description 050-10179-00 MicroVu HD Main Recorder w/Mounting Kit 002-05095-00 DWM-800 System, Includes Wireless Microphone, Charging Cradle, Mounting Bracket, and Lapel Microphone. Call Digital Ally FirstVu HD Body Camera System... -
Page 6: Section - 2 Device Configuration - Vuvault
You must be running VuVault Version 4.7 (minimum) to configure and activate a MicroVu HD device. VuVault is used to manage MicroVu HD settings as well as activate your device for use within the system. Before you can configure your MicroVu HD for use within VuVault, the serial number must be added into the system. -
Page 7: Microvu Hd Settings - General
MicroVu HD™ Operation Guide 860-00222-00 Rev A MicroVu HD Settings - General Digital Ally, Inc. | Device Configuration – VuVault... -
Page 8: Location
Settings: No [default], Yes Power Power to the MicroVu HD is controlled through your vehicle’s ignition. There are no manual controls for powering the unit on and off. When ignition is switched on, the boot- up process will begin. The driver-facing status indicators will flash in sequence until boot- up is complete. - Page 9 Timer is cancelled and will start over again when the ignition is turned off. Sleep Mode Timer When the vehicle ignition goes from ON to OFF the MicroVu HD will first follow the operation for Ignition Shutdown Timer and then the operation for Sleep Mode Timer configuration.
-
Page 10: Recording Details
MicroVu HD™ Operation Guide 860-00222-00 Rev A If the MicroVu HD is not recording when vehicle power is completely lost, the MicroVu HD automatically make a 60 second recording using the internal backup battery, then power down completely. Recording Details Audio Mode The Audio Mode determines how audio will be recorded to your device. -
Page 11: Vulink
Guide”, or call Digital Ally Inc. Technical Support for more information). VuVault GO Select VuVault GO Assign a VuVault GO SSID for use with your MicroVu HD from the list of VuVault GO devices as configured in VuVault in the VuVault GO Settings tab. Motion... -
Page 12: Sensors
HD will use to communicate with the network. The Wireless Access Points must be configured in the VuVault Settings / Wtm Server page. While powered on and in Standby Mode, the MicroVu HD will attempt to find a WAP and wirelessly transfer data every 2 minutes. -
Page 13: Gps Locations
If the vehicle enters, or remains in a location of interest for a configurable amount of time, the MicroVu HD will automatically start a recorded event. Up to 19 different Locations of Interest can be configured. Below are the configurable items: ... -
Page 14: Activating Your Microvu Hd Within Vuvault
USB port in the access panel of the unit. If activating via USB cable, make sure the MicroVu HD is powered on and in Standby mode. If you are using the SD Card method, power OFF your MicroVu HD before removing the card from the unit. -
Page 15: Updating The Configuration Using Wifi
5. Note the Card Volume Name field. If there is a current volume name, it will show up automatically. If not, it will default to the serial number of the MicroVu HD. This can be changed according to customer preference to whatever is deemed most appropriate. -
Page 16: Section - 3 Operation
4. Enter the VuVault User ID and Password, then click OK. 5. The ‘deviceconfig’ file will be automatically extracted from VuVault and wirelessly transferred to the MicroVu HD the next time it connects to the Wireless Access Point. The MicroVu HD will first upload any existing videos, then transfer the configuration. -
Page 17: System Status Indicator Operation Chart
MicroVu HD™ Operation Guide 860-00222-00 Rev A Audio Mute Covert Button Record Start / Mark / Record Stop Status Indicator LED’s Camera Lens USB / microSD Card Access Panel Secure Panel Lock System Status Indicator Operation Chart Blue Green Sequential flash Powering ‘ON’... -
Page 18: User Login With Rfid Card
Users who have been assigned a Username in VuVault and who have a configured Digital Ally RFID Card can log in to the MicroVu HD by simply touching the face of the card briefly to the area beneath the driver-facing LED indicators. The MicroVu HD will confirm the login by rapidly flashing all 3 LEDs in sequence, ending with 3 Green flashes. -
Page 19: Logging Out
860-00222-00 Rev A Logging Out The User will remain logged in to the MicroVu HD until the same user logs out by swiping their card again. The MicroVu HD will confirm the logout by rapidly flashing all 3 LEDs in sequence, ending with 3 Blue flashes. -
Page 20: Option 2: Usb Port Method
To upload video files from the MicroVu HD, plug the supplied USB cable into the VuVault computers USB port and insert the other end of the cable into the MicroVu HD USB port. Make sure your device is powered on. -
Page 21: Option 3: Microsd Card
Dashboard, and Search screens. For more information, consult the VuVault User’s Guide. Video Upload Option 3: microSD Card The microSD Card can be removed from the MicroVu HD and inserted into a memory card adapter. When the MicroVu HD is powered off or in standby, remove the microSD Card and replace it with a new microSD Card, or upload the event files from the original microSD Card into VuVault and re-install the card when finished. -
Page 22: Section - 5 Video Playback And Management
MicroVu HD™ Operation Guide 860-00222-00 Rev A Do not remove the microSD Card while the MicroVu HD is recording. This will result in corrupted, unusable video files. Please consult the VuVault User’s Guide for upload instructions. If the MicroVu HD is powered on, All 3 LED’s will flash rapidly when the microSD Card is removed. -
Page 23: Toolbar Controls
Next Mark: Click to skip to Next Mark. Start Over / Repeat: Click to Restart video from the beginning or Repeat playback. Playback Speed Control: Adjust the Playback Speed (4x, 2x, 1x, 1/2x, 1/4x). Digital Ally, Inc. | Video Playback and Management... -
Page 24: Playback Slider Bar
Select Screen Layout: Select this button located on the bottom of the screen next to the playback controls to customize your view from a list of preset layouts. Digital Ally, Inc. | Video Playback and Management... -
Page 25: Section - 6 Support & Troubleshooting
The MicroVu HD requires a specific filename to perform a firmware update. The filename for the MicroVu HD firmware is ‘firmware.r’. If the firmware file is not found, the MicroVu HD will not perform the update. The firmware is available from the Digital Ally Technical Support web site mentioned above. -
Page 26: Performing A Reset
Reference the illustration for the reset button location. Product Repair The MicroVu HD should be returned to Digital Ally Inc. for service. The warranty may be voided if the device is opened by any unauthorized individual. Please contact Digital Ally to obtain an authorized Return Materials Authorization (RMA). -
Page 27: Section - 7 Warranty Information
Extended Warranty Plan: Any and all Warranties must be purchased prior to the expiration of any previous warranties. These must be purchased directly from Digital Ally, Inc. for a period no less than one year and not to exceed three years. -
Page 28: Section - 8 Contact Information
MicroVu HD™ Operation Guide 860-00222-00 Rev A Section - 8 Contact Information 9705 Loiret Blvd Lenexa, KS 66219 Website: www.digitalallyinc.com Support E-Mail: support@digitalallyinc.com Sales E-Mail: sales@digitalallyinc.com Phone: 913-814-7774 Fax: 913-814-7775 Sales / Support Toll Free: 1-800-440-4947... -
Page 29: Section - 9 Regulatory
The CE Mark is a European marking of conformity indicating that a product complies with the essential requirements of the applicable European laws or Directives with respect to safety, health, environment, and consumer protection. Changes or modifications not expressly approved by Digital Ally, Inc. could void the user’s authority to operate the equipment.
