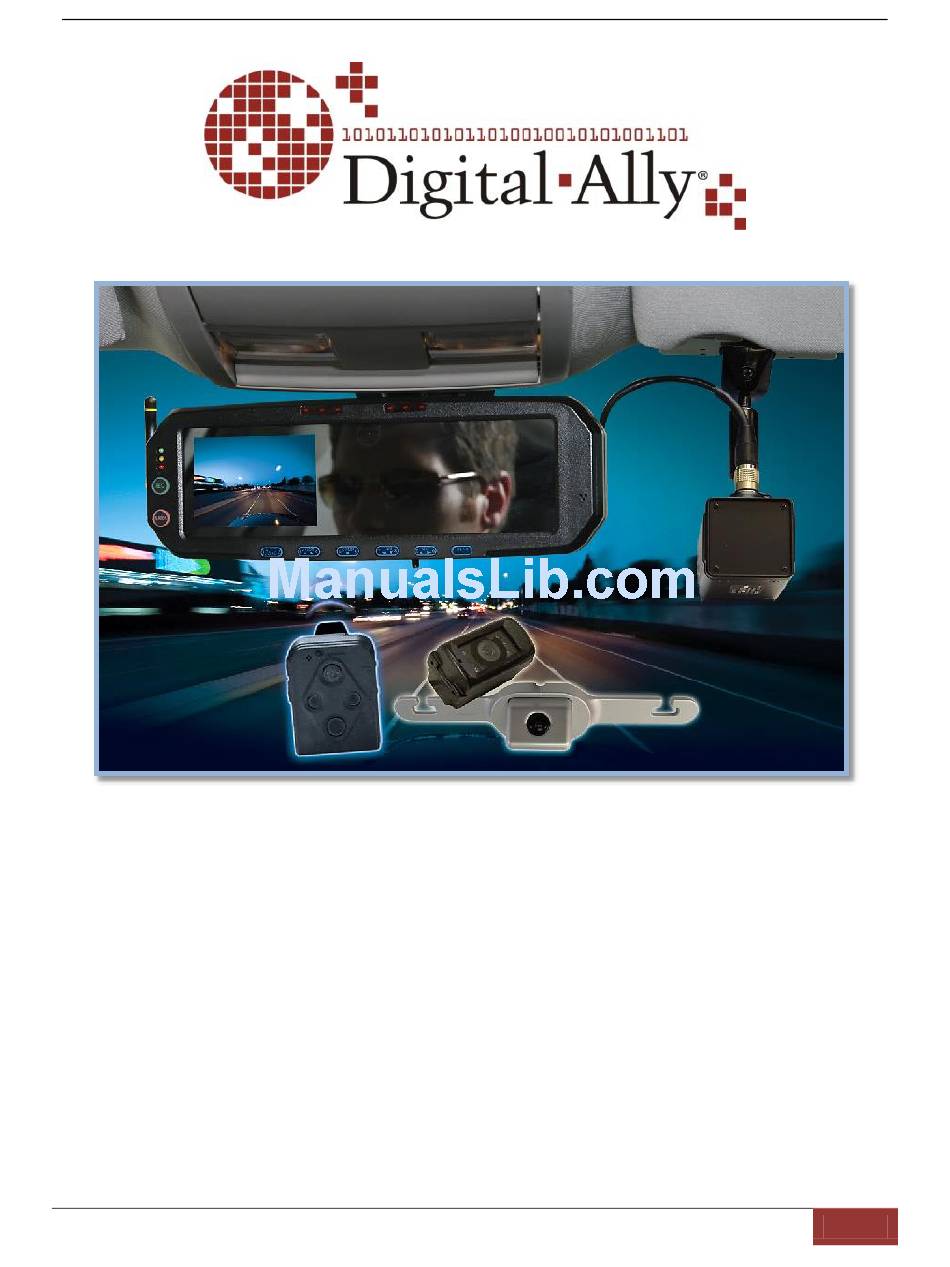

DVM-750 Installation Guide
860-0008-00 Rev C
Installation Guide
DVM-750
Digital In-Car Video System
Copyright © 2009-2013, Digital Ally, Inc. All Rights Reserved, Printed in U.S.A. This publication may not
be reproduced, stored in a retrieval system, or transmitted in whole or part in any form or by any means
electronic, mechanical, recording, photocopying, or in any other manner without the prior written approval
of Digital Ally, Inc.
Digital Ally, Inc |DVM-750 Installation Guide
i
Advertisement
Table of Contents
Related Manuals for Digital-Ally DVM-750
Summary of Contents for Digital-Ally DVM-750
-
Page 1: Installation Guide
Digital Ally, Inc. Digital Ally, Inc |DVM-750 Installation Guide... - Page 2 Below are a few comments and suggestions before you get started with the installation of your Digital Ally DVM-750 system: • The DVM-750 is designed to be easily installed into virtually any make or model of vehicle. • Please check the packing list against the items enclosed to make sure you have received all the items.
-
Page 3: Table Of Contents
PARTS AND ACCESSORIES ........................... 2 DVM-750 Standard Parts List ........................... 2 DVM-750 Optional Parts List ........................... 4 DVM-750 Optional Backup Camera Parts List ......................5 CAUTIONS & NOTES ............................... 6 DVM-750 Interface Box Backup Battery ........................6 SYSTEM DIAGRAM ..............................7 SYSTEM INSTALLATION ............................ -
Page 4: Standard Limited Warranty Model Dvm-750
REAR VIEW MIRROR IN-VEHICLE DIGITAL VIDEO SYSTEM We warranty that our In-Car Digital Video System, Model DVM-750, will be free from defects in workmanship and material for a period of 24 months from the date of purchase by the original purchaser. -
Page 5: Before You Begin Installation
004-0501 cradle Desktop Charging Cradle with AC 630-0511 Power Adapter Power Supply 004-0501 cradle In Car Charging Cradle 008-0104 with DC Auto Adapter Car Adapter Clip-on Style 004-0902-00 Lapel Mic 002-05024-00 Big Ball Mirror Mount Digital Ally, Inc |DVM-750 Installation Guide... - Page 6 I/O Box to DVM 008-0051 Wiring Harness (Gray portion only) Vehicle to I/O Box 008-01287-00 Wiring Harness 280-0014 (Qty-2) 7.5 Amp Fuses 280-0011 In-Line Fuse Holder 280-0014 7.5 Amp fuse 280-0012 Butt splices 860-0008-00 DVM-750 Installation Guide Digital Ally, Inc |DVM-750 Installation Guide...
-
Page 7: Dvm-750 Optional Parts List
008-01395-12 (circular connector) 006-08196-00 Front Camera (35x Zoom) 008-01273-00 008-01274-00 008-01275-00 008-01276-00 35x front camera cable (available lengths from 10” to 48”) 008-01277-00 008-01278-00 008-01279-00 008-01280-00 002-05033-00 7” External Monitor Kit 002-05021-00 Handheld controller Digital Ally, Inc |DVM-750 Installation Guide... -
Page 8: Dvm-750 Optional Backup Camera Parts List
Assembly, CAM visor mounting plate, 006-08211-00 Chevy Tahoe Assembly, CAM visor mounting plate, 006-0030 Large Vu)Command™ Laptop interface kit 010-00070-00 DVM-750 Optional Backup Camera Parts List Part Number Image Description 566-00038-00 License Plate Mounted Backup Camera Surface Mounted Backup Camera with 566-00040-00... -
Page 9: Cautions & Notes
DVM-750 system for 30-90 minutes. If the Backup Battery does not have a high enough charge at the time of installation, the DVM-750 system may not turn on correctly the first time. It may be necessary to charge the Backup Battery. -
Page 10: System Diagram
WHITE = Switched 12V+ Serial BLACK = Ground DVM to I/O Box harness Wireless Transfer (See WTM-555 Module (optional) installation guide) WTM to DVM serial cable Voice Vault Wireless Microphone and Charger Assembly with Cigarette Lighter Adapter Digital Ally, Inc |DVM-750 Installation Guide... -
Page 11: System Installation
3. Gently apply a small amount of additional inward force toward the glass and rotate the base clockwise. 4. The spring loaded factory mount should release from the windshield4 puck. See picture below. Step 2: Remove Factory Body Trim 1. Remove front passenger side threshold. Digital Ally, Inc |DVM-750 Installation Guide... - Page 12 2. Pull the door seal away and carefully remove any side trim pieces. 3. Remove the passenger side front interior A-pillar cover. 4. Remove the passenger visor clip with #20 Torx screwdriver or Phillips screwdriver depending on your vehicle. Digital Ally, Inc |DVM-750 Installation Guide...
-
Page 13: Step 3: Attach The Big Ball Mount
DVM should move before the socket nearest the windshield moves. Also keep in mind that if you are making this adjustment when the ambient temperature is high, the mount will become tighter as the temperature decreases. Digital Ally, Inc |DVM-750 Installation Guide... -
Page 14: Step 4: Mirror Connections
In some vehicles, the factory position of the manufacturer’s windshield mounting plate may not allow for proper rearview DVM adjustment. The mounting plate included with the DVM-750 package can be glued to the windshield in a location that will allow proper adjustment. We recommend Loctite 03346 for installation of the mounting plate. -
Page 15: Step 5: Camera Installation
2. Route the remaining portion of the camera cable to the external surface mount camera and connect. Secure extra cable in the headliner away from any other existing cabling and/or airbags. Connect to CAM2 input of DVM Digital Ally, Inc |DVM-750 Installation Guide... -
Page 16: Backup Camera (Optional)
To conceal the cable it may be necessary to loosen interior trim and other components within the vehicle. e. Secure the cables using Velcro or standard tie wraps as required. Digital Ally, Inc |DVM-750 Installation Guide... - Page 17 For exterior mounting where the cable must be routed through a panel to the interior of the vehicle: Position the mounting bracket, locate the ¾” hole in the bracket, and mark the center on the mounting surface. Digital Ally, Inc |DVM-750 Installation Guide...
- Page 18 The cable connector for the backup camera should be routed to a rear compartment of the vehicle such as the trunk of a car, to a location within 3-feet of the rear license plate. Digital Ally, Inc |DVM-750 Installation Guide...
-
Page 19: Step 6: Gps And Rear Microphone Connections
It is highly recommended to install the provided 7.5 Amp fuse and holder on the Red +12V power source wire. Doing so will provide the proper protection for the wiring between the source and the device. Digital Ally, Inc |DVM-750 Installation Guide... -
Page 20: Wiring Connections Chart
Right Turn Signal Pink signal when turn signal is activated Connect to 0VDC signal when Reverse input. Signal grounded Reverse reverse gear is active (See next when vehicle goes into reverse page for details). Digital Ally, Inc |DVM-750 Installation Guide... -
Page 21: Connecting To The Vehicle's Reverse Gear
Screwed into the transmission hump below the dash (for Accelerometer Enabled I/O Boxes). Under the rear seat on some SUV-type vehicles. Behind a panel on the right hand side of the dash (nearest to the door). Digital Ally, Inc |DVM-750 Installation Guide... -
Page 22: Step 9: Wireless Microphone Charging Cradle
Although your CF card is ready to use out of the box, it should be activated through your back office software. Consult the DVM-750 User Guide, and the VideoManagerII™ or VuVault™ User’s guides for information on activating your CF card. -
Page 23: Post Installation Checklist
Remove the (2) 7.5 Amp fuses from the side of the I/O Box BEFORE jump-starting the vehicle. This will prevent potentially damaging voltage spikes from entering the DVM-750 System. Reinsert the fuses after jump-starting the vehicle. 3. Press the MARK button to power the system on. Wait a couple minutes while the system boots. -
Page 24: Troubleshooting
Erase and reformat the CF card, then reactivate the card within VideoManager or VuVault. If this fails, then “CF Card Missing or Bad” the card may need to be replaced. Contact Product Support for more assistance. Digital Ally, Inc |DVM-750 Installation Guide... -
Page 25: Product Repair
Remote batteries are user serviceable and can be purchased directly through Digital Ally. CONTACT INFORMATION 9705 Loiret Blvd Lenexa, KS 66219 Website: www.digitalallyinc.com Support E-Mail: support@digitalallyinc.com Sales E-Mail: sales@digitalallyinc.com Phone: 913-814-7774 Fax: 913-814-7775 Sales / Support Toll Free: 1-800-440-4947 Digital Ally, Inc |DVM-750 Installation Guide... - Page 26 The CE Mark is a European marking of conformity indicating that a product complies with the essential requirements of the applicable European laws or Directives with respect to safety, health, environment, and consumer protection. Digital Ally, Inc |DVM-750 Installation Guide...
