HNC Electric HV950-R75G1(B) User Manual

Hv950 series small power frequency inverter
Hide thumbs
Table of Contents

Advertisement

Quick Links

HV950 Series Small Power
Frequency Inverter
User Manual
HNC Electric Limited
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HV950-R75G1(B) and is the answer not in the manual?

Questions and answers

Related Manuals for HNC Electric HV950-R75G1(B)

Summary of Contents for HNC Electric HV950-R75G1(B)

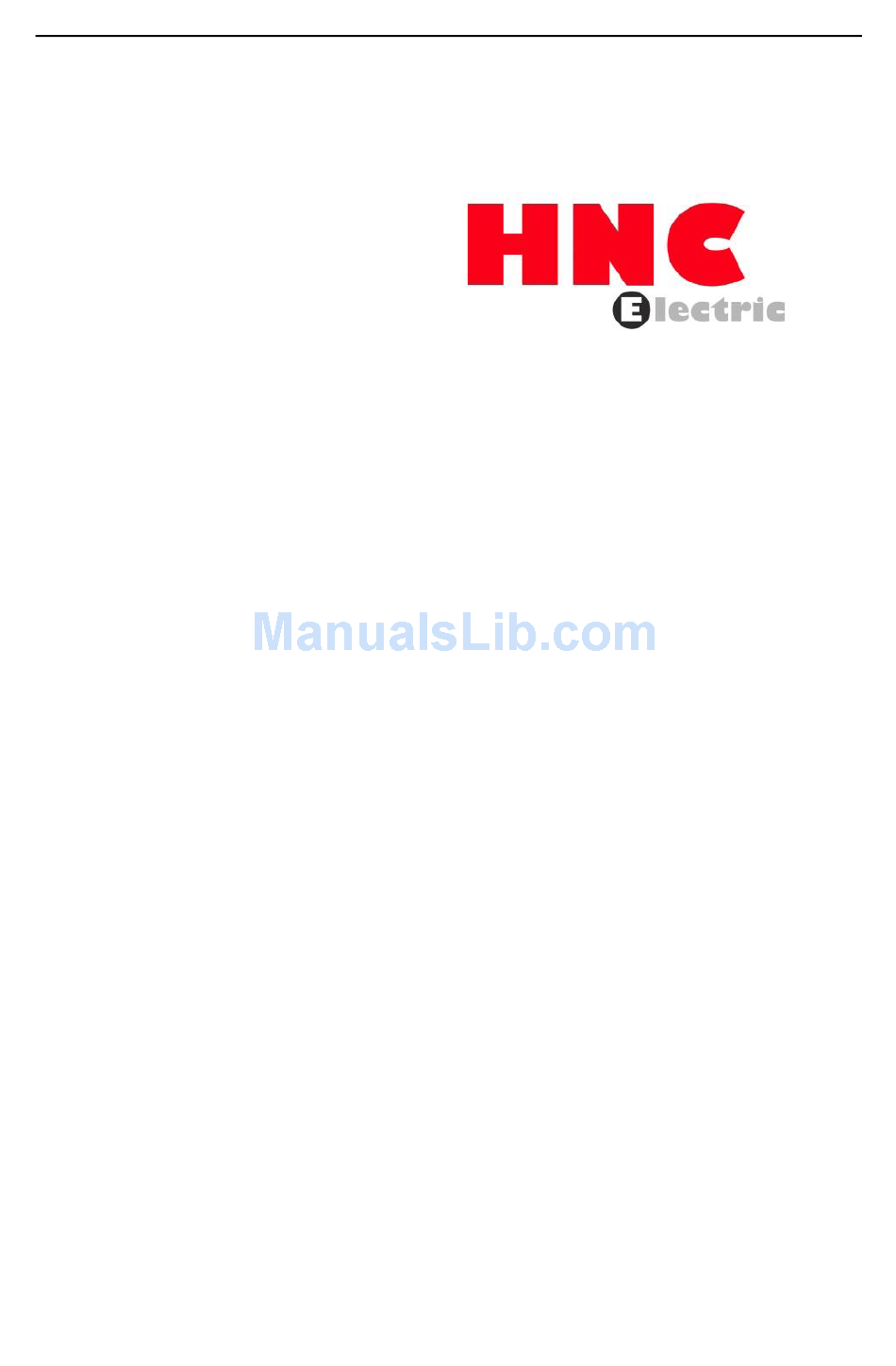

  • Page 1 HV950 Series Small Power Frequency Inverter User Manual HNC Electric Limited...

  • Page 2: Table Of Contents

    Contents 1. Preface ..........4 2. Inspection ..........5 3. Specifications and Optional Parts ......6 3.1 Specifications ..........6 3.2 Products Series Introduction ........8 3.2.1 HV950 Models ........8 3.2.2 Ordering information of HV950 series ...... 8 3.2.3 Demision ..........9 3.2.4 LED Keypad Display Unit Size......
  • Page 3 6.11 Display Control Parameters（FA） ......48 6.12 Communication（FB） ........50 6.13 Professional parameters（FC） ....... 51 6.14PLC parameters（FD） ........51 6.15 Constant-pressure water supply (FE) ......54 6.16 Protection（FL） .......... 54 6.17 Operation Time and Temperature of Cooling Fan （FN） ... 57 6.18 Protection of Parameters（FP）...

  • Page 4: Preface

    1. Preface Thank you for using HV950 series inverter made by HNC HV950 series satisfies high performance requirements by using a unique control method to achieve high torque, high accuracy and wide speed-adjusting range. Its anti-tripping function and capabilities of adapting severe power network, temperature, humidity, and dusty environment exceeds those of similar products made by other companies, which improves the products reliability noticeably.

  • Page 5: Inspection

    2. Inspection Don’t install or use any inverter that is damaged or have fault parts otherwise may cause injury. Check the following items when unpacking the inverter. Ensure there is operation manual and warranty cards in the packing box. Inspect the entire exterior of inverter to ensure there are no scratches or other damaged caused by transportation.

  • Page 6: Specifications And Optional Parts

    Specifications and Optional Parts 3.1 Specifications Table2-1 HV950 Specifications Item Description HV950 G3 ： 380V ～ 440V ； 50Hz/60Hz Rated voltage ； HV950 G1 ： 200V ～ 240V ； 50Hz/60Hz Frequency Voltage contant fluctuate ≤±10%, Transient fluctuate: Input Permissible -15% ～ +10%, out of balance voltage rate: ≤3 ％ , fluctuation frequency fluctuation:≤5 ％...
  • Page 7 Item Description Auto Adjust the carrier frequency automatically according to carrier-wave the load characteristics ； regulation Internal Counting the external pulse signal through X terminals counter Methods of inputting keypad panel, terminals and serial port commands Methods of setting up Digital setting, AIand communication frequency Auxiliary...

  • Page 8: Products Series Introduction

    HV950-2R2G3 3.2.2 Ordering information of HV950 series Please refer to Figure2-1a and Figure 2-1b。 Figure2-1a Table2-1a Explanations of inverter models MODEL:HV950-R75G1(B) POWER:0.75KW INPUT:1PH AC 200~240V 8.2A 50/60HZ OUTPUT:3PH AC 0~240 4.0A 50/60HZ S/N: HNC Electric Limited Table2-1b HV950 series nameplate...

  • Page 9: Demision

    3.2.3 Demision Please refer to Figure 2-2 Figure2-2 HV950 series inverter size Note: Net weight, 1.04KG Gross weight (include user manual after package), 1.22KG 3.2.4 LED Keypad Display Unit Size Through it, operation and configuration of the inverter can be done. Please refer to its size and configuration in Figure 2-3.
  • Page 10 Model No. L(mm) W(mm) H(mm) Weight(Kg) HV950-R40G1(B) HV950-R75G1(B) HV950-1R5G1(B) HV950-2R2G1(B) 123.52 1.22 HV950-R75G3 HV950-1R5G3 HV950-2R2G3 3.2.5 Optional Parts Table 2-3: recommended braking resistor Suggested value Suggested power Model of resistance HV950-R75G3 250-350Ω 100W HV950-1R5G3 200-300Ω 200W HV950-2R2G3 100-250Ω 250W HV950 series inverter (3phase product) is equipped with braking unit. If there is a need for energy-consuming braking, please select a braking resistor in Table2-3 The above Table 2-3 is a guide reference only, users can choose different braking...

  • Page 11: Installation And Wiring

    4. Installation and Wiring 4.1 Installation 1. Mount the inverter vertically indoors, with good ventilative conditions. 2.Ambient temperature should be within the range of-10℃ ~ 40℃. If the temperature is higher than 40 ℃, the inverter should be derated and forced heat dissipation is required.

  • Page 12: Wiring

    4.2 Wiring 4.2.1 Overview You should finish the power circuit and control circuit wiring。 The figure below is the systematic wiring of the inverter Circuit PB ( -) breake Power 3-phase circuit 380 V 50/ 60 Hz Auxiliary power DC current meter 0 / 4 ～20 mA Multi-function input 1 0/4~20mA current...

  • Page 13: Power Terminals

    4.2.2 Power Terminals 1． Definitions of power terminals Table 4-2Definitions of power terminals Terminal name Description R 、 S 、 T 3-phase AC input / /L 、 N 1-phase AC input (+) 、 PB External braking resistor (+) 、 (-) DC positive, negative bus input U 、...
  • Page 14 Terminal strip layout The layout is shown below： 485+ 485- +10V TA-TB：Normally closed；TA-TC：Normally open Table 4-5 Terminal function table Category Terminals Name Function Specification Standard RS-485 485 ＋ RS485 ＋ (differential signal) communication RS485com port, Communication munication Please use port 485- RS485-(differential signal) twisted-pair cable...
  • Page 15 Category Terminals Name Function Specification Open Optical-isolator Programmable terminals, Digital input collector output: defined as multi-function digital output 1 outputs, see Section 7.7. /50mA Output: +10V, ＋10V Setpoint accuracy: ± 10% +10V Provide +10V power supply power Max. output supply current: 100mA Power supply GND of...
  • Page 16 + 24 V P 24 + 3 . 3 V Current X 1 、 X 2 . . . X 5 HV950 Figure 4-3 External power supply wiring diagram ② Connection Method 2 Inverter’s internal +24V power supply is used and the external controller uses PNP transistors whose common emitters are connected, as shown in Figure 3-14.
  • Page 17 External controller HV950 P 24 ● ● ● 3 . 3 V 24 V DC ● ● ● ● ● 3 . 3 V ● ● Shield bear the inverter should be grounded Figure 4-5 Internal +24V wiring diagram (drain) When using External power supply, remember to disconnectPLC and P24 External controller HV950...
  • Page 18 External power supply wiring (drain)（Remember to disconnect PLC and P24） External controller HV950 P 24 ● ● ● 3 . 3 V 24 V DC ● 9 ～ 30 V ● ● ● ● 3 . 3 V ● ● Shield grounded near the inverter Figure 4-7 External power supply wiring (drain)
  • Page 19 + 24 V P 24 DC 9 ~ 30 V + 5 V Relay HV950 Figure 4-9 Multi-function output terminal wiring2 Note： Don’t short terminals P24 and COM, otherwise the control board may be damaged。...

  • Page 20: Operation Procedures

    5. Operation Procedures 5.1 Operation Guide 5.1.1 LED Keypad LED keypad display unit is to receive command and display parameters. Keypad diagram 5.1.2 Keypad Function Explanation Keys on the LED keypad display unit refer to the function of each key in Table 6-1. Table 6-1 Key’s function Name Function...

  • Page 21: Indicator Description

    Name Function Terminal control mode: reset in case of alarm or fault Potentiometer Set frequency 5.1.3 Indicator Description Functions of the indicators on the keypad： Indicator Meaning Color Mark ON: the inverter is running Status indicator Green OFF: the inverter is no output ON: current LED display is Frequency indicator Green...

  • Page 22: Motor Parameters Self-Learning

    5.1.5 Motor parameters self-learning In order to achieve a good dynamic and static control performance, inverter needs to complete the motor parameters self learning, see the following proedures:...

  • Page 23: Password Setting

    5.1.6 Password setting When you need to set the password for the inverter, set FF.00 as a non-zero value, exit the editing status, leave the inverter for five mins without any operation and the password you just set becomes effective. Press the PRG button to enter the function codes setting, it displays 0.0.0.0, it requires the passward now to enter next.

  • Page 24: Parameters

    6. Parameters Note： The contents in the“【】”are factory default. 6.1 Basic Parameters（F0） Range ： 0 ～ 2 【 0 】 F0.00 Command channel HV950 has 3 kinds of command channels: 0： LED keypad display unit， use RUN and STOP key on the keypad to control the inverter 1：Terminal control: Input operating commands via terminals.
  • Page 25 Method Name Description Reserved Reserved Reserved Reserved AI-5V Reserved Potentiometer F0.04 Keypad digital setting Range：Lower limit of freq.～Upper limit of freq.【50.00Hz】 When the frequency source setting method is defined as keypad digital setting(F0.02=0、1、2), F0.04 is the initial value of frequency. F0.05 Digital auxiliary Range：0.00～650.00Hz【0.00Hz】...
  • Page 26 Output voltage Output Frequency Figure 6-6 Characteristic parameters definition The f and f are defined by F0.07 and F0.08 as upper limit and lower limit of frequency respectively. Range ： 0 、 1 【 0 】 F0.11 Running direction The function is used to select motor direction of rotation when running in keypad control mode.

  • Page 27: Motor Parameter（F1

    6.2 Motor Parameter（F1） F1.00 Reserved Reserved F1.01 Motor’s poles Range ： 2 ～ 14 【 4 】 Range ： 【 depending on model 】 F1.02 Rated power 0.4～1000kW Rated current Range ： 0.1 ～ 999.9A 【 depending on model 】 F1.03 F1.01~F1.03 is to set motor’s parameters.

  • Page 28: Start/Brake Parameter（F2

    Auto-tuning procedures: 1）Set the “F0.06 basic operating frequency” and “F0.07 Max output voltage” correctly according to the motor’s feature; 2）Set the F1.01, F1.02 and F1.03 correctly; 3）If F1.10 is set to 2, Acc time (F0.12) and Dec time (F0.13) should be set correctly and remove the load from the motor and check the safety;...
  • Page 29 Freq.(Hz) Time Figure 6-9 Relation of Start Freq. and Start Time Note： The start frequency is not limited by lower limit of the frequency. F2.03~F2.07 Reserved Reserved Range ： 0 、 1 、 2 【 0 】 F2.08 Stop mode 0：Decelerate to stop When the inverter receives Stop command, it will reduce output frequency to zero and stop within preset deceleration time.

  • Page 30: Flux Vector Control Parameters（F3

    0：Disabled 1：Enabled ： Note For the occasion of big moment of inertia and a quick stop demand, this feature can be 1, and connect the matching braking resistor, achieve rapid downtime. F2.14 Reserved Reserved 6.4 Flux vector control parameters（F3） F3.00 Reserved Reserved Range ：...
  • Page 31 When VFD worked in low frequency, setting torque boost value reasonablely to counteractthe output voltage reduction,in order to achieve sufficient output torque. Range ： 0 ～ 30.0 ％【 2.0 ％】 F3.07 Torque boost Range ： 0 ～ 50 ％【 10.0 ％】 F3.08 Manual torque boost cutoff point Output...

  • Page 32: Current Vector Control Parameter（F4

    Range ： 0 ～ 255 【 Depending on F3.14 Motor stabilization factor model 】 F3.14 is used to suppress the oscillation caused by the inverter and the motor. If the inverter’s output current changes constantly at fixed load, the oscillation can be reduced by adjusting F3.14 6.5 Current vector control parameter（F4）...
  • Page 33 Setting Functions Setting Functions Frequency setting Reserved method 3 Terminal control mode is MS frequency 4 forcibly enabled Control mode 1 Control mode 2 Reserved Reserved Reserved External stop command Reserved Inverter operation prohibiting Clear auxiliary reference Reserved frequency Clear counter’s record Reset PLC stop status Signal of triggering Reserved...
  • Page 34 8: Reset If any of F5.00~F5.04 is set at 8, the inverter can be reset via the terminal when the inverter has a fault. The function of this terminal is the same with the RESET key on the keypad. 9~10: External jog command (JOGF/JOGR) If any of F5.00~F5.04 is set at 9~10, the terminal can enable the jog operation.
  • Page 35 If the setting is 19, the terminal can be used to perform DC injection braking to the motor that is running for emergency stop and accurate location. Initial braking frequency, braking delay time and braking current are defined by F2.09~F2.11. Braking time is decided by the bigger value between F2.12 and the period that the terminal is effective.
  • Page 36 Table 6-6 Control Mode Selection Control mode None LED keypad Terminal Serial port The selection of control mode is realized by the combination of ON/OFF state of any two of X1~X5. In the above table, you should set F5.00=28, F5.01=29. 30~34: Reserved 35: External Stop command This Stop command is valid to all control modes.
  • Page 37 This parameter defines four operating modes controlled by external terminals. 0：2-wire operating mode 1 Figure 6-21 2-Wire Operation Mode 1 1：2-wire operating mode 2 Figure 6-22 2-Wire Operation Mode 2 2：3-wire operating mode 1 Figure 6-23 3-Wire Operation Mode 1 SB1：Stop button；SB2：Run forward button；SB3：Run reverse button Terminal Xi is the multi-function input terminal of X1~X5.

  • Page 38: Output Terminal Control Parameters（F6

    3：3-wire operating mode 2 Figure 6-24 3-Wire Operation Mode 2 SB1：Stop button；SB2：Run button Terminal Xi is the multi-function input terminal of X1~X5. For this case, the corresponding parameter should be set at 16 (3-wire operation). F5.09~F5.11Reserved Reserved Range ： 0.01 ～ 50.00s 【 0.50s 】 F5.12 Filter constant F5.13 Reserved Reserved...
  • Page 39 Table 6-8 Parameter Setting and Function of Output Terminals Setting Function Setting Function Inverter running signal Frequency arrival signal （ RUN ） （ FAR ） Frequency detection Reserved threshold （ FDT1 ） Low voltage lock-up signal Reserved （ LU ） External stop command Higher limit of frequency （...
  • Page 40 The signal is given if the preset frequency is higher than lower limit of frequency and the operating frequency reaches the lower limit of frequency. 9: Zero-speed running The signal is given if the inverter’s output frequency is 0 and the inverter is in operating status.
  • Page 41 Setting Function Range current 0 ～ 2 times of motor’s rated Output current current 0 ～ 2 times of motor’s torque Output torque 0 ～ 1.2 times of inverter’s rated Output voltage voltage 0 ～ 800V Bus voltage Reserved Reserved 0 ～...
  • Page 42 Set this function is used to test the current output frequency and frequency deviation, the output terminal function set to 1 (the signal frequency reaches FAR), when the output frequency of frequency converter and the difference between the set frequency in P6.13 (frequency) to check out the width range, the terminal output frequency to signal (FAR) Range ：...

  • Page 43: Close-Loop Pid Control（F7

    6.8 Close-loop PID control（F7） F7.00 Close-loop PID control Range：0、1【0】 0：Non Closeloop PID control 1：Closeloop PID control Range ： 0 ～ 4 【 0 】 F7.01 Reference input method 0：Digital setting Take the value of F7.05 1：Reserved 2：Reserved 3：LED keypad potentiometer given 4：Reserved F7.02 Reserved Reserved...
  • Page 44 F7.12 Proportional gain Kp Range ： 0.000 ～ 9.999 【 0.050 】 Range ： 0.000 ～ 9.999 【 0.050 】 F7.13 Integral gain Ki Range ： 0.01 ～ 50.00s 【 0.50s 】 F7.14 Sampling cycle Ts The bigger the proportional gain, the faster the response, but oscillation may occur easily if proportional gain is too big.

  • Page 45: Ms Parameters（F8

    line detection time If set F7.29 to 0.0%, no feedback break line detection Feedback break line detection threshold is a percentage of the full feedback. If PID feedback signal is less than F7.29 and last more than setting time of F7.30, feedback break line alarm will appears.
  • Page 46 ↓ ↑ Interference to external Output current wave Worse Better Range ： 0 、 1 【 0 】 F9.03 CWF auto adjustment 0：Disabled 1：Enabled When CWF auto adjustment is enabled, the inverter can adjust CWF automatically according to the temperature inside the inverter. F9.04 Reserved Reserved Range ：...
  • Page 47 0: Storage auxiliary frequency when power supply drop off The auxiliary frequency will be stored in F0.05, auxiliary frequency will superposition polarity stored in F9.18 polarity. 1: don't store auxiliary frequency when power supply drop Ten: stop frequency processing 0: keep the auxiliary frequency after downtime 1: setting frequency reset after downtime Hundred: auxiliary frequency superposition of polarity 0: Positive polarity...

  • Page 48: Display Control Parameters（Fa

    2．When the control mode is keypad or serial port or 3-wire terminal 1 and 2, there is no RUN command at power on. 3．If there is a Stop command, the inverter will not start. Range ： 0.5~100.0ms 【 7.5ms 】 F9.34 Terminal filter time Range ：...
  • Page 49 Figure 6-59 LED Displayed Parameter 1 Setting FA.00 and FA.01 define the parameters that can bedisplayed by LED when the inverter is operating. If Bit is set at0, the parameter will not be displayed; If Bit is set at 1, the parameter will be displayed. As to the conversion of binary format to Hex format, please refer to Table 6-12.

  • Page 50: Communication（Fb

    stop state parameters Figure 6-62 Parameter Displayed at Stop State FA.03~FA.06 Reserved Reserved 6.12 Communication（FB） Range ： 000 ～ 125H 【 004 】 FB.00 Communication configuration Baud rate: 0 ： 1200 BPS 1 ： 2400 BPS 2 ： 4800 BPS 3 ：...

  • Page 51: Professional Parameters（Fc

    Range ： 0 ～ 247 【 1 】 FB.01 Local address In serial communication, FB.01 is unique, used to identify the inverter’s address. Note: “0” is the broadcast address. When the address is set to broadcast address, the inverter can receive and execute the command sent by control FC, but will not answer it.
  • Page 52 Simple PLC operation Signal of completing one PLC stage 500ms Signal of completing one PLC cycle Figure 6-67 Simple PLC Operation In Figure 6-67, a1~a7, d1~d7 are the Acc and Dec time of the respective stage; f1~f7 and T1~T7 will be defined in later parameters. The PLC stage and PLC cycle are indicated by the 500mS signals from output terminals Y1 and Y2 of open collector output or relay output.
  • Page 53 As Figure 6-70 shows, the inverter holds the frequency and direction of the last stage after single cycle. 3： （Continuous cycle） ： The inverter continues running cycle after cycle until Stop command is received. Ten’s place of FD.00: Restart mode after PLC interruption: 0: start from the first stage The inverter restarts from the first stage of PLC after interrupts, such as Stop command, fault or poweroff.

  • Page 54: Constant-Pressure Water Supply (Fe)

    Range ： 0 ～ 6500s （ min ）【 20.0s 】 FD.08 Stage 4 run time FD.09~FD.30 Reserved Reserved FD.01、 FD.03、 FD.05、 FD.07are to set frequency, direction, Acc/Dec time of PLC stages. See Figure 6-74: Figure 6-74 PLC Stage i setting（i=1～7） One’s place: 0: select MS frequency i, e.g.
  • Page 55 The cooling effect of variable frequency motor is not affected by the motor’s speed, so low speed compensation is not necessary. FL.01 Motor overload protection Range ： 20.0 ～ 110.0 ％【 100.0 ％】 factor In order to apply effective overload protection to different kinds of motors, the Max output current of the inverter should be adjusted as shown in Figure 6-75.
  • Page 56 Stall overvoltage point Time Output freq. Time Figure 6-76 Stall Overvoltage FL.04~ FL.06 Reserved Reserved FL.07 Auto current limiting Range ： 20~200% 【 160% 】 threshold FL.08 Reserved Reserved FL.09 Action mode of auto Range ： 0 ～ 5 【 5 】 current limiting Auto current limiting function is used to limit the load current under the preset current in real time to avoid trip due to over-current.

  • Page 57: Operation Time And Temperature Of Cooling Fan （Fn

    Range ： 0 ～ 999V 【 0V 】 FL.17 Bus voltage at the last fault FL.18 Output current at the last fault Range ： 0 ～ 6553A 【 0.0A 】 Range ： 0.00 ～ 650.00Hz 【 0.00Hz 】 FL.19 Freq. at the last fault FL.20 Heatsink 1 temperature at the Range ：...

  • Page 58: Factory Default（Fu

    0: All parameters are allowed to be changed;； 1: No parameters can be changed except the F0.04 and FP.01; 2: No parameters can be changed except FP.01. FP.02 Parameter initialization Range ： 0 ～ 2 【 0 】 0: disabled 1: clear fault record Clear the contents of FL.14~FL.19.

  • Page 59: Troubleshooting

    7. Troubleshooting All the possible faults of HV950 have been given in Table 7-1. Fault code range is F.oC1～F.tU. You can user can check thefaults according to the following table and record detailed fault phenomena before seeking service. Please contact the salesdistributor when you need technical supports.
  • Page 60 Fault Display Fault description Possible reasons Actions code code Too short Dec time (with reference to generated Prolong the Dec time Over voltage in energy) F.oU2 Dec process Use suitable dynamic The load inertia is too high braking device Check the AC supply Abnormal AC supply voltage voltage Over voltage...
  • Page 61 Fault Display Fault description Possible reasons Actions code code Reduce DC braking Too large DC braking energy current, prolong braking time Adjust V/F curve or Improper V/F curveV/F torque boost value The inverter is re-started with Start when the motor stops a rotating motor Check the AC supply Low AC supply voltage...
  • Page 62 Fault Display Fault description Possible reasons Actions code code F.Con Reserved Reserved Reserved Wires or connectors of Check and re-wire control board are loose Current detection F.Ct Auxiliary power supply is circuit is faulty Seek service damaged Current detection circuit fault Seek service Press STOP/RESET to Severe disturbance from reset or install power filter...
  • Page 63 Table 7-2 Operation Related Faults and Solutions Phenomena Conditions Possible reasons of fault Actions In stop or operating state, keep pressing FUNC/DATA key, when pressing ▼ key three times. Keypad locked Power off the inverter and then Part of the keys or response of all the keys are power on again...
  • Page 64 Phenomena Conditions Possible reasons of fault Actions running Reference frequency is 0 Check the reference frequency Skip frequency Check skip frequency Positive logic, close loop feedback>reference frequency, Negative Check the close loop setting and logic, close loop feedback feedback<reference frequency Frequency adjustment is Check F9.05 set at 0...

  • Page 65: Maintenance

    8. Maintenance Many factors such as ambient temperature, humidity, dust, vibration, internal component aging, and wear and tear will give rise to the occurrence of potential faults. Therefore, it is necessary to conduct routine maintenance to the inverters. Note： As safety precautions, before carrying out check and maintenance of the inverter, please ensure that: The inverter has been switched off;...

  • Page 66: General Inspection

    2. Don't leave metal parts like screws or pads in the inverter, otherwise the equipment may be damaged. 8.3 General Inspection:： 1．Whether screws of control terminals are loose. If so, tighten them with a screwinverterr; 2．Whether the main circuit terminals are properly connected; whether the mains cables are over heated;；...

  • Page 67: Storing Inverters

    Criteria: After the inverter is switched off, check if an abnormal condition such as crack exists on fan vanes and other parts. When the inverter is switched on, check if inverter running is normal, and check if there is any abnormal vibration.
  • Page 68 ④.Service fee will be charged according to the actual costs. If there are any maintenance contracts, the contract prevails.

  • Page 69: Parameter Profiles

    9. Parameter profiles “○”：Indicate the set value of the parameter can be changed when the inverter is in stop status or running status. “×”：Indicate the set value of the parameter cannot be changed when the inverter is in running status. “*”：It represents the value of this parameter is the actually measured value and cannot be changed.
  • Page 70 F0 Group：Basic Function Parameters（ total 15 items） Defaulted Code Name Setting Scope Min Unit Address Change Value 4：Reserved 5：AI 6：Reserved 7：Reserved 8：-AI Auxiliaryreference ○ 9：Reserved F0.03 003H frequency 10：Reserved 11：AI-5v 12：Reserved 13 ： Panel potentionmeter setting Low limit frequency～upper ○ 0.01Hz 50.00Hz F0.04...
  • Page 71 F1 GROUP：Motor Parameter（total 11 items） Defaulted Addre Min Unit Change Code Name Setting Scope Value Power ○ F1.05 Stator resistance 0.0～50.00% 0.01% determinati 105H Power ○ F1.06 Leakage inductance 0.0～50.00% 0.01% determinati 106H Power ○ F1.07 Rotor resistance 0.0～50.00% 0.01% determinati 107H Power...
  • Page 72 F3 GROUP：Magnetic Flux Vector Control Parameters（toal 15 items） Defaulted Addres Code Name Setting Scope Min Unit Change Value F3.00 Reserved 300H F3.01 V/F freq F3 F3.03～F0.06 0.01Hz 0.00Hz 301H × F3.02 V/F voltage V3 F3.04～100% 0.1% 0.0% 302H × F3.03 V/F freq F2 F3.05～F3.01 0.01Hz...
  • Page 73 F5 GROUP：Multi-function terminal（Total 22） Defaulte Addres Change Code Name Setting Scope Unit d Value Function of multi-function F5.00 500H × terminal X1 0：non-function 1：Forward run 2：Reverse run 3：MS frequency1 4：MS frequency2 5：MS frequency3 6：External fault normally open input 7：External fault normally closed input 8：Failure reset input 9：Forwardjog 10：Reversejog...
  • Page 74 F5 GROUP：Reserved Parameters（total 22） Defaulte Addres Change Code Name Setting Scope Unit d Value F5.05~ 505H~ Reserved F5.07 507H 0：Two lines 1 1：Two lines 2 F5.08 Terminal control mode 508H × 2: Three lines 1 3：Three lines 2 F5.09~ 509H~5 Reserved F5.11 ○...
  • Page 75 F6 Group：Output Terminal Control Parameter（total 18） Defaulted Min Unit Address Change Code Name Setting Scope Value Reserved F6.03 603H 0：Output frequency before slip compensation （0～Max Output frequency） 1 ： Output frequency after slip compensation （0～Max Output frequency） 2： Set frequency （0～Max Output frequency）...
  • Page 76 F6 Group：Output Terminal Control Parameter（total 18） Defaulted Min Unit Address Change Code Name Setting Scope Value ○ FDT1 lag 0.00～650.0Hz 1.00Hz 0.01Hz F6.15 60FH F6.16~ Reserved F6.17 ~611H F7 Group：Process Closloop PID Parameters（Toal 34） Defaulted Min Unit Address Change Code Name Setting Scope Value...
  • Page 77 F8 GROUP：Multi Parameters（ total 21） Defaulted Code Name Setting Scope Min Unit Address Change Value F8.00 MS freq 1 5.00Hz F8.01 MS freq 2 10.00Hz F8.02 MS freq 3 20.00Hz Low limit frequency ～ ○ F8.03 MS freq 4 0.01Hz 30.00Hz Upper limit ferquency...
  • Page 78 F9 GROUP：Enhanced Funtion Parameters（total 51） Defaulted Min Unit Address Change Code Name Setting Scope Value LED Units： Bit0～Bit3: X1～X4 LED Tens： Bit0：X5 Bit1～Bit3: Reserved LED Hundreds： Bit0 ～ Bit3: Reserved, Reserved,Y1, Reserved Positvie or negative logic of ○ LED Thousands： F9.15 90FH terminal...
  • Page 79 F9 GROUP：Enhanced Funtion Parameters（total 51） Defaulted Min Unit Address Change Code Name Setting Scope Value ○ Current count value 0～65535 F9.35 923H Under-voltage setting 75.0%～135.0% 0.1% 90.0% F9.36 924H × F9.37~ 925H~ Reserved F9.42 92AH LED Units： Carrier selection 0：Set the carrier 1：Default carrier LED Tens：...
  • Page 80 FA display Parameters（total 7） Defaulted Min Unit Address Change Code Name Setting Scope Value Binary set： 0：No displaying 1：Displaying LED Units： Bit0：Output frequency(before compensation,Hz) Bit1：Output frequency ( after compensation,Hz) Bit2：Setting frequency(Hz blink) LED displayed parameter ○ FA.00 A00H Bit3：Output selection 1 current(A) LED Tens：...
  • Page 81 FA display Parameters（total 7） Defaulted Min Unit Address Change Code Name Setting Scope Value Binary set： 0：No display 1：Display LED Units： Bit0：Set frequency (Hz) Bit1：External count Bit2：RUN SPEED (RPM) Bit3 ： Set speed (RPM) LED Tens： Bit0：Reserved Displayed parameter at stop ○...
  • Page 82 FB：Communication Parameters（total 6） Defaulted Min Unit Address Change Code Name Setting Scope Value LED Units ： Baud rate selection 0：1200bps 1：2400bps 2：4800bps 3：9600bps 4：19200bps Communication 5：38400bps × FB.00 B00H configuration LED Tens：Data format 0：1-8-2-N format，RTU 1：1-8-1-E format，RTU 2：1-8-1-O format，RTU LED Hundreds ： Virtual input terminals 0：Invalid 1：Valid...
  • Page 83 FD Group：Professional function parameters 2（total 31） Defaulted Min Unit Address Change Code Name Setting Scope Value LED Units ： PLC run mode 0：no-action 1 ： Stop after ending single running 2：keep the final value when single running ends 3：Continuous circulation LED Tens：Start mode 0 ：...
  • Page 84 FD Group：Professional function parameters 2（total 31） Defaulted Min Unit Address Change Code Name Setting Scope Value LED Units： 0：Select mulit frequency 2(F8.01) 1：Frequnecy depends on thefunction code of F0.02 ○ FD.03 Stage 2 setting D03H LEDTens： 0：Forward 1：Reverse 2：Subject to run command ○...
  • Page 85 FL Group：Fault Protection Parameters（ total 22） Defaulted Chang Min Unit Address Code Name Setting Scope Value 0：Disable 1：Common motor（low speed compensation） FL.00 Motor overload protection 1100H × 2：Varible frequency motor（No low speed compensation） Motor overload protection FL.01 20.0～110% 0.1% 100.0% 1101H ×...
  • Page 86 FL Group：Fault Protection Parameters（ total 22） Defaulted Chang Min Unit Address Code Name Setting Scope Value 4：Overvoltage run at acceleration (F.oU1) 5：Overvoltage run at deceleration (F.oU2) 6：Overvoltage run at constant speed (F.oU3) 7：Overvoltage at control voltage (F.PoU) 8：Reserved 9：Phaseloss at outpput (F.oPL) 10：Power module protection (F.FAL)
  • Page 87 FL Group：Fault Protection Parameters（ total 22） Defaulted Chang Min Unit Address Code Name Setting Scope Value Output current at the last FL.18 0.0～6553A 0.1A 0.0A 1112H fault FL.19 Freq at the last fault 0.00Hz~650.0Hz 0.01Hz 0.00Hz 1113H Heatsink 1 temperature at FL.20 0.0～120.0℃...

  • Page 88: Communication Protocal

    10. Communication Protocal 10.1 Communication Mode 1．Inverter communication protocol is Modbus protocol, and supports the common register read and write。 2．Drive as a slave, master-slave point to point communication. A Master drive uses broadcast address to send a command, the slave does not answer. 3．In the case of long distance or multi-machine communication, we recommend to connect the the master station signal GND with the drive signal "GND", in order to improve the communication of immunity...
  • Page 89 function code parameters comply with specificatoins in the user manual. Group numbers of functions codes are mapped to the high byte of register address.The group index is mapped to the low byte of register address. Control parameters and status parameters of the inverter are virtualized as inverter function code groups. Correspondence relation between the register address high byte and function codes group number is as follows F0 Group：...
  • Page 90 Slave drives are busy, please try again later, mainly used for storing data into the non-volatile storage Information frame error: including information length error and 0x18 calibration error 0x20 Parameters cannot be modified 0x22 Parameters are protected by password. Single drive parameter rewrite application layer protocol data unit as follows:： Request format：...
  • Page 91 0x3308 Output Power 0x3309 Running RPM 0x330A Reserved 0x330B Analog closed-loop feedback 0x330C Busbar voltage 0x330D External counter 0x330E Output torque Switch input and output terminals status： BIT0~15=X1~X5, 0x330F NC,NC,NC,Y1, NC, TC,NC, FAN, BRAKE, NC, NC 0x3310 Preserve 0x3311 Operation frequency after compensation 0x3312 The first run failure 0x3313...
  • Page 92 Control word（bit） Value Function Description Inching to stop the forward run Inching to reverse Bit5 Inching stop reverse Allow acceleration/ deceleration Bit6 Forbidden Reserved acceleration/ deceleration The control word Host computer sent by the current control valid FC is effective Bit7 The control word Host...

  • Page 93: Instruction

    0： Normal ； None 0： Fault， Specific fault codes details refer to the inverter user manual Bit15~8 00~0xFF Faule code E.g. ,motor overload F.oL2 will be the fault code of 0x0E， undervoltage will be 0x1F。 10.3 Instruction 1 、 Inverters cannot communicate during the restoring default parameters and parameter identification phase, after that communication back to be normal.

  • Page 94: The Scaling Rule Of Inverter

    Register Register Register Register address Function Code content Checksum address number content bytes 0x01C7, Request 0x01 0x10 0x3200 0x0002 0x04 0x0399 0x1388 Response 0x01 0x10 0x3200 0x0002 none none 0x4F70 Read 1 # Inverter output current, the Inverter responds output current of 30.0 A (internally donote to be 300)：...

  • Page 96: Warranty Agreement

    Warranty Agreement 1. The warranty period of the product is 18 months (refer to the barcode on the equipment). During the warranty period, if the product fails or is damaged under the condition of normal use by following the instructions, HNC will be responsible for free maintenance. 2.
  • Page 97 Version: 1.0.0.0 Thanks for choosing HNC product. Any technique support, PLS feel free to contact our support team Tel: 86(20)84898493 Fax: 86(20)61082610 URL: www.hncelectric.com Email: support@hncelectric.com...
