RM641-SD Installation Guide
• 1 RM641-SD system unit
• 1 Quick Installation Guide
• 1 CD disk includes:
- Drivers / Manual

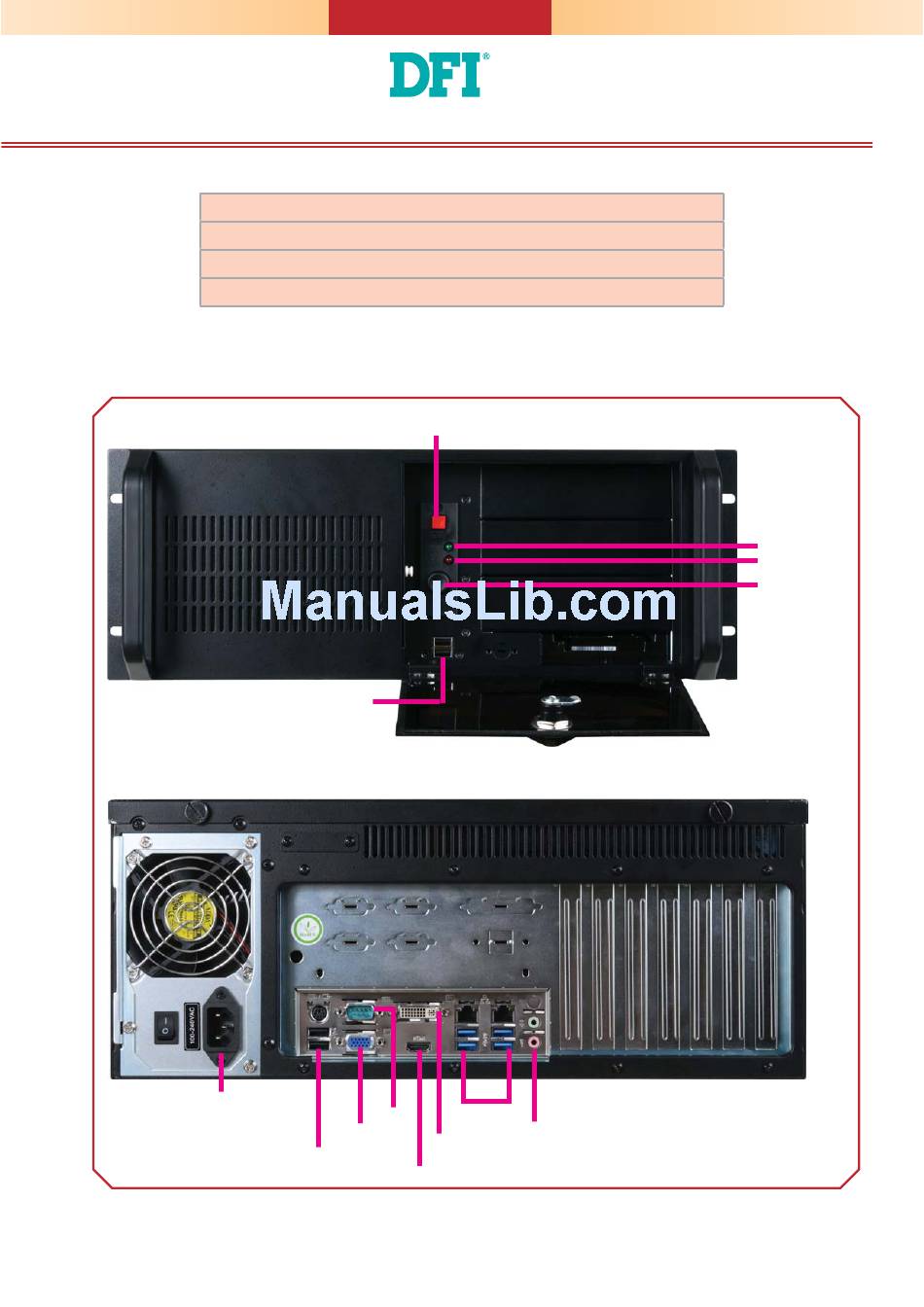

Front View
Rear View
DC-in Jack
DFI reserves the right to change the specifi cations at any time prior to the product's release. For the latest revision and more details of
the installation process, please refer to the user's manual.
Package Contents
Panel
Reset
USB 2.0
COM
VGA
DVI-I
(DVI-D signal)
keyboard/mouse
HDMI
USB 2.0
www.dfi .com
1
LAN 1-2
USB 3.0 Line-out
Mic-in
Power LED
HDD LED
Power

Advertisement

loading
Need help?

Need help?

Do you have a question about the RM641-SD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DFI RM641-SD

Summary of Contents for DFI RM641-SD

  • Page 1 HDMI USB 2.0 DFI reserves the right to change the specifi cations at any time prior to the product's release. For the latest revision and more details of the installation process, please refer to the user's manual. www.dfi .com...

  • Page 2: Removing The Chassis Cover

    Removing the Chassis Cover 1. Before removing the chassis cover, make sure the system and all other peripheral devices connected to it have been powered-off. 2. Disconnect all power cords and cables. 3. Remove the 2 mounting screws to open the top cover. 4.

  • Page 3: Installing A Sata Drive

    Installing a SATA Drive 1. Unfasten the 4 mounting screws that secure HDD bracket to the system. Mounting screw HDD bracket 2. Secure the hard drive to the HDD bracket. Align the mounting holes of the SATA drive with the mounting holes on the HDD bracket and then use 4 mounting screws to install the hard drive onto the HDD bracket.
  • Page 4 3. Connect the SATA data cable and SATA power cable to the con- nectors on the SATA drive. Then connect the SATA data cable to the SATA port on the system board. SATA port SATA power and data connector...
  • Page 5 4. Install the HDD bracket back to the system. Mounting screw Note: The system can accommodate 4 disks (3.5” or 2.5”). However, 3.5” to 5.25” or 2.5” to 5.25” drive mounting bracket adapters will be required to install HDDs in the optical bays.

  • Page 6: Board Layout And Jumper Settings

    Board Layout and Jumper Settings COM 1 RS232/422/485 Select (JP5) COM 1 RS232/Power PS/2 KB/MS CPU Fan Select (JP8) USB 6 COM 1 System Fan 1 USB 5 COM 1 RS232/422/485 RS232/422/485 USB 2.0 Select (JP7) Select (JP6) +12V COM 1 Socket LGA1151 Power Chrontel...
