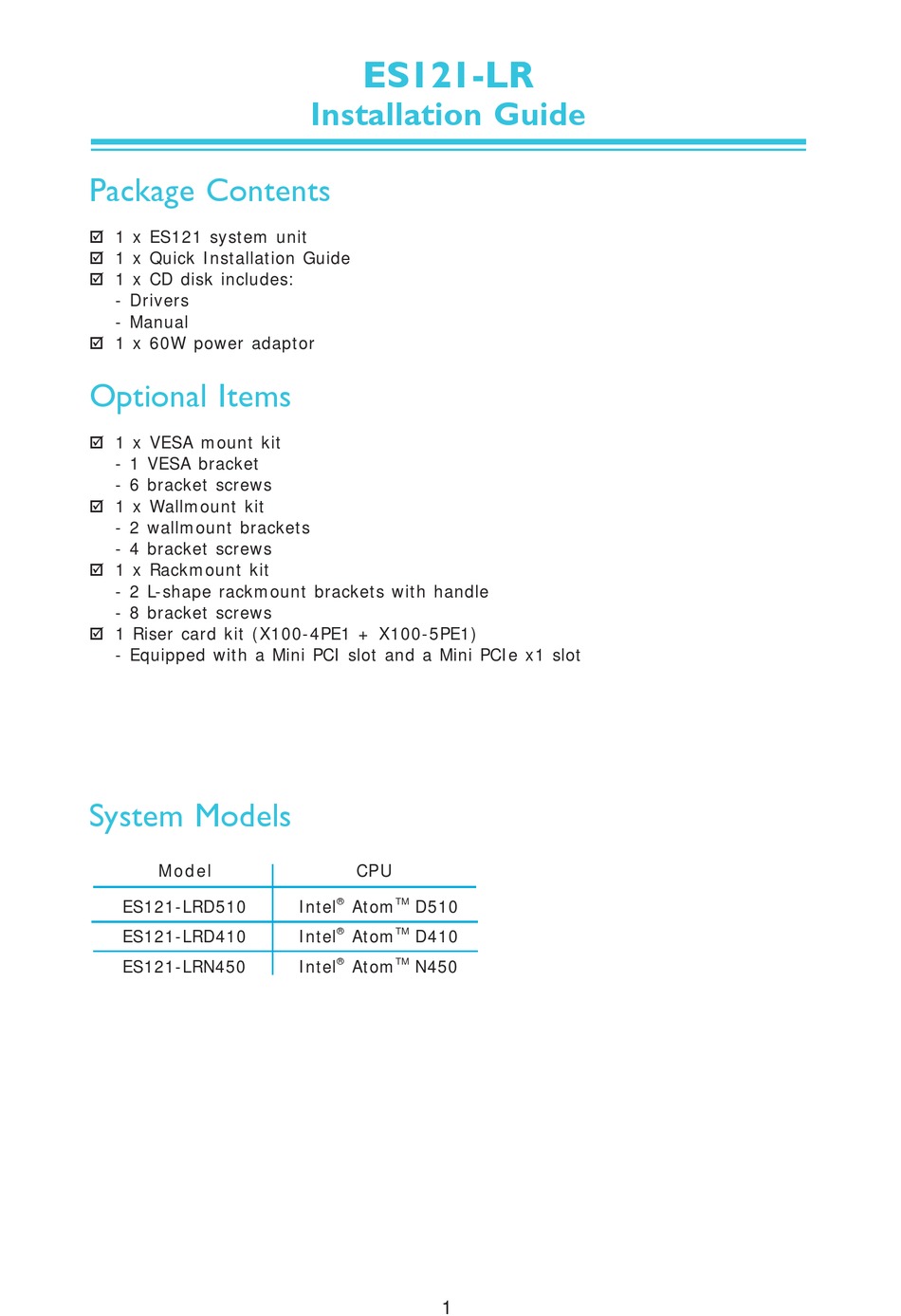

Package Contents
1 x ES121 system unit
1 x Quick Installation Guide
1 x CD disk includes:
- Drivers
- Manual
1 x 60W power adaptor
Optional Items
1 x VESA mount kit
- 1 VESA bracket
- 6 bracket screws
1 x Wallmount kit
- 2 wallmount brackets
- 4 bracket screws
1 x Rackmount kit
- 2 L-shape rackmount brackets with handle
- 8 bracket screws
1 Riser card kit (X100-4PE1 + X100-5PE1)
- Equipped with a Mini PCI slot and a Mini PCIe x1 slot
System Models
Model
ES121-LRD510
ES121-LRD410
ES121-LRN450
ES121-LR
Installation Guide
CPU
®
TM
Intel
Atom
D510
®
TM
Intel
Atom
D410
®
TM
Intel
Atom
N450
1
Advertisement
Table of Contents
Summary of Contents for DFI ES121-LRD510
- Page 1 - 2 L-shape rackmount brackets with handle - 8 bracket screws 1 Riser card kit (X100-4PE1 + X100-5PE1) - Equipped with a Mini PCI slot and a Mini PCIe x1 slot System Models Model ® ES121-LRD510 Intel Atom D510 ® ES121-LRD410 Intel...
-
Page 2: Front View
Front View Power LED HDD LED Rear View LINE-IN DC-IN DVI-I COM 1 COM 2 HDMI DVI-I RESET LINE-OUT POWER Key Features ES121-LR Processor Intel Atom D510/D410/N450 ® Chipset Intel ICH8M ® 1 LAN port 1 RS232/422/485 COM2 port 1 RS232 COM1 port Multiple VGA + Bottom DVI-I + Top DVI-I or Displays... -
Page 3: Removing The Chassis Cover
Removing the Chassis Cover 1. Make sure the system and all other peripheral devices connected to it has been powered-off. 2. Disconnect all power cords and cables. 3. The 6 mounting screws on the sides of the system are used to secure the cover to the chassis. - Page 4 4. After removing the mounting screws, lift the cover up. Lift the Cover Upward 5. The SODIMM sockets, SATA drive bay and expansion slots are readily accessible after removing the chassis cover. SODIMM sockets PCIe x1 SATA drive bay...
-
Page 5: Installing A Sodimm
Installing a SODIMM 1. Locate the SODIMM socket on the system board. SODIMM sockets 2. Note the key on the socket. The key ensures the module can be plugged into the socket in only one direction. - Page 6 3. Grasping the module by its edges, align the module into the socket at an ap- proximately 30 degrees angle. Apply fi rm even pressure to each end of the module until it slips down into the socket. The contact fi ngers on the edge of the module will almost completely disappear inside the socket.
-
Page 7: Installing A Sata Drive
Installing a SATA Drive 1. Remove the 4 mounting screws that secure the HDD brackets to the drive bay. Mounting screw 2. Align the mounting holes of the SATA drive with the mounting holes on the HDD bracket and then use the provided mounting screws to secure the drive in place. - Page 8 3. Place the SATA drive (with HDD bracket) into the chassis. Replace the 4 mounting screws you removed in step 1. Mounting screw 4. Connect the SATA data cable and SATA power cable to the connectors on the SATA drive. SATA data cable SATA power cable...
- Page 9 Installing the Riser Cards for Mini PCI and Mini PCIe Expansion 1. The riser card kit in the package includes the X100-4PE1 and X100-5PE1 riser cards. X100-4PE1 X100-5PE1 2. The PCI and PCIe x1 slots on the system board are used to install the riser card.
- Page 10 3. Insert the X100-4PE1 riser card into the PCI and PCIe x1 slots. PCIe x1 X100-4PE1 4. Insert the X100-5PE1 riser card into the PCI and PCIe x1 slots that are on the X100-4PE1 riser card. The X100-5PE1 riser card is equipped with a Mini PCI slot and a Mini PCIe x1 slot.
- Page 11 DC-In +12V +12V Ground Ground Used to plug a 12V DC power adapter. This jack provides maximum of 60W power and is considered a low power solution...
-
Page 12: Mounting Options
Mounting Options Wall Mounting The Wall Mounting kit includes the following: • 2 Wallmount brackets • 4 bracket screws 1. At the bottom side of the system, use the provided mounting screws to secure the wallmount brackets on each side of the system. Wallmount bracket Mounting... - Page 13 Rackmount Mounting The Rackmount Mounting kit includes the following: • 2 L-shape rackmount brackets with handle • 8 bracket screws 1. The 4 mounting holes on the sides of the system are used to mount the rack- mount bracket.
- Page 14 2. Use the provided mounting screws to secure the rackmount brackets on each side of the system. Rackmount bracket 3. The photo below shows the rackmount brackets properly installed on each side of the system.
- Page 15 Rackmount Instructions Elevated Operating Ambient If installed in a closed or multi-unit rack cabinet, the operating temperature of the rack environment may be higher than the room temperature. Considerations should be given on installing the system in an environment compatible with the maximum ambient temperature (Tma) specifi...
- Page 16 VESA Mounting Mounting Kit • 1 VESA bracket • 6 bracket screws 1. Prior to installing the VESA bracket, make sure you have already installed the wallmount brackets. Align the VESA bracket to the wallmount brackets and then use the provided mounting screws to secure the bracket in place.
- Page 17 Configuring Display Devices BIOS Setting The supported graphics controller are: • Integrated Intel graphics: supports VGA port • S3 Graphics Chrome 435 ULP controller: supports 2 DVI-I and 1 HDMI ports ® You must fi rst select the graphics controller you intend to use as the primary boot device.
- Page 18 3. In the Initiate Graphic Adapter fi eld, select the graphics controller you want to use as the primary boot device. IGD/PCIE Selects the device connected to the VGA port (Intel) as the primary boot de- vice. PCIE/IGD Selects the device connected to the DVI or HDMI port (S3) as the primary boot device.
- Page 19 Using DVI and HDMI Ports The S3 Graphics Chrome 435 ULP controller supports 2 DVI-I and 1 HDMI ports. ® Important: • Does not support multiple displays using HDMI and the 2 DVI-I at the same time. • For dual display, use the top DVI + bottom DVI or HDMI + bottom DVI. •...
- Page 20 S3 Graphics Driver After installing the S3 Graphics Driver (from the provided CD), only the graphics part of the driver will be installed. The audio part of the driver will not install at the same time. In the Device Manager, you will notice that a yellow exclamation mark will appear next to the audio devices.
- Page 21 3. Select the appropriate driv- er and then click Next. 4. Setup is now installing the driver. 5. Click Finish. Reboot the system and re- peat steps 2 to 5 to confi g- ure the other audio device.
- Page 22 Configuring the Display Settings Use Windows' Display Settings to specify color settings, change the screen resolu- tion, and set the refresh rate of your monitor. If you are using multiple monitors, you can specify individual settings for each display. Aside from using Windows' Display Settings, you can also confi gure the settings using the Intel GMA utility and S3 Graphics ScreenToys utility.
- Page 23 Windows 7 - S3 Graphics ScreenToys Utility 1. Right-click on the Windows 7 desktop. A list of options will appear. Click Screen- Toys. 2. The S3 Graphics Screen- Toys utility allows you to manage your display de- vices and settings. 3.
- Page 24 Windows 7 - Intel GMA Utility 1. Click the notifi cation area of the taskbar. 2. Click the blue icon and then select Graphics Proper- ties. 3. The Intel GMA utility allows you to manage your display devices and settings. 4.
- Page 25 Windows XP - Windows Display Properties 1. Right-click on the Win- dows XP desktop. A list of options will appear. Click Properties. 2. Click the Settings tab. You can change the appearance of your display by setting the resolution, color qual- ity, etc.
- Page 26 Windows XP - S3 Graphics ScreenToys Utility 1. Right-click on the Win- dows XP desktop. A list of options will appear. Click ScreenToys. 2. The S3 Graphics Screen- Toys utility allows you to manage your display de- vices and settings. 3.
- Page 27 Windows XP - Intel GMA Utility 1. Click the notifi cation area of the taskbar and then se- lect Graphics Properties.. 2. The Intel GMA utility allows you to manage your display devices and settings. 3. Click OK.
-
Page 28: Board Layout And Jumper Settings
Board Layout and Jumper Settings DRAM Power CPU fan Power-on select (J DC-in Peripheral power DDR2_1 SODIMM Panel power select ( LCD/Inverter power DDR2_2 SODIMM Standby Power LED HDMI LVDS LCD panel DVI-I CF card DVI-I setting (J Intel Atom Chrome 435 USB 2-5 USB 2-5 power...
