• Universal Replacement – for Carlin,
Beckett, Honeywell and ICM Controls
• On-Board LCD Screen – no special
tool needed
• Fully Programmable Settings
• 32 Cycle Fault History
• Alarm Contacts
• Communications Port
• Serviceman Reset Protection
• Blocked Vent Protection
• Built-in Pump Prime
• Recessed Spade Connectors
• Provides CAD Cell Reading in OHMS
It is important that the installation of the oil burner,
piping and fittings, safety devices, controls, electrical
wiring and equipment be done in accordance with
national and/or local regulations of the authorities
having jurisdiction over such installation.
©
Copyright 2017 — Carlin Combustion Technology, Inc.

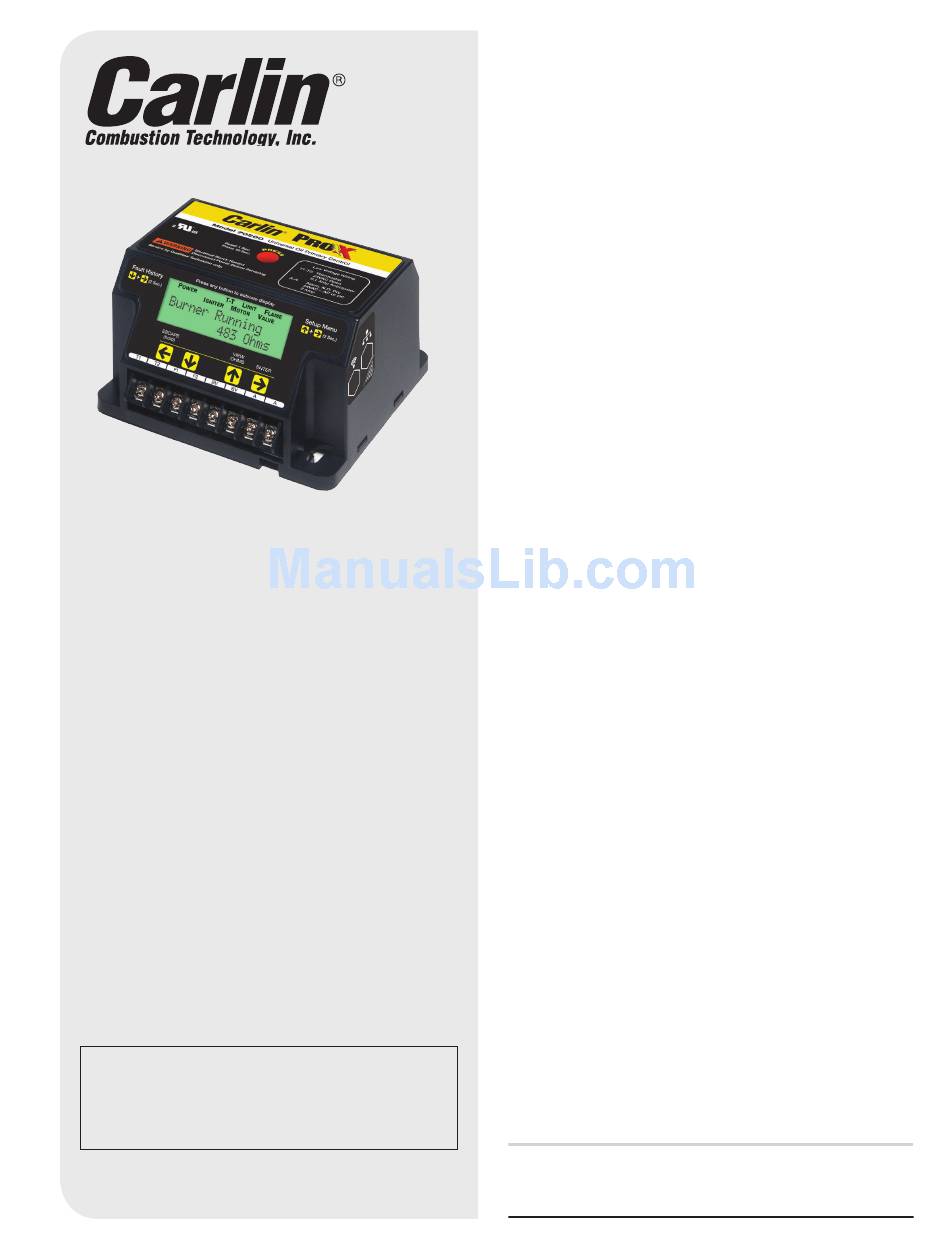

Model 70200
Universal Oil
Primary Control
Installation and
Operating Instructions
For Use By Qualified Service Technicians Only
Power input
(red/white wire) ................................ 120 VAC, 60 HZ, 9 VA
Limit circuit input
(black wire) .............................................. 120 VAC, 60 HZ
Motor load
(orange wire) .........10 FLA / 60 LRA (reduce by valve load)
Ignitor load
(blue wire) .................................... 120 VAC, 60 HZ, 500 VA
Valve load
(violet wire) .......................................... 120 VAC, 60 HZ, 2A
Vent load ................................................................. 0.1 amp
Vent input ............................................................... 12 V, 2A
Line heater ................................................................ 1 amp
Alarm contacts (dry contacts)....................24V, AC/DC, 2A
Operating temperature limits ..................+32°F to +140°F
Storage temperature limits ...................... -40°F to +185°F
Thermostat anticipator current .......................... 0.1 A, AC
Agencies .............................. UL recognized (US & Canada)
Carlin Combustion Te chnology, Inc.
126 Bailey Rd
Ph 203-680-9401
Tech Support 800-989-2275
North Haven, CT 06473
Fx 203-680-9403
carlincombustion.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Carlin 70200
Summary of Contents for Carlin 70200
- Page 1 Carlin Combustion Te chnology, Inc. 126 Bailey Rd North Haven, CT 06473 Ph 203-680-9401 Fx 203-680-9403 © Copyright 2017 — Carlin Combustion Technology, Inc. Tech Support 800-989-2275 carlincombustion.com...
- Page 2 Indicates presence of hazards that will cause minor personal injury or property damage. Indicates special instructions on installation, operation or maintenance that are important but not related to personal injury or property damage. MN70200B 060217 Carlin Combustion Technology, Inc.
- Page 3 Installing and Wiring The 70200 control must be installed and serviced only by a qualified service technician. Always disconnect power source before wiring to avoid electrical shock or damage to the control. All wiring must comply with applicable codes and ordinances.
- Page 4 30 seconds of inactivity or by a call for heat. To enter the Settings Mode: Press the buttons simultaneously for 2 seconds. The display will show – Settings Press To Exit Hold MN70200B 060217 Carlin Combustion Technology, Inc.
- Page 5 If the cad cell sees flame, the control in Interrupted Duty until another recycle event occurs. will remain in self-test mode until the cad cell no longer senses flame. • TT Jumpered: Allows TT to be “jumpered” by software program. MN70200B 060217 Carlin Combustion Technology, Inc.
- Page 6 Trial for Ignition when the countdown clock expires. NOTE: For the Valve Delay to oper- The 70200 stores information from the last 32 cycles in which ate, the burner must be equipped with a solenoid valve that is a fault condition occurred.
- Page 7 3 seconds at any time. Status Icons Status Icons will appear at the top of the 70200 display to indicate the control’s current operating condition. POWER Indicates that the control is powered (flashes if voltage is too low or too high) Displayed when the TT terminals are physically jumpered, jumpered in the set-up menu, or when thermostat is calling for heat.
- Page 8 Carlin Combustion Technology, Inc. 126 Bailey Road North Haven, CT 06473 Phone 203–680–9401 Fax 203–764–1714 info@carlincombustion.com www.carlincombustion.com e-mail us at: visit our website: © Copyright 2017 — Carlin Combustion Technology, Inc. MN70200B 060217...
