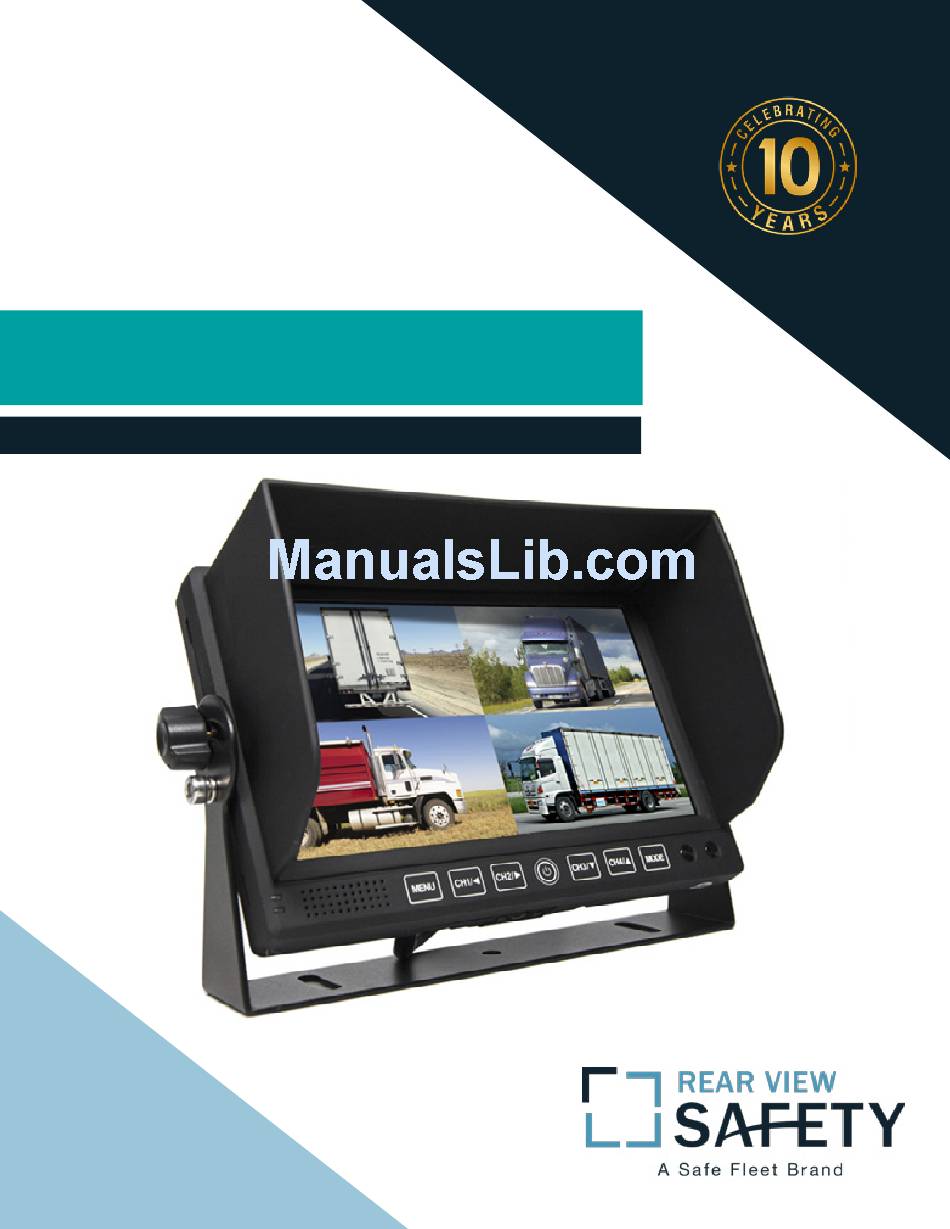

- Page 1 Instruction Manual 7" TFT LCD Digital Quad View Color Monitor with Built-in DVR RVS-2510-DVR Reverse With Confidence ™...
-
Page 2: Table Of Contents
Warranty....... 18 Disclaimer....... 19 Rear View Safety... -
Page 3: Introduction
NOTE! Please read all of the installation instructions carefully before installing the product. Improper installation will void manufacturer’s warranty. Congratulations on purchasing a Rear View Backup Camera System! With this manual you will be able to properly install and operate the unit. The Backup Camera System is intended to be installed as a supplement aid to your standard rear view mirror that already exists in your vehicle. -
Page 4: Safety Information
Rear View Camera System. If you back up while looking only at the monitor, you may cause Rear View Safety... - Page 5 INSTALLATION: • Electric shock or product or disconnected wire may cause a malfunction may occur if this fire. product is installed incorrectly. • While installing the Rear View System be careful with the wire • Use this product within positioning in order to avoid wire the voltage range specified.
- Page 6 If you have questions about this product, contact: Rear View Safety 1797 Atlantic Avenue Brooklyn, NY 11233 Tel: 1.800.764.1028 IN NO EVENT SHALL SELLER OR MANUFACTURER BE LIABLE FOR ANY DIRECT OR CONSEQUENTIAL DAMAGES OF ANY NATURE, OR LOSSES OR EXPENSES RESULTING FROM ANY DEFECTIVE PRODUCT OR THE USE OF ANY PRODUCT.
-
Page 7: Before Beginning Installation
Before drilling please check that no cable or wiring is on the other side of the wall. Please clamp all wires securely to reduce the possibility of them being damaged while vehicle is in use. Keep all cables away from hot/moving parts and electrical noisy components. We recommend doing a benchmark test before installation to insure that all components are working properly. -
Page 8: Monitor Introduction
6) When on, toggle recording on/off. Long press (3 seconds) to turn monitor off. Short press to turn monitor on. Toggle between pause/ play in menu mode. Long press (10 seconds) to reset system 5) CH3: View Channel 3, toggle down in menu, decrease volume in playback mode Rear View Safety... - Page 9 8) CH4: View Channel 4, toggle up in menu, increase volume in playback mode 9) Enter quad view. Volume decrease/play/pause in playback mode 10) Remote Sensor 11) SD Card Slot Reverse With Confidence ™...
-
Page 10: Remote Introduction
Remote Introduction 1) Turn monitor on/off 2) Toggle channel 3) Mute on/off 4) Toggle record/playback 5) Toggle selection up 6) Operating DVR - Select menu option | Menu - exit/previous menu Rear View Safety... - Page 11 7) Toggle left/select last video in playback 8) Recording mode: Toggle recording on/off | Menu mode: Confirm selection | Playback mode: Play/pause 9) Toggle right/select next video in playback 10) Toggle aspect ratio 11) Toggle down 12) Toggle image effect mode 13) Decrease volume/analog quantity 14) Enter menu 15) Increase volume/analog quantity...
-
Page 12: Wiring
2) CH2: Video two 3) CH3: Video three 4) CH4: Video four 5) CH1 trigger (Brown) 6) CH2 trigger (Green) 7) CH3 trigger (Blue) 8) CH4 trigger (Grey) 9) Ground (Black) 10) DC 12V/24V Power Supply (Red) Rear View Safety... -
Page 13: Interface Introduction
Interface Introduction • CH1/CH2/CH3/CH4 • Real data/time display • Recording when "REC" in / recording paused when "REC" in white Reverse With Confidence ™... -
Page 14: Menu Introduction
3. Press the "SETUP" key to enter main menu. Media database will up- date as shown below. Video Playback 1. Video Playback - Enter videoplay menu is shown below. Select/play video by remote. Rear View Safety... - Page 15 2. Time - Enter time menu, as shown below. User can set date/time. 3. Camera - Enter camera menu, as shown on next page. Toggle re- cording between current/all channels. You also use this menu to toggle recording time. Reverse With Confidence ™...
- Page 16 3. Others - Enter the others menu, shown below. Toggle between En- glish/Simplifed Chinese/Traditional Chinese. Revise Delay: Toggle trigger delay bettween Off/2 Second/3 Second. Rear View Safety...
-
Page 17: Interface Introduction
Playback Interface • CH1/CH2/CH3/CH4 • REC time/date • Current video playback display • Playback file name • Total time of current video files • Volume display Reverse With Confidence ™... -
Page 18: Warranty
OTHERS OR THE UNAUTHORIZED USE OF NONCONFORMING PARTS; THE DAMAGE IS DUE TO NORMAL WEAR AND TEAR, THIS DAMAGE IS DUE TO ABUSE, IMPROPER MAINTENANCE, NEGLECT OR ACCIDENT; OR THE DAMAGE IS DUE TO USE OF THE REAR VIEW SAFETY, INC. SYSTEM AFTER PARTIAL FAILURE OR USE WITH IMPROPER ACCESSORIES. -
Page 19: Disclaimer
FOR ANY INJURY, LOSS OR DAMAGE, INCIDENTAL OR CONSEQUENTIAL, ARISING OUT OF THE USE OR INTENDED USE OF THE PRODUCT. IN NO EVENT SHALL REAR VIEW SAFETY AND/OR ITS AFFILIATES HAVE ANY LIABILITY FOR ANY LOSSES (WHETHER DIRECT OR INDIRECT, IN... - Page 20 If you have any questions about this product, contact: Rear View Safety, Inc. 1797 Atlantic Avenue Brooklyn, NY 11233 800.764.1028 Better Cameras. Better Service. IT’S OUR GUARANTEE. Rear View Safety...
