DH195,060,000
K71155
Base-top
2 pcs
K12122
Shelf
1 pcs
L12863
Door
1 pcs
Aventos
Aventos
Flip up L/R
Cap left
2 pcs
1 pcs
Bumper
Screw flh
7x1,5 mm
3,5x15 mm
7 pcs
8 pcs
04-09-2015 2
/
K12122
Shelf
2 pcs
K13515
Back panel
Back panel
1 pcs
Socket rack
ID21564
Aventos
Cap right
Aventos mounting plate
2 pcs
1 pcs
BP00020-BP00018(2pcs)
Euro screw
Screw flh
6,3x11 mm
3,5x45 mm
22 pcs
16 pcs
SH906,060
K13320
Support
1 pcs
K13525
L03260,160
Drawer front
1 pcs
1 pcs
K15442
BP00417
Mounting plate
1 pcs
5 pcs
Cap
10x5
2 pcs
Shelf support
14x12 mm 5
4 pcs
K10107
Side
2 pcs
L06460
Door
1 pcs
BP00418
Hinge 107 degrees
5 pcs
Screw flh
ID21570
4x35
Push open
6 pcs
2 pcs
Shelf support
5x7 mm Plast
46x43 mm
4 pcs
Angle
4 pcs
1 /
12
Advertisement
Related Manuals for Kvik SH906-060
Summary of Contents for Kvik SH906-060

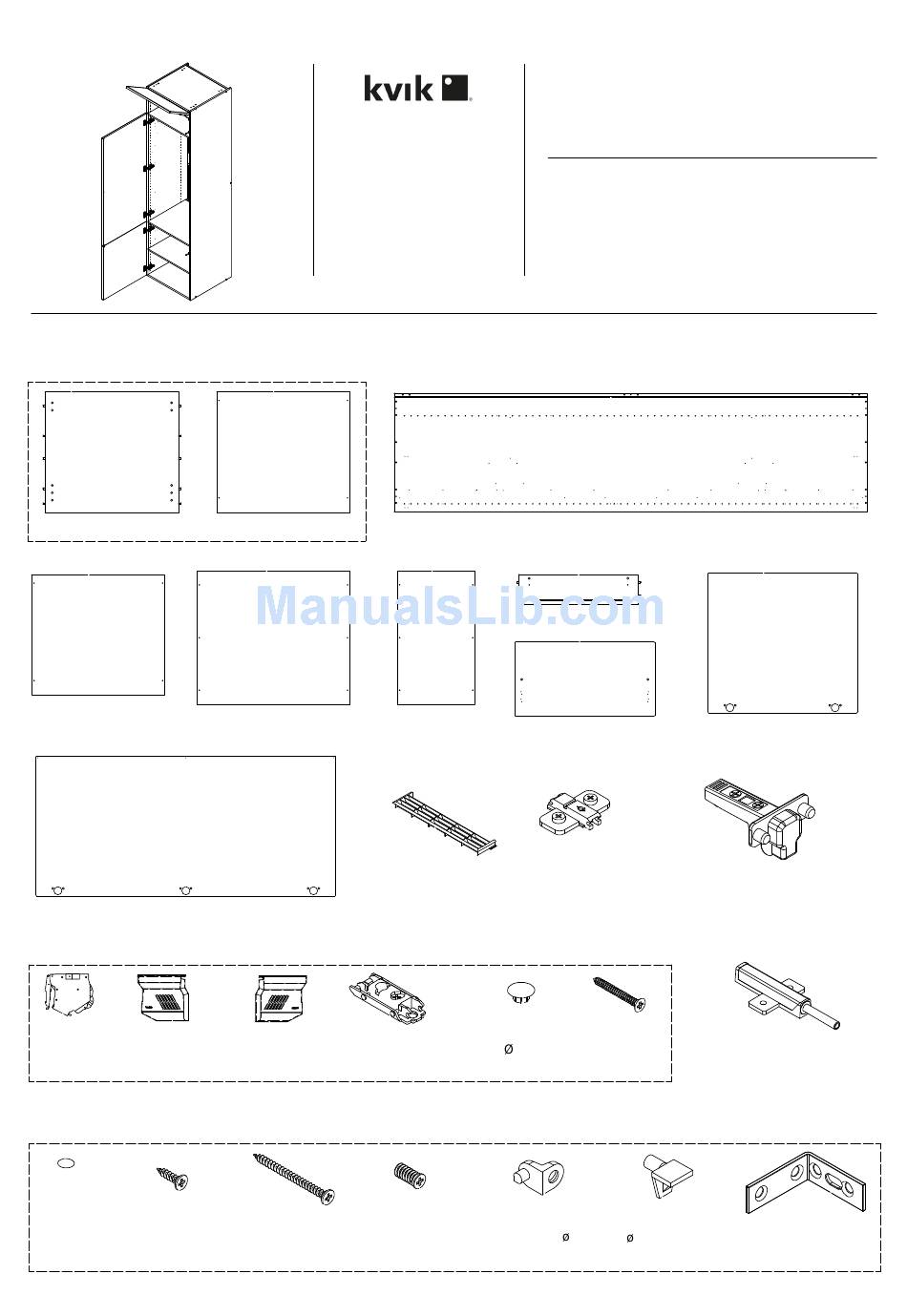

- Page 1 SH906,060 DH195,060,000 K71155 K12122 K10107 Base-top Shelf Side 2 pcs 2 pcs 2 pcs K13320 Support 1 pcs K13525 K13515 K12122 L06460 Back panel Back panel Shelf Door L03260,160 Drawer front 1 pcs 1 pcs 1 pcs 1 pcs 1 pcs L12863 Door K15442...
- Page 2 SH906,060 FIG. Euro screw 6,3x11 mm 2 pcs Shelf support 14x12 mm 5 2 pcs K10107 Side Euro screw Screw flh 6,3x11 mm 3,5x15 mm 2 pcs 2 pcs Angle 46x43 mm 2 pcs FIG. Hole dept 10mm K10107 Side 04-09-2015 2...
- Page 3 SH906,060 FIG. Aventos left Aventos left 1 pcs 3 pcs K10107 Side FIG. Euro screw 6,3x11 mm 2 pcs Shelf support 14x12 mm 5 2 pcs K10107 Side Euro screw Screw flh 6,3x11 mm 3,5x15 mm 2 pcs 2 pcs Angle 46x43 mm 2 pcs...
- Page 4 SH906,060 FIG. Hole dept 10mm K10107 Side FIG. Aventos right Aventos right 3 pcs 1 pcs K10107 Side 04-09-2015 2...
- Page 5 SH906,060 FIG. K71155 Base-top K13320 Support K10107 Side K71155 Base-top FIG. Screw flh 3,5x45 mm 5 pcs K10107 Side 04-09-2015 2...
- Page 6 SH906,060 FIG. Screw flh 3,5x45 mm 5 pcs FIG. K12122 Shelf K12122 Shelf K12122 Shelf K12122 Shelf Euro screw 6,3x11 mm 4 pcs 04-09-2015 2...
- Page 7 SH906,060 FIG. K13525 Back panel Screw flh 3,5x45 mm 12 pcs K13515 Back panel FIG. ID21570 Left Right Push open 2 pcs ID21570 Push open 4 pcs Adjustment 04-09-2015 2...
- Page 8 SH906,060 FIG. Screw flh 3,5x15 10x5 4 pcs 2 pcs Bumper 7x1,5 mm Aventos Mounting plate 2 pcs L03260,160 Drawer front Bumper 7x1,5 mm L03260,160 Drawer front Click 04-09-2015 2...
- Page 9 SH906,060 Click Aventos left Adjustment 04-09-2015 2...
- Page 10 SH906,060 Shelf support 5x7 mm Plast 4 pcs K12122 Shelf K12122 Shelf 04-09-2015 2 10 /...
- Page 11 SH906,060 Click BP00417 BP00418 Mounting plate Hinge 107 degrees 3 pcs 3 pcs Bumper 7x1,5 mm L12863 L12863 Bumper Door Door 7x1,5 mm Bumper 7x1,5 mm Click BP00417 Mounting plate BP00418 Hinge 107 degrees 2 pcs 2 pcs Bumper 7x1,5 mm L06460 L06460 Door...
- Page 12 SH906,060 Right Left L12863 L12863 Door Door L06460 L06460 Door Door Adjustment 04-09-2015 2 12 /...
