DH195,060,000
K71155
Base-top
2 pcs
K12122
Shelf
1 pcs
Aventos
Aventos
Flip up L/R
Cap left
2 pcs
1 pcs
Screw flh
Push open
4x35
w magnet
1 pcs
6 pcs
Bumper
Screw flh
7x1,5 mm
3,5x15 mm
4 pcs
16 pcs
20-09-2015 3
/
K12122
Shelf
2 pcs
K13525
K13515
Back panel
Back panel
1 pcs
ID21564
Aventos
Cap right
Aventos mounting plate
1 pcs
ID21564
Euro screw
Plate for magnet
6,3x11 mm
2 pcs
BP00020-BP00032-BP00033(x2)
Screw flh
Euro screw
6,3x11 mm
3,5x45 mm
18 pcs
20 pcs
SH829,060
HS20860,000
L06460
1 pcs
Cap
10x5
2 pcs
2 pcs
2 pcs
ID21570
Push open
1 pcs
Screw ph
3x16 mm
4 pcs
K10110
Side
2 pcs
Door
1 pcs
BP00417
Mounting plate
2 pcs
Drawer slide Left
500
2 pcs
Shelf support
Front list holder
14x12 mm 5
25x10 mm 6
12 pcs
2 pcs
L03260,160
Drawer front
1 pcs
L00561,160
Front list
1 pcs
K15355
Hinge 155 degrees
2 pcs
Drawer slide Right
500
2 pcs
1 /
14
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Kvik SH829-060
Summary of Contents for Kvik SH829-060

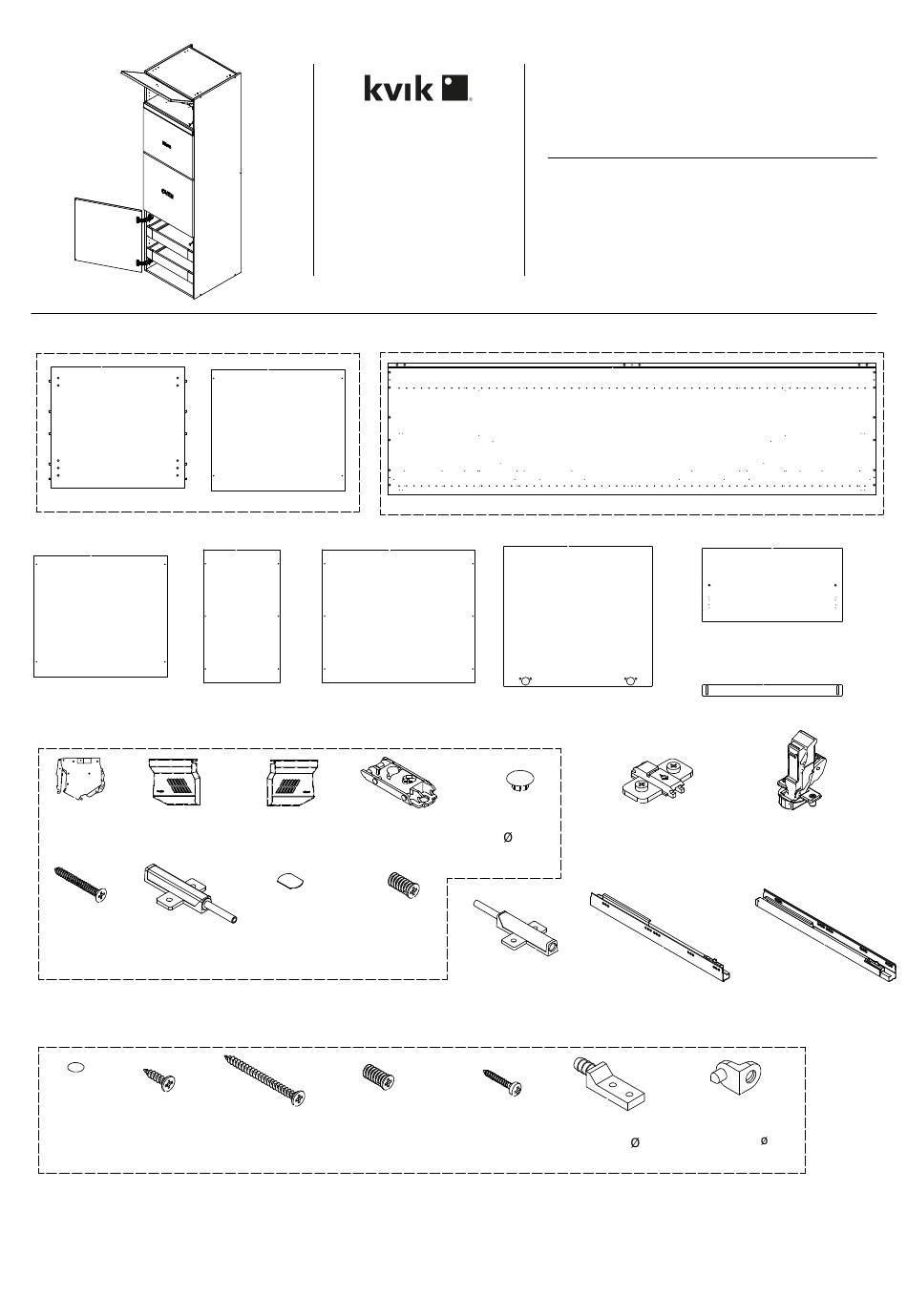

- Page 1 SH829,060 HS20860,000 DH195,060,000 K71155 K12122 K10110 Base-top Shelf Side 2 pcs 2 pcs 2 pcs L03260,160 Drawer front K13525 K13515 L06460 K12122 Back panel Back panel Shelf Door 1 pcs L00561,160 Front list 1 pcs 1 pcs 1 pcs 1 pcs 1 pcs ID21564 Aventos...
- Page 2 SH829,060 FIG. Euro screw Screw flh Euro screw 6,3x11 mm 3,5x15 mm 6,3x11 mm 6 pcs 4 pcs 6 pcs Shelf support 14x12 mm 5 6 pcs K10110 Side Screw flh Euro screw 3,5x15 mm 6,3x11 mm Drawer slide Left 2 pcs FIG.
- Page 3 SH829,060 FIG. Aventos left Aventos left 3 pcs 1 pcs K10110 Side FIG. Euro screw Screw flh 3,5x15 mm 6,3x11 mm 6 pcs 4 pcs Euro screw 6,3x11 mm 6 pcs Shelf support 14x12 mm 5 6 pcs K10110 Side Euro screw 6,3x11 mm Screw flh...
- Page 4 SH829,060 FIG. Hole dept 10mm K10110 Side FIG. Aventos right 1 pcs Aventos right 3 pcs K10110 Side 20-09-2015 3...
- Page 5 SH829,060 FIG. K71155 Base-top K10110 Side K71155 Base-top FIG. Screw flh 3,5x45 mm 4 pcs K10110 Side 20-09-2015 3...
- Page 6 SH829,060 FIG. Screw flh 3,5x45 mm 4 pcs FIG. K12122 Shelf K12122 Shelf 3 pcs K12122 Shelf K12122 Shelf 20-09-2015 3...
- Page 7 SH829,060 FIG. K13525 Back panel Screw flh 3,5x45 mm 12 pcs K13515 Back panel FIG. Screw ph 3x16 mm 4 pcs Front list holder 25x10 mm 6 Flush 2 pcs 20-09-2015 3...
- Page 8 SH829,060 FIG. L00561,160 Front list Press Adjustment 20-09-2015 3...
- Page 9 SH829,060 Left ID21564 Push-open w-magnet 1 pcs Euro screw 6,3x11 4 pcs Adjustment ID21570 Push open 1 pcs ID21564 Right Push-open w-magnet 2 pcs Euro screw 6,3x11 4 pcs Adjustment ID21570 Push open 1 pcs 20-09-2015 3...
- Page 10 SH829,060 10x5 Screw flh 2 pcs 3,5x15 4 pcs Aventos Mounting plate 2 pcs L03260,160 Drawer front L03260,160 Drawer front Click 20-09-2015 3 10 /...
- Page 11 SH829,060 Click Aventos left Adjustment 20-09-2015 3 11 /...
- Page 12 SH829,060 Close the door and press Place plate for magnet on the magnet Remove the protection paper Click BP00417 K15355 Mounting plate Hinge 155 degrees 2 pcs 2 pcs Bumper 7x1,5 mm L06460 Door L06460 Door Bumper 7x1,5 mm 20-09-2015 3 12 /...
- Page 13 SH829,060 Left Left Right L06460 L06460 Door Door Adjustment 20-09-2015 3 13 /...
- Page 14 SH829,060 20-09-2015 3 14 /...
