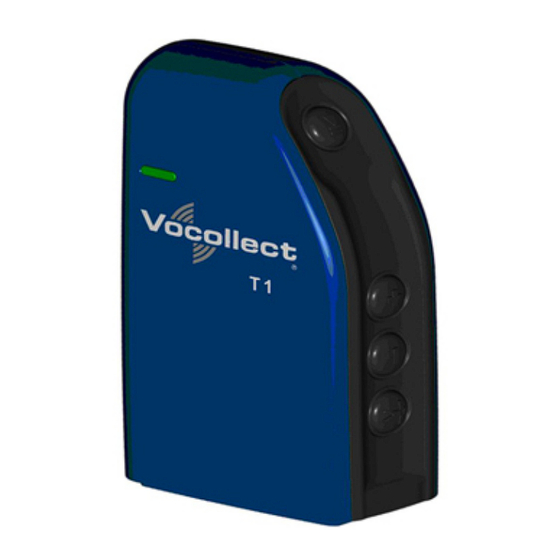

Vocollect Talkman T1 Manual

Voice-directed wearable computers t5 series; t2 series

Hide thumbs Also See for Talkman T1:

Hardware documentation (144 pages)

page of 37

/ 37
Bookmarks

Quick Links

Download this manual

Rhein Tech Laboratories, Inc.

360 Herndon Parkway

Suite 1400

Herndon, VA 20170

http://www.rheintech.com

Appendix J:

Manual

Please refer to the following pages.

Client:

Vocollect, Inc.

Model #:

TT-100-1-1

Standards:

FCC 15.247 & RSS-210

ID's:

MQO-TT-100-1-1/2570A-TT10011

Report #:

2010100

Page 47 of 63

Need help?

Do you have a question about the Talkman T1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Vocollect Talkman T1

Page 1 Rhein Tech Laboratories, Inc. Client: Vocollect, Inc. 360 Herndon Parkway Model #: TT-100-1-1 Suite 1400 Standards: FCC 15.247 & RSS-210 ID’s: MQO-TT-100-1-1/2570A-TT10011 Herndon, VA 20170 http://www.rheintech.com Report #: 2010100 Appendix J: Manual Please refer to the following pages. Page 47 of 63...
Page 2 • T5 Series Specifications: Talkman T5 and Talkman T5m • T2 Series Specifications: Talkman T2x and Talkman T2 • T1 Specifications: Talkman T1 • Loading an Operator's Templates onto a Device • Charging a T5 Battery in a Device •...
Page 3 • Vocollect designed the Talkman to be worn on the right side of the body with the wearable computer’s buttons on the top (T5-series and T2-series) or facing front (T1) and its connectors toward the operator’s back (T5-series and T2-series) or pointed up (T1).
Page 4 ® OpenTopic | Talkman Devices | 17 Sales Manager Representative or Vocollect Reseller for additional copies of this important document. • Use an isopropyl alcohol (isopropanol) swab or soft cloth dampened with isopropyl alcohol to clean metal connection points. If dirt or residue cannot be removed with the alcohol swab or cloth, use a soft, non-abrasive rubber eraser to clean metal connection points.
Page 5 ® 18 | OpenTopic | Talkman Devices T5 Series Specifications: Talkman T5 and Talkman T5m Weight 12.1 ounces (343 g) (with battery) Length 5.5" (13.97 cm) Width 2.63" (6.68 cm) Depth 1.7" (4.3 cm) I/O Ports • Headset port (yellow) •...
Page 6 • 10 drops at varying angles from 5 feet at -20° F (-29° C) onto polished concrete Humidity 100% condensing Enclosure Rating IP67 T1 Specifications: Talkman T1 Weight 5.3 ounces (150 g) (with battery) Length 100 mm Width 51.5 mm...
Page 7 ® 20 | OpenTopic | Talkman Devices 5. Press the + button or — button to scroll through the list of operator teams until you hear the name of a team to which you belong. 6. Press the operator button. The device says, "Please wait"...
Page 8 ® OpenTopic | Talkman Devices | 21 Figure 5: Inserting a T2 Series Device Into a Charger 7. After the wearable computer has been placed into the charger, make sure that the LED indicator on the wearable computer turns on and begins to blink green. a) If the LED does not turn on after 30 seconds, remove the wearable computer from the charger slot and then place it into the slot again.
Page 9 ® 22 | OpenTopic | Talkman Devices 2. The wearable computer says, "Current operator is operator name. Please keep quiet for a few seconds." The device then starts a noise sample. 3. After a brief pause, it says, "Please wait." After another pause, the device begins asking questions or providing instructions.
Page 10 ® OpenTopic | Talkman Devices | 23 • the wearable computer starts over at the beginning of the task • if you are in the process of retraining vocabulary, the wearable computer will send all vocabulary word templates to the host computer when the device is turned back on. Do not do anything until the templates have been sent to the host.
Page 11 ® 24 | OpenTopic | Talkman Devices The device says "louder" when the + button is pressed and "softer" when the — button is pressed. If the volume of the voice is at the loudest possible setting, it says, "This is loudest." If the volume of the voice is at the softest possible setting, it says, "This is softest."...
Page 12 ® OpenTopic | Talkman Devices | 25 The device repeats the current prompt. Repeat the Previous Prompt, Your Last Response, and the Current Prompt Note: As of VoiceClient 3.4, this feature is disabled by default. 1. Say "Talkman repeat." The device repeats the previous prompt, repeats what you said in response to that prompt, and then repeats the current prompt.
Page 13 In VoiceConsole, follow the instructions for creating a pairing and setting the bar code reader as the acceptor. See VoiceConsole's Help for details. • Create the pairing in VoiceConsole. Part Number Index: Vocollect Wearable Computers Part Numbers for ordering Vocollect Talkman Wearable Computers Wearable Computer Vocollect Model Number Vocollect Part Number Talkman T5m...
Page 14 ® OpenTopic | Talkman Devices | 27 Patent and Intellectual property Vocollect products are protected by one or more of the following: • U. S. Patents: 6,910,911; 7,052,799 • U. S. Design Patent Numbers: D549,216; D525,237; D549,217; D529,438; D530,667; D551,615; D549,694; D552,595;...
Page 16 T1 Device and the battery. • Removing a Battery from a Talkman T5-Series or T2-Series Device • Removing a Battery from a Talkman T1 Device • Charging SRX Wireless Headset Batteries • Inserting a Battery into the SRX Wireless Headset •...
Page 17 • Improper battery use may result in a fire, explosion or other hazard. • Vocollect batteries should not be used by children. • Vocollect shall not held responsible for any damages caused by equipment malfunction when used with non-Vocollect batteries.
Page 18 Handling Used Batteries • When shipping batteries, place tape or insulating material securely over the battery contacts to avoid accidental contact in transit. Vocollect’s batteries can be shipped under Special Provision 188 of 49 CFR 172.102 or IATA exception A45.
Page 19 The battery pack contains custom electronics that provide performance, temperature, and pack identification to the device. This information is made available to voice management software. • Battery Charging: The battery pack must be charged only in a Vocollect designated charger. Mechanical and Environmental Specifications •...
Page 20 • Battery Charging: The battery pack must only be charged in a Vocollect designated charger. Mechanical and Environmental Specifications •...
Page 21 The battery pack contains custom electronics that provide performance, temperature, and pack identification to the device. This information is made available to voice management software. • Battery Charging: The battery pack must be charged only in a Vocollect designated charger. Mechanical and Environmental Specifications •...
Page 22 Charging a T5 Battery 1. Remove the battery from the Talkman wearable computer. 2. Hold the battery with its contacts to the bottom and the Vocollect label facing you. Figure 26: Inserting a Battery Into the Charger 3. Place the battery into an open battery slot on the top level of the charger.
Page 23 56 | OpenTopic | Batteries Removing a T2 or T5 Series Device From a Charger Note: The device is ready to use when the LED indicator on the device is blinking green. If the LED is blinking red, the device is not ready to be used. Important: If a device continuously displays a solid red light, contact your system administrator.
Page 24 1. Hold the Talkman so that the red and yellow ports are facing away from you. 2. Hold the battery with the pins facing away from you and so that the Vocollect logo is on top. 3. Place the battery in at an angle, pins end first.
Page 25 Figure 29: Removing the Battery From a Device 3. Lift the battery out of the compartment. Removing a Battery from a Talkman T1 Device Make sure the Talkman wearable computer is off. Caution: Do not remove the battery until the LED indicator is off. If you remove the battery when the device is on or sleeping, any data collected could be lost.
Page 26 2. Power off the headset by pressing and holding the Plus and Minus buttons on the earpiece for three seconds and then remove the battery. 3. Hold the battery with its contacts to the bottom and the Vocollect logo facing toward you, and insert it into an empty slot on the battery charger.
Page 27 BT-101 (For use with T1 devices) SRX Headset High-Performance Battery BT-800 (For use with SRX Headsets) Patent and Intellectual property Vocollect products are protected by one or more of the following: • U. S. Patents: 6,910,911; 7,052,799 • U. S. Design Patent Numbers: D549,216; D525,237; D549,217; D529,438; D530,667; D551,615; D549,694; D552,595;...
Page 28 Topics: • Vocollect Regulatory Compliance • Declaration of Conformity: RoHS • Vocollect SRX Wireless Headset Declaration of Conformity • Vocollect T5 and T5m Wearable Computers Declaration of Conformity • Vocollect T2x Wearable Computer Declaration of Conformity • Vocollect T1 Wearable...
Page 29 Vocollect devices, and wireless headsets are designed to be compliant with the rules and regulations in the locations into which they are sold and are labeled as required. Vocollect devices are type approved and do not require the user to obtain license or authorization before using them.
Page 30 American National Standards Institute Communications Commission (FCC). The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Vocollect is under license. Other trademarks and trade names are those of their respective owners.
Page 31 Third Party products sold by Vocollect Vocollect has obtained verification from all suppliers of all third party products that versions of those products shipped by Vocollect as of 1 July 2006 to destinations where the DIRECTIVE 2002/95/EC OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 27 January 2003 (RoHS) applies are compliant with this directive on the restriction of the use of certain hazardous substances in electrical and electronic equipment.
Page 32 Annex of the RoHS Directive. Vocollect SRX Wireless Headset Declaration of Conformity We the undersigned declare that the equipment has been designed to comply with the relevant sections of the R&TTE Directive 1999/5/EC, Low Voltage Directive 2006/95/EEC &...
Page 33 Document-1000280 revision A Copyright 1998-2008 Vocollect, Inc. All Rights Reserved Vocollect T5 and T5m Wearable Computers Declaration of Conformity We the undersigned declare that the equipment has been designed to comply with the relevant sections of the R&TTE Directive 1999/5/EC, Low Voltage Directive 2006/95/EEC & EMC Directive 89/336/EEC.
Page 34 Phone: 412-829-8145 Fax: 412-829-0972 Document - 1000474 Copyright 1998-2008 Vocollect, Inc. All Rights Reserved Vocollect T2x Wearable Computer Declaration of Conformity We the undersigned declare that the equipment has been designed to comply with the relevant sections of the R&TTE Directive 1999/5/EC, Low Voltage Directive 2006/95/EEC &...
Page 35 Phone: 412-829-8145 Fax: 412-829-0972 Document - 1000474 Copyright 1998-2008 Vocollect, Inc. All Rights Reserved Vocollect T1 Wearable Computers Declaration of Conformity We the undersigned declare that the equipment has been designed to comply with the relevant sections of the R&TTE Directive 1999/5/EC, Low Voltage Directive 2006/95/EEC &...
Page 36 EN 61000-4-8, EN 61000-4-11 Technical construction file is kept at the following address: Vocollect, Inc Contact: 703 Rodi Road Rakesh Thapar Pittsburgh, Pa 15235 U.S.A. Vice President, Engineering Phone: 412-829-8145 Fax: 412-829-0972 Document-1002028 revision A Copyright 1998-2008 Vocollect, Inc. All Rights Reserved...
