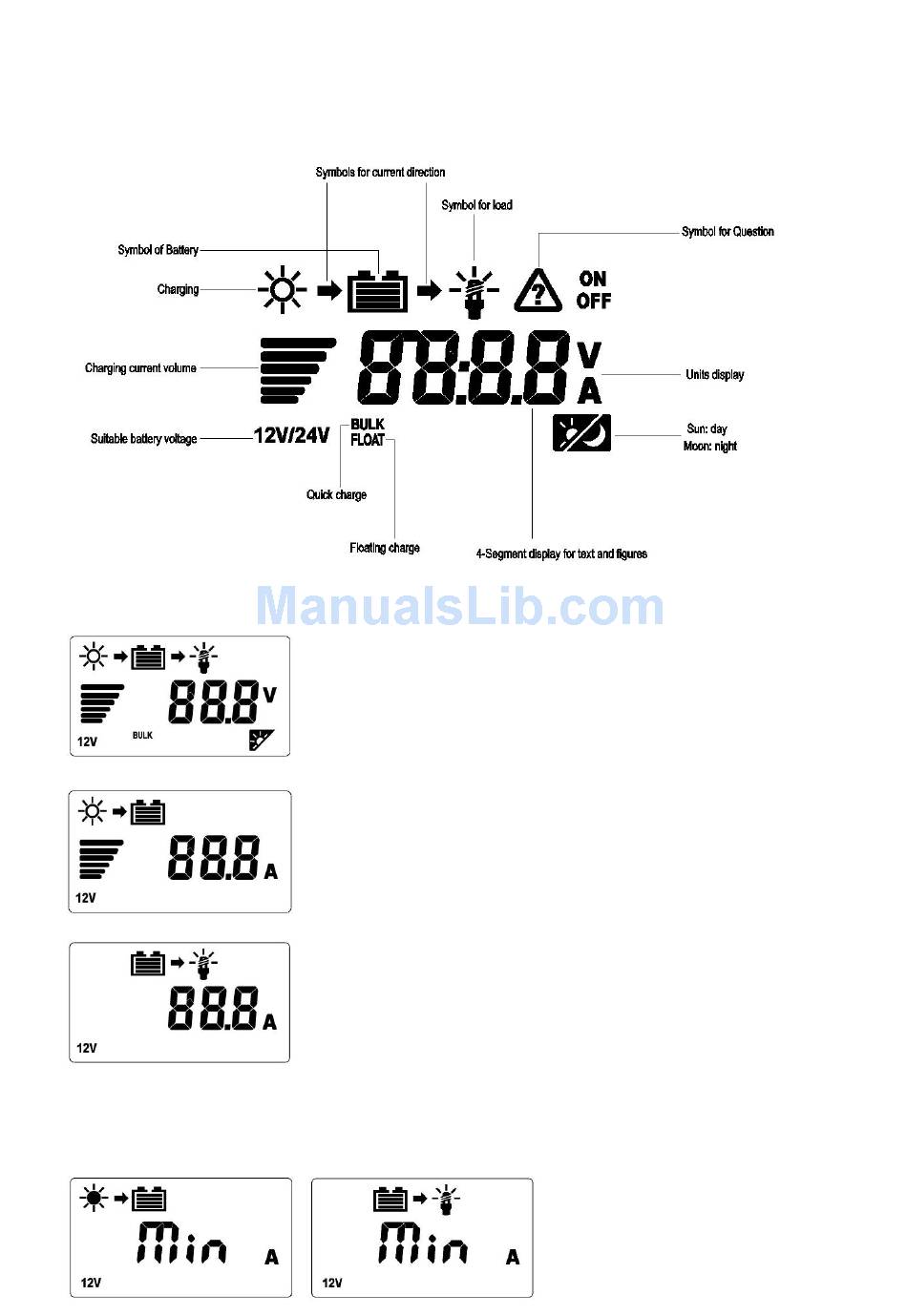

2. Display window

Change the display windows with the "Menu" button; (e.g. for 12V battery)
4. When the charging current or output current is less than 0.5Amp, the LCD will always show Min A.
When there is no current, it will show 0 Amp.
CHARGING CURRENT (<0.5A)
1. The default window will show like below, battery voltage/capacity
volume of the battery.
2.
Press "menu" button once to check charging current.
3. Press" menu" button again to display the load current.
OUTPUT CURRENT (<0.5A)
4
