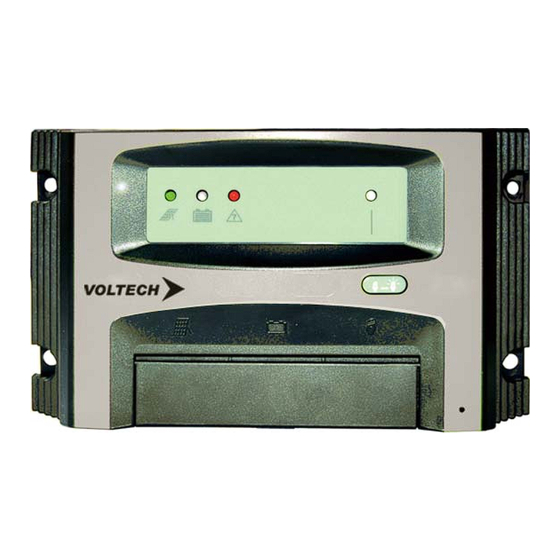

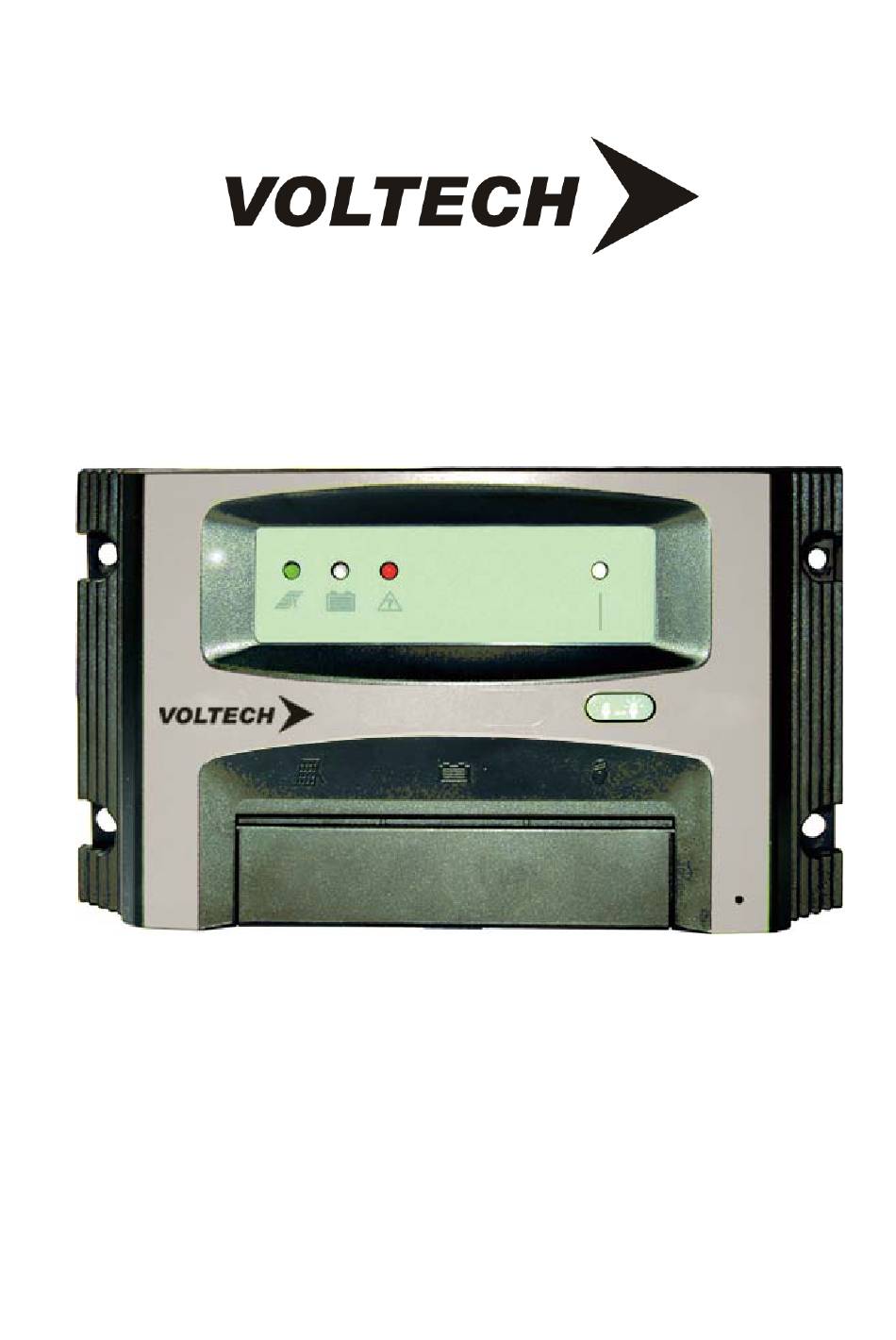

- Page 1 Installation and Operating Instructions Solar System Controller ISC1510...
- Page 3 And pass them on to any future owner or user of this product. This manual describes the installation, function, operation and maintenance of the solar system controller ISC1510. These operating instructions are intended for end customers. A technical expert must be consulted in cases of uncertainty.
- Page 4 Fault behaviour Operating the solar charge controller is dangerous in the following situations: The solar charge controller does not appear to function at all. The solar charge controller or connected cables are visibly damaged. Emission of smoke or fluid penetration. When parts are loose.
- Page 5 1. Mounting the solar charge controller 1.1 Do not mount the solar charge controller outdoors or in wet rooms 1.2 Do not subject the solar charge controller to direct sunshine or other source of heat. 1.3 Protect the solar charge controller from dirt and moisture. 1.4 Maintain a minimum clearance of 10cm below and around the device to ensure unhindered air circulation 1.5 Mount the solar controller as close as possible to the batteries (with a safety clearance of at least...
- Page 6 Charging Curve Bulk: This is the first charging stage where the battery at low charge stage, typically 10%, receives the majority of its charge. During this stage the battery brought to about 95% of its charger getting 100% of the available solar power. Pulse (Maintenance): At the end of bulk stage, typically when the battery reach 14.4 Volts, a maintenance mode starts where the battery voltage can float between an high and low value fixed by the controller.
- Page 7 No LED display Battery is not connected Remedy: unclamp connection of battery and reconnect to battery. Battery voltage too low Remedy: Pre-charge the battery The external fuse in the battery connection cable has blown Remedy: Replace the external fuse ...
- Page 8 The Leading Edge in Solar Technology Waste electrical products should not be disposed of with household waste Please recycle where facilities exist Check with your local authority or retailer for recycling advice Specifications are subject to change without prior notice Copyright reserved by Electro Parts Australia Pty Ltd...
