ITRF24501 Reader Quick Start Guide

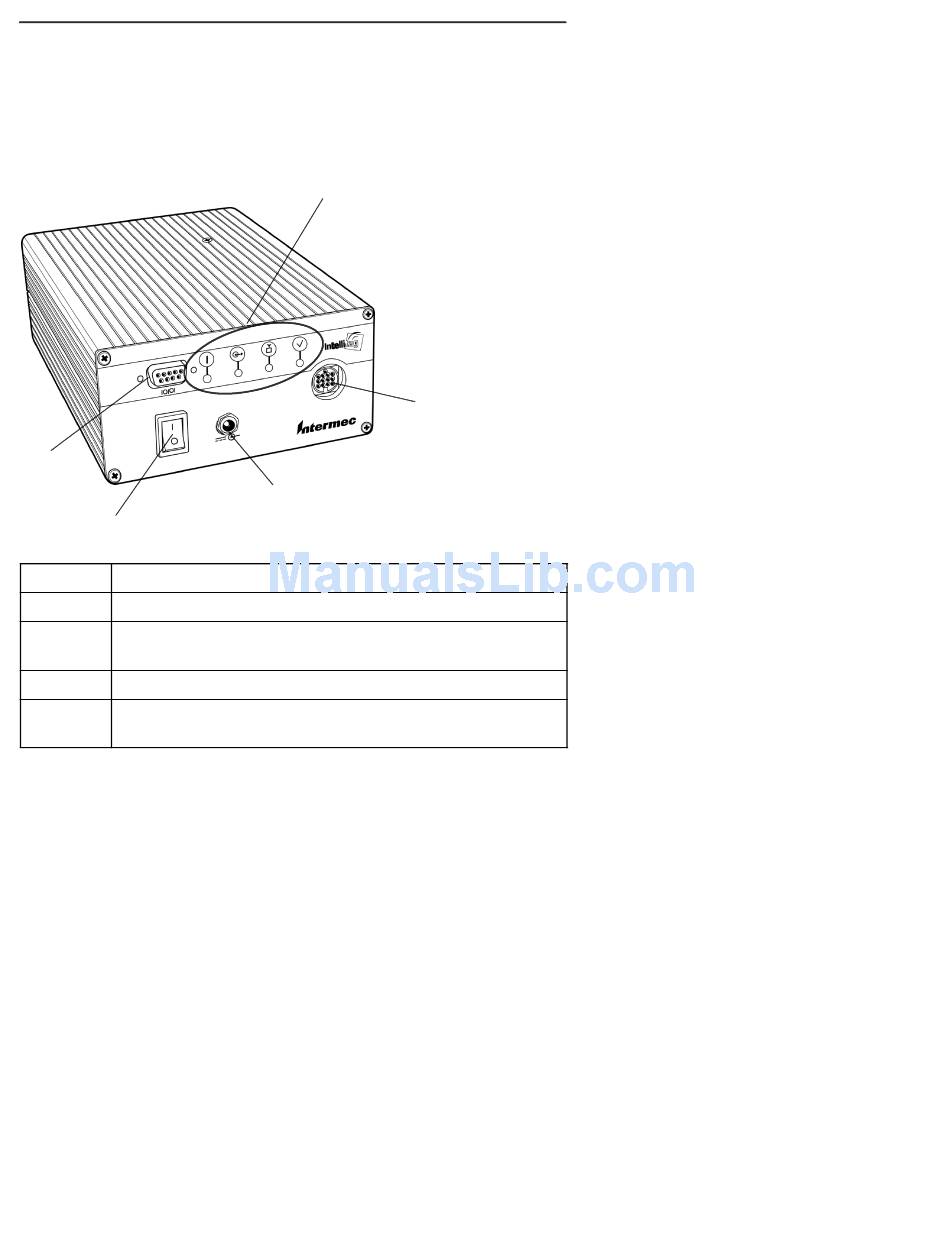

5. Review the front panel LEDs to become familiar with the
status indications you will receive from your Reader.
RS-232 or
RS-422 port
I (ON) O (OFF) switch
LED Meaning
LED 0 Reader has power is initialized and ready.
LED 1 Reader is communicating with the host, it flashes
as data transfer occurs.
LED 2 Reader RF is ON and searching for TAGs.
LED 3 Reader is communicating with a TAG, it flashes as
transfer occurs.
LEDs (left to right)
Auxiliary I/O connector
Power supply jack
