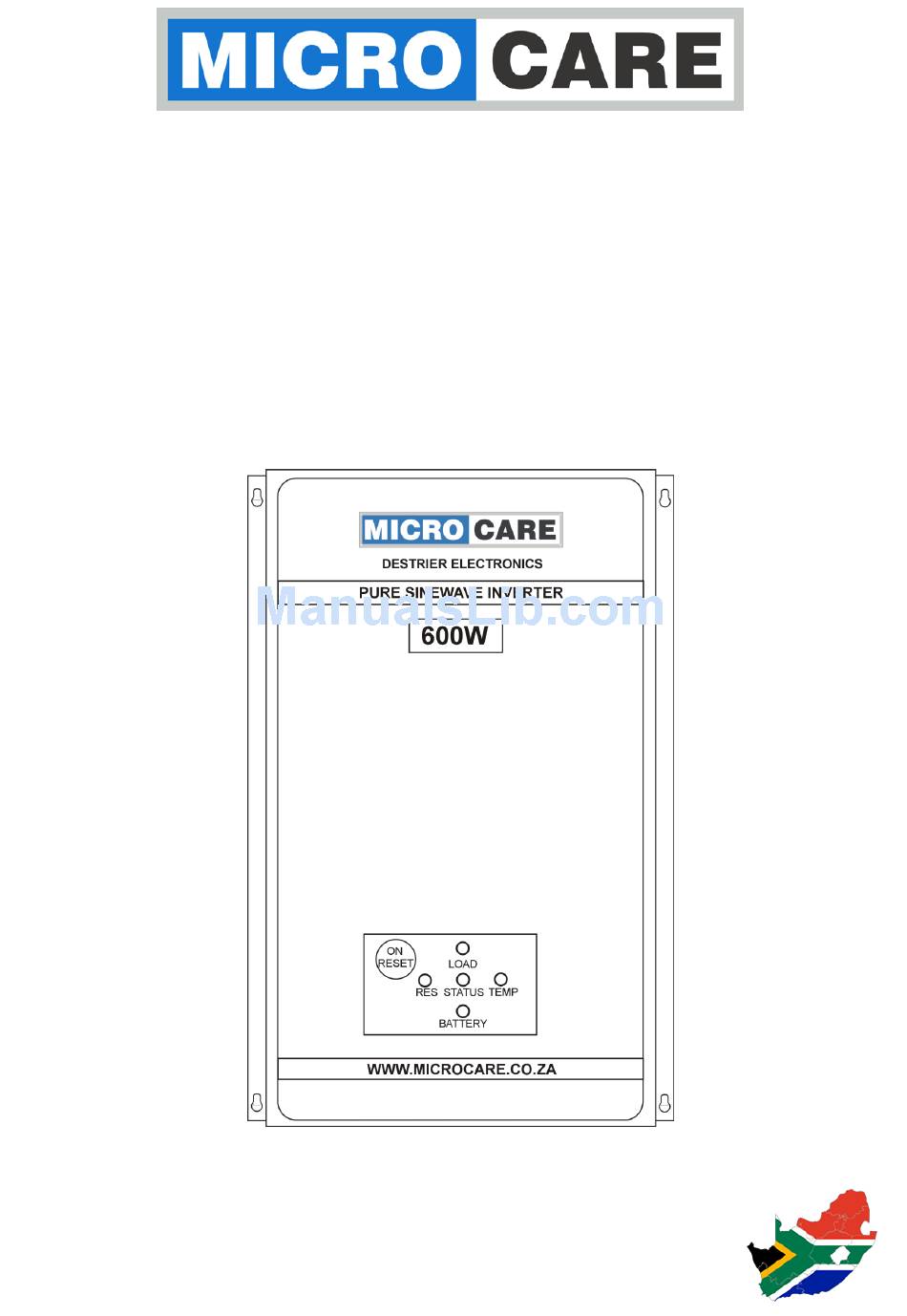

- Page 1 Pure Sine Wave Inverter 600W-24V User Manual Manual Version:INV-600W-2016-1...
-
Page 2: Table Of Contents
Microcare Inverters are Pure Sine Wave Inverters designed to obtain optimum inverted AC power from an installed DC Solar System. Microcare Inverters use galvanic isolation resulting in the product being highly robust and reliable with low standby current and high efficiency ratings. The unit is... -
Page 3: Key Features
Key Features Pure Sine Wave with LED indicators High Efficiency Superior Overload Capability Full Protection Fan Cooled 3 year Warranty SAFETY INSTRUCTIONS Installation Location Install the Inverter indoor in a dry protected location away from any sources of moisture. ... -
Page 4: Inverter Overview
INVERTER OVERVIEW Inverter Front View Figure 3-1 ON/OFF/Reset Button LED Indicators Inverter Bottom View Figure 3-2 1. 230V AC Outlet 2. Cooling Fan 3. 2 x 30A Fuses 4. Battery Cable Positive 5. Battery Cable Negative 6. Ventilation Holes... -
Page 5: General Wiring Information
GENERAL WIRING INFORMATION Fig 4.1 Familiarize yourself with the content of the manual following before commencing with the wiring. DC Wiring Connect the Positive (Red) battery lead from the inverter to the positive post of the battery. Connect the Negative (Black) battery lead from the inverter to the negative post of the battery. -
Page 6: Inverter Operation
INVERTER OPERATION Front Panel LED Display Figure 5-1: LED Display The front Panel Display indicates the Inverter’s operational information. Button Function Description Symbol Button Name Function description Switches the inverter ON or OFF, resets the inverter On/Reset Inverter Status LED’s 5.2.1 Inverter Switched Off “STATUS LED”... -
Page 7: Battery Low/High
5.2.4 Battery Low/High “BATTERY LED” Steady ON indicates that the inverter has switched off due to low battery voltage < 10,5V or high battery voltage >16V 5.2.5 Temp “TEMP LED” Steady ON indicates that the inverter has switched off due to high temperature >80 Degree Celsius Connecting the Load ... -
Page 8: Specifications
SPECIFICATIONS SPECIFICATIONS Model 600W 24V Wattage 600W Input DC Voltage Input Voltage Range 21 to 32VDC Output AC Voltage 230VAC Output Frequency 50Hz Surge Rating 200% Efficiency <95% Output Waveform Sine Wave THD 93% Fuse, Short Circuit, Reverse Polarity, Over Protection Temperature Recommended Battery Size... -
Page 9: Destrier Electronics Limited Carry- In Warranty
DESTRIER ELECTRONICS LIMITED CARRY- IN WARRANTY DESTRIER ELECTRONICS LIMITED CARRY- IN WARRANTY Destrier Electronics warrants this 600W Inverters against defects in workmanship and materials, fair wear and tear accepted, for a period of 1 (One) year from the date of delivery/collection and is based on a carry-in basis. -
Page 10: Registration Of My Microcare Product
REGISTRATION OF MY MICROCARE PRODUCT Product Serial Number: Product Description: Date Purchased From Whom was the Inverter Purchased: Company Name Contact Person Contact Number E-mail Address Installation Company Information: Company Name Contact Person Contact Number E-mail Address Details of Product Owner Name &...
