PMC-Sierra M8800 Product Overview

PM8800 WiZIRD 2x2
WiMAX Zero Intermediate Frequency Radio
Device

Product Overview

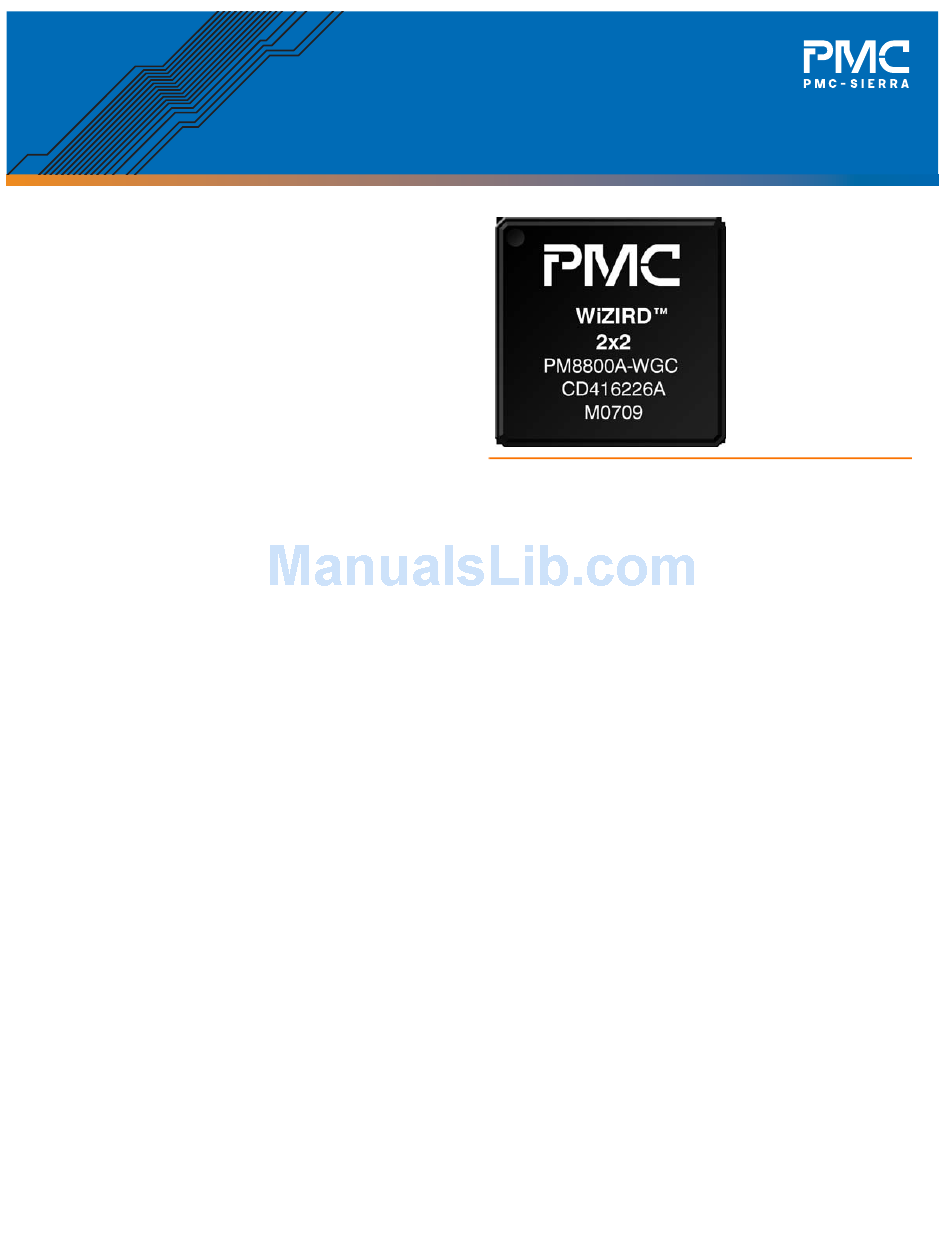

The PM8800 WiZIRD 2x2 is an ultra-integrated single-chip WiMAX
Zero Intermediate Frequency (ZIF) Radio Device. It is designed for
Fixed and Mobile WiMAX applications and supports both IEEE
802.16-2004 and IEEE 802.16e-2005 standard requirements. The
PM8800 WiZIRD 2x2 has two independent radio paths (2Tx and
2Rx) and supports operation in the 2.3 - 2.9 GHz or the
3.3 - 3.8 GHz licensed bands.
The PM8800 WiZIRD 2x2 enables manufacturers of WiMAX Femto
BS, CPE, and MS User Equipment to build low-cost, high-perfor-
mance, 2x2 MIMO equipment today.
Product Highlights
Ultra-Integration
Integration of key transmit and receive path components dramat-
ically reduces the cost of materials and manufacturing, at the
same time improving system reliability.
The PM8800 WiZIRD 2x2 features:
Two independent radio paths (2Tx and 2Rx) supporting all Wave
•
2 MIMO features and enabling the radio path for uplink MIMO
enhancements
Zero-IF architecture removes the cost associated with external
•
SAW filters
Integrated DCXO supports AFC with no additional components,
•
except for a low-cost 40 MHz crystal
Integrated synthesizer loop filter improves noise immunity and
•
reduces board space requirements
40 MHz reference is available for use by the Baseband MAC
•
Processor
Diagnostic loopback circuits for radio calibration and baseband
•
diagnostics
Integrated DAC/ADCs for digital I/Q designs allow Baseband
•
MAC Processors to scale with Moore's Law without being
burdened with analog circuits
Integrated transmit baluns, digital temperature monitor, and Rx
•
DC offset capability
Design Flexibility
Design flexibility is essential for equipment manufacturers,
allowing them to react and adapt to changes in market require-
ments with minimal changes.
For flexibility, the PM8800 WiZIRD 2x2 includes:
Multi-band support for operation in the 2.3 - 2.9 GHz or the
•
3.3 - 3.8 GHz licensed bands, enabling system designs that are
suitable for use across multiple geographies
PMC-2061867, Issue 8
© Copyright PMC-Sierra, Inc., 2008
All rights reserved. Proprietary and Confidential to PMC-Sierra, Inc. and for its customers' internal use.
The choice of selecting an analog or digital I/Q interface to an
•
external Baseband MAC Processor. This lets designers use the
best-in-class Baseband MAC Processor or ASIC available both
now and in the future. The digital I/Q interface is compliant
with JEDEC JESD207, Radio Front End - Baseband Digital Parallel
Interface standard.
Configurable channel bandwidths of 3.5 MHz, 5 MHz, 7 MHz,
•
8.75 MHz, 10 MHz, 14 MHz, and 20 MHz
Programmable transmitter gain control for mobile applications
•
Reliable Performance
PMC-Sierra has supplied and supported high performance
semiconductor solutions to the communications industry for over
a decade. The same performance philosophy applies to our
WiMAX products.
Transmit Path
EVM (measured after integrated balun): -36 dB @Pout = 0 dBm
•
(2.5 GHz), -34 dB @Pout = 0 dBm (3.5 GHz)
Tx power control range: 70 dB (1 dB steps)
•
-77 dBm/MHz noise floor at 70 MHz offset
•
Receive Path
EVM: -36 dB (2.5 GHz), -34 dB (3.5 GHz)
•
RFIC noise figure: 2.9 dB (2.5 GHz), 3.3 dB (3.5 GHz)
•
Rx gain control: 93 dB range (1.5 dB steps), 106 dB max gain
•
Adjacent channel rejection: 26 dB (64 QAM)
•
Alternate channel rejection: 34 dB (64 QAM)
•
General Device Information
Control interface conforms to industry standard SPI
•
specifications used by Baseband MAC Processors
1.8V ± 5% and 2.5V ± 5% supply voltages
•
Industrial temperature range (-40 °C to +85 °C)
•
108-pin Dual Row 0.65 mm pitch Micro Lead Frame (MLF/QFN)
•
(11 x 11 mm body)
Released Product Brief
