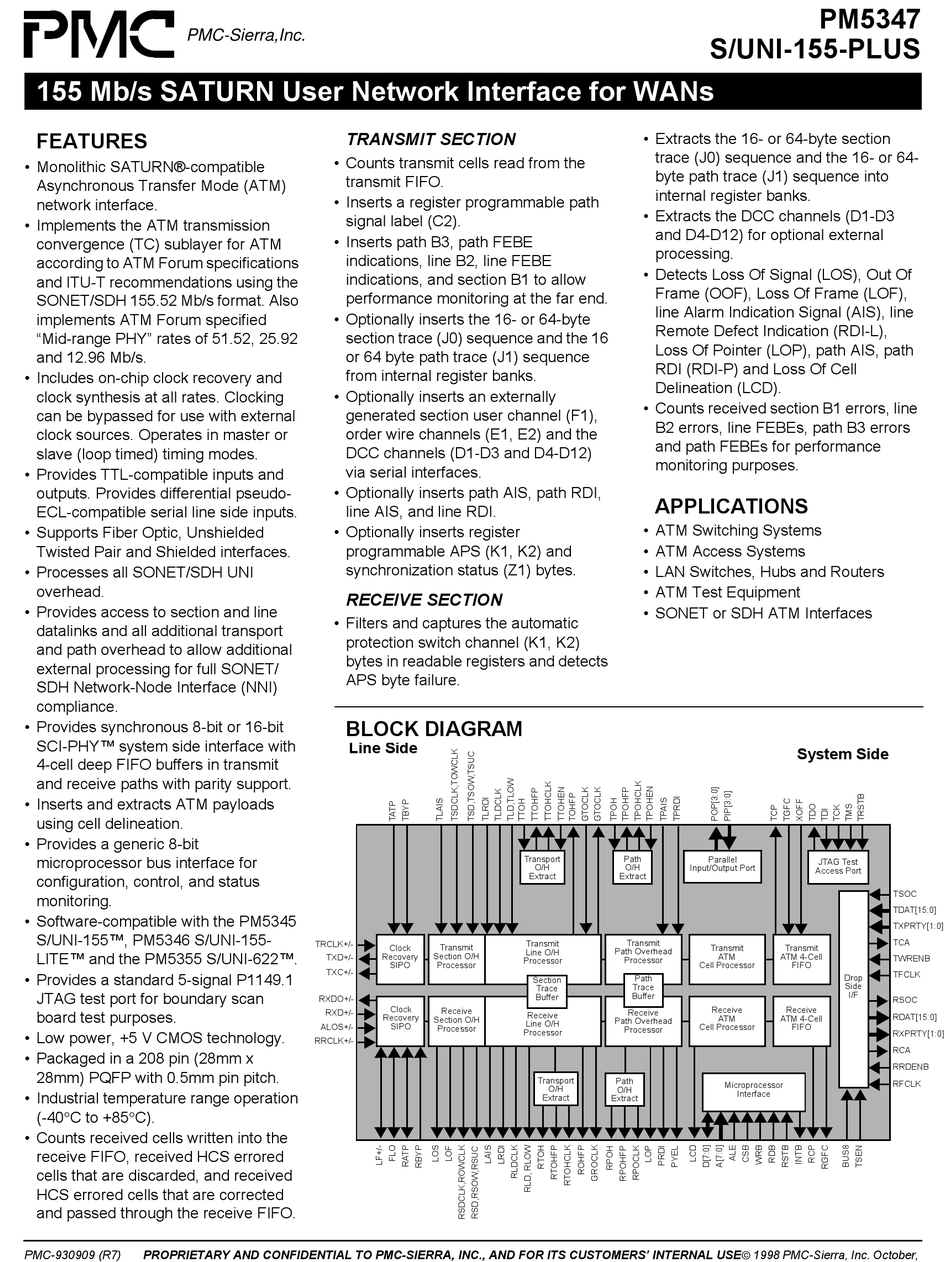

PMC-Sierra PM5347 Features

PMC-Sierra,Inc.
155 Mb/s SATURN User Network Interface for WANs
FEATURES
• Monolithic SATURN®-compatible
Asynchronous Transfer Mode (ATM)
network interface.
• Implements the ATM transmission
convergence (TC) sublayer for ATM
according to ATM Forum specifications
and ITU-T recommendations using the
SONET/SDH 155.52 Mb/s format. Also
implements ATM Forum specified
"Mid-range PHY" rates of 51.52, 25.92
and 12.96 Mb/s.
• Includes on-chip clock recovery and
clock synthesis at all rates. Clocking
can be bypassed for use with external
clock sources. Operates in master or
slave (loop timed) timing modes.
• Provides TTL-compatible inputs and
outputs. Provides differential pseudo-
ECL-compatible serial line side inputs.
• Supports Fiber Optic, Unshielded
Twisted Pair and Shielded interfaces.
• Processes all SONET/SDH UNI
overhead.
• Provides access to section and line
datalinks and all additional transport
and path overhead to allow additional
external processing for full SONET/
SDH Network-Node Interface (NNI)
compliance.
• Provides synchronous 8-bit or 16-bit
SCI-PHY™ system side interface with
4-cell deep FIFO buffers in transmit
and receive paths with parity support.
• Inserts and extracts ATM payloads
using cell delineation.
• Provides a generic 8-bit
microprocessor bus interface for
configuration, control, and status
monitoring.
• Software-compatible with the PM5345
S/UNI-155™, PM5346 S/UNI-155-
LITE™ and the PM5355 S/UNI-622™.
• Provides a standard 5-signal P1149.1
JTAG test port for boundary scan
board test purposes.
• Low power, +5 V CMOS technology.
• Packaged in a 208 pin (28mm x
28mm) PQFP with 0.5mm pin pitch.
• Industrial temperature range operation
(-40°C to +85°C).
• Counts received cells written into the
receive FIFO, received HCS errored
cells that are discarded, and received
HCS errored cells that are corrected
and passed through the receive FIFO.
PMC-930909 (R7) PROPRIETARY AND CONFIDENTIAL TO PMC-SIERRA, INC., AND FOR ITS CUSTOMERS' INTERNAL USEã 1998 PMC-Sierra, Inc. October,

TRANSMIT SECTION

• Counts transmit cells read from the
transmit FIFO.
• Inserts a register programmable path
signal label (C2).
• Inserts path B3, path FEBE
indications, line B2, line FEBE
indications, and section B1 to allow
performance monitoring at the far end.
• Optionally inserts the 16- or 64-byte
section trace (J0) sequence and the 16
or 64 byte path trace (J1) sequence
from internal register banks.
• Optionally inserts an externally
generated section user channel (F1),
order wire channels (E1, E2) and the
DCC channels (D1-D3 and D4-D12)
via serial interfaces.
• Optionally inserts path AIS, path RDI,
line AIS, and line RDI.
• Optionally inserts register
programmable APS (K1, K2) and
synchronization status (Z1) bytes.

RECEIVE SECTION

• Filters and captures the automatic
protection switch channel (K1, K2)
bytes in readable registers and detects
APS byte failure.

BLOCK DIAGRAM

Line Side
TRCLK+/-
Clock Transmit
Recovery Section O/H
TXD+/-
Processor
SIPO
TXC+/-
RXDO+/-
Clock
Receive
RXD+/-
Recovery
Section O/H
SIPO
ALOS+/-
Processor
RRCLK+/-
• Extracts the 16- or 64-byte section
trace (J0) sequence and the 16- or 64-
byte path trace (J1) sequence into
internal register banks.
• Extracts the DCC channels (D1-D3
and D4-D12) for optional external
processing.
• Detects Loss Of Signal (LOS), Out Of
Frame (OOF), Loss Of Frame (LOF),
line Alarm Indication Signal (AIS), line
Remote Defect Indication (RDI-L),
Loss Of Pointer (LOP), path AIS, path
RDI (RDI-P) and Loss Of Cell
Delineation (LCD).
• Counts received section B1 errors, line
B2 errors, line FEBEs, path B3 errors
and path FEBEs for performance
monitoring purposes.

APPLICATIONS

• ATM Switching Systems
• ATM Access Systems
• LAN Switches, Hubs and Routers
• ATM Test Equipment
• SONET or SDH ATM Interfaces
Transport Path
O/H O/H
Input/Output Port
Extract Extract
Transmit
Transmit
Path Overhead
Line O/H
Processor Processor
Cell Processor
Path
Section
Trace
Trace
Buffer
Buffer
Receive
Receive
Path Overhead
Line O/H
Cell Processor
Processor
Processor
Transport
Path
O/H
O/H
Extract
Extract
PM5347
S/UNI-155-PLUS
System Side
Parallel
JTAG Test
Access Port
Transmit Transmit
ATM ATM 4-Cell
FIFO
Drop
Side
I/F
Receive Receive
ATM ATM 4-Cell
FIFO
Microprocessor
Interface
TSOC
TDAT[15:0]
TXPRTY[1:0]
TCA
TWRENB
TFCLK
RSOC
RDAT[15:0]
RXPRTY[1:0]
RCA
RRDENB
RFCLK
