Zaxcom RX-12R
RX-12R

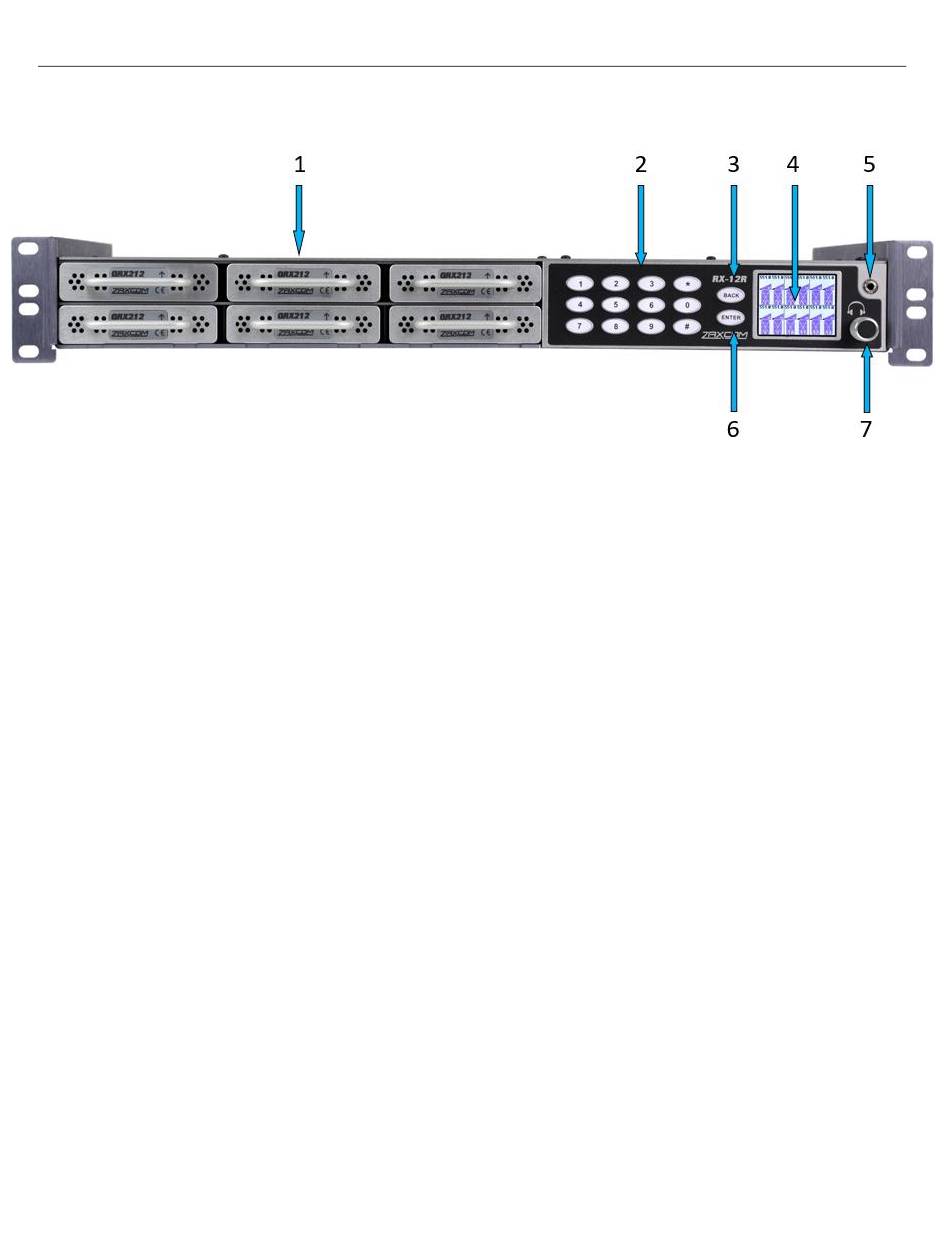

Front Panel
1. QRX212 Modules - The RX-12R can accommodate up to 6 modules.
2. Numeric keypad
3. Back Key
4. Daylight Readable Color LCD Screen
5. Headphone out (3.5mm TRS) - The headphone output can be used to monitor the A side of each
module. To select the module to monitor press the numeric key that corresponds to the module
number.
6. Enter Key
7. Menu Encoder Knob - Press the menu knob to access the RX-12R menus. Rotate and press to adjust
the menu perimeters. To adjust the headphone monitor volume rotate the knob while holding the
Zero (0) key.
4
