INVERTEC
For use with machine Part Number K60060-1, Code 76115
Safety Depends on You
Lincoln arc welding and cutting
equipment is designed and built
with safety in mind. However, your
overall safety can be increased by
proper installation and thoughtful
operation on you part. DO NOT
INSTALL, OPERATE OR REPAIR
THIS EQUIPMENT WITHOUT
READING THIS MANUAL AND
THE SAFETY PRECAUTIONS
CONTAINED THROUGHOUT.
And, most importantly, think before
you act and be careful.
®
CC400-S/-S PLUS
K60060-3, Code 76135
• World's Leader in Welding and Cutting•
THE SHANGHAI LINCOLN ELECTRIC COMPANY
No. 195, Lane 5008, Hu Tai Rd. Baoshan, Shanghai, PRC 201907
www.lincolnelectric.com.cn
INVERTEC CC 400-S
INVERTEC CC 400-S Plus
Copyright © 2012 The Shanghai Lincoln Electric Company
IM7008-1
August, 2012
Rev. 01
/
Rev. 01
Advertisement
Table of Contents
Related Manuals for Lincoln Electric INVERTEC CC400-S
Summary of Contents for Lincoln Electric INVERTEC CC400-S
- Page 1 CONTAINED THROUGHOUT. And, most importantly, think before you act and be careful. Copyright © 2012 The Shanghai Lincoln Electric Company • World’s Leader in Welding and Cutting• THE SHANGHAI LINCOLN ELECTRIC COMPANY No. 195, Lane 5008, Hu Tai Rd. Baoshan, Shanghai, PRC 201907 www.lincolnelectric.com.cn...
- Page 2 Thank you for selecting QUALITY Lincoln Electric products. Please examine the packaging and equipment for damage. Claims for material damaged in shipment must be notified immediately to the authorized dealer from whom you purchased the machine. For future reference, please record your equipment identification information in the table below.
- Page 3 SAFETY WARNING ARC WELDING CAN BE HAZARDOUS. PROTECT YOURSELF AND OTHERS FROM POSSIBLE SERIOUS INJURY OR DEATH. KEEP CHILDREN AWAY. PACEMAKER WEARERS SHOULD CONSULT WITH THEIR DOCTOR BEFORE OPERATING. BE SURE THAT ALL INSTALLATION, OPERATION, MAINTENANCE AND REPAIR PROCEDURES ARE PERFORMED ONLY BY QUALIFIED INDIVIDUALS. ELECTRIC AND ELECTRIC SHOCK can MAGNETIC FIELDS...
-
Page 4: Fumes And Gases
SAFETY FUMES AND GASES WELDING SPARKS can be dangerous. can cause fire or explosion. 6.a Remove fire hazards from the welding area. If 4.a Welding may produce fumes and gases this is not possible, cover them to prevent the hazardous to health. Avoid breathing these welding sparks from starting a fire. -
Page 5: Recommended Input Wire And Fuse Sizes
For any maintenance or repair operation it is recommended to contact the nearest technical service center or directly consult machine division of the Shanghai Lincoln Electric. Maintenance or repairs performed by unauthorized service center or personnel will void the manufacturer’s warranty. -
Page 6: Installation
INSTALLATION refer to Figure A.1 on this page. SAFETY PRECAUTIONS Read the entire installation section before starting Make sure the amount of power available from the input installation. connection is adequate for normal operation of the WARNING machine. Refer to the Technical Specifications at the beginning of this Installation section for recommended ELECTRIC SHOCK can kill. -
Page 7: General Description

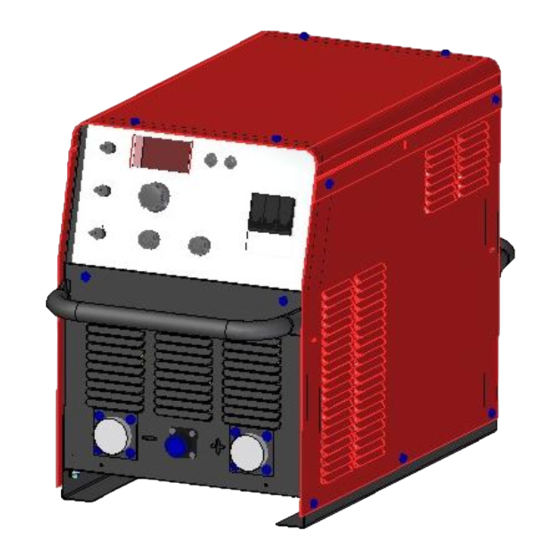

Insulate yourself from work and The INVERTEC CC400-S/-S PLUS is a 400A arc welding ground. power source that utilizes three phases input power, to produce constant current output. The welding response of ... - Page 8 OPERATION Place in the “LOCAL” position to allow output adjustment light and alarm light will flash for a short time and fan will at the machine. Place in the “REMOTE” position to allow start to run. output adjustment at remote pot or amptrol. 11.REMOTE CONNECTOR Note: The remote connector can be used for connecting to...
-
Page 9: Dip Switches
OPERATION AIR CARBON ARC CUTTING 16. GROUND CABLE CONNECTION Air carbon arc cutting maybe performed with the Connect the ground cable to the paint-free location on the INVERTEC within its output rating using 5mm diameter case back by securing its lug-end with the screw into the carbon rods. -
Page 10: Troubleshooting
TROUBLESHOOTING If for any reason you do not understand the test procedures or are unable to perform the tests/repairs safely, contact your local authorized Lincoln Electric CAUTION Field Service Facility for technical assistance. Observe all Safety Guidelines detailed in the beginning and throughout this manual. - Page 11 TROUBLESHOOTING If for any reason you do not understand the test procedures or are unable to perform the tests/repairs safely, contact your local authorized Lincoln Electric CAUTION Field Service Facility for technical assistance. Observe all Safety Guidelines detailed in the beginning and throughout this manual.
- Page 12 DIAGRAM J 1-7 J 1-5 J 1- 8 J 5- 1 J 5-3 J 5-4 J 5 -5 J 5 -6 J8 -1 J8 -2 J9 -1 J 9-2 J 7-1 J 7 -2 J 6 -1 J 6-2 ® INVERTEC CC400-S/-S PLUS Rev.01...
- Page 13 DIAGRAM J1-7 J1-5 J1-8 J5-1 J5-3 J5-4 J5-5 J5-6 J8-1 J8-2 J9-1 J9-2 J7-1 J7-2 J6-1 J6-2 ® INVERTEC CC400-S/-S PLUS Rev.01...
- Page 14 NOTE • World’s Leader in Welding and Cutting• THE SHANGHAI LINCOLN ELECTRIC COMPANY No. 195, Lane 5008, Hu Tai Rd. Baoshan, Shanghai, PRC 201907 www.lincolnelectric.com.cn ® INVERTEC CC400-S/-S PLUS Rev.01...
