Ashcroft GC35 Quick Start Instructions

Heavy duty digital pressure sensor
Hide thumbs Also See for GC35:
1
2
3
4

Advertisement

Quick Links

Download this manual See also: Installation and Maintenance Manual
Quick Start Function Instructions for
GC35 Heavy Duty Digital Pressure Sensor
Version 1.0 6/06/09
(See Complete I&M Manual for Further Detail)

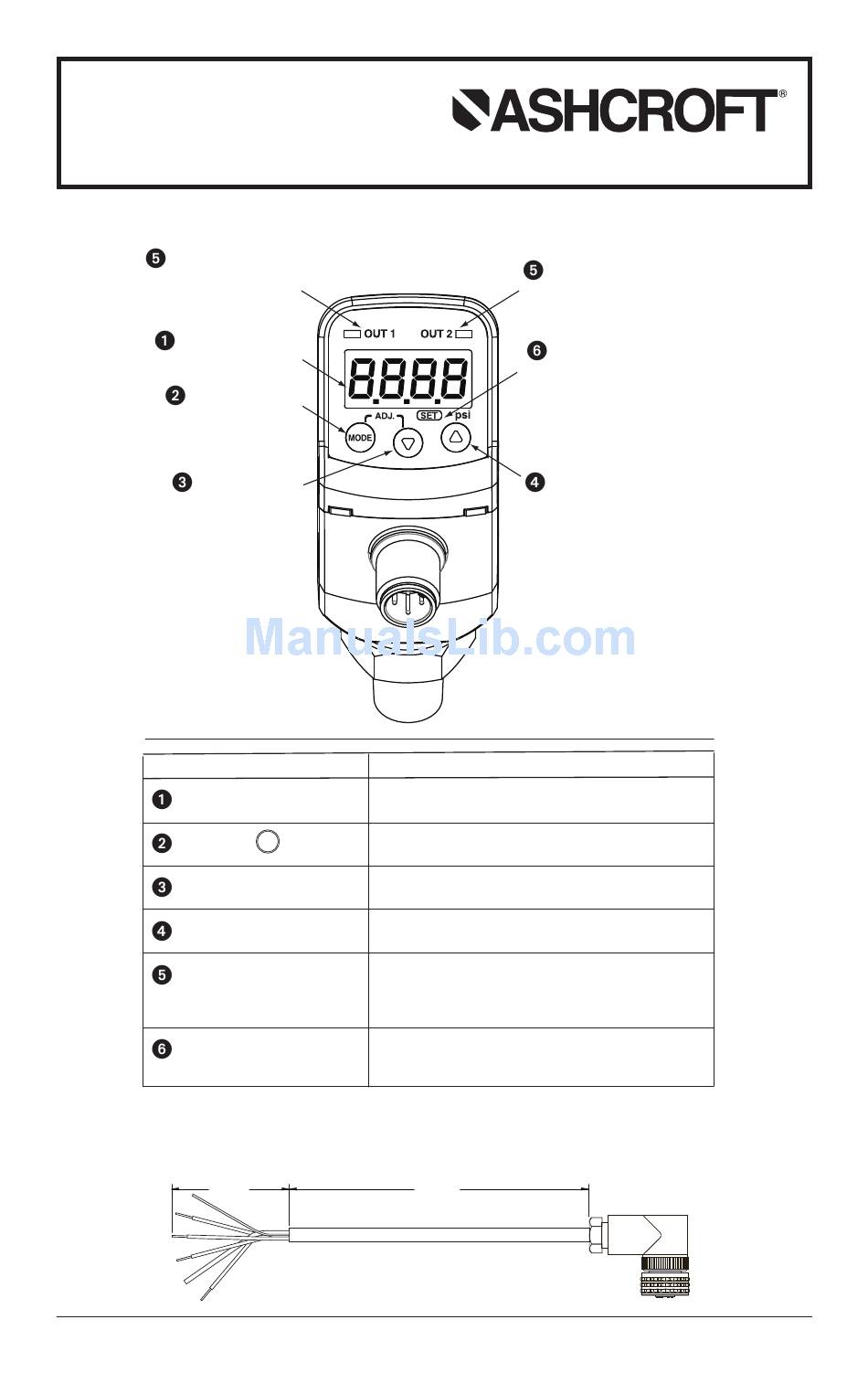

DISPLAY OVERVIEW
Collector/switch 1
LED operation indicator
(OUT 1)
4 Digit, 8mm
LED display
MODE key
DOWN key
Designation
Measurement Display
Mode Key
Down Key #
Up Key $
Collector / Switch LED
Operation Indicator
(OUT1)/(OUT2)
Switch Setting Mode LED
Operation Indicator (SET)
Note: Unit requires M12 mating connector p/n# 611C175-03
(standard 3 foot length) – see below.
2.00˝
© 2010 Ashcroft Inc., 250 East Main St., Stratford, CT 06614-5145, USA, Tel: 203-378-8281, Fax: 203-385-0499,
www.ashcroft.com All sales subject to standard terms and conditions of sale.
8/10 I&M011-10182-GC35 Ver. 6.03 Rev. B
Display of pressure, linear scaling
Change to/from switch setting modes and
MODE
product's settings
Change selections / decrease set values
Change selections / increase set values
Indicates switch state. LED indicator will be ON
when switch is activated
Identifies that the switch setting has been
performed
3´.00˝
Collector/switch 1
LED operation
indicator (OUT 2)
Setting mode
LED operation
indicator (SET)
UP key
Function
