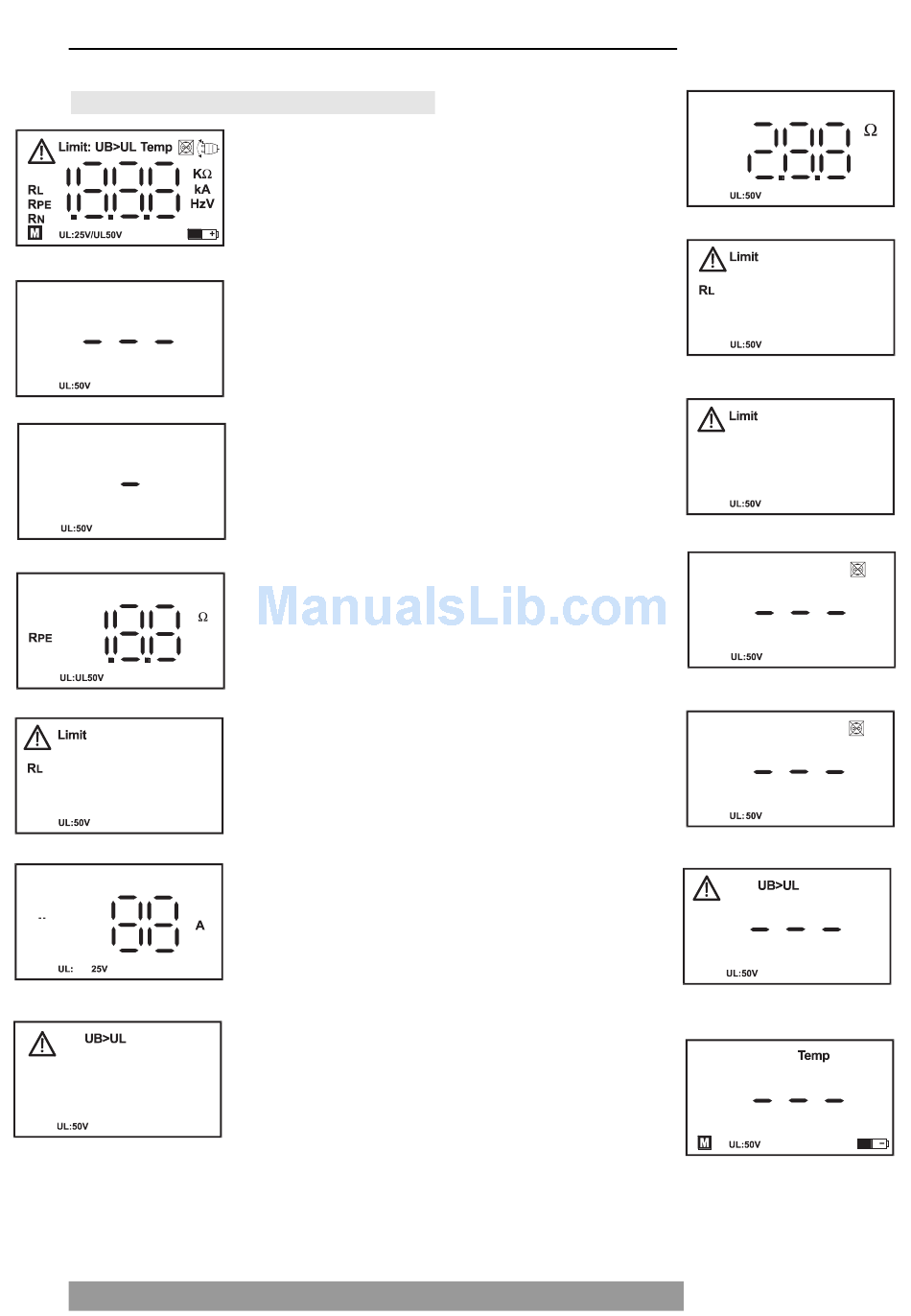

7.0 Display Indications
All segments are illuminated
The instrument is ready to
carry out measurements.
Contact voltage limit 50V
Active measurement
Contact voltage limit 50V
Resistance measurement
RPE/ RN/ RL
RPE = 1.88 Ω
Contact voltage limit 50 V
Resistance measurement
RPE/ RN/ RL
RL exceeded (>19.99 Ω)
Contact voltage limit 50 V
Resistance measurement
Ri/Ipsc
IPSC = 88A
Contact voltage limit 25 V
Resistance measurement
Zl/ Ipsc
Contact voltage limit exceeded
Contact voltage limit 50 V
12
Resistance measurement
Zl/ Ipsc
ZL = 2,88 Ω
Contact voltage limit 50 V
Resistance measurement
Zl/ Ipsc
RL excessive (>19,99 Ω)
Measurement is interrupted
Contact voltage limit 50 V
Resistance measurement
Zl/ Ipsc
ZL excessive (>1,999kΩ)
Contact voltage limit 50 V
Socket error
Nominal voltage tolerance ex-
ceeded
Contact voltage limit 50 V
Socket Error
Faulty socket wiring (during
contact with PE electrode)
Contact voltage limit 50 V
PE Error
Contact voltage limit 50 V
Contact voltage limit excee-
ded
Battery / temperature / me-
mory display
Battery nearly empty
Excessive internal tempera-
ture Memory data
