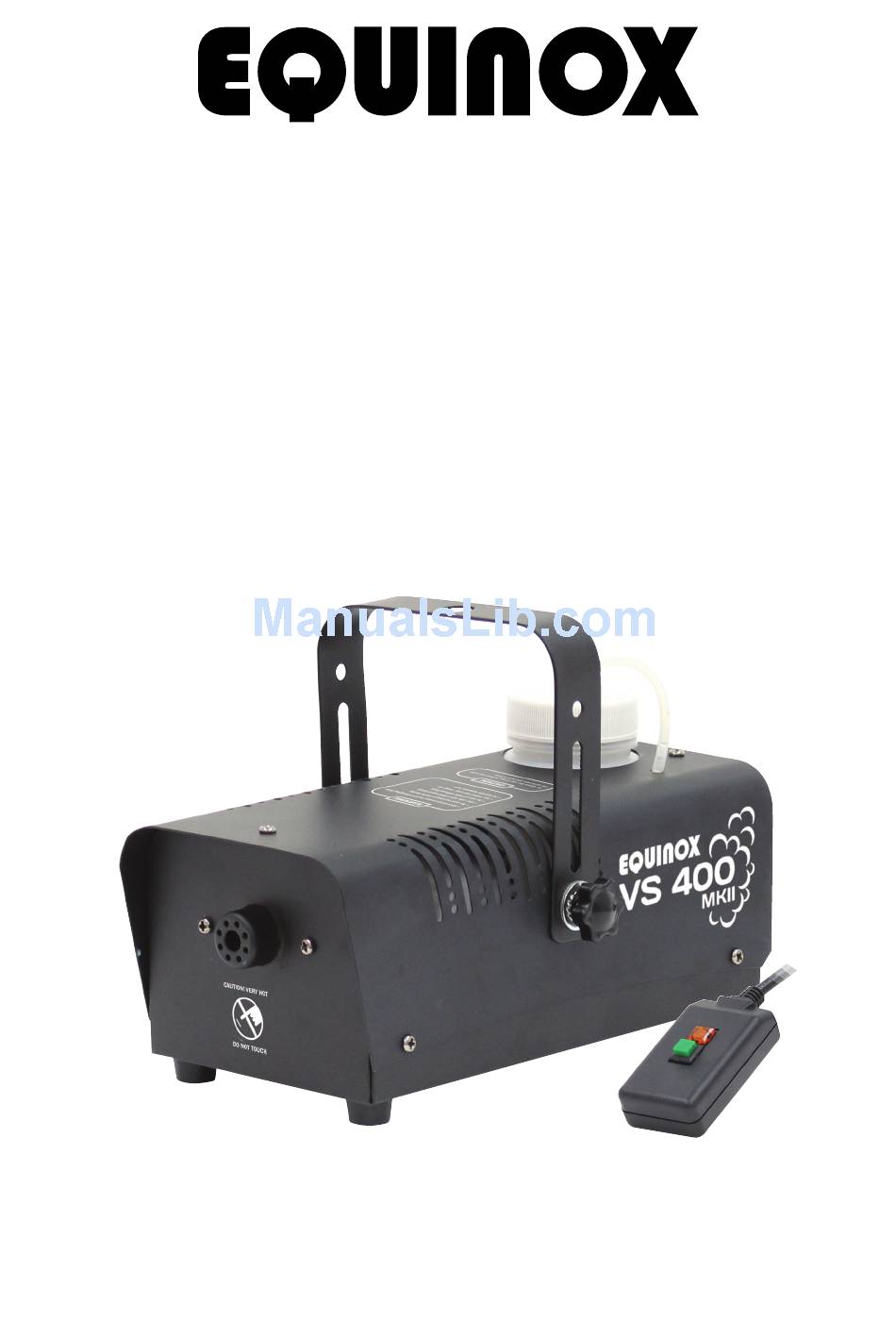

- Page 1 VS 400 Fogger Smoke Machine MKII User Manual Order code: FOG11...
- Page 2 Safety advice Safety advice WARNING: FOR YOUR OWN SAFETY, PLEASE READ THIS USER CAUTION! MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! KEEP THIS EQUIPMENT AWAY FROM RAIN, • Before your initial start-up, please make sure that AND MOISTURE there is no damage caused during transportation. • Should there be any damage, consult your dealer and do not use the equipment. CAUTION! • To maintain the equipment in good working condition and to ensure safe operation, it is necessary for the user TAKE CARE USING to follow the safety instructions and warning notes written THIS EQUIPMENT! in this manual.

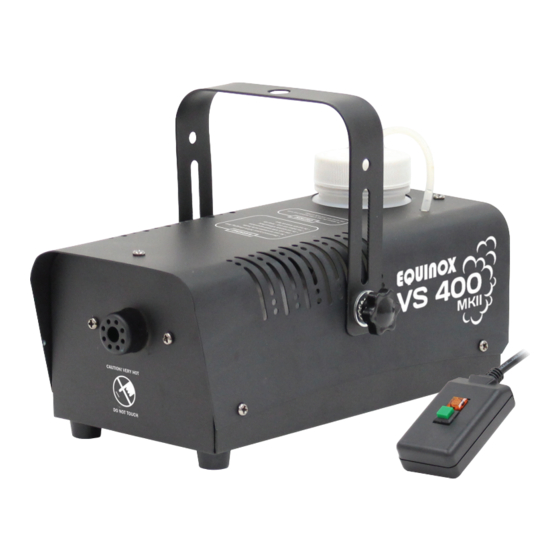

- Page 3 Product overview & technical specifications Product overview & technical specifications VS 400 Fogger Smoke Machine This compact smoke machine is ideal for house parties, mobile entertainers and small venues. Its light weight metal housing means it is built to last. • 400W heater • Smoke output: 2,000 cu.ft per minute • Warm-up time: Approx. 4 min • Tank capacity: 0.25 litres • Supplied with 0.25l of fluid • Supplied with hanging bracket • Wired remote control Specifications Power consumption 400W Power supply 240V, 50Hz Fuse F5A 250V Dimensions 170 x 115 x 240mm Weight 1.7kg Order codes FOG11 240mm 115mm www.prolight.co.uk VS 400 Fogger Smoke Machine User Manual...
-
Page 4: Technical Specifications
Technical specifications www.prolight.co.uk REMOTE CONTROL ADD FLUID POWER INPUT: 240V~50Hz FUSE: F5A 250V In the box: 1 x fixture, 1 x remote control, 1 x hanging bracket, 01 - Hanging bracket 03 - Fluid tank 06 - Fuse F5A 250V 1 x power cable 02 - Hanging bracket 04 - On/off switch 07 - IEC power input & 1 x user manual adjustment knobs 05 - Remote control 08 - Fluid level www.prolight.co.uk... - Page 5 Operating instructions Operating instructions Starting operation: Install the unit on a level surface. The fluid tank of the unit needs to be filled with smoke fluid before switching on. Always disconnected it from the mains supply as fluid could be spilled. Only use quality smoke fluids recommended by your dealer. You must not use substances which are classified as ‘DANGEROUS WORKING MATERIALS’ or ‘FLAMMABLE FLUIDS’. If fluid should get inside the main housing, disconnect the unit from the mains immediately and consult a technician. Installation: Do not orientate the output nozzle directly in the direction of the audience’s eyes. In order to create the best effect, there should be a distance between the unit and the audience of at least 1.5m. Only install the smoke machine on heat and water resistant surfaces. Please make sure that the installation angle does not exceed 15˚ from horizontal. This unit is constructed for a free standing or hanging installation. If the unit is to be installed overhead, please follow the safety instructions below: Rigging installation: The installation has to be built and constructed in a way that it can hold 10 times the weight of the unit(s) to be installed for 1 hour without any deformation. The unit must always be secured with a secondary safety attachment, e.g. an appropriate catch net or safety wire. The secondary safety attachment must be constructed in a way that no part of the installed unit can fall down if the main attachment fails. When rigging, derigging or servicing, do not allow personnel to be directly underneath the unit. The operator must always make sure that the safety-relating and machine-technical installations are approved by an expert before operation for the first time and after any further changes are made. The operator has to make sure that the safety-relating and machine-technical installations are approved by a qualified person once a year. www.prolight.co.uk VS 400 Fogger Smoke Machine User Manual...
-
Page 6: Operating Instructions
Operating instructions Procedure: When hanging, the unit must not be installed in areas above where persons may walk by or be seated. IMPORTANT! OVERHEAD RIGGING REQUIRES EXTENSIVE EXPERIENCE, including (but not limited to) calculating working load limits, installation materials being used, and periodic safety inspection of all installation materials and the unit. If you are not qualified, do not attempt the installation yourself, but instead use a professional structural rigger. Improper installation can result in bodily injury and or damage to property. The unit has to be installed out of the reach of people. CAUTION: Units in overhead installations may cause severe injuries when falling! If you have doubts concerning the safety of a possible installation, do not install the unit. Mount the unit with the bracket to your hanging system using an appropriate clamp or bolt. For overhead use, always install a safety wire which can hold at least 12 times the weight of the unit. You must only use safety wires with link screw caps. The maximum drop distance of any safety bond (wire) must never exceed 20cm. A safety wire which has already held the strain of a fallen item or which is defective must not be used again. Adjust the desired installation angle via the mounting bracket and tighten the screws. DANGER TO LIFE! Disconnect from the mains before starting maintenance Cleaning and maintenance: We recommend a frequent cleaning of the unit. Please use a soft lint-free and moistened cloth. Never use alcohol or solvents! The fluids we recommend are non-hazardous to the environment and can be disposed of via the sewage system. There are no serviceable parts inside this unit except for the fuse. - Page 7 Operating instructions Operation: Connect the fog machine to a suitable mains outlet using the IEC power input. Turn the switch on the rear of the unit to the on position. To begin operation ensure the orange LED on the handheld remote is lit indicating it is ready to fog. Press and hold the green button in order to start the smoke dispersal. If the LED is not illuminated the machine is running through its heating cycle. Care should be taken to ensure the fluid level is maintained and the unit is not allowed to run dry of fluid. Isolate from the mains supply before refilling the fluid tank. Remote control www.prolight.co.uk VS 400 Fogger Smoke Machine User Manual...
- Page 8 WEEE notice Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed of with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk VS 400 Fogger Smoke Machine User Manual...
