Summary of Contents for Equinox Systems Vapour 1000

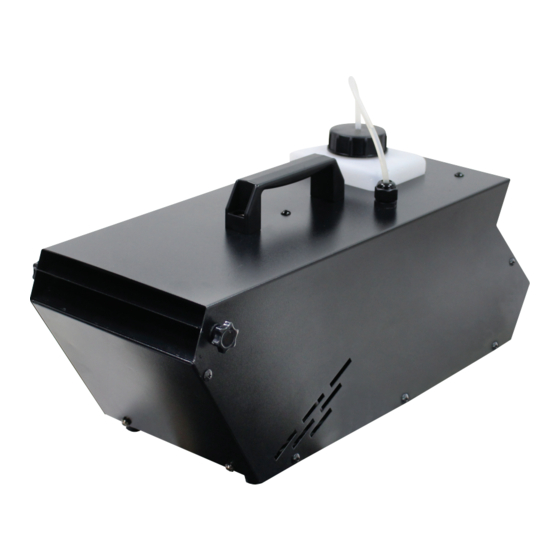

- Page 1 Vapour 1000 User Manual Order code: EQLED360...
- Page 2 • This fixture is for professional use only - it is not designed for or is 240V AC, 50Hz. suitable for household use. The product must be installed by a • Make sure that the power cable is never crimped or qualified technician in accordance with local territory regulations. The safety of the installation is the responsibility of the installer. damaged. Check the equipment and the power cable The fixture presents risks of severe injury or death due to fire periodically. hazards, electric shock and falls. • If the equipment is dropped or damaged, disconnect the mains • Warning! Risk Group 2 LED product according to EN 62471. Do power supply immediately and have a qualified engineer inspect not view the light output with optical instruments or any device the equipment before operating again. that may concentrate the beam. • WARRANTY: One year from date of purchase. OPERATING DETERMINATIONS If this equipment is operated in any other way, than those described in this manual, the product may suffer damage and the warranty becomes void. Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc. Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. Before filling the unit disconnect the mains. Never fill with hot liquids. Only use high quality, water based smoke fluid recommended by the manufacturer. Other smoke fluids may cause clogging and void the guarantee. Always make sure there is sufficient smoke fluid in the tank. Operating this smoke machine without smoke fluid will cause damage to the pump as well as over heating of the heater. Operate the unit only after you have familiarised yourself with its functions. Do not permit operation by persons not qualified for operating the unit and always drain the tank and use the original packaging if the unit is to be transported. www.prolight.co.uk Vapour 1000 User Manual...
- Page 3 DMX INPUT DMX OUTPUT POWER CONSUMPTION: 800W (max.) 06 - IEC power input 07 - Fuse F4A 250V MENU DOWN UP ENTER FUSE: F4A 250V 08 - Haze apeture 09 - Fluid tank www.prolight.co.uk 10 - Carry handle POWER INPUT: 240V~50Hz In the box: 1 x fixture, 1 x power cable & 1 x user manual www.prolight.co.uk Vapour 1000 User Manual...
- Page 4 F001 F100 desired haze amount between ~ . Press the “ENTER” button to confirm the setting. read To suspend the haze output press and hold the “ENTER” button to show . To resume the haze output press and hold the “ENTER” button again. The display will now show the last selected value. To exit out of any of the above options, press the “MENU” button. Value: 001 - 100 (001 = no haze output, 100 = maximum haze output) Master/slave mode: SLnd To set the unit in master/slave, press the “MENU” button on the front of the unit to show on the LED display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to select between NASt SLAu ~ . Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MENU” button. www.prolight.co.uk Vapour 1000 User Manual...
- Page 5 Only install the haze machine on fire resistant, scratch resistant and water resistant surfaces. DANGER OF FIRE! When installing the unit, make sure there is no highly flammable material (decoration articles etc) within a minimum distance of 1m DANGER TO LIFE! Disconnect from the mains before starting maintenance www.prolight.co.uk Vapour 1000 User Manual...
-
Page 6: Operating Instructions
Step 1: Open the fuse holder on the rear panel with a suitable screwdriver. Step 2: Remove the old fuse from the fuse holder. Step 3: Install the new fuse in the fuse holder. (Replacement fuses should be of the same value as originally supplied) Step 4: Replace the fuse holder in the housing. Should you need any spare parts, only use genuine parts. If defective, please dispose of the unusable unit in accordance with the current legal regulations. Should you have any further questions, please contact your dealer. www.prolight.co.uk Vapour 1000 User Manual... - Page 7 WEEE notice Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed of with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk Vapour 1000 User Manual...
- Page 8 Vapour 1000 User Manual...
