- Page 1 USER MANUAL...
-
Page 2: Check Packing Contents

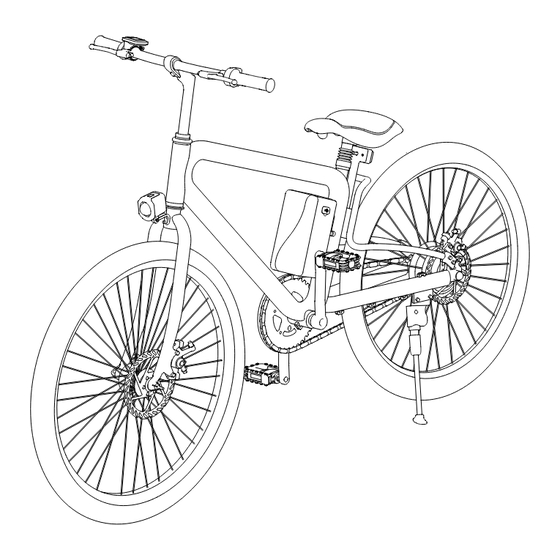

Check Packing Contents Front wheel Bike body Saddle components Tool Pedal Instruction Charger Headlight, Horn Packing list Bike body 1 pcs Tool 1 unit Charger 1 pcs Saddle components 1 unit Front wheel 1 pcs Pedal 1 unit Instruction 1 unit Headlight, Horn 1 pcs - 01 -... - Page 3 Diagram Dashboard Handle to Front brake accelerate Rear brake Handle Headlight power switch Horn switch Headlight, Horn Saddle Taillight Front wheel Pedal Disc-brake Motor Battery holder Kickstand Power switch USB charging Charging port (compatible mouth with mobile phones and digital equipment) R8S(Power-assisted mode) - 02 -...
-
Page 4: Specifications
Specifications Main Technical Parameters 1730mm×630mm×1100mm Item weight 19.5kg Size Tire size 26 inch Max. load 100kg Charging voltage AC220V 50-60Hz Max. speed ≤ 20km/h Charging time About 120min Max. permissible gradient ~15° USB output voltage 5V Applicable temperature -10℃ ~40℃ Battery capacity 162.8Wh Main Technical Parameters Of Storage Battery... - Page 5 Figure 4 Take R8's main frame, front wheel and bike head from the box, unfold the kickstand (see Figure 1 - ① arrow). Take down the protective jacket of front wheel disc brake, unscrew the nut, put centre shaft into front wheel and put nut into centre shaft.
-
Page 6: Get Started
Get Started R8 provides riders with three different riding modes. 1.Electricity-assisted mode Set right the head, fold kickstand and fasten frame. Adjust bike head and saddle position to ensure a comfortable riding experience. Find the power switch in the one side of the batter, start it and hold the handle. -
Page 7: Important Note
You need lots of practice to grasp the skill before you ride R8 safely. If you are not skilled, or fail to follow the user guide of this product, it may cause rider or others injury or property loss. Our company only takes the responsibility for product defects or damage, and we are NOT responsible for physical injury or property loss related with using products. -
Page 8: Adjustment And Maintenance
The power should be turned off when parking. For your riding safety and for the R8's superb condition, please maintain and clean it regularly. Adjustment and maintenance: Newly purchased vehicles should be adjusted in good condition, if there is any question, please refer to the aftersales staff. -
Page 9: Battery Usage
AC220V power source for 2~4 hours until the charger is full. The normal charge of the battery: the operation of R8 is also the discharge process of the battery. The battery should be charged immediately after the use of the power-assisted vehicle. - Page 10 R8 is not suitable for long-distance travel. Develop good habits to charge in time. Before ride, please ensure R8 has enough electricity. It is very important to form the habit of charging in time every day so that the battery can serve you a longer period of time.
- Page 11 Long press the key 1 and key 2 (about 3 seconds) simultaneously to set the mode P01: backlight brightness, 1 darkest, 3 lightest; P02: Number of speed measuring magnets: Range: 1-255; the number of magnet of R8 is set to be 6;...
- Page 12 40 batteries (customized) First loosen the top screw, open the Battery lock battery lock with R8's matched key, and then move the battery box in the opposite direction of the battery lock( as shown in the figure), then take out the battery box to charge.
- Page 13 Uncover the dust cap in the battery box and connect the charger to Standard charge. Customized Fender (optional, if any) Align the front fender and rear fender respectively to the round Rear fender holes in front and rear wheel, Front and tighten it with screw and Rear fender...
