Summary of Contents for Airwheel Q1

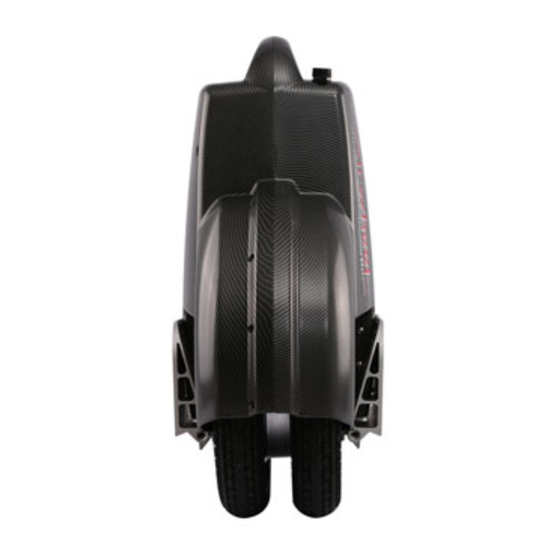

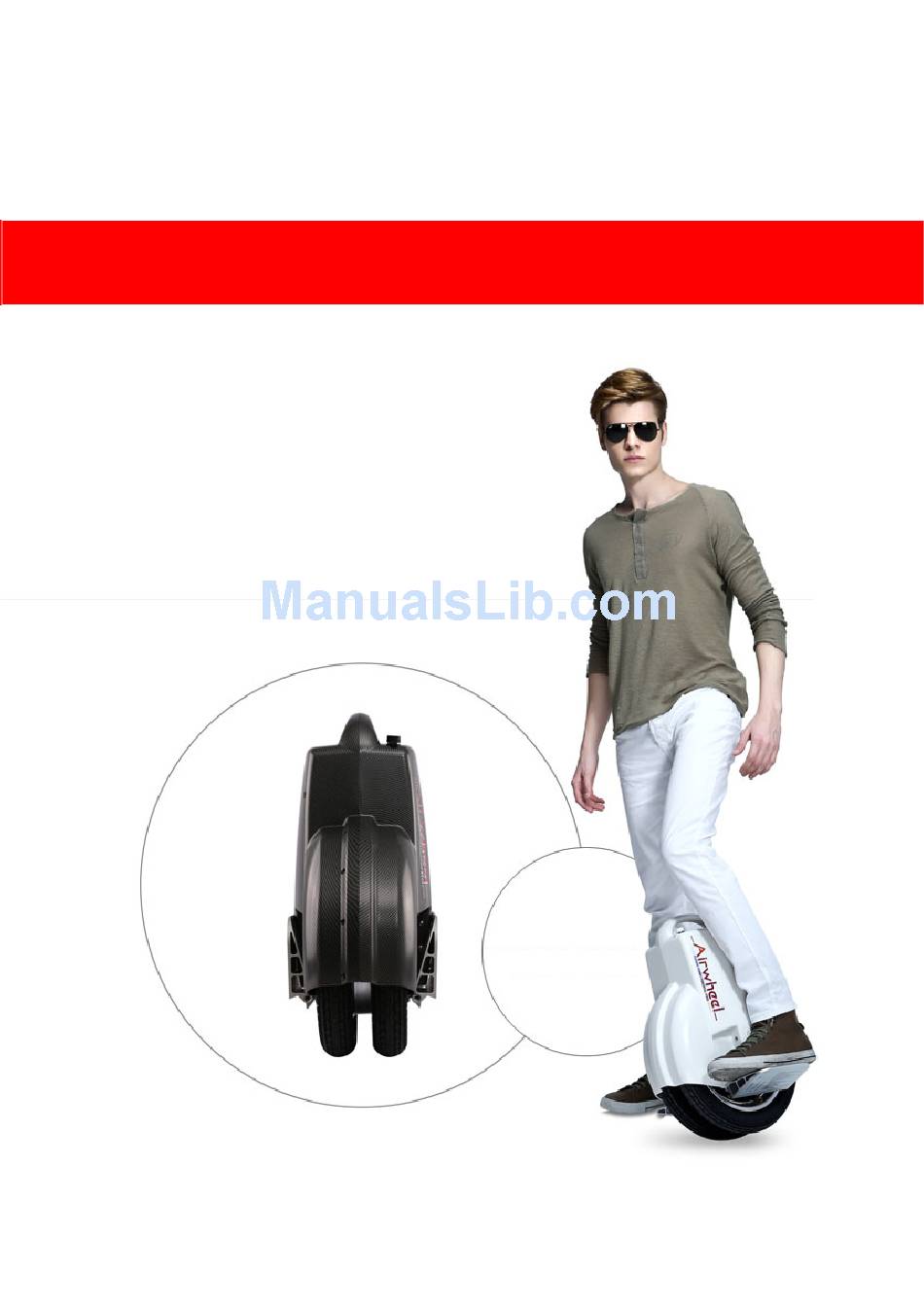

- Page 1 Airwheel User Manual—Moel Q...
-
Page 2: Table Of Contents
This manual includes safety usage instructions. Please make sure this manual is read through and fully under stood before usage. Inside the package you will find: the Airwheel (Model Q), battery charger, extended air-pump connector, user guide and manual, warranty card, and quality certificate. - Page 3 ...
-
Page 4: Introduction
2. Do not ride Airwheel on packed roads or crowded streets with motorized vehicles. 3. Do not ride Airwheel on rough or bumpy surfaces, such as muddy or gravel roads. 4. Do not ride Airwheel on wet, slippery surfaces, especially icy ones. -
Page 5: Safety Guidelines And Riding Etiquettes
Please ride at safe and proper speed and make sure your Airwheel is under control. Keep yourself a safe distance from pedestrians and vehicles and always be prepared to stop. -
Page 6: Airwheel Learning Tips
Please stop riding immediately when Airwheel starts alerting for low battery or over speed. Charge your Airwheel in time to ensure safe and smooth usage. Make sure to power off Airwheel before lifting it. Do not lift Airwheel on the wheel in case your fingers get caught between the tire and case. -
Page 7: Learning Tips For Starters
3. 2 Learning Tips for Starters 1. Place Airwheel vertically on the ground by one hand and power it on. 2. Unfold the pedals and straddle Airwheel. 3. Place one foot on the center of a pedal and bend the leg slightly to press on the cushion rubber tightly. -
Page 8: Getting Started
4.2 Getting Started Place Airwheel vertically on the ground and tum it on. The Power Level LED Indicators will be on and the buzzer will beep, and the unit is ready to use. If Airwheel tilts either forward or backward after powered on, please wait until it adjusts to upright position before riding. -
Page 9: Charge The Battery
5. Maintenance 5.1 Storage Please store Airwheel in a dry location. For non-regular users, recharge the battery every 90 days to maintain the battery life and store Airwheel only after it's fully charged. 5.2 Inflation Use the extended connector to inflate the tire. Without the connector, you may fail to pump air into the wheel. -
Page 10: Change The Tire
... -
Page 11: Specifications
Range per Charge Q1:15-23km/Q3:18-65km May vary with rider's weight, road condition and temperature Safe Climbing Angle About 15° Riders weighing 60kg get up to 18° Battery Q1 :130/170Wh Protection board with Q3 :130/170/260/340Wh SOC equalization Temperature -10℃-40℃ Best at 20℃-30℃ Maximum Load... -
Page 12: Appendix
8. Appendix 8.1Tire Pressure Generally Airwheel's tire pressure is supposed to range between 1.5-2.0KG/cm3• High tire pressure contributes to smaller friction force and longer battery range, yet delivers less damping effect. On the other hand, low tire pressure shortens battery range but smoothens riding experience on bumpy terrains. - Page 13 ...
-
Page 14: Packing Contents
8.3 Packing Contents Check the Items Contained in the Packing Box Open the packing box and take out Airwheel with care. Airwheel Is labeled with a "Road Test Approved sticker, which means it’s been tested before leaving factory Please lift Airwheel upward carefully when taking it out from the WARNING packing box. -
Page 15: Battery Performance
... -
Page 16: Relations Between Range And Load
Q: When I turn on my Airwheel, all 4 LED indicators are on before blacking out a second later, and then after 3 seconds they are lit again, is it normal? A: Airwheel initiates with testing its power level indicator and beeper before launching self-inspection of the other major parts when the indicators are lit 3 seconds later. - Page 17 Q: How can I tell whether my Airwheel is fully charged or not? A: There's a charging indicator light on the charger. A red indicator light indicates that Airwheel is under charging and a green one indicates that Airwheel is fully charged or not charged.
-
Page 18: Road Test
Q: My Airwheel quivers when travelling at high speed and I can barely stand on it, how to fix this problem? -
Page 19: Contact Us
...
