Summary of Contents for Airwheel R6

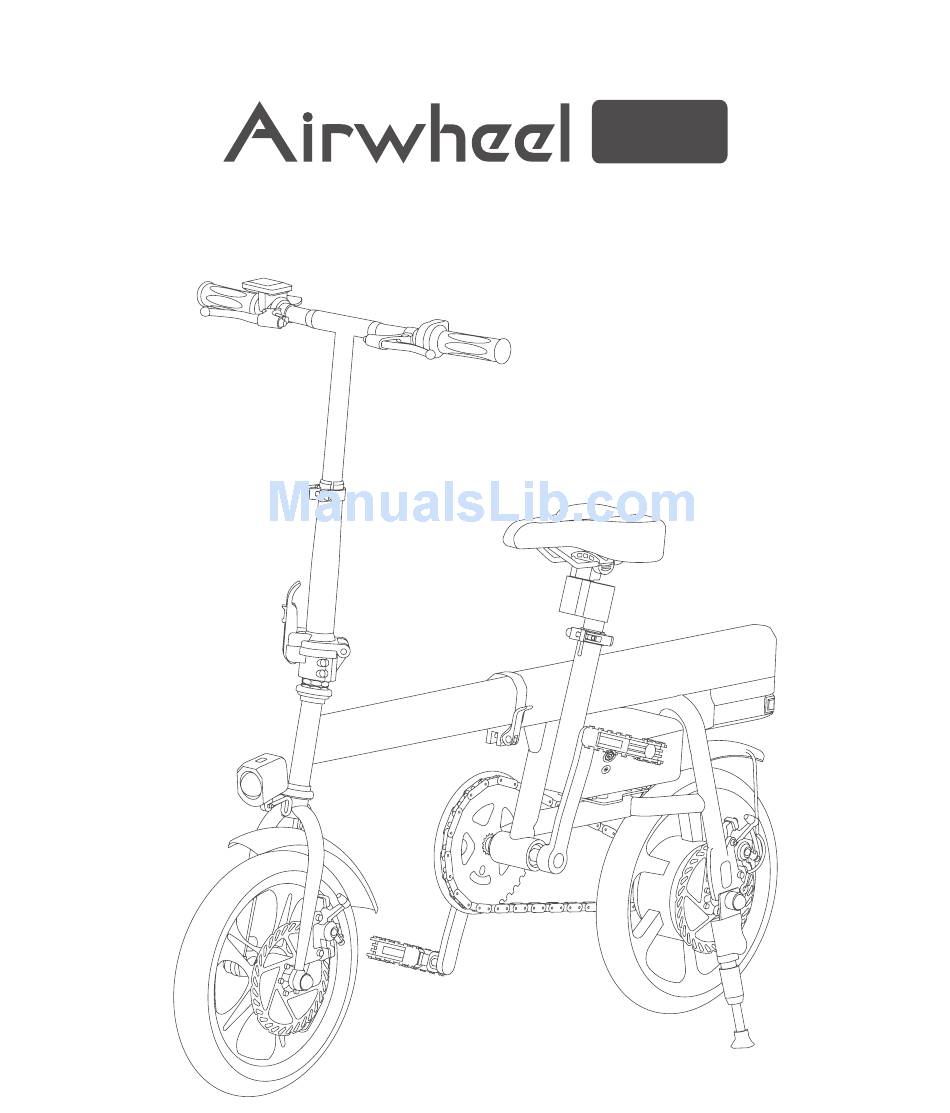

- Page 1 USER MANUAL...
-
Page 2: Check Packing Contents
Check Packing Contents Bike body Charger Instruction Tool Saddle components Pedal Packing list Bike body 1pcs Pedal 1unit Charger 1pcs Tool 1unit Instruction 1unit Saddle components 1unit - 02 -... - Page 3 R6 Diagram Dashboard Front brake Rear brake Handle to Handle accelerate Headlight power switch Lifting rod lock catch Horn switch Saddle Headlight,Horn Locking handle Front fender Taillight Pedal Power switch Adjustable switch Disc-brake Rear fender Front wheel Charging mouth Motor...
-
Page 4: Specifications
Specifications Main Technical Parameters 1220X550X950mm Item weight ~ 19.2kg Size Folding size 910X400X750mm Max. load 100kg Tire size 14 inch Max. speed ≤ 20km/h Charging voltage AC220V 50-60Hz Max. permissible gradient ~ 15° Charging time ~ 200min Battery capacity 244.2wh USB output voltage Applicable temperature -10℃... - Page 5 Figure 6 Take R6 from the box, open the lifting rod lock (see Figure 1 - ① arrow), insert the front into the folding riser (see Figure 1 - ② arrow), then close the lock, push the head to the vertical (See Figure 2); fold the handle down (see Figure 3 - ③...
-
Page 6: Get Started
Get Started R6 provides riders with three different riding modes. 1.Electricity-assisted mode Set right the head, fold kickstand and fasten frame. Adjust bike head and saddle position to ensure a comfortable riding experience. Find the power switch in the one side of the batter, start it and hold the handle. -
Page 7: Important Note
You need lots of practice to grasp the skill before you ride R6 safely. If you are not skilled, or fail to follow the user guide of this product, it may cause rider or others injury or property loss. Our company only takes the responsibility for product defects or damage, and we are NOT responsible for physical injury or property loss related with using products. -
Page 8: Adjustment And Maintenance
AC220V power source for 2~4 hours until the charger is full. The normal charge of the battery: the operation of R6 is also the discharge process of the battery. The battery should be charged immediately after the use of the power-assisted vehicle. - Page 9 R6 is not suitable for long-distance travel. Develop good habits to charge in time. Before ride, please ensure R6 has enough electricity. It is very important to form the habit of charging in time every day so that the battery can serve you a longer period of time.
- Page 10 Foldable Power switch ⑧ Locking Figure Figure handle Adjustable switch Contractive gear Figure Figure Figure Fold the kickstand, lower the head and saddle height to the minimum (see Figure 13). Turn on power (see Figure 14), release the locking handle (see Figure 15 - ⑧ arrow); set right the body, put the adjustable switch in the contractive gear (see Figure 16).
- Page 11 Other Functional Instructions Dashboard Introduction of Keys Open the battery switch, and the dashboard can be seen. Short press the option key, the interface switching among the ODO, VOL, E (error), A (warning) and DIS. Mode setting Long press the key 1 and key 2 (about 3 seconds) simultaneously to set the mode P01: backlight brightness, 1 darkest, 3 lightest;...
- Page 12 40 batteries (customized) First loosen the top screw, open the Battery lock battery lock with R6's matched key, and then move the battery box in the opposite direction of the battery lock( as shown in the figure), then take out Top tightening screws the battery box to charge.
