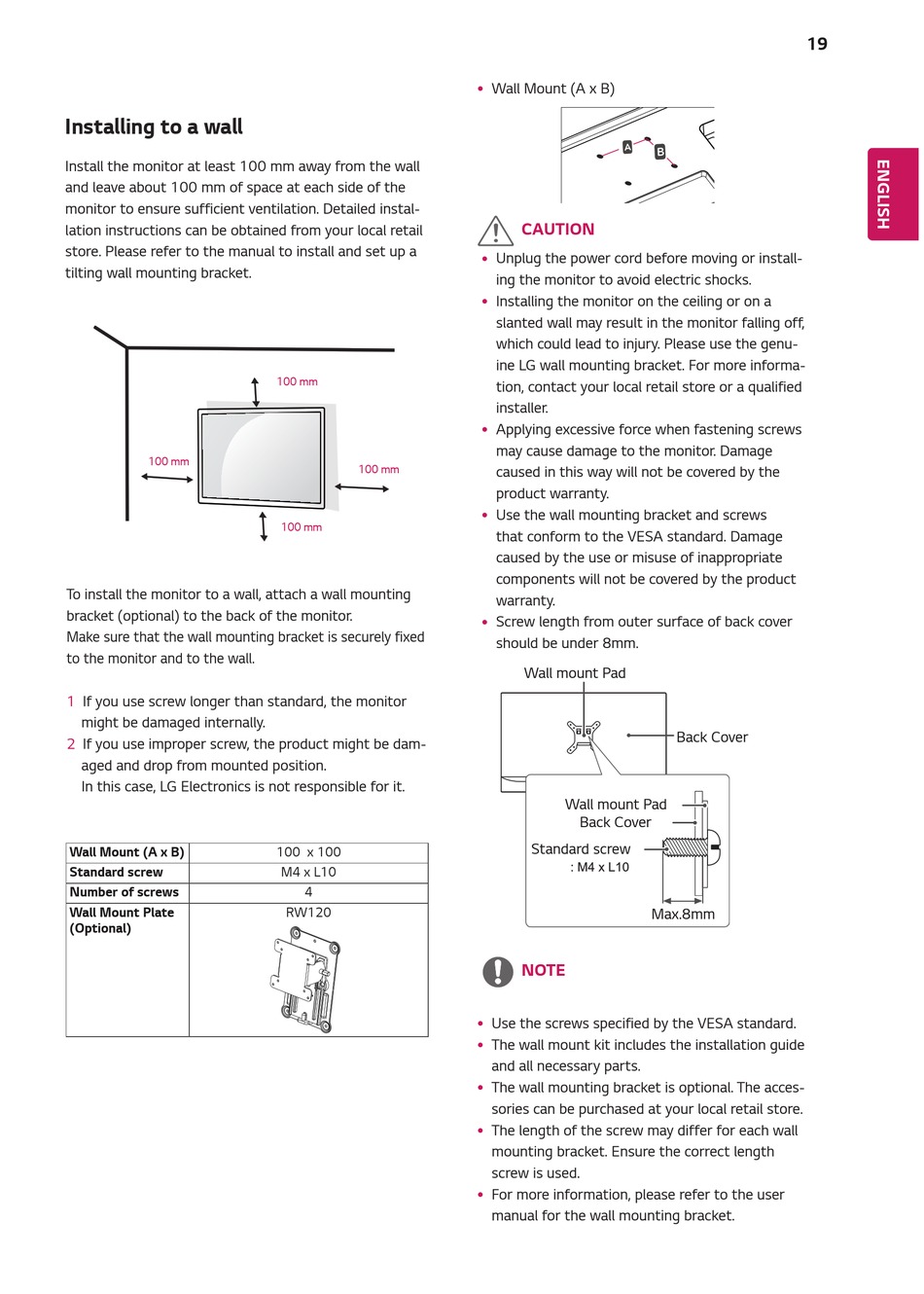

Installing to a wall

Install the monitor at least 100 mm away from the wall
and leave about 100 mm of space at each side of the
monitor to ensure sufficient ventilation. Detailed instal-
lation instructions can be obtained from your local retail
store. Please refer to the manual to install and set up a
tilting wall mounting bracket.
100 mm
To install the monitor to a wall, attach a wall mounting
bracket (optional) to the back of the monitor.
Make sure that the wall mounting bracket is securely fixed
to the monitor and to the wall.
1 If you use screw longer than standard, the monitor
might be damaged internally.
2 If you use improper screw, the product might be dam-
aged and drop from mounted position.
In this case, LG Electronics is not responsible for it.
Wall Mount (A x B)
Standard screw
Number of screws
Wall Mount Plate
(Optional)
100 mm
100 mm
100 mm
100 x 100
M4 x L10
4
RW120
Wall Mount (A x B)
y
CAUTION
Unplug the power cord before moving or install-
y
ing the monitor to avoid electric shocks.
Installing the monitor on the ceiling or on a
y
slanted wall may result in the monitor falling off,
which could lead to injury. Please use the genu-
ine LG wall mounting bracket. For more informa-
tion, contact your local retail store or a qualified
installer.
Applying excessive force when fastening screws
y
may cause damage to the monitor. Damage
caused in this way will not be covered by the
product warranty.
Use the wall mounting bracket and screws
y
that conform to the VESA standard. Damage
caused by the use or misuse of inappropriate
components will not be covered by the product
warranty.
Screw length from outer surface of back cover
y
should be under 8mm.
Wall mount Pad
Wall mount Pad
Back Cover
Standard screw
NOTE
Use the screws specified by the VESA standard.
y
The wall mount kit includes the installation guide
y
and all necessary parts.
The wall mounting bracket is optional. The acces-
y
sories can be purchased at your local retail store.
The length of the screw may differ for each wall
y
mounting bracket. Ensure the correct length
screw is used.
For more information, please refer to the user
y
manual for the wall mounting bracket.
19
Back Cover
Max.8mm
