Pivot Feature - LG 27UD59 Owner's Manual

16

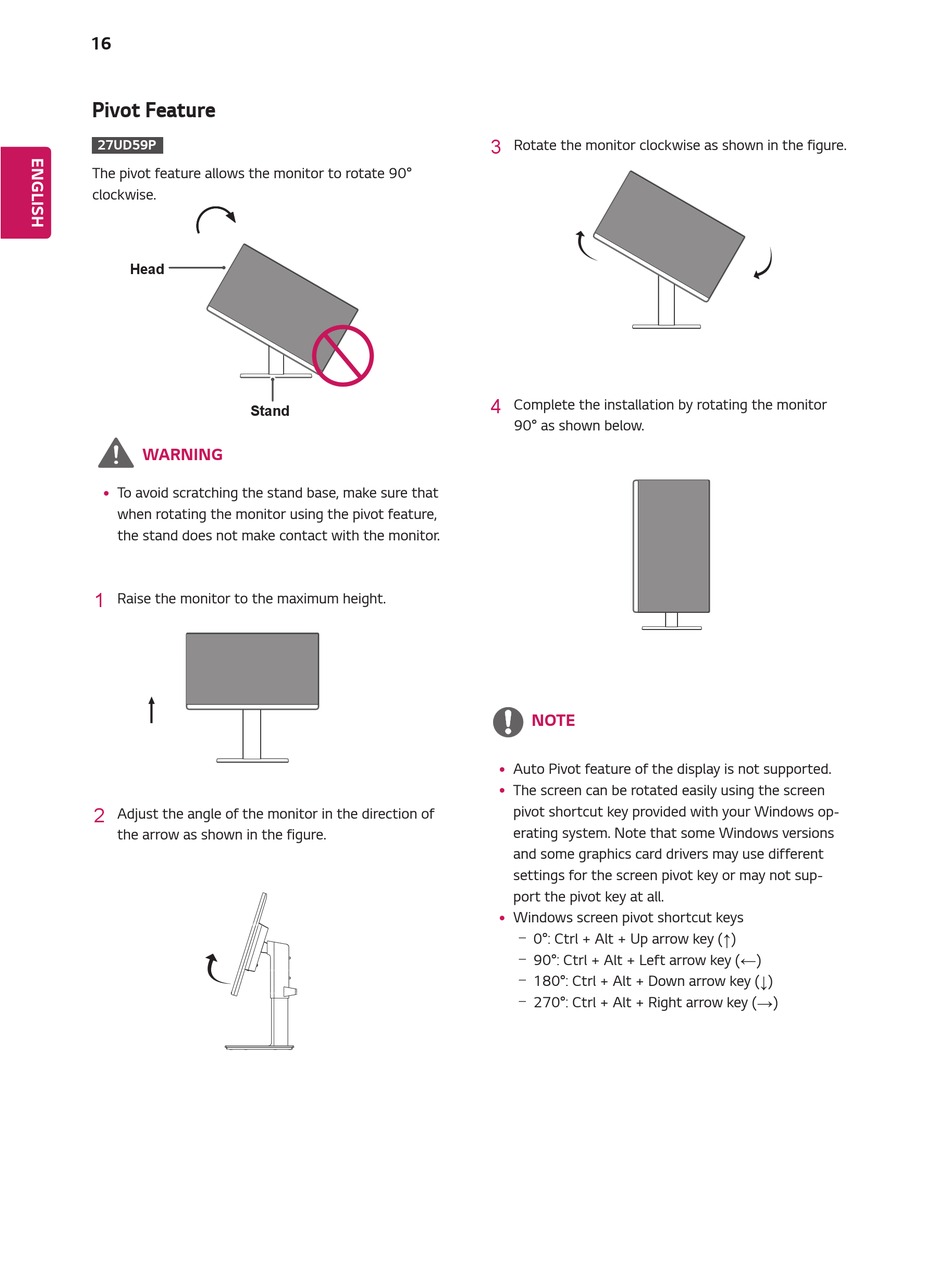

Pivot Feature

27UD59P
The pivot feature allows the monitor to rotate 90°
clockwise.
Head
Stand
WARNING
To avoid scratching the stand base, make sure that
y
when rotating the monitor using the pivot feature,
the stand does not make contact with the monitor.
Raise the monitor to the maximum height.
1
2 Adjust the angle of the monitor in the direction of
the arrow as shown in the figure.
3 Rotate the monitor clockwise as shown in the figure.
4 Complete the installation by rotating the monitor
90° as shown below.
NOTE
Auto Pivot feature of the display is not supported.
y
The screen can be rotated easily using the screen
y
pivot shortcut key provided with your Windows op-
erating system. Note that some Windows versions
and some graphics card drivers may use different
settings for the screen pivot key or may not sup-
port the pivot key at all.
Windows screen pivot shortcut keys
y
- 0°: Ctrl + Alt + Up arrow key ( ↑ )
- 90°: Ctrl + Alt + Left arrow key ( ← )
- 180°: Ctrl + Alt + Down arrow key ( ↓ )
- 270°: Ctrl + Alt + Right arrow key ( → )
