- Page 1 DAC-2v2 Series DAC-2v2 & DAC-2v2SE DIGITAL-TO-ANALOG C ONVERTER WITH R EMOTE C ONTROL A ND V OLUME C ONTROL USER MANUAL ...
-
Page 2: Important Safeguards
WARNING: To reduce the risk of electric shock, do not expose this apparatus to rain or moisture. The apparatus shall not be exposed to dripping or splashing and that objects filled with liquids, such as vases, shall not be placed on apparatus. © Wyred 4 Sound. All rights reserved. DAC-2v2 & DAC-2v2SE Manual v2 2 ... - Page 3 The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. © Wyred 4 Sound. All rights reserved. DAC-2v2 & DAC-2v2SE Manual v2 3 ...
-
Page 4: Table Of Contents
11 Setup Menu Details 12-14 Remote Control 15 USB Configuration 15 “Break-In” Period 16 Troubleshooting 16 Specifications 17 Output Level Adjustment 17 Warranty Coverage 18-19 Service 19 © Wyred 4 Sound. All rights reserved. DAC-2v2 & DAC-2v2SE Manual v2 4 ... -
Page 5: Introduction
The DAC-2v2 series can process signals up to 24/200 kHz via the coax digital inputs. Toslink inputs are tested to function up to 192 kHz sample rate, although due to limitations inherent in toslink transmission, a maximum of 174.6 ... - Page 6 Another key component adding to the incredible sound quality of the DAC-2v2 series DACs is the proprietary discrete output stages. Instead of choosing the simple path like many others, we took the “dirt road” and it paid off in a big way in the form of transparency and naturalness of sound. The grain-free soundstage reproduction is the ...
-
Page 7: Getting Connected
The inner RCA jacks are HT Bypass inputs (not outputs). For details, see “Remote Control/DC Trigger” section. Left analog outputs Connect to the left input of your preamplifier or amplifier. XLR and RCA cables are acceptable. © Wyred 4 Sound. All rights reserved. DAC-2v2 & DAC-2v2SE Manual v2 7 ... -
Page 8: Front Panel Operation

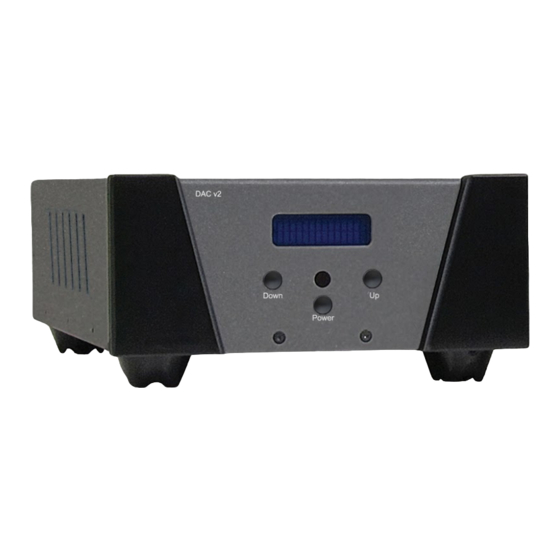

Front Panel Operation The front panel of the DAC-2v2 series is a model of elegance, simplicity and efficiency. An LED display and three simple buttons give the user a wealth of control and configuration options. LED display The two-line LED display will show input and file information on the top line and volume information on the bottom line (either the volume level or the word “FIXED”). -
Page 9: Powering Your Dac
Setup Menu Tables for DAC-2v2 and 2v2SE are on the following two pages. © Wyred 4 Sound. All rights reserved. DAC-2v2 & DAC-2v2SE Manual v2... -
Page 10: Setup Menu Table: Dac-2V2
AES/EBU Maximum Level 0- 70 S Level Variable / Fixed S Minimum Level* 0-70 S Maximum Level 0- 70 Discrete Input On / Off *Default Minimum Level is 5. © Wyred 4 Sound. All rights reserved. DAC-2v2 & DAC-2v2SE Manual v2 10 ... -
Page 11: Setup Menu Table: Dac-2V2Se
0- 70 On / Off Discrete Input Disabled/Lowest/*/**/ *** /****/*****/******/ Jitter Eliminator Highest 10-240 seconds Dim Delay** *Default Minimum Level is 5. **Default Dim Delay is 40 seconds © Wyred 4 Sound. All rights reserved. DAC-2v2 & DAC-2v2SE Manual v2 11 ... -
Page 12: Setup Menu Details
Slow rolloff, minimum phase ● Fast rolloff, linear phase ● Fast rolloff, minimum phase ● Apodizing fast rolloff, linear phase ● Hybrid fast rolloff, minimum phase ● Brickwall © Wyred 4 Sound. All rights reserved. DAC-2v2 & DAC-2v2SE Manual v2 12 ... - Page 13 Variable mode engages it. Fixed mode should be used if you are connecting the DAC to a preamplifier, receiver, etc. to use that component’s volume control. Choose Variable to use the DAC’s internal volume control for connecting © Wyred 4 Sound. All rights reserved. DAC-2v2 & DAC-2v2SE Manual v2 13 ...
- Page 14 On the DAC-2v2, you can adjust this for each input type. On the DAC-2v2SE, the Volume setting is global, affecting all inputs. Minimum/Maximum Volume Level Settings The Min/Max volume level settings can be set differently for each input type and allow you to tailor and optimize the ...
-
Page 15: Remote Control
Remote Control The remote control supplied with the DAC-2v2 series offers you full functionality. Also, if you find the need to, you can always program a universal remote to control the DAC as well (set the Discrete Input in the menu to “On”). For ... -
Page 16: Break-In" Period
Note: Because the DAC-2v2 is really an 8ch DAC inside, make sure that all sources (where applicable, ie: DVD players, cable/satellite boxes) are programmed in their Setup Menu to output 2ch PCM or stereo digital signals. In ... -
Page 17: Specifications
Output type Volume setting 4.1v RCA 70 2.9v RCA 67 1.4v RCA 61 8.3v XLR 70 5.9v XLR 67 4.6v XLR 65 4.1v XLR 64 2.9v XLR 61 © Wyred 4 Sound. All rights reserved. DAC-2v2 & DAC-2v2SE Manual v2 17 ... -
Page 18: Warranty Coverage
Sound is not responsible for damage arising from failure to follow instructions relating to the product's use. This warranty does not apply: (a) to damage caused by use with non-Wyred 4 Sound products; (b) to damage caused by accident, abuse, misuse, flood, fire, earthquake or other external causes; (c) to damage caused by operating the ... -
Page 19: Service
You will be responsible for delivery and return shipping and handling charges if the product cannot be serviced in the country it is in. In accordance with applicable law, Wyred 4 Sound may require that you furnish proof of purchase details and/or comply with registration requirements before receiving warranty service. ... - Page 20 4235 Traffic Way Atascadero, CA 93422 USA Ph: +1 (805) 466-9973 Fax: +1 (805) 462-8962 Website: wyred4sound.com Email: support@wyred4sound.com Be sure to sign up for our newsletter to receive the latest news and updates! See the “Wyred In” section in the footer of our website. Follow us on Facebook: facebook.com/wyred4sound ...
