CLS MIRIAM GII Manual

CLS MIRIAM GII
Manual
Floor Wall Ceiling 270º
DMX
512
IP65 RGB 110~240 Max.
14 x 36º 37xLuxeon
VAC 110 Watt
Version 2.0 April 2016
100 cm 2 x 300 cm Driver incl. 4,80 kg 50.000 h 12º 15º 32º
DMX cable
www.cls-led.com

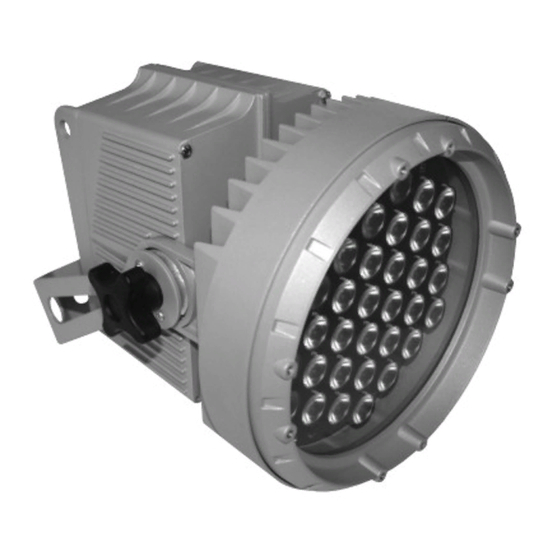

Thank you for selecting the CLS Miriam GII. The CLS Miriam GII is an universal luminary that uses 37 Luxeon
Rebel LEDs to create an even light-output. The CLS Miriam GII can be used indoor and outdoor through its
waterproof (IP65) housing. With these qualities the CLS Miriam GII is mountable almost everywhere.
Available Miriam GII spots
• 140110 CLS Miriam GII RGB superspot 12°
• 140120 CLS Miriam GII RGB spot 15°
• 140130 CLS Miriam GII RGB medium flood 32° 37xRebel 110-240VAC IP65
• 140140 CLS Miriam GII RGB ellipt. 14x36°
• 140150 CLS Miriam GII RGB wide flood 44°
Included items
The CLS Miriam GII is shipped in one package containing the following items:
• 1 x CLS Miriam GII
• 1 x user manual
Optional accessories
• 707028 CLS Zense DMX controller + built in 4 amp RGB dimmer
• 707030 CLS ACX60 DMX controller for max. 60 channels
• Y140010 CLS Miriam barndoor
• Y140025 CLS Miriam GII RGB/DW extension cable IP65 5 mtrs
• Y140027 CLS Miriam GII RGB/DW extension cable IP65 10 mtrs
• Y140030 CLS Miriam RGB/DW connection cable XLR3-connector 5mtr
• Y140040 CLS Miriam RGB/DW DMX cable outdoor
• Y140050 CLS Miriam RGB/DW connector set male/female IP65
• Y140060 CLS Miriam RGB/DW DMX terminator IP65
• Y140070 CLS Miriam Snow Cover
Use a source
Make sure all
of AC power
44º 120º
connectors are
that complies to
connected
local electrical
properly
codes

INTRODUCTION

37xRebel 110-240VAC IP65
37xRebel 110-240VAC IP65
37xRebel 110-240VAC IP65
37xRebel 110-240VAC IP65

SAFETY INFORMATION

Quali ed
technician
Ambiance
Max. 40º
Do not stare
into the LED
Block access
Don't modify Don't install in
below the work
or install a ammable
area when
genuine parts or explosive
maintaining
on this product area
the unit
2
Disconnect the
power supply
before installing
or maintaining
Warning!
Some surfaces
can be hot
