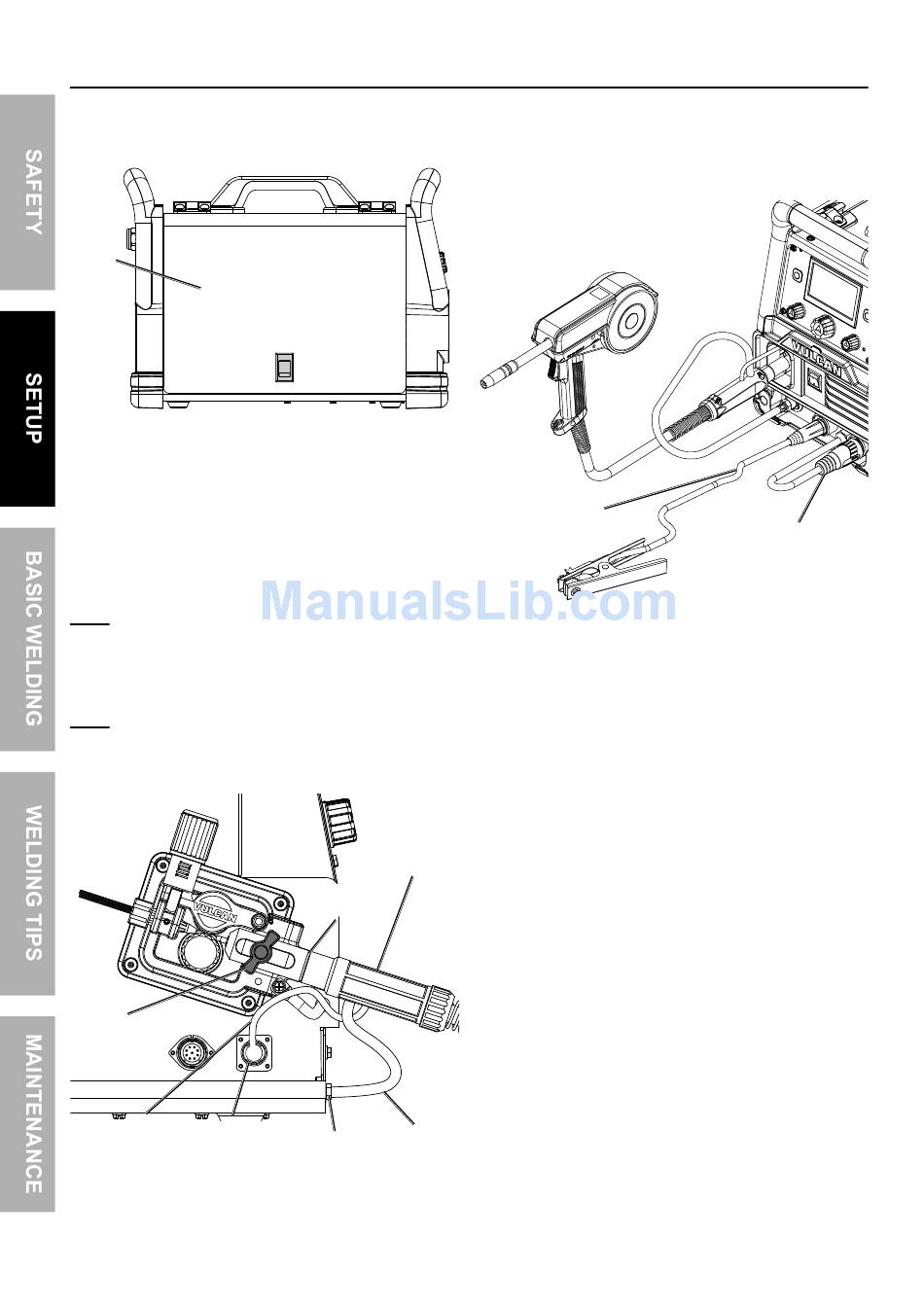

connect to Vulcan OMNIpRO 220
1. Turn Power Switch OFF and unplug Welder.
2. Open Door on side of Welder.
door
3. connect Spool gun:
a. Loosen Knob without removing.
b. Plug Spool Gun Connector
into Spool Gun Socket.
c. Tighten Knob, do not over tighten.
d. Pull on Spool Gun Connector to ensure tight
connection. Re-seat if connection is not tight.
Note: If connection is not tight, arc will not ignite.
4. Plug Wire Feed Control Cable into
Wire Feed Control Socket. Secure by
turning collar clockwise until tight.
Note: Plug will only fit one way.
5. Plug Gas Cable into Gas Outlet.
Secure by wrench tightening.
Knob
Wire Feed Wire Feed
control control
cable Socket
Page 12
Spool gun
connector
Spool gun
Socket
gas
gas
cable
Outlet
For technical questions, please call 1-888-380-0318.
6. Plug Ground Clamp Cable into Negative Socket.
Twist clockwise all the way to lock in place.
7. Plug Wire Feed Power Cable into Positive Socket.
Twist clockwise all the way to lock in place.
ground
clamp
cable Wire Feed
power cable
