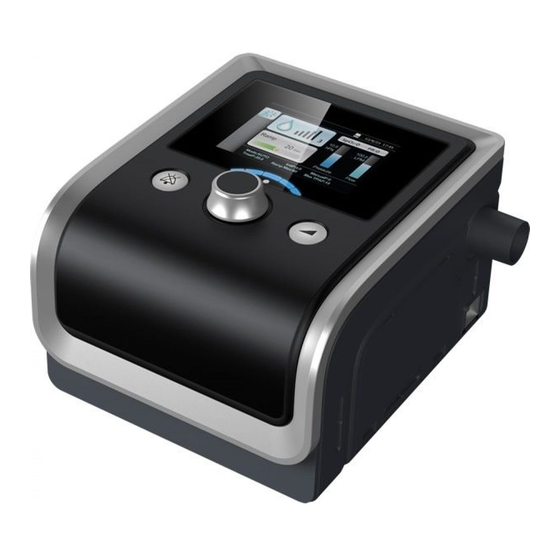

RESmart GII Auto CPAP System
E-20A-H-O / E-20AJ-H-O
0123

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E-20A-H-O and is the answer not in the manual?

Questions and answers

Related Manuals for BMC E-20A-H-O

Summary of Contents for BMC E-20A-H-O

  • Page 1: User Manual

    User Manual RESmart GII Auto CPAP System E-20A-H-O / E-20AJ-H-O 0123...

  • Page 2: Table Of Contents

    E-20A-H-O / E-20AJ-H-O User Manual V1.3 Table of Contents 1. Symbols ·································································································· 1 1.1 Control Buttons ················································································ 1 1.2 Device Symbols ················································································ 1 2. Warning, Caution and Important Tip ······························································· 2 3. Intended Use ···························································································· 2 4. Contraindications ······················································································· 3 5.
  • Page 3 E-20A-H-O / E-20AJ-H-O User Manual V1.3 17. Transferring the Device to Another Patient ······················································ 26 18. Reordering ····························································································· 26 19. Technical Support ···················································································· 26 20. Disposal ································································································ 26 21. Troubleshooting ······················································································ 27 21.1 Common Problems in Patients and Corresponding Solutions ······················· 27 21.2 Common Problems in the Device and Corresponding Solutions ···················...

  • Page 4: Symbols

    E-20A-H-O / E-20AJ-H-O User Manual V1.3 1. Symbols 1.1 Control Buttons Ramp Button Mute Button Knob 1.2 Device Symbols Follow Instructions for Use Operating Instructions Type BF Applied Part Class II (Double Insulated) AC Power DC Power ≥12.5 mm Diameter, Dripping (15ºtilted)

  • Page 5: Warning, Caution And Important Tip

    E-20A-H-O / E-20AJ-H-O User Manual V1.3 2. Warning, Caution and Important Tip WARNING! Indicate the possibility of injury to the user or operator. CAUTION! Indicate the possibility of damage to the device. IMPORTANT TIP! Place emphasis on an operating characteristic.

  • Page 6: Contraindications

    E-20A-H-O / E-20AJ-H-O User Manual V1.3 4. Contraindications Studies have shown that the following pre-existing conditions may contraindicate the use of positive airway pressure therapy for some patients: Absolute Contraindications: Pneumothorax, mediastinal emphysema; cerebrospinal fluid leak, traumatic brain injury, or pneumocephalus; shock caused by a variety of conditions before treatment;...

  • Page 7: Specifications

    E-20A-H-O / E-20AJ-H-O User Manual V1.3 5. Specifications Device Size Dimensions: 170 mm × 196 mm × 118 mm, or 290 mm × 196 mm × 134 mm (with the humidifier) Weight:1.5 kg, or 2.5 kg (with the humidifier) Product Use, Transport and Storage...

  • Page 8: Available Therapies

    E-20A-H-O / E-20AJ-H-O User Manual V1.3 Sound Power Level ＜38 dB, when the device is working at the pressure of 10 hPa. Maximum Flow Test Pressure (hPa) Average Flow at the Patient Connection Port (l/min) Range: 0 ～ 100% The margin of error for SpO between 70% and 100% is ±...

  • Page 9: Glossary

    E-20A-H-O / E-20AJ-H-O User Manual V1.3 7. Glossary Apnea A condition marked by the cessation of spontaneous breathing. Auto-CPAP Adjust CPAP pressure automatically to improve patient comfort based on monitoring of apnea and snoring events. Auto Off When this feature is enabled, the device automatically discontinues therapy whenever the mask is removed.

  • Page 10: Model

    • This device should only be used with the mask and accessories manufactured or recommended by BMC or with those recommended by your prescribing physician. The use of inappropriate masks and accessories may affect the performance of the device and impair the effectiveness of therapy.

  • Page 11: System Features

    E-20A-H-O / E-20AJ-H-O User Manual V1.3 10. System Features Humidifier Indicator Display Screen Mute Button Power Indicator Knob Air Outlet Ramp Button Humidifier Connector Shield Fig. 10-1 Name Function Indicate the humidity level. There are five levels in total. The number of Humidifier indicator lights that light up is directly proportional to the humidity level.

  • Page 12: First Time Setup

    E-20A-H-O / E-20AJ-H-O User Manual V1.3 SD Card Slot Communications Port DC Inlet Filter Cap Fig. 10-2 Name Function SD Card Slot Insert the SD card into this slot Communications Connected to external equipment Port DC Inlet An inlet for the DC power supply...

  • Page 13: Installing The Air Filter And Filter Cap

    E-20A-H-O / E-20AJ-H-O User Manual V1.3 the device. • Air must flow freely around the device for it to work properly. 11.2 Installing the Air Filter and Filter Cap (1) Attach the air filter to the filter cap, as shown in Fig. 11-1.

  • Page 14: Assembling The Tube And Mask

    E-20A-H-O / E-20AJ-H-O User Manual V1.3 • Use of the device at an AC voltage beyond the stated range (see Section 5 ―AC Power Consumption‖) may damage the device or cause device failure. CAUTION! • Inspect the power cord often for any signs of damage. Replace a damaged cord immediately.

  • Page 15: Using Oxygen With The Device

    - Use the accompanying tube and mask provided by BMC. - Do not wear the mask for more than a few minutes while the device is not operating. - Use only masks with vent holes. Do not block or try to seal the vent holes in the exhalation port.

  • Page 16: Using The Spo 2 Kit

    E-20A-H-O / E-20AJ-H-O User Manual V1.3 Fig. 11-7 If the SD card is inserted incorrectly or not inserted, a symbol indicating incorrect insertion or no SD card present will appear in the Main Interface on the screen of the device, as shown in Fig.

  • Page 17: Removing The Spo 2 Kit From The Main Device

    E-20A-H-O / E-20AJ-H-O User Manual V1.3 Base Plate Adhesive-backed Paper Fig. 11-10 (2) Point the four holes of the Base Plate towards the four reference points on the back of the main device to properly stick the plate to the device, as shown in Fig. 11-11.
  • Page 18 The screen of the main device then displays the Main Interface shown in Fig. 11-14 (only applies to E-20A-H-O), or the Main Interface shown in Fig. 11-15 (only applies to E-20AJ-H-O). The patient's blood oxygen saturation and pulse rate can be clearly seen during the course of therapy.

  • Page 19: Using The H60 Heated Humidifier

    • Be sure to follow your physician’s instructions on adjusting the settings! To order any accessories not included with this device, contact your equipment supplier. • DO NOT connect any ancillary equipment to this device unless recommended by BMC or your physician. If you suffer from chest discomfort, shortness of breath, stomach bloating, or severe headache when using the device, contract your physician or qualified medical personnel immediately.

  • Page 20: Heating The Water In The Humidifier

    E-20A-H-O / E-20AJ-H-O User Manual V1.3 12.4 Heating the Water in the Humidifier Pay attention to the humidifier indicator lights when using the device with a humidifier. The indicator lights indicate the On / Off state of the humidifier. It is off when all indicator lights go out.

  • Page 21: Navigating The Patient Menu

    13.1.1 Accessing the Main Interface Connect the power cord and power adapter properly. The screen displays the Main Interface shown in Fig. 13-1 (only applies to E-20A-H-O), or the Main Interface shown in Fig. 13-2 (only applies to E-20AJ-H-O). Fig. 13-1 Fig.

  • Page 22: Selecting Options

    E-20A-H-O / E-20AJ-H-O User Manual V1.3 Fig. 13-4 13.1.4 Selecting Options As you turn the Knob clockwise, the cursor moves downwards from one option to another. As you turn it counterclockwise, the cursor moves upwards. When the cursor is on a...

  • Page 23: Turning Pages

    E-20A-H-O / E-20AJ-H-O User Manual V1.3 13.1.7 Turning Pages When the cursor is on Mask Type, the last option shown in Fig. 13-7, the remaining options will appear on a new page if you continue to turn the Knob clockwise, as shown in Fig.

  • Page 24: Options Of The Patient Menu And Corresponding Descriptions

    Mask Type PM; A, B, C other suitable masks as well. When selecting masks other than the above three types of BMC masks, the patient can identify the masks as A, B, or C 0 ～ Run Time displays how long has the device been used by Run Time the user.

  • Page 25: Alert

    E-20A-H-O / E-20AJ-H-O User Manual V1.3 14. Alert Alert Message Description An audible alert will sound if the device is accidentally disconnected from power when it is delivering air. Note: Power Failure!!! (1) The alert will not sound if power failure occurs when the device is in standby state.

  • Page 26: Cleaning And Disinfection

    E-20A-H-O / E-20AJ-H-O User Manual V1.3 15. Cleaning and Disinfection WARNINGS! • Regular cleaning of the device and its accessories is very important for the prevention of respiratory infections. • To avoid electric shock, always unplug the device before cleaning.

  • Page 27: Replacing The Air Filter

    E-20A-H-O / E-20AJ-H-O User Manual V1.3 (3) After cleaning, air-dry the tube in a cool, well-ventilated area, and avoid direct sunlight. It takes approximately 30 minutes to completely air-dry the tube. Check whether the tube is completely dry before re-use.

  • Page 28: Traveling With The Device

    • If the device is used when the atmospheric pressure is out of the stated range (See Section 5), the accuracy of the leakage alert will be affected. (1) Use the BMC carrying case to carry the device and accessories along with you. Do not put them in your checked baggage.

  • Page 29: Transferring The Device To Another Patient

    19. Technical Support Please contact BMC directly if you need the circuit diagram of the device and the list of components for certain purposes such as maintenance or connection to other equipment. BMC will provide the circuit diagram and / or other technical documents in whole or in part according to your needs.

  • Page 30: Troubleshooting

    E-20A-H-O / E-20AJ-H-O User Manual V1.3 21. Troubleshooting The table below lists common problems you may have with the device and possible solutions to those problems. If none of the corrective actions solve the problem, contact your home care provider.
  • Page 31 E-20A-H-O / E-20AJ-H-O User Manual V1.3 Turn the humidity setting down, or raise the room temperature. When the humidifier is used, Place the tube under the quilt, or the humidified air tends to use the tube cover. Water in mask...

  • Page 32: Common Problems In The Device And Corresponding Solutions

    E-20A-H-O / E-20AJ-H-O User Manual V1.3 21.2 Common Problems in the Device and Corresponding Solutions Problem Possible Cause Solution(s) Take a few deep breaths with the The Auto On / Off feature is mask on, and the device will start...

  • Page 33: Emc Requirements

    E-20A-H-O / E-20AJ-H-O User Manual V1.3 22. EMC Requirements Guidance and manufacturer's declaration - electromagnetic emissions The device is intended for use in the electromagnetic environment specified below. The user of the device should ensure that it is used in such an environment.
  • Page 34 E-20A-H-O / E-20AJ-H-O User Manual V1.3 Guidance and manufacturer's declaration - electromagnetic immunity The device is intended for use in the electromagnetic environment specified below. The user of the device should make sure that it is used in such an environment.
  • Page 35 E-20A-H-O / E-20AJ-H-O User Manual V1.3 Guidance and manufacturer's declaration - electromagnetic immunity The device is intended for use in the electromagnetic environment specified below. The user of the device should make sure that it is used in such an environment.
  • Page 36 E-20A-H-O / E-20AJ-H-O User Manual V1.3 Recommended separation distances between portable and mobile RF communications equipment and the device The device is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the device can help prevent...

  • Page 37: Limited Warranty

    (1) year for main unit and three (3) months for all accessories from the date of sale by BMC Medical Co., Ltd. to the dealer. If the product fails to perform in accordance with the product specifications, BMC Medical Co., Ltd. will repair or replace, at its option, the defective material or part.
