Summary of Contents for BESTEK NSP-20H1

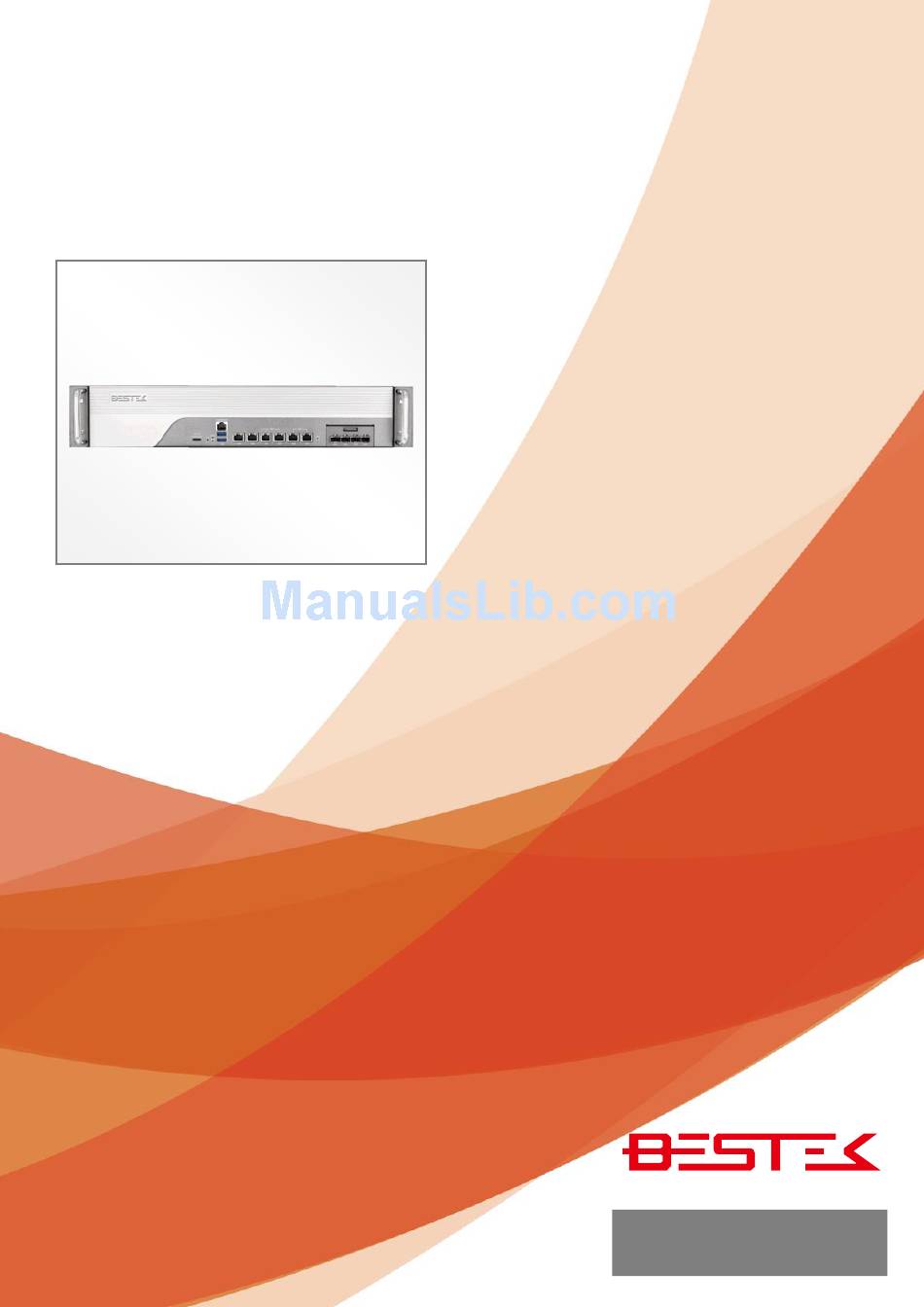

- Page 1 Network Security System NSP-20H1 Always at the forefront of innovation User Manual...
-
Page 2: Copyright
Copyright This publication contains information that is protected by copyright. No part of it may be reproduced in any form or by any means or used to make any transformation adaptation without the prior written permission from the copyright holders. This publication is provided for informational purposes only. -
Page 3: Warranty
Warranty 1. Warranty does not cover damages or failures that are raised from misuse of the product, inability to use the product, unauthorized replacement or alteration of components and product specifications. 2. The warranty is void if the product has been subject to physical abuse, improper installation, modification, accidents or unauthorized repair of the product. -
Page 4: Safety Measures
Safety Measures To avoid damage to the system: • Use the correct AC input voltage range. To reduce the risk of electric shock: • Unplug the power cord before removing the system chassis cover for installation or servicing. After installation or servicing, cover the system chassis before plugging the power cord. -
Page 5: Table Of Contents
Table of Content Copyright................................. 2 Trademarks ................................2 FCC and DOC Statement On Class A .........................2 Warranty ..................................3 Static Electricity Precautions ............................3 Safety Measures ...............................4 Before Using the System Board ..........................4 Table of Content ...............................5 Chapter 1 General Information 1.1 Main Feature ..............................7 1.2 Specifications .............................. -
Page 6: Chapter 1 General Information
Chapter 1 General Information... -
Page 7: Main Feature
1.1 Main Feature Processor Performance NSP-20H1 is a 2U Rack Mount Network Security System that, pre-installed with BNX-H110 security board, featuring on Intel® H110 chipset, supports Intel® Gen-6 LGA1151 Celeron®, Pentium®, Core®-i3/i5/i7 series processors, all carrying the built-in Intel® HD Graphic engine. Below is a brief list of available processors as... -
Page 8: Specifications
1.2 Specifications Core Engine Chipset Intel® H110 PCH Processor Support Intel® Gen-6 Core i3, i5, i7, Pentium® , Celeron® Processor Single LGA1151 Processor Socket Memory 2x DDR4 2133 ECC/Non-ECC Unbuffered Memory up to 32GB Display Intel® HD Graphic 510/530 Ethernet Controller 6x Onboard Intel®... -
Page 9: Optional Lan Modules
1.3 Optional LAN Modules BEM-H110-350-C4 Type LAN Module Chipset Intel® i350-AM4 Interface PCIe 3.0 X4 Network Port Four RJ45 1G BEM-H110-350-C4-B Type LAN Module Chipset Intel® i350-AM4 Interface PCIe 3.0 X4 Network Port Four RJ45 1G Bypass 2 Pairs BEM-H110-580-C8 Type LAN Module Chipset... -
Page 10: System Layout
1.4 System Layout Figure 1.1: System Layout of NSP-20H1... -
Page 11: Indicators And Features
1.5 Indicators & Features ► Front View With 4-Port SFP GbE LAN Module ► Rear View... -
Page 12: Chapter 2 Preparation
Chapter 2 Preparation... -
Page 13: Before You Begin
2.1 Before You Begin A stable and clean working environment are essential. Dust and dirt can get into components and cause a malfunction. Use containers to keep small components separated. Adequate lighting and proper tools can prevent you from accidentally damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following: A Philips screwdriver ... -
Page 14: Open Up Top Cover
This is the first step of all to proceed with, if you are to install (or change) a processor (hard drive or memory module). Please remove the 6 screws on the two sides as indicated in the places below, prior to any moving of the top cover. -
Page 15: Accessing Processor & Memory
2.4 Accessing Processor & Memory Please refer to the Manual of BNX-H110 motherboard for substantial details as to adding processor, cooler, and memory. 2.5 Adding 2.5”/3.5” SATA Hard Drive Procedures: (1) Turn off the system and open up the top cover. (2) Find the four screws fastened on the Hard Drive bracket (red circles as below). - Page 16 (4) Add the 3.5” Hard Drive: As illustrated below, please have the two 3.5” Hard Drive assembled with this Hard Drive bracket, leaving the Hard Drive I/O at the end as in the figure below, and add on one side four screws enclosed in the accessory screw bag, and the other four on the other side, for a perfect and firm Hard Drive subset.
-
Page 17: Accessing Compactflash Card
2.6 Accessing CompactFlash Card CompactFlash instead of CFast NSP-20H1 comes with one CompactFlash card socket, rather than CFast card socket. Please be careful when adding your flash devices. Procedures: (1) Turn off the system. (2) The onboard CompactFlash socket can be located on motherboard (as the red circle). -
Page 18: Chapter 3 Operation
Chapter 3 Operation... -
Page 19: Turning On The System
COM port of your PC terminal service has been configured with the same speed. Please be advised that a Micro-USB Console port is available at the front side of NSP-20H1. A standard Micro- USB cable is just perfect to connect this port with the standard USB port of your terminal PC. This is particularly useful for those notebook PCs where COM port is no longer available and usually a USB-to-COM adaptor is used to fulfil such a function. - Page 20 System Is Up On AC Power NSP-20H1 BIOS has been configured to allow immediate power-on upon the presence of AC power. Have you wished to bring it down, simply press once on the power switch (as located below with yellow arrow), or press and hold for 4 seconds, to reach that goal.
-
Page 21: Accessing Micro-Usb Console Port
(PC or laptop). This is particularly useful nowadays where most PC or laptop do not come with any serial port. Please see below where to find this Micro-USB port on NSP-20H1. Add one Micro-USB cable to this port, and connect the other end to the USB port of PC or laptop. -
Page 22: Installing Operating System & Drivers
3.3 Installing Operating System & Drivers Confirm the Hard Drive List The system is designed to allow booting from a variety of internal devices, including USB pen drive, SATA drive, and CompactFlash drive, etc. Given the tiny footprint and slow performance of USB pen drive, SATA drive and CompactFlash are more likely the devices to carry operating system and can be found in the detected drive list, in the section of SATA Configuration. -
Page 23: Understanding Indicators
3.4 Understanding Indicators Left LED Indicators Right LED Indicators Top: Power LED Top: Bypass #2 LED Bottom: HDD LED Bottom: Bypass #1 LED Power LED The power LED shall come lit constant ON at system start. HDD LED The HDD LED shall blink in the wake of storage activity, such as SATA drive or CompactFlash. ByPass #1/#2 LAN LED Both Bypass LED would be constantly On as Red for Bypass mode, or Green for PassThrough mode. - Page 24 RJ45 LAN LED Indicators Activity LED The left LED is LAN Port Activity LED, with three different indication status: (1) Constant Yellow: Network is connected. (2) Blinking Yellow: Network activity is on-going. (3) Off: Network is not connected. LAN Speed LED The right LED is LAN Port Speed LED, with three different speeds: (1) Amber: 1000 Speed (2) Green: 100 Speed...
-
Page 25: Chapter 4 Bios Setup
Chapter 4 BIOS Setup... - Page 26 About the BIOS The BIOS (Basic Input and Output System) Setup program is a menu driven utility that enables you to make changes to the system configuration and tailor your system to suit your individual work needs. It is a ROM- based configuration utility that displays the system’s configuration status and provides you with a tool to set system parameters.
-
Page 27: Entering Setup
4.1 Entering Setup When the system is powered on, the BIOS will initiate the Power-On-Self-Test (POST) routines. These routines perform various diagnostic checks. If an error is encountered, the error will be reported in one of two different ways: If the error occurs before the display device is initialized, a series of beeps will be transmitted. ... -
Page 28: The Main Menu
4.4 The Main Menu Figure 4-1: BIOS Setup Utility Main Menu The menu bar on the top of the first screen has the following submenus: Main: Basic system configuration. Advanced: Advanced system settings. Chipset: Other functions. Security: Configure Supervisor and User Password ... -
Page 29: The Advanced Menu
4.5 The Advanced Menu In this section, you may set the configurations for the following items: Super IO Configuration, H/W Monitor, Serial Port Console Redirection, and CSM Configuration. Super IO Configuration Serial Port 1/2 Configuration Serial Port This setting enables/disables the specified serial port. Change Setting Select an optimal setting for Super I/O devices. - Page 30 H/W Monitor Display CPU/System Temperature, Fan speed, and voltages. Fan Speed Control Mode Configure Fan Speed Control Mode. Serial Port Console Redirection Console Redirection Enables or disables Console Redirection function. CSM Configuration Boot option filter This controls Legacy/UEFI ROMs priority. Network Control the execution of UEFI and Legacy PXE OpROM.
-
Page 31: The Chipset Menu
4.6 The Chipset Menu CPU Configuration Display CPU Information... - Page 32 System Agent (SA) Configuration PEG Port Configuration PEG Port Options Memory Configuration Display memory size / Frequency SATA Configuration SATA Controller(s) Enable or disable SATA Device.
-
Page 33: The Security Menu
4.7 The Security Menu Administrator Password Set Administrator Password. User Password Set User Password. -
Page 34: The Boot Menu
4.8 The Boot Menu Setup Prompt Timeout Number of seconds to wait for setup activation key. 65535(0xFFFF) means indefinite waiting. Bootup NumLock State Select the keyboard NumLock state. Quiet Boot Enables or disables Quiet Boot option. FIXED BOOT ORDER Priorities Set the system boot order... -
Page 35: The Save & Exit Menu
4.9 The Save & Exit Menu Save Changes and Reset Reset the system after saving the changes. Discard Changes and Reset Reset system setup without saving any changes. Restore Defaults Restore/Load Default values for all the setup options. Launch EFI Shell from filesystem device Attempts to Launch EFI Shell application (Shell.efi) from one of the available filesystem devices... -
Page 36: Chapter 5 Software Configuration
Chapter 5 Software Configuration... -
Page 37: Bypass Setting
Get the driver files Please download Bypass driver files from Bestek web-site, unzip the file, and copy the folder to your Linux file system. You will need the root access right to complete the job. Please logon to root now. - Page 38 Configuring Bypass pair #1 Bypass pair #1 is defined with network Port #3 and Port #4, as the picture below, where Port #3 is connected internet and Port #4 is connected to a notebook. Also, Bypass pair #1 is now at “PassThrough” mode (the bottom Bypass LED is green) and the network connection is not available.
- Page 39 Configuring Bypass pair #2 Bypass pair #2 is defined with network Port #5 and Port #6, as the picture below, where Port #5 is connected internet and Port #6 is connected to a notebook. Also, Bypass pair #2 is now at “PassThrough” mode (the top Bypass LED is green) and the network connection is not available.
- Page 40 Configuring Bypass at “Bypass” mode at boot up To set Bypass pair #1 at “bypass” mode, go to the folder g3bp0, and issue this command: echo 1 > nextboot To set Bypass pair #2 at “bypass” mode, go to the folder g3bp1, and issue this command: echo 1 >...
-
Page 41: Gpio
Get the driver files Please download GPIO driver files from Bestek web-site, unzip the file, and copy the folder to your Linux file system. You will need the root access right to complete the job. Please logon to root now. - Page 42 Example #1 (GPI Test) Script name: GPI_Test.sh Definition of the test: This tests demonstrates how to read the GPIO pin value. The pin #2, #4, #6, #8 are defined as GPO pins with value low. The pin #1, #3, #5, #7 are defined as GPI pins. A few jumpers will be added onto pin #1-#2, #3-#4, #5-#6, #7-#8 so pin #1 will read the value of pin #2, pin #3 will read the value of pin #4, …, etc.
- Page 43 Now move these two jumpers onto #3-#4 and #7-#8. Pin #3 and pin #7 will now read value [low]. Users are welcome to configure this GPI script for other programming jobs.
- Page 44 Example #2 (GPO Test) Script name: GPO_Test.sh Definition of the test: This tests demonstrates how to set the GPIO pin value as [high] or [low]. The pin #2, #4, #6, #8 are defined as GPO pins with value low. The pin #1, #3, #5, #7 are defined as GPO pins and the values will be changed throughout the script. Four LEDs are added onto pin #1-#2, #3-#4, #5-#6, #7-#8.
-
Page 45: Chapter 6 Q&A
Chapter 6 Q & A... - Page 46 Q: The power switch is pressed, but nothing happens. A: Please check the following before you call out for help: (1) Loose AC Power Cord => Push again. (2) Loose power cable (both 24-pin and 4-pin) => Push again. (3) A bad or loose power switch => Reseat the power switch on the header again. Q: I can turn on the power, but the motherboard does not boot.
- Page 47 Q: Can I use Console Port at BIOS mode? A: Yes, you certainly can. NSP-20H1 comes with one console port as RJ45 at front side. Please manage to find the console cable in the accessory bag, add the RJ45 end to console port, and the other end to the DB9 RS-232 port of a Windows PC (for example, Windows-XP) that comes with terminal software (for example, Hyper Terminal).
