Summary of Contents for Caple C2362

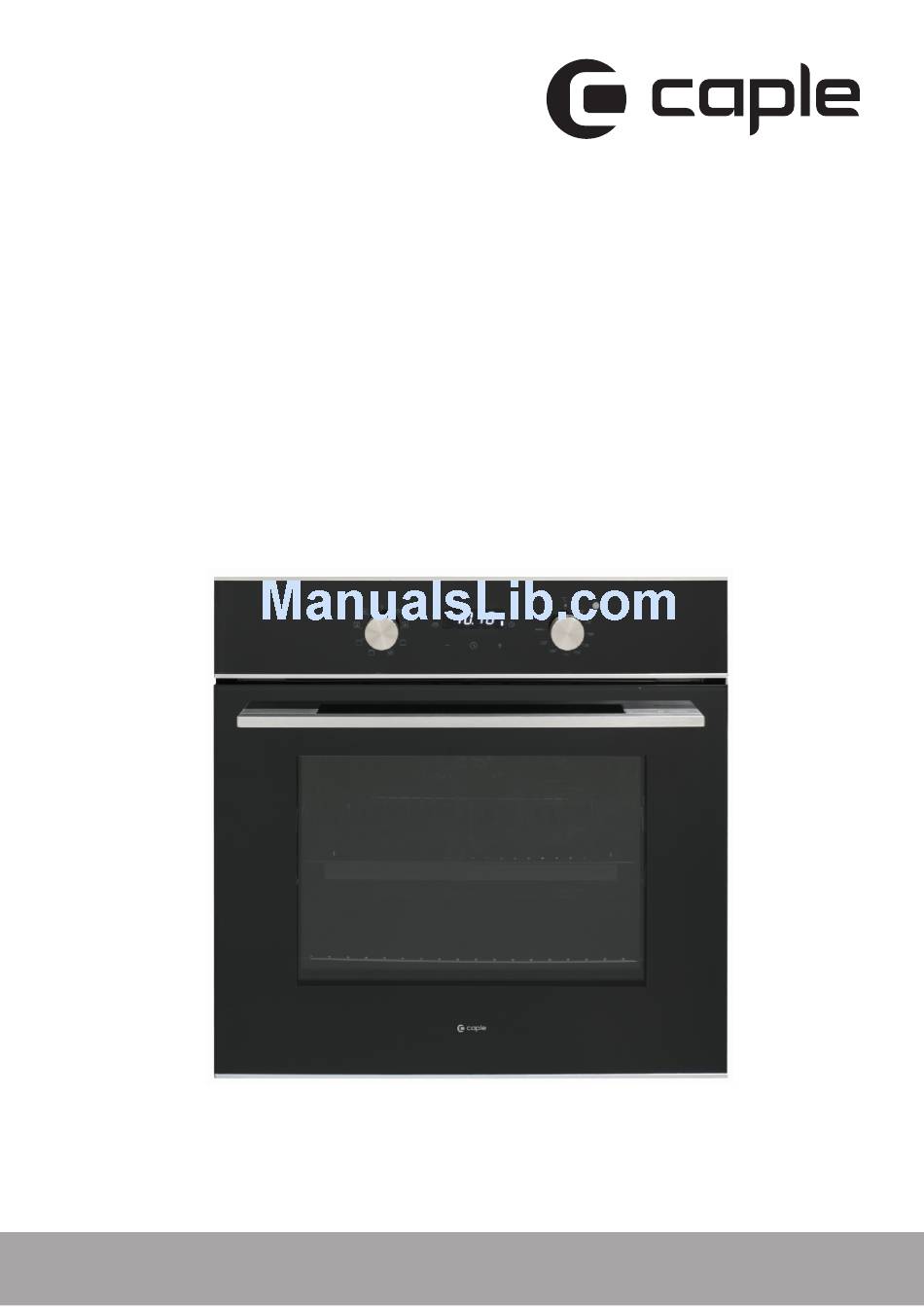

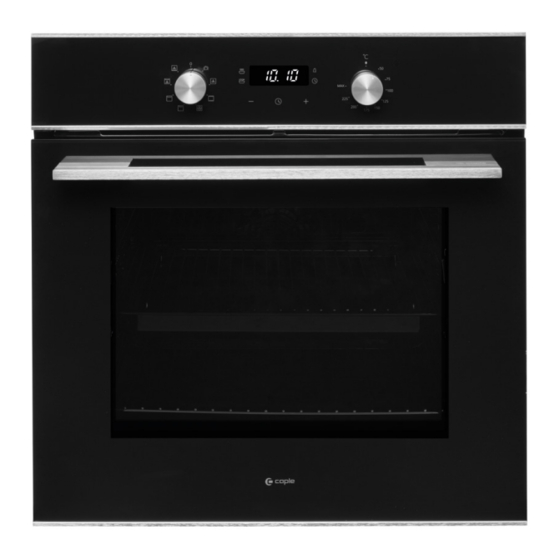

- Page 1 Caple sense single oven instruction manual Model: C2362 Contact Caple on 0117 938 7420 or for spare parts www.caple.co.uk www.caple.co.uk...
-
Page 2: Table Of Contents
Control panel and display Operation Oven functions Using the rotisserie Care and maintenance Replacing the oven lamps Troubleshooting Removing the oven door Removing the glass panels Technical fiche Caple contact details Please keep this instruction manual for future reference Instruction manual... -
Page 3: Safety Warnings
SAFETY INSTRUCTIONS C2105 Read these instructions carefully and completely before using your appliance, keep it in a convenient place for reference when necessary. - This appliance can be used by children aged from 8 years and above. - Persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge must be supervised and given appropriate instruction concerning the use of the appliance in a safe way and... - Page 4 WARNING: C2105 - The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. - Children less than 8 years of age should be kept away unless continuously supervised. - To prevent fire hazards do not store items on the cooking surfaces.
- Page 5 - Maintenance and repair work must be made only by authorised Caple service technicians. Installation and repair work that is carried out by unauthorised technicians may endanger you. - It is dangerous to alter or modify the specifications of the appliance in any way.
- Page 6 - Ensure that the supply cord is not wedged or trapped during the installation. If the supply cord is damaged, it must be replaced by a Caple service technician or similarly qualified persons in order to prevent a hazard. - While the oven door is open, do not let children climb on the door or sit on it.
-
Page 7: Installation Warnings
- Do not operate the appliance before it is fully installed. - The appliance must be installed by an authorised technician. - Caple is not responsible for any damage that may be caused by defective placement and installation by unauthorised persons. - Page 8 DURING USAGE C2105 - Before using the oven for the first time, heat the empty oven at max. temperature for 1 hour – removing any unpleasant smells and smoke caused by working residues and thermal insulation. Make sure you do this in a well ventilated area.
- Page 9 - To maintain the efficiency and safety of your appliance, we recommend you always use original spare parts and to call only our authorised Caple Service agents in case of need. Please keep this instruction manual for future reference...
-
Page 10: Environmental Protection
Registration can also be completed online by visiting www.caple.co.uk. Ensure you keep your warranty card safe, you may need to show it to Caple Service together with proof of purchase. - Page 11 C2105 ATTENTION Before use, remove all plastic films protecting some parts of the appliance (fascia - panel, parts in stainless steel, etc) Do not use the appliance to heat a room. When the appliance is not in use, we recommend you turn it off, and isolate it from the electrical supply.
-
Page 12: Installation
professionally qualified person only. The manufacturer declines all responsibility for any damage to persons, animals or materials due to incorrect installation. Fitting the appliance Fit the appliance into its surround (beneath a worktop or above another appliance) by inserting screws and plastic covers into the 2 INSTALLATION C2105 holes (A - fig.3) that can be seen in the frame of the oven when the door... -
Page 13: Oven Dimensions
C2105 See below for full dimensional drawings of your oven to help with installation. For a built-in oven to work well the cabinet must be of the right type. The panels of the adjoining furniture should be heat resistant. Particularly when the adjoining furniture is made of veneered wood, the adhesives should be able to withstand a temperature of 120ºC. -
Page 14: Electrical Connection
ELECTRICAL CONNECTION C2105 WARNING: THIS APPLIANCE MUST BE EARTHED Check that the power rating of the mains supply is suitable for the maximum power of the appliance as indicated on the rating label. The fuse rating for this appliance is 16amp. The appliance is supplied with a mains lead it should be “Hard wired”... -
Page 15: Control Panel And Display
OVEN FUNCTIONS Note: All functions will start after selecting the temperature with the thermostat knob. Light This function turns the light on in the oven only Defrost The air at ambient temperature is distributed inside the oven for defrosting food quicker Conventional heat Both the lower and upper heating elements operate together. -
Page 16: Operation
Full grill This function can be used for grilling and gratinating food. When grilling, the oven door must be closed. Turbo grill This function can be used for grilling and gratinating food much quicker and evenly. When grilling, the oven door must be closed. - Page 17 TOUCH CONTROL ELECTRONIC TIMER Setting and changing the current time C3248 Note: The oven only operates when the time has been set. When the appliance has been connected to the electrical supply or when there has been a power cut, the time indicator flashes automatically.
-
Page 18: Oven Functions
C3248 How to use the clock function - When a function has been selected, the corresponding function indicator flashes for approx. 5 seconds. During this time the desired times can be set using button. - When the desired time has been set, the function indicator flashes for approx. another 5 seconds. -
Page 19: Using The Rotisserie
C3248 End time - Press selection button repeatedly, until the end time indicator flashes. - Using the button, set the required switch-off time. - After approx. 5 seconds, the display returns to the current time. - The end time indicator will light up. -
Page 20: Care And Maintenance
Check the condition of this seal on a regular basis. If necessary, clean it and avoid using abrasive products or objects to do so. Should it become damaged, please contact Caple service. We recommend you avoid using the oven until it has been repaired. -
Page 21: Replacing The Oven Lamps
REPLACING THE OVEN LAMPS C2105 - Switch off your oven at the mains. - Remove the glass cover of the lamp-holder - Remove the light bulb and replace it with a similar one Halogen lamp characteristics - Voltage: AC220V-240V - Wattage: 25W - Cap: G9 - Remount the glass cover and reconnect the appliance to the power supply. -
Page 22: Troubleshooting
TROUBLESHOOTING C2105 The oven does not operate Check it is switched on at the mains There has been a power cut The time is not set The oven is not heating The thermostat is not turned to a temperature The interior lamp does not illuminate Check the product is connected to the electrical supply and is switched on Replace the bulb... -
Page 23: Removing The Oven Door
C2101 REMOVING THE OVEN DOOR assembling/assembling the oven door assembling/assembling the oven door To make it easier to clean the inside of your oven, the oven door can be easily removed, by proceeding as follows (fig. 11): ake it easier to clean the inside of your oven, the oven door can be easily removed, by proceeding as ke it easier to clean the inside of your oven, the oven door can be easily removed, by proceeding as - Open the door completely and lift the 2 levers “B”... -
Page 24: Removing The Glass Panels
C2101 REMOVING THE GLASS PANELS Instruction of Removable Glazing Door The oven door is made up of 2 panes of glass with vents at the top and bottom. The oven door is made up of 2 panes of glass with vents at the top and bottom. When the oven When the oven is operating, air is circulated through the door to keep the outer is operating, air is circulated through the door to keep the outer pane cool. -
Page 25: Technical Fiche
Technical Fiche Caple Model C2362 Type of Oven Electric Mass 35.73Kg Energy Efficiency Index‐Conventional 102.2 Energy Efficiency Index‐Fan forced 104.8 Energy Class Energy Consumption (electricity)‐conventional 0.85 Energy consumption (electricity)‐fan forced 0.87 Number of cavities Heat Source Electric Volume This Oven complies with EN 60350‐1:2013+A11 Please keep this instruction manual for future reference Instruction manual... - Page 26 Caple Service Fourth Way Avonmouth Bristol BS11 8DW t: 0117 938 7420 e: service@caple.co.uk www.caple.co.uk Please keep this instruction manual for future reference Instruction manual...
