Page 1: User Manual

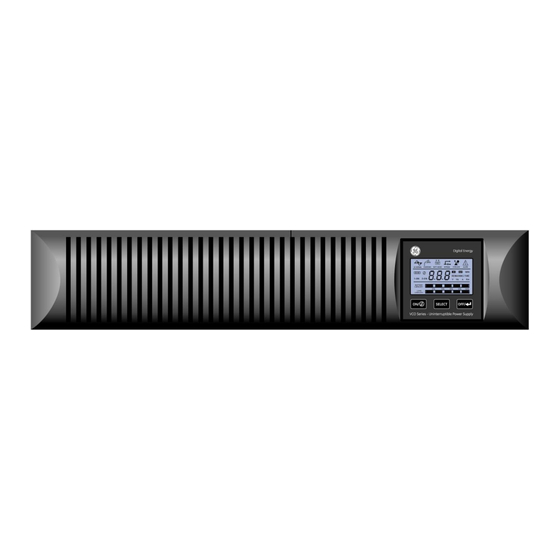

Critical Power USER MANUAL Uninterruptible Power Supply On-Line VCO Series UPS 1000 – 2000 – 3000 VA GE Consumer & Industrial SA General Electric Company CH – 6595 Riazzino (Locarno) Switzerland T +41 (0)91 / 850 51 51 F +41 (0)91 / 850 52 52 www.gecriticalpower.com imagination at work... - Page 2 User manual Uninterruptible Power Supply On-Line VCO Series UPS 1000 - 2000 - 3000 VA Please read these instructions carefully before installation and start-up of the VCO Series UPS. Keep this manual in a safe place for future reference. Model: VCO Series 1000 –...
-
Page 3: Table Of Contents
Table of contents Page IMPORTANT SAFETY INSTRUCTIONS ............................4 SAVE THESE INSTRUCTIONS ..................................... 4 SAFETY RULES .......................................... 4 WARRANTY ..........................................5 STORAGE ............................................ 5 INSTALLATION ....................................5 INTRODUCTION ........................................5 UNPACKING ..........................................6 INSTALLATION.......................................... 6 2.3.1 Preparations....................................... 6 2.3.2 Front and rear panel ..................................8 2.3.3 Connecting power and load .............................. -
Page 4: Important Safety Instructions
GE refuses any responsibility in case of non-observance, unauthorized alterations or improper use of the delivered UPS. The instructions in this manual are for UPS models VCO1000, VCO2000 and VCO3000. You can find the model name at the rear panel of your UPS. -
Page 5: Warranty
WARRANTY GE, operating through its authorized agents, warrants that the standard products will be free of defects in materials and workmanship for a period as per contract specifications. NOTE This warranty does not cover failures of the product which result from incorrect installation, misuse, alterations by persons other than authorized agents, or abnormal operating conditions. -
Page 6: Unpacking
UNPACKING The UPS shipping box contains: RJ11 cable a VCO Series UPS CD ROM with UPS monitoring software (see 2.5) USB cable (type B) and its manual IEC female-male power cord (C13 <-> C14) this manual ... - Page 7 The UPS can be used as stand alone tower format by using the two supporting stands or can be mounted in a 19 inch rack using the two mounting brackets. 2.a. Vertical installation: Tower Assemble the two supporting stands at the bottom side of the UPS cabinet. 2.b.
-
Page 8: Front And Rear Panel
2.3.2 FRONT AND REAR PANEL Operating panel See section 2.4.1. Battery door Covering the DC connector Input socket AC mains supply to the UPS. Input circuit breaker Protects the UPS from damage caused by high input currents. Appliance outlets To connect the loads to the UPS. Group 5-1 is always on, group 5-2 can be switched on or off. -
Page 9: Connecting Power And Load
2.3.3 CONNECTING POWER AND LOAD To connect a VCO1000 or VCO2000 UPS to the mains you can use the original MAINS <-> IEC C13 power cable of the computer that will be protected by the UPS. For a VCO3000 you will need a MAINS <-> IEC C19 power cable. -
Page 10: Operation
OPERATION 2.4.1 OPERATING PANEL Fig. 2.4.1: operating panel Button “ON/Mute” Turns the UPS ON and mutes the alarm during battery operation, see 2.4.2. NOTE: The alarm cannot be muted if generated during abnormal operating conditions. Starts a self-test: see 2.4.4. Button “SELECT”... -
Page 11: Use: Start-Up And Switch Off
Display and buzzer alarm list # Symbol Buzzer alarm UPS operating status 7 + 8 Standby mode: UPS switched off, input voltage present, battery charging AC mode – normal operation 1 beep / 4 seconds DC (battery) mode - battery capacity >= 40% 7+11+12 2 beeps / second AC mode –... -
Page 12: Use: Self-Test Function
2.4.3.4 Bypass Mode If the UPS is unable to deliver the demanded output power (most probably due to overload or over temperature) it automatically switches to bypass mode: the incoming mains power is channeled directly to the load. The UPS will switch back to normal operation when the overload has been removed or the temperature has dropped below alarm level. -
Page 13: Communication
COMMUNICATION You can communicate with the UPS via either SNMP, USB or RS232. Simultaneous communication via more than one interface is not possible. The priority is SNMP > USB > RS232. The hardware will detect the connection port to select the communication interface. -
Page 14: Maintenance
Disconnect the battery wires (fig. 6). Loosen the screws that hold the cover of the battery compartment. 8.a - VCO1000/2000/3000: Remove the battery box (fig. 8.a and 8.a.1). Fig. 5 8.b - VCO3000 only: Remove the additional battery box (fig 8.b). -
Page 15: Recycling The Ups At The End Of Service Life
RECYCLING THE UPS AT THE END OF SERVICE LIFE The batteries contain lead, which is a harmful substance for the environment. Proper disposal or recycling of the batteries is required. Refer to your local codes for disposal requirements! GE, in compliance with environment protection recommends that the UPS equipment, at the end of its service life, must be recycled conforming to the local applicable regulations. -
Page 16: Specifications
5 SPECIFICATIONS Model VCO1000 VCO2000 VCO3000 Rating VA/W 1000/800 2000/1600 3000/2400 Input AC input voltage 208 / 220 / 230 / 240Vac AC input voltage range 120 ~ 280Vac Frequency 50 / 60 Hz (auto-sensing) Power factor > 0.95 at full load...
