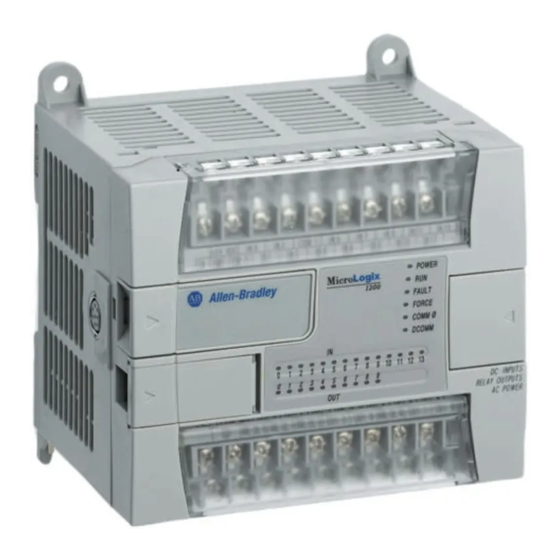

MicroLogix 1200 Analog Output Module
Catalog Number 1762-OF4
Inside...
For
Installation Instructions
See Page
2
3
3
4
4
5
6
7
7
8
9
10
12
13
13
14
14
17
19
