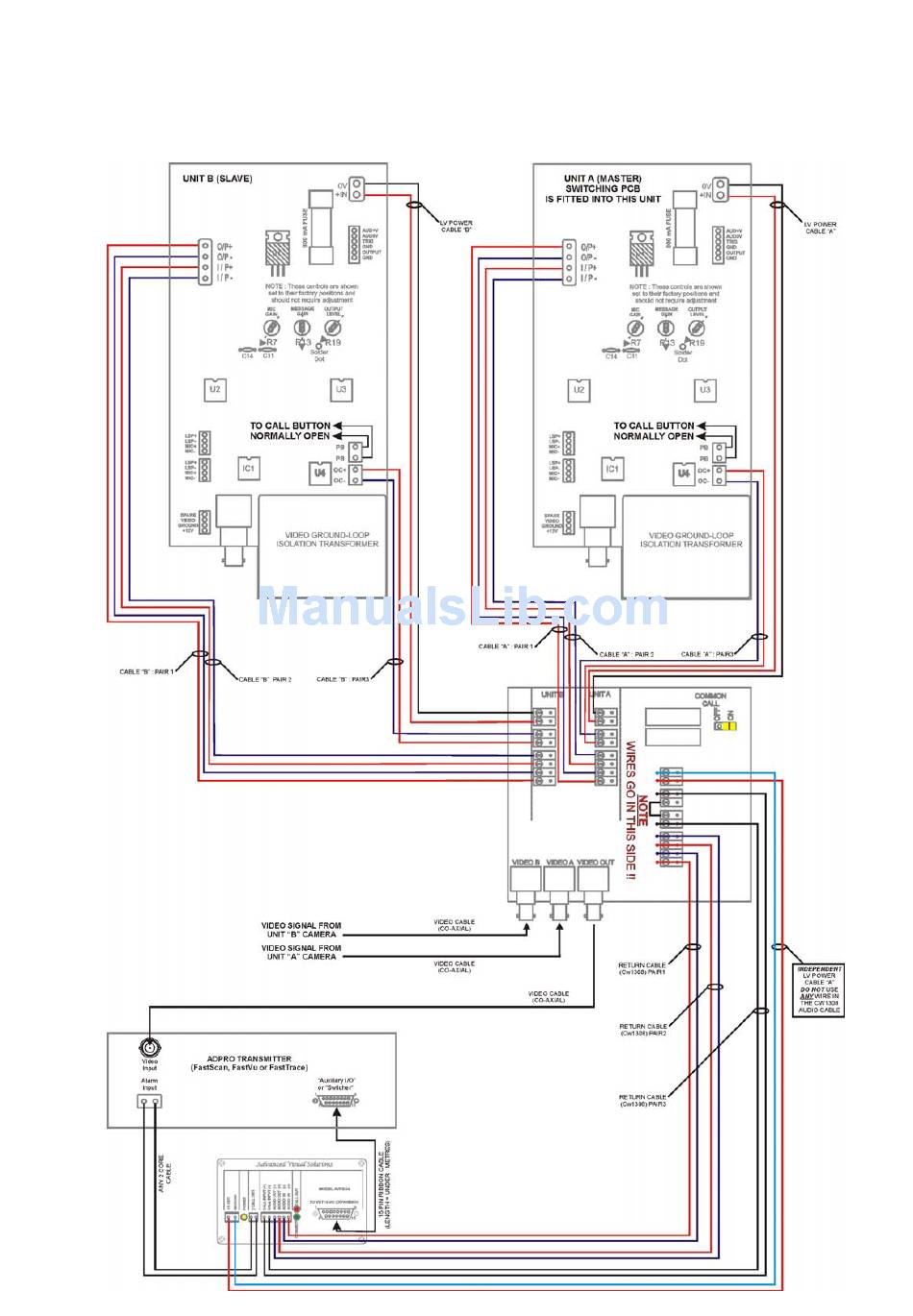

CONNECTING THE SYSTEM : WIRING DIAGRAM
This diagram shows the wiring for a master/slave combination, with COMMON CALL enabled and
feeding an ADPRO remote transmission system.
DOCUMENT NUMBER AV102SS/OEM/01 REVISION 6.1
1st August 2006
Page 12 of 22
