Page 1: User Manual

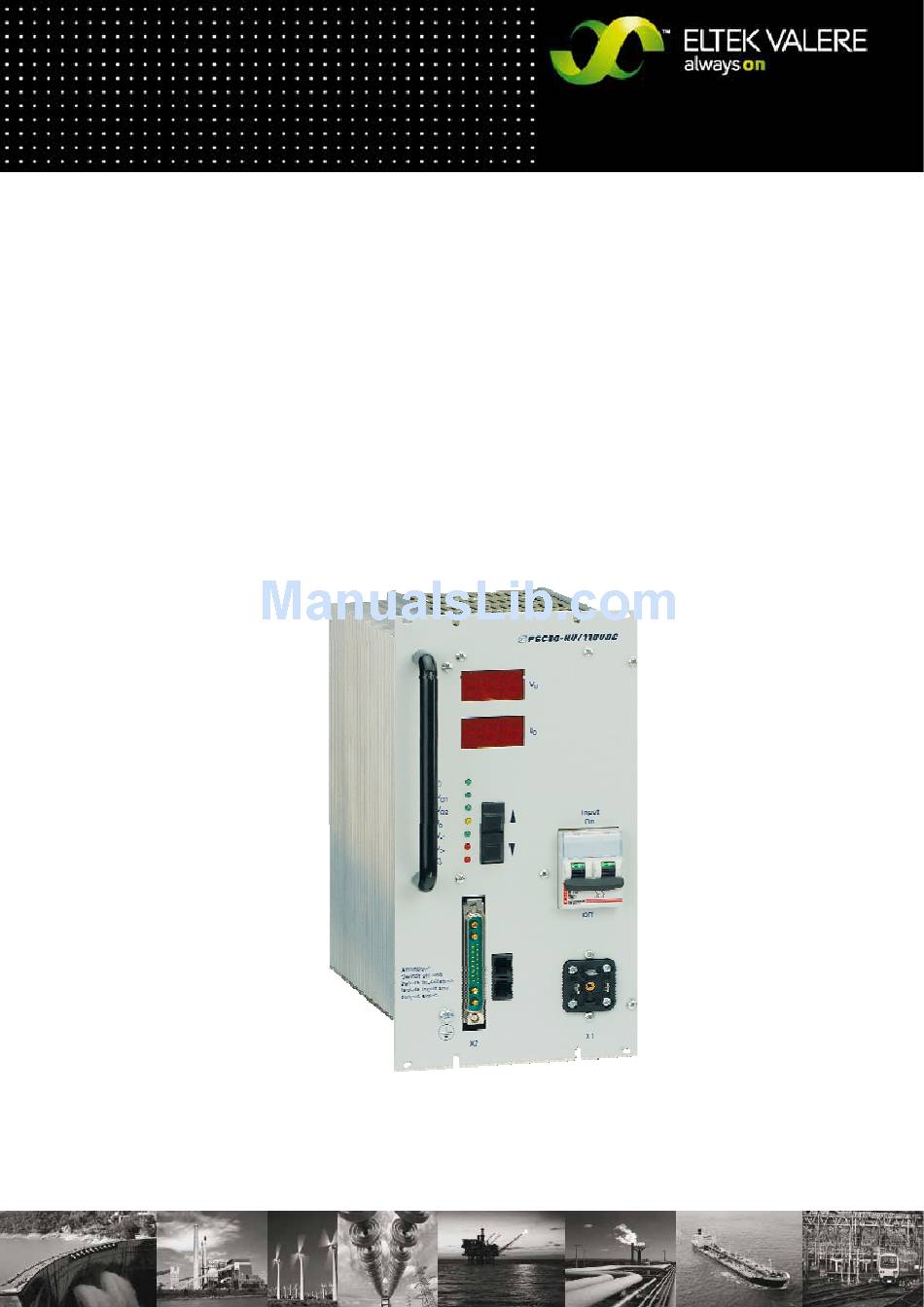

DC/DC Converter PSC30 User Manual UM_PSC30_E_EVD_2011-01-19.doc... - Page 2 Please note: No part of this document may be reproduced or transmitted in any form or by any means -electronic or mechanical, including photocopying and recording- for whatever reason with- out the explicit written permission of Eltek Valere. Changes and errors excepted.
-
Page 3: Table Of Contents
........................18 ROUBLE SHOOTING No output voltage..........................18 Deviation of output voltage ......................18 ..........................19 ECHNICAL 10.1 General technical data........................19 10.2 Type specific data ..........................22 10.3 Dimensions/front view (24 to 110V) ...................23 10.4 Dimensions/front view (220V) ......................24 ©2009. ELTEK VALERE DEUTSCHLAND GmbH. UM_PSC30_E_EVD_2011-01-19.doc... -
Page 4: General
User Manual Page 4 (24) General The Switch Mode Power Supply unit PSC30 (named SMPS in the following) provides a maximum out- put power of 2500W. Typical application is a mains-connected secured DC-power supply source feeding parallel the con- nected battery and the consumer load. Hereby, the dynamic regulating performances are particu- larly advantageous during input voltage and consumer load deviations. -
Page 5: Start Up Procedure
The unit is operated via the operating elements arranged on the front plate. These are described in the respective sections and are assigned by the labels on the front plate of the unit (see section 7.1/7.2). ©2009. ELTEK VALERE DEUTSCHLAND GmbH. UM_PSC30_E_EVD_2011-01-19.doc... -
Page 6: Functions
DC/DC Converter PSC30 User Manual Page 6 (24) Functions Circuit diagram Fig. 1: Circuit diagram PSC30 ©2009. ELTEK VALERE DEUTSCHLAND GmbH. UM_PSC30_E_EVD_2011-01-19.doc... -
Page 7: Electrical Function Description
The SMPS series V > 60 V DC fulfil the safe electrical insulation up to V = 220 V DC according to EN 60950 and VDE 0160 Standard. ©2009. ELTEK VALERE DEUTSCHLAND GmbH. UM_PSC30_E_EVD_2011-01-19.doc... -
Page 8: Input
Furthermore, the module receives all threshold values through the CAN-Bus from the DC controller unit. REMARK: If several paralleled modules are controlled by a central DC controller unit, it is important to assign an explicit CAN-Bus address to each individual DC/DC converter (see section 5.4). ©2009. ELTEK VALERE DEUTSCHLAND GmbH. UM_PSC30_E_EVD_2011-01-19.doc... -
Page 9: Monitoring
10 sec. The relay contacts between Pin 14 and Pin 15 of X2 (24/48/60/110V output voltage) and Pin 12 to Pin 13 of X4 (220V output voltage) are open and between Pin 15 and Pin 16 (X2:24/48/60/110V), and Pin 13/14 (X4:220V) are closed at error. ©2009. ELTEK VALERE DEUTSCHLAND GmbH. UM_PSC30_E_EVD_2011-01-19.doc... -
Page 10: Output And Threshold Adjustment
The monitoring thresholds automatically follow the adjusted nominal values of the output voltage. The monitoring thresholds for mains/step-up-converter and over heating are not changeable. You can find the adjustment ranges for several thresholds at technical specifications. ©2009. ELTEK VALERE DEUTSCHLAND GmbH. UM_PSC30_E_EVD_2011-01-19.doc... -
Page 11: External Functions
. The voltage value can be adjusted by the user (see section 5.4). NOTE: For 60/110/220V units: For the connection to +V an additional series resistor is to be used (60 V: 18kOhm; 110 V: 56kOhm; 220V: 150kOhm). ©2009. ELTEK VALERE DEUTSCHLAND GmbH. UM_PSC30_E_EVD_2011-01-19.doc... -
Page 12: Operation Elements/Connectors
Adjustment keys „UP“ and „DOWN“ Input-side fuse; ON-/OFF switch Locking slide for the DC connector DC output connector X2 (& signals) Two CAN-Bus connectors (RJ11, 6-pole) DC input connector X1 PE connector (M4 bolt) ©2009. ELTEK VALERE DEUTSCHLAND GmbH. UM_PSC30_E_EVD_2011-01-19.doc... -
Page 13: Front View/Operation Elements (220 V Version)
LED indications Adjustment keys „UP“ and „DOWN“ Input-side fuse; ON-/OFF switch DC output connectors X2 Signals/CAN-Bus connectors X4 DC input connector X1 PE connector (M4 bolt) ©2009. ELTEK VALERE DEUTSCHLAND GmbH. UM_PSC30_E_EVD_2011-01-19.doc... -
Page 14: Indication Instruments
4/PE* + DC - Input *PE is only available for PSC30, Vin=220VDC. For PSC30, Vin=110VDC, Pin 4 must be connected to plus (+) DC input according to the table above due to the higher input current. The PE connection (bolt M4) is available at the front plate of the module (see pictures "Front view" above). - Page 15 The input is free of potential with safe electrical decoupling to primary side (500V DC to secondary side). The relay outputs are free of potential with safe electrical decoupling to primary side (500V DC to secondary side). ©2009. ELTEK VALERE DEUTSCHLAND GmbH. UM_PSC30_E_EVD_2011-01-19.doc...
- Page 16 40 A) (-) - output (additional for I (-) - output X4: Signals/15 x COMBICON 1.5mm Pin assignment of X4 for PSC30/220V with signalling relay (without CAN-Bus) Function (+) external switch ON/OFF (-) external switch ON/OFF Opto coupler emitter Opto coupler collector "Mains O.K."...
- Page 17 DC/DC Converter PSC30 User Manual Page 17 (24) Pin assignment of X4 for PSC30/220V with CAN-Bus (without signalling relay) X4, pin Function (+) external switch on/off (-) external switch on/off optocoupler emitter optocoupler collector "Mains O.K." optocoupler collector "VO O.K."...
-
Page 18: Maintenance
→ switch the unit off and on again and check the adjusted value of V> (see section 5.4)! If the module still does not work even though all checks have been done, contact your sales agent or the ELTEK VALERE DEUTSCHLAND service department. Deviation of output voltage - Operates the module in constant current mode (overload)? →... -
Page 19: 10. Technical Data
LED operation monitoring „V “ greenLED output voltage low „V<„ green LED; additional relay contact output voltage high „V>„ red LED constant current mode „I “ yellow LED over temperature blinking red LED ©2009. ELTEK VALERE DEUTSCHLAND GmbH. UM_PSC30_E_EVD_2011-01-19.doc... - Page 20 VDE 0160 rev. 5.88 section 7.2.2 Painting color RAL 7035 (front panel only) Dimensions 262 x 142 x 405 mm H x W x D (1/3-19“ x 6HU) Connectors Mains connector X1 3-pole, type GDM 2011 ©2009. ELTEK VALERE DEUTSCHLAND GmbH. UM_PSC30_E_EVD_2011-01-19.doc...
- Page 21 User Manual Page 21 (24) DC connector X2 24-110V DC: SUB-Min-D-connector 21WA4 220V DC: front terminals 8 x 4mm , COMBICON (DC-output); front terminals 15 x 1.5mm (signal contacts) None-fused earthed conductor bolt M4 ©2009. ELTEK VALERE DEUTSCHLAND GmbH. UM_PSC30_E_EVD_2011-01-19.doc...
-
Page 22: 10.2 Type Specific Data
48 to 60 86.4 to 110 173 to 220 19.2 to 24 DC-Overvoltage V> in V DC Threshold value Adjusting range 26 to 30 52 to 60 66 to 75 119 to 135 238 to 270 ©2009. ELTEK VALERE DEUTSCHLAND GmbH. UM_PSC30_E_EVD_2011-01-19.doc... -
Page 23: Dimensions/Front View (24 To 110V)
DC/DC Converter PSC30 User Manual Page 23 (24) 10.3 Dimensions/front view (24 to 110V) ©2009. ELTEK VALERE DEUTSCHLAND GmbH. UM_PSC30_E_EVD_2011-01-19.doc... -
Page 24: Dimensions/Front View (220V)
DC/DC Converter PSC30 User Manual Page 24 (24) 10.4 Dimensions/front view (220V) ©2009. ELTEK VALERE DEUTSCHLAND GmbH. UM_PSC30_E_EVD_2011-01-19.doc...
