K10109
Left
L12845
Door Linea
1 pcs
Right
L12846
Door Linea
1 pcs
BP00417
K15355
Mounting plate
Hinge 155 degrees
10 pcs
10 pcs
Bumper
Screw flh
7x1,5 mm
3,5x15 mm
10 pcs
24 pcs
31-08-2015 1
/
Side
2 pcs
+
L08043
Door Linea
1 pcs
L08042
+
Door Linea
1 pcs
BP00028-BP00033-BP00250(x2)-BP20707
Euro screw
Shelf support
6,3x11 mm
14x12 mm 5
4 pcs
H880,080(170)
K31115
Base top
2 pcs
K71115
Base-top
1 pcs
Door connector
200x20x2,5
4 pcs
4 pcs
K12340
Shelf
1 pcs
K13315
Support
1 pcs
Glue
Angle
15 gr
45x55x30x2 mm
4 pcs
1 pcs
1 /
7
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Kvik H880,080
Summary of Contents for Kvik H880,080

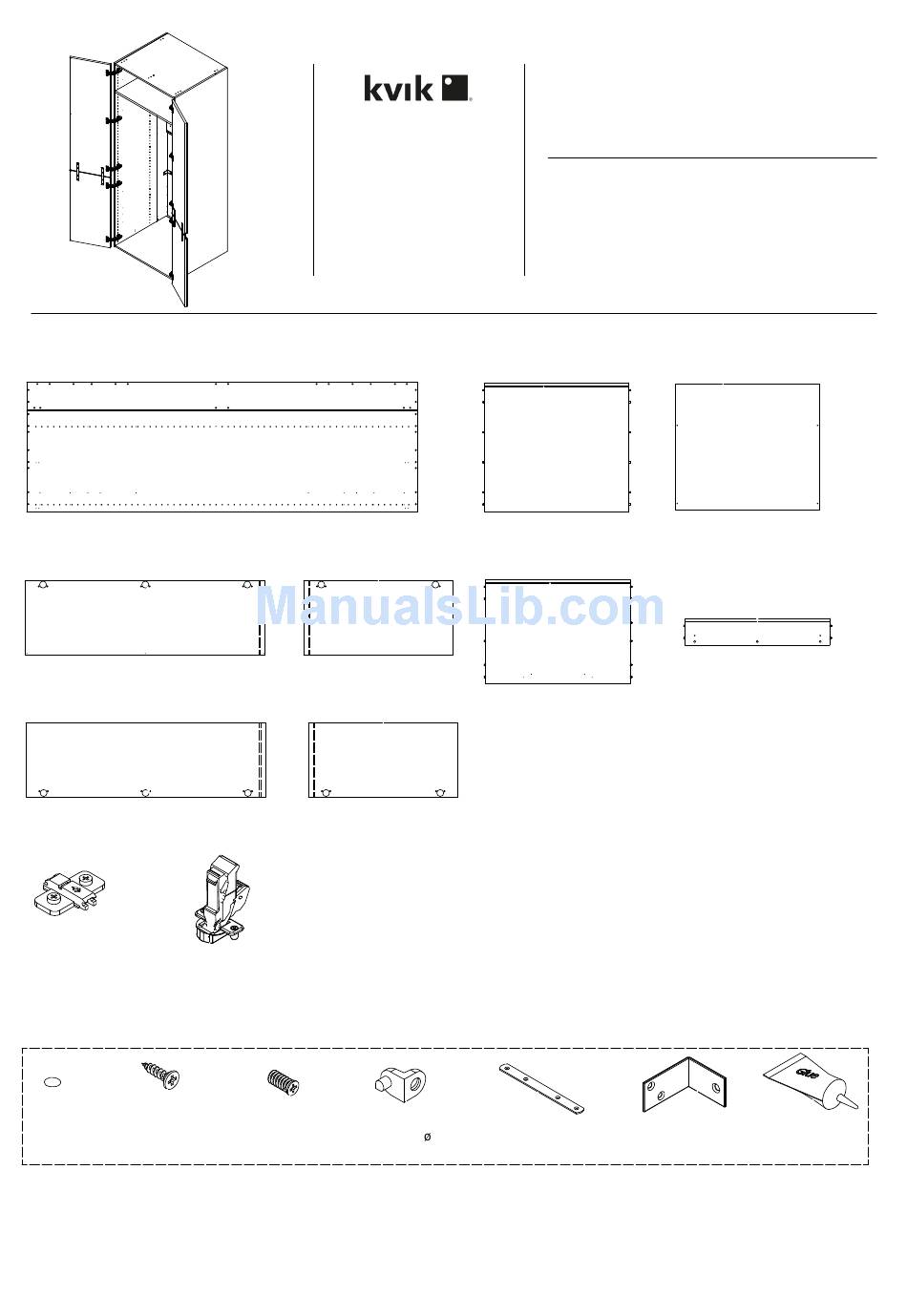

- Page 1 H880,080(170) K31115 K12340 Base top Shelf K10109 Side 1 pcs 2 pcs 2 pcs Left K13315 Support L12845 L08043 K71115 Door Linea Door Linea Base-top 1 pcs 1 pcs 1 pcs Right 1 pcs L12846 L08042 Door Linea Door Linea...
