DH195,060,000
K71155
Base-top
2 pcs
K12122
Shelf
1 pcs
BP00417
Mounting plate
Hinge 107 degrees
2 pcs
Cap left
Cap right
1 pcs
1 pcs
Bumper
Screw flh
7x1,5 mm
3,5x15 mm
18 pcs
8 pcs
23-06-2016 0a
/
K12122
Shelf
2 pcs
K13520
Back panel
2 pcs
BP00418
2 pcs
H00060 Ewiva
Arm left
Arm right
1 pcs
1 pcs
BP00020-BP00018-BP00033(2x)-BP00032
Screw flh
Shelf support
3,5x45 mm
14x12 mm 5
20 pcs
12 pcs
H868,060
HS20860,000
K10110
L04860
Door
2 pcs
Connecting rod
1 pcs
Euro screw
Front list holder
6,3x11 mm
25x10 mm 6
2 pcs
12 pcs
Side
2 pcs
Front list
L04863
Door
1 pcs
Spring left
Spring right
1 pcs
1 pcs
Screw ph
3x16 mm
4 pcs
L00460
1 pcs
Mounting plate
2 pcs
1 /
13
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Kvik H868,060
Summary of Contents for Kvik H868,060

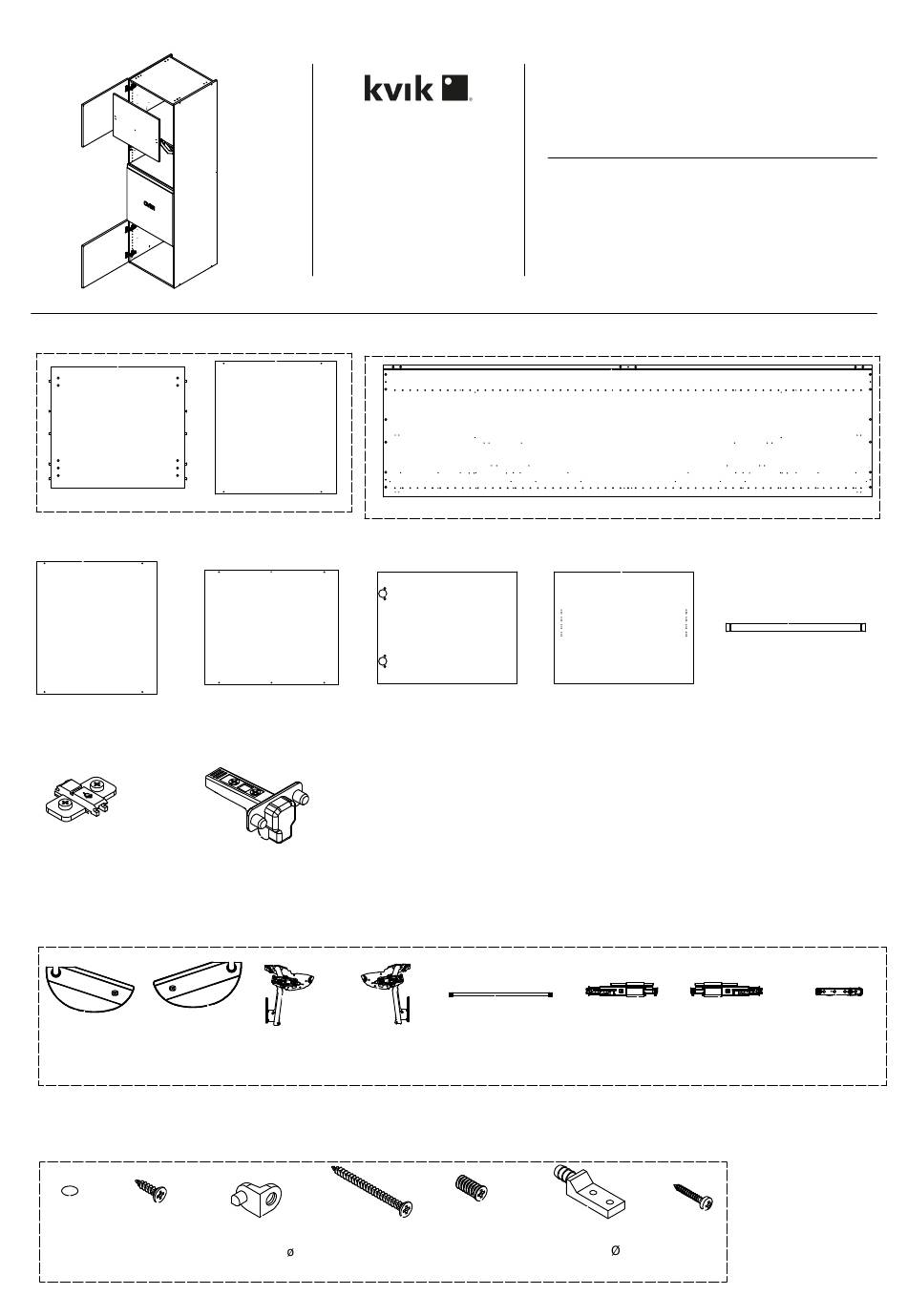

- Page 1 H868,060 DH195,060,000 HS20860,000 K12122 K71155 K10110 Shelf Base-top Side 2 pcs 2 pcs 2 pcs L00460 Front list L04863 K12122 L04860 K13520 Shelf Door Door Back panel 1 pcs 2 pcs 1 pcs 2 pcs 1 pcs BP00417 BP00418 Mounting plate...
- Page 2 H868,060 FIG. Side L Euro screw 6,3x11 mm 6 pcs Shelf support 14x12 mm 5 6 pcs K10110 Side FIG. Side L K10110 Side 23-06-2016 0a...
- Page 3 H868,060 FIG. Side L Screw flh 3,5x15 mm EWIVA 5 pcs Arm left 1 pcs K10110 Side FIG. Side R Euro screw 6,3x11 mm 6 pcs Shelf support 14x12 mm 5 6 pcs K10110 Side 23-06-2016 0a...
- Page 4 H868,060 FIG. Side R K10110 Side FIG. Side R Screw flh EWIVA 3,5x15 mm Arm right 5 pcs 1 pcs K10110 Side 23-06-2016 0a...
- Page 5 H868,060 FIG. EWIVA EWIVA Spring left Spring left Click Left Right K10110 Side K10110 Side FIG. K71155 Base-top K10110 Side K71155 Base-top 23-06-2016 0a...
- Page 6 H868,060 FIG. Screw flh 3,5x45 mm 4 pcs K10110 Side FIG. Screw flh 3,5x45 mm 4 pcs 23-06-2016 0a...
- Page 7 H868,060 FIG. K12122 Shelf K12122 Shelf 3 pcs K12122 Shelf K12122 Shelf FIG. K13520 Back panel Screw flh 3,5x45 mm 12 pcs K13520 Back panel 23-06-2016 0a...
- Page 8 H868,060 FIG. Screw ph 3x16 mm 4 pcs Front list holder 25x10 mm 6 Flush 2 pcs L00460 Front list Press 23-06-2016 0a...
- Page 9 H868,060 Adjustment L00460 Front list L00460 Front list EWIVA Connection rod EWIVA Connection rod Adjustment 23-06-2016 0a...
- Page 10 H868,060 Click Click Cap left Screw flh 3,5x15 mm 8 pcs Bumper 7x1,5 mm EWIVA Bumper Mounting plate 7x1,5 mm 2 pcs Bumper 7x1,5 mm L04863 Door Bumper 7x1,5 mm 23-06-2016 0a 10 /...
- Page 11 H868,060 L04863 Door Click Click BP00418 BP00417 Hinge 107 degrees Mounting plate 2 pcs 2 pcs Bumper 7x1,5 mm L04860 Door L04860 Door Bumper 7x1,5 mm 23-06-2016 0a 11 /...
- Page 12 H868,060 Left Right L04860 L04860 Door Door L04860 L04860 Door Door Adjustment 23-06-2016 0a 12 /...
- Page 13 H868,060 23-06-2016 0a 13 /...
