Ohlins SD197 Mounting Instructions

Mounting Instructions
-
with set up data
Before installing this product, read the Öhlins Owner's Manual!
Öhlins Racing AB, Box 722, S-194 27 Upplands Väsby, Sweden. Phone +46 8 590 025 00 Fax +46 8 590 025 80
ÖHLINS STEERING DAMPER KIT SD197
Before installing this shock absorber,
check the contents of the kit listed
below. If anything is missing, please
contact your nearest Öhlins dealer.
Kit Contents:

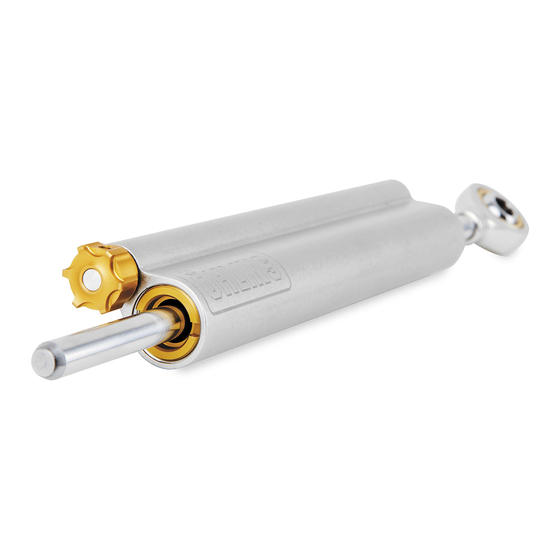

Steering Damper
Bracket assy
Screw/Spacer M6
Screw MC6S 6x25
Spacer
Nut M6
Clamp long, fork leg
Bracket, frame
Screw K6S M8x20
Öhlins Sticker yellow
Öhlins Sticker blue
Owner's Manual
During storage and transportation,
especially at high ambient temperature,
some of the oil and grease used
for assembling may leak and stain
the packaging. This is in no way
detrimental to the product, wipe off the
excessive oil/grease with a cloth.
www.ohlins.com
for Ducati 848
Part no. Pcs.
SD197 1
02230-01 1
02274-02 2
01046-17 1
02259-01 1
00430-02 2
02235-50 1
02272-22 1
05404-02 2
00192-01 2
00194-10 2
07261-02 1
