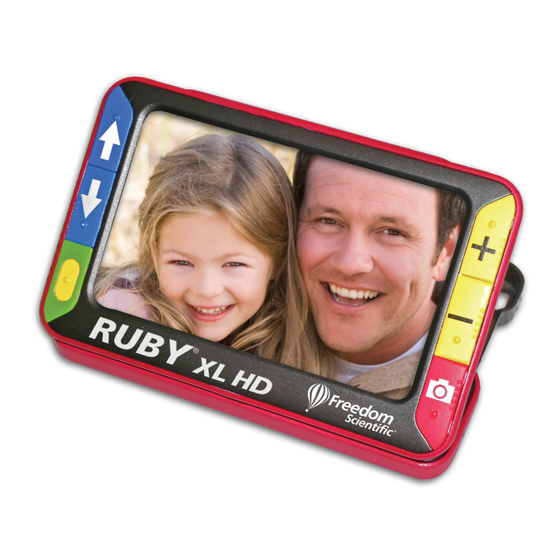

Freedom Scientific RUBY XL HD Plus User Manual

Handheld video
Hide thumbs
Table of Contents

Advertisement

Quick Links

®
RUBY
XL HD+
Handheld Video Magnifier
User's Guide
440930-001 Rev. A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RUBY XL HD Plus and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Freedom Scientific RUBY XL HD Plus

Summary of Contents for Freedom Scientific RUBY XL HD Plus

  • Page 1 ® RUBY XL HD+ Handheld Video Magnifier User’s Guide 440930-001 Rev. A...
  • Page 2 Court North, St. Petersburg, Florida 33716-1805, USA www.FreedomScientific.com. ® Copyright © 2017 Freedom Scientific, Inc. All Rights Reserved. RUBY is a trademark of Freedom Scientific, Inc., in the United States and other countries. Information in this document is subject to change without notice.

  • Page 3: Table Of Contents

    Table of Contents Read Me First ......................1 Overview......................... 2 Quick Start ......................4 Hardware Description ..................... 7 Charging RUBY XL HD+ ..................10 Battery LED Descriptions ..................12 Button Descriptions ....................13 Opening and Closing the Handle ................. 14 Opening and Using the Reading Stand ..............
  • Page 4 Changing Color Modes ..................19 Switching Between the Last Used Color Mode and Full Color ......20 Adding and Removing Color Modes ..............21 Resetting Default Color Modes ................23 Color Modes ......................23 Default Color Modes ..................23 Additional Color Modes .................. 24 Freezing an Image ....................
  • Page 5 Saving and Deleting an Image ................31 Viewing Saved Images ..................32 Saving an Image When Memory is Full ............... 33 Storage Mode Icons ..................... 34 Transferring Images ..................... 35 Displaying a Slide Show ..................39 Troubleshooting ....................41 Technical Specifications ..................46...

  • Page 7: Read Me First

    Read Me First  ® Before using RUBY XL HD+ for the first time, you must charge its battery. A full charge takes approximately three hours.  Refer to Charging RUBY XL HD+ on page 10 for battery charging procedures. ...

  • Page 8: Overview

    Overview Thank you for purchasing RUBY XL HD+. RUBY XL HD+ is a portable, handheld video magnifier that can magnify an object from two to 14 times its size. It has a 5-megapixel, auto-focus camera that provides sharp HD quality images that are easily viewed on its full color, 5-inch LCD screen.
  • Page 9 With the reading stand open, you can place the unit directly on a document and read printed text or images in magazines, catalogs, menus, photographs, and other printed material. RUBY XL HD+ can save and store up to 80 images that can easily be copied to a computer through a simple USB connection.

  • Page 10: Quick Start

    Quick Start Below are steps to quickly set up and use RUBY XL HD+ for the first time. Make sure the unit is fully charged. Refer to page 10. Press the Power button to power on the unit. Refer to page 13. Do one of the following.
  • Page 11 Adjust the magnification using the Plus or Minus buttons ( Refer to page 18. Select a color mode ( ) for contrasting colors that best suit your vision needs. Refer to page 19. Freeze the image on the LCD screen so that you may take your time reading details in the image.
  • Page 12  Use the reading line or reading masks to help you maintain your place while reading text. Refer to page 27.  Save, view, and delete images stored on the unit as described on pages 30 through 33.  For additional storage, transfer images from the unit to your computer as described on page 35.

  • Page 13: Hardware Description

    Hardware Description Color Mode Scroll Up Magnification Increase Color Mode Scroll Down Magnification Decrease Power Freeze Frame LCD screen...
  • Page 14 USB port (micro-USB) Power connector (5V; 2.1A) Battery LED Handle in closed position...
  • Page 15 Handle in closed position LED lights Camera (5 MP)

  • Page 16: Charging Ruby Xl Hd

    Charging RUBY XL HD+ Note: You must use the supplied power adapter to charge the unit. It cannot be charged using the computer’s USB port. Plug one end of the power adapter into the unit and the other end into a wall outlet (1).
  • Page 17 The LED stops blinking and glows a steady green once the battery is charged. Unplug the power adapter from the unit. The battery indicator LED turns off. You can now use RUBY XL HD+ for approximately three hours of continuous use. When the battery is low, the battery indicator LED flashes red.

  • Page 18: Battery Led Descriptions

    Battery LED Descriptions Green – Solid: Battery charged Green – Flashing: Battery charging Red – Flashing: Battery low Red – Solid: Battery error. Refer to Troubleshooting, page 41. Off: Power adapter not connected...

  • Page 19: Button Descriptions

    Button Descriptions Power: Press to power on. Press it again to power off. Magnification: Press and HOLD for continuous zoom magnification with live images. When viewing frozen images, press and release to incrementally increase or decrease magnification. Color Mode: Press to cycle through five default color modes and 15 additional color modes.

  • Page 20: Opening And Closing The Handle

    Opening and Closing the Handle The handle rotates to two open positions so that the unit can be held like a magnifying glass.

  • Page 21: Opening And Using The Reading Stand

    Opening and Using the Reading Stand RUBY XL HD+ also incorporates a reading stand so that it can be set on a document allowing you to read an item at a convenient and consistent distance. On the top edge of the unit, use one thumb to push the ridge (1) in one direction while using your other thumb to push one of the tabs (2) in the opposite direction.
  • Page 22 The unit is spring loaded and opens to its full reading position. If the unit is off, it automatically powers on when the reading stand opens.
  • Page 23 Next, place the unit on a flat item, such as a document or photo, to view and read it. When you close the reading stand, the unit automatically powers off.

  • Page 24: Magnifying Live Images

    Magnifying Live Images When viewing a live image, you can use continuous zoom magnification between 2x and 14x.  Press and HOLD the Plus button to zoom in.  Press and HOLD the Minus button to zoom out. Magnifying Frozen or Saved Images You can freeze and then save an image that displays on the LCD screen.

  • Page 25: Changing Color Modes

    Changing Color Modes A color mode is a pre-defined color combination (for example, yellow text on a blue background) that you can select when reading items with RUBY XL HD+. The unit has five default color modes: Full Color; Black on White (high-contrast positive);...

  • Page 26: Switching Between The Last Used Color Mode And Full Color

    Switching Between the Last Used Color Mode and Full Color RUBY XL HD+ provides the convenience of quickly switching between the last color mode used and full color, or vice versa. This shortcut is useful when looking at a live image (for example, while holding and reading a document) and using a color mode that provides the best contrast for you.

  • Page 27: Adding And Removing Color Modes

    Adding and Removing Color Modes RUBY XL HD+ has five default color modes. You can also activate and choose from a variety of 15 other color modes. Once a color mode is available, you can easily switch to it using the Up or Down arrow buttons ( To add or remove other color modes, do the following: Press and HOLD the Power button and then press the Up arrow...
  • Page 28 Note: By disabling a color mode, it is no longer available as you cycle through the color modes using the Up or Down buttons during normal operation. To scroll to the next color mode, press the Up arrow while STILL holding the Power button ...

  • Page 29: Resetting Default Color Modes

    Resetting Default Color Modes If you have added or removed color modes that display on the screen, you can always restore RUBY XL HD+ to its five default color modes.  Press and HOLD the Power button and the Up arrow button simultaneously for 15 seconds.

  • Page 30: Additional Color Modes

    White on Black – high-contrast negative Yellow on Blue Yellow on Black Additional Color Modes    Black on Yellow Blue on Black Black on Amber    Green on Black Blue on Yellow Violet on Black  ...

  • Page 31: Freezing An Image

    Freezing an Image Freezing an image on the LCD screen can be useful for reading labels on items on a store shelf. By holding the unit close to the item and freezing the image, you can then hold it close enough for you to read. Press the Freeze Frame button to freeze the image.

  • Page 32: Turning Off Led Lights

    Turning Off LED Lights When you power on RUBY XL HD+, the LED lights also turn on. To avoid glare when viewing reflective surfaces, you can turn off the LED lights. Press and HOLD the Power button , and then press the Freeze Frame button .

  • Page 33: Using Reading Line Or Reading Masks

    Using Reading Line or Reading Masks The reading line is a horizontal line that displays on the screen. Reading masks block part of the screen to show a horizontal slice of the screen. Use these items to help you locate and maintain your place while viewing an image. When using the button sequence as described below, the unit cycles through displaying the reading line, the reading masks, and then no reading line or masks.
  • Page 34 Press and HOLD the Power button (1) and then press the Plus button (2) or the Minus button (3) to move the reading line up or down on the screen.

  • Page 35: Displaying Reading Masks

    Displaying Reading Masks Press and HOLD the Power button (1) and then press both Plus and Minus ( (2) and (3)) again to remove the reading line and display the reading masks on the screen as shown in the next figure.

  • Page 36: Storage Mode

    Press and HOLD the Power button (1) and then press the Plus button (2) or the Minus button (3) to increase or decrease the distance between the masks. To remove reading masks from the screen, press and HOLD the Power button (1) and then press and HOLD both Plus and Minus buttons (2) and...

  • Page 37: Saving And Deleting An Image

    Saving and Deleting an Image After freezing an image on the screen, you can save it by doing the following. Press and HOLD the Freeze Frame button for three seconds to enter Storage mode. The Save Image check box is automatically selected and displays for three seconds.

  • Page 38: Viewing Saved Images

    Viewing Saved Images RUBY XL HD+ can store up to 80 images. You can easily scroll through the images using the blue arrow buttons ( Press and HOLD the Freeze Frame button for approximately six seconds to enter Review mode. ...

  • Page 39: Saving An Image When Memory Is Full

    Saving an Image When Memory is Full RUBY XL HD+ can store approximately 80 images. If you try to save another image when the unit’s memory is full, the Memory Full icon displays on the screen. To add another image, you must first remove one or more saved images from memory.

  • Page 40: Storage Mode Icons

    Storage Mode Icons Save: Press Plus and Minus ( ) at the same time to select the check box. The image is saved when you exit Storage mode. Delete: Press Plus and Minus ( ) at the same time to clear the check box.

  • Page 41: Transferring Images

    Transferring Images Images stored on RUBY XL HD+ can be transferred to your computer using the supplied USB cable. Any image moved from RUBY XL HD+ to your computer can easily be moved back to the unit. To do this, do the following: Connect the supplied USB cable to the unit (1) and the computer.
  • Page 42  The battery icon indicates the current battery status. Note: The unit does not charge and images do not display on the screen while it is connected to a computer’s USB port.  RUBY XL HD+ displays as an external device in Windows Explorer or Finder (Mac).
  • Page 43 Figure 1. Image files in DCIM folder...
  • Page 44 From a computer back to RUBY XL HD+ Note: Only images saved by RUBY XL HD+ can be copied back to the unit.  Locate the image on your computer using Windows Explorer or Finder (Mac).  Select the image and move it to the RUBY XL HD+ DCIM folder. When you are finished transferring files, make sure that you safely eject (remove) the unit from your computer.

  • Page 45: Displaying A Slide Show

    Displaying a Slide Show You can create a slide show that loops continuously using the images saved on the unit. Each image displays for approximately five seconds. The order that images display is based on their file names, for example, IMG_0001.bmp, IMG_0002.bmp, and so on.
  • Page 46 To start the slide show, do the following: Press and HOLD the Freeze Frame button for approximately six seconds to enter Review mode. Press and HOLD the Power button , and then press the Up arrow . The first image stored on the unit, based on its file name, displays on the LCD screen for approximately five seconds followed by the second image, the third, and so on.

  • Page 47: Troubleshooting

    Troubleshooting The unit does not power on.  Press the Power button . If the unit does not power on, charge the battery. Note: The battery does not charge when the unit is connected to a USB port. The screen is blank. ...
  • Page 48  Verify that the item you want to magnify is positioned correctly under the camera window.  Press the Magnification buttons ( ) to step through the magnification levels.  Press the Color Mode buttons ( ) to step through the color modes.
  • Page 49 The battery LED is solid red while the power adapter is connected to the unit.  A battery error has occurred. Unplug the power adapter from the unit and plug it in again.  If the problem continues, disconnect the power adapter and contact Technical Support.
  • Page 50 The battery is not charging.  Use the supplied power adapter to charge the unit. The battery does not charge when the unit is connected to a USB port.  Make sure the small end of the power adapter is firmly plugged into the unit’s power port.
  • Page 51 Text is too small or too large to read.  Press the Magnification buttons ( ) to increase or decrease magnification. For live images, press and HOLD a Magnification button for continuous zoom magnification. For frozen or saved images, press a magnification button to zoom in or out one step at a time.

  • Page 52: Technical Specifications

    Technical Specifications  LCD widescreen: 5 inches (127 mm); tilts approximately 40 degrees in reading mode  Body size: 5.5 inches high (139.7 mm) 3.5 inches wide (88.9 mm) 0.8 inches deep (20.3 mm)  Weight: 10.5 oz. (298 grams) ...
  • Page 53  Camera: 5 MP HD, auto-focus camera  Image resolution: 800 x 480 pixels  Color: 24-bit  Battery: Li-ion battery; approximately 3 hours of continuous use; charges in approximately 3 hours Note: Only use the supplied power adapter to charge the battery.
  • Page 54 Federal Communications Commission Notice This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 55 Industry Canada Notice  This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Regulatory Compliance  Safety: IEC 60950-1 ed2.0, UL 60950-1:2007, CSA C22.2.60950-1:2007, EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:20122 ...
  • Page 56 Safety and Maintenance  Do not attempt to repair the unit or open its case. This product contains no user serviceable parts. Any unauthorized attempt to service or replace internal components will void the product warranty.  Do not remove the battery. It is not user serviceable. ...
  • Page 57 Cleaning the LCD Screen  Power off and unplug the unit before cleaning the LCD screen.  Always use a clean microfiber cloth.  Very gently wipe the cloth across the screen. Do not press hard on the cloth or screen. ...
  • Page 58 Warranty and Registration Congratulations on your purchase of the RUBY XL HD+ Handheld Video Magnifier. The unit and its accessories come with a 2-year warranty against manufacturing defects. Note: These devices have no user-serviceable components. Any unauthorized attempt to service or replace internal components by opening the case will void the product warranty.
