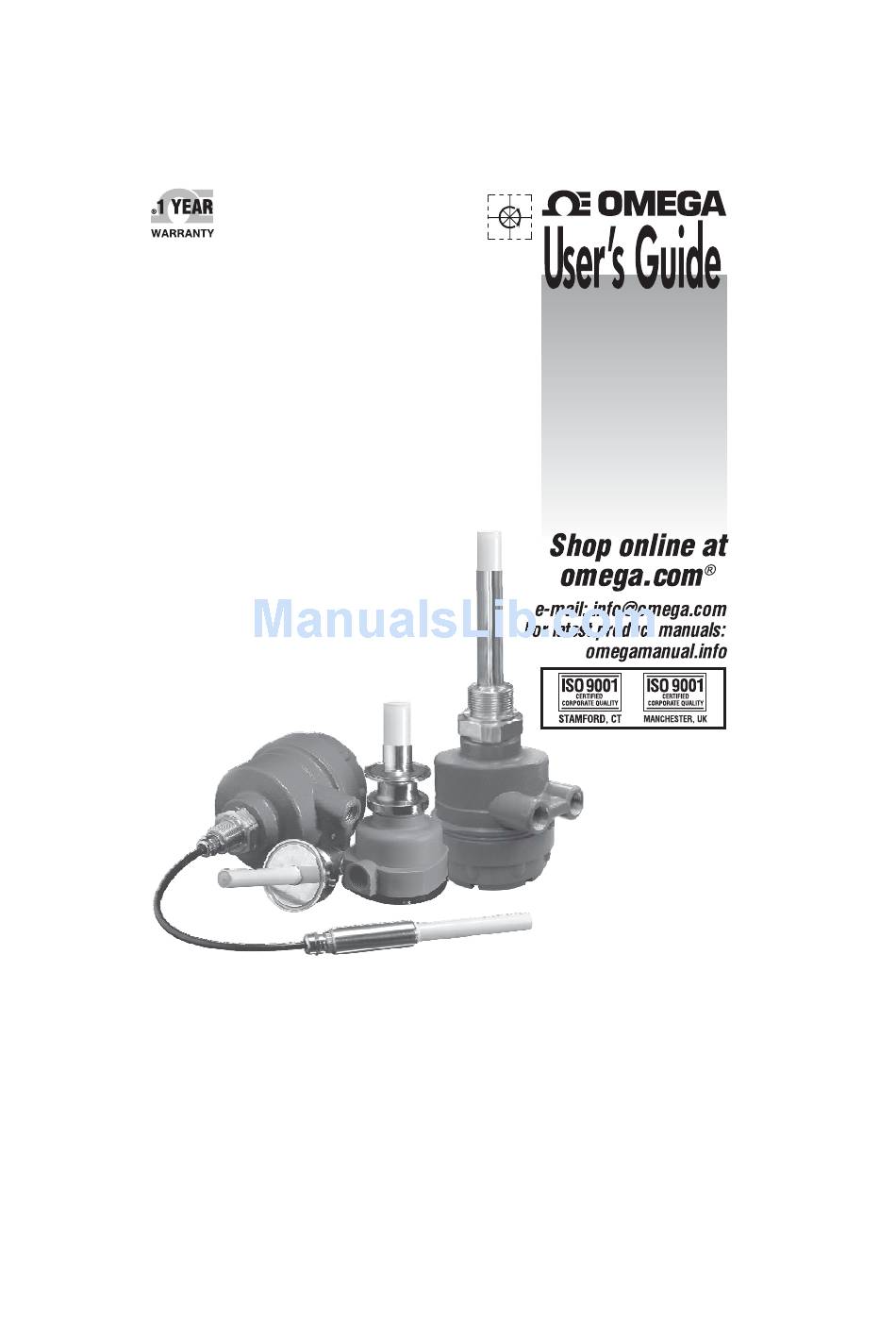

- Page 1 ® LVCN6000/7000 Series Capacitive Point Level Detection...
- Page 2 ®...
-
Page 3: Table Of Contents
Warranty & Disclaimer ........15 www.omega.com e-mail: info@omega.com... -
Page 4: Introduction
® Introduction LVCN6000/7000 Capacitive Point Level Detection The LVCN Series are capacitance switches ideal for High/Low level detection for liquid, solids, granular materials and pastes. These units can also detect level without being in contact with the product through a sight glass. Unlike other capacitance probes, the LVCN6000/7000 can detect conductive, non-conductive or low dielectric materials with extremely accurate performance without requiring an external reference or installation in a metal vessel. -
Page 5: Models & Dimensions
20mm Process Connections ANSI 150# Threaded Connections Tri-Clamp Connection Flange Connections ANSI 300# 3/4” 1 ½” 1” 1” 1 ½” 2” TC Connection Rubber Seal 1 ½” 2” 2 ½” Process Connection 2 ½” 3” 2” 1,75 www.omega.com e-mail: info@omega.com... -
Page 6: Wiring Diagram
® Wiring Diagram L1 - Power ON (Green) L2 - Output Status (Red L3 - Sensor Status (Delay) Yellow P1 - Sensibility Adjustment P2 - Time Delay Adjustment LVCN7000 Nylon Housing Relay Contact Power Supply 24Vdc 5A-250Vac - Positive DC 2 - Negative DC 3 - Ground NO Contact... -
Page 7: Relay Status Guide
Yellow LED Switch Position Level NO - NC Green LED Red LED Probe covered Maximum fail-safe Probe uncovered Probe covered Minimum fail-safe Probe uncovered LVCN7000 Level Red LED SPDT Green LED Yellow LED Probe uncovered Probe covered www.omega.com e-mail: info@omega.com... -
Page 8: Installation
® Installation Installation Verify that the location the probe is to be mounted is clear from the stream of product (Fig. 1). Fig. 3 500mm When installing more than one probe in your Fig. 1 process, verify that they are separated by a minimum distance of 500mm (Fig. - Page 9 Fig. 7 properly in viscous, coating mediums with high salt content (high di-electric), especially when mounting from the side of the vessel. Sitron does not recommend using this product in this type of application unless otherwise specified. www.omega.com e-mail: info@omega.com...
-
Page 10: Calibration
® Calibration Fig.1 1. Turn both potentiometers (P1 and P2) fully ® LVCN counterclockwise before begin (Fig. 1). 2. Install the probe and power it on. The L1 green 20 sec. Sensitivity Delay LED should be on. 3. With the vessel empty (or the medium not in contact with the sensor), turn the sensibility Fig.2 LVCN... -
Page 11: Handling
Periodic visual inspection of the probe is required to check for corrosion or deposit build-up. If deposits are found, clean the sensor to ensure Fig. 5 optimum performance. When cleaning the rod use a soft brush or any other similar object. www.omega.com e-mail: info@omega.com... -
Page 12: Technical Specifications
® Technical Specifications LVCN7000 SC700 24Vdc C NC Application Level switch for liquids solids and granular Operating Voltage 24 Vdc +/- 10% Current Consumption Relay (SPDT) 5A max (250Vac) Output Adjustment Potentiometer - Switch Point Time Delay Potentiometer 1 to 20 seconds Frequency oscilation 5MHz Level indication... - Page 13 3/4” to 1 1/2” BSP or NPT flange or sanitary connections Process Connection POM (Polyoxymethylene), PTFE or PVC Wetted Material Glass filled nylon, Aluminium Enclosure Material Max pressure 145 PSI (10 Bar) 14 to 176º F (-10 to 80ºC) Operating Temperature Class Protection IP 65 www.omega.com e-mail: info@omega.com...
-
Page 14: Trouble Shooting
® Trouble Shooting Fault Cause Solution Green LED Off Verify current supply No power Doesn’t Power Up Bad contact Verify cable connection Doesn’t Low sensibility Adjust sensibility trimpot Detect Medium Clean sensor then Always On Build up on the sensor adjust sensibility...
